Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

16 part groups · 2 illustrations

Illustrations

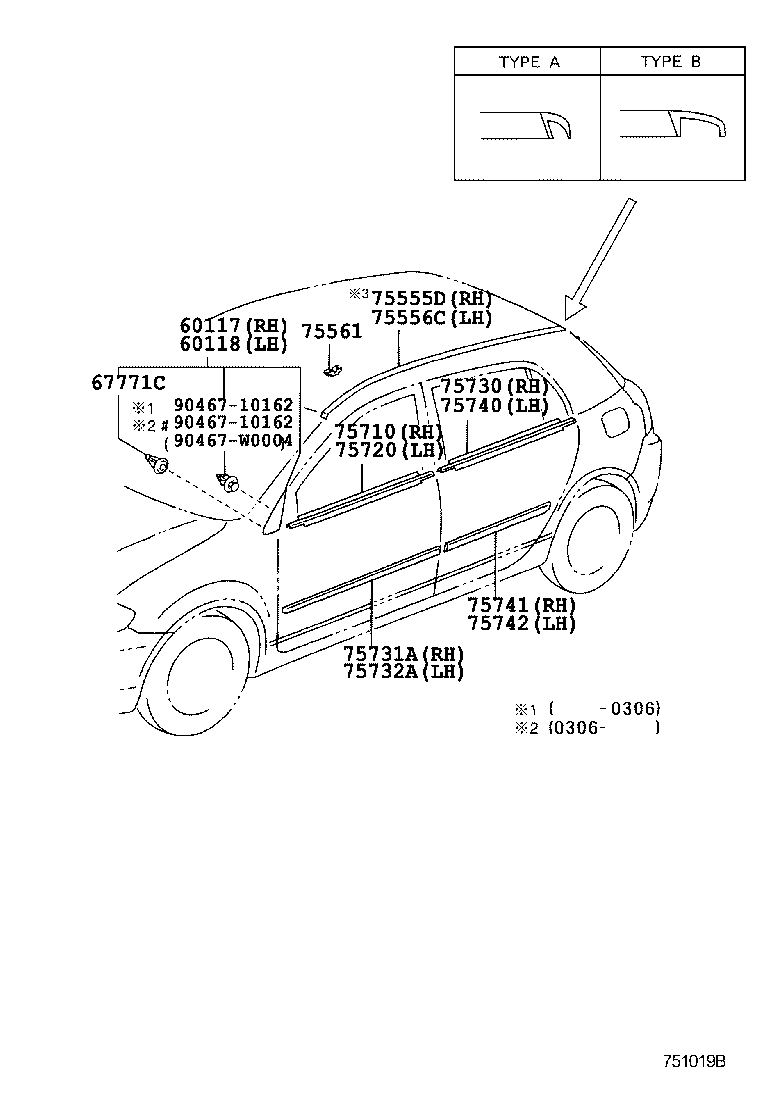

Figure 751020B 751020B 2001-11 → — Figure 751019B 751019B 2001-11 → —

Part groups

PNCDescription
60117 Cover Sub-assy, Front Pillar, Upr RH
60118 Cover Sub-assy, Front Pillar, Upr LH
67771C Retainer, Front Pillar Cover
75555D Moulding, Roof Drip Side Finish, Center RH
75556C Moulding, Roof Drip Side Finish, Center LH
75561 Clip, Roof Drip Side Finish Moulding, NO.1
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
