Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Tank & Tube

43 part groups · 6 illustrations

Illustrations

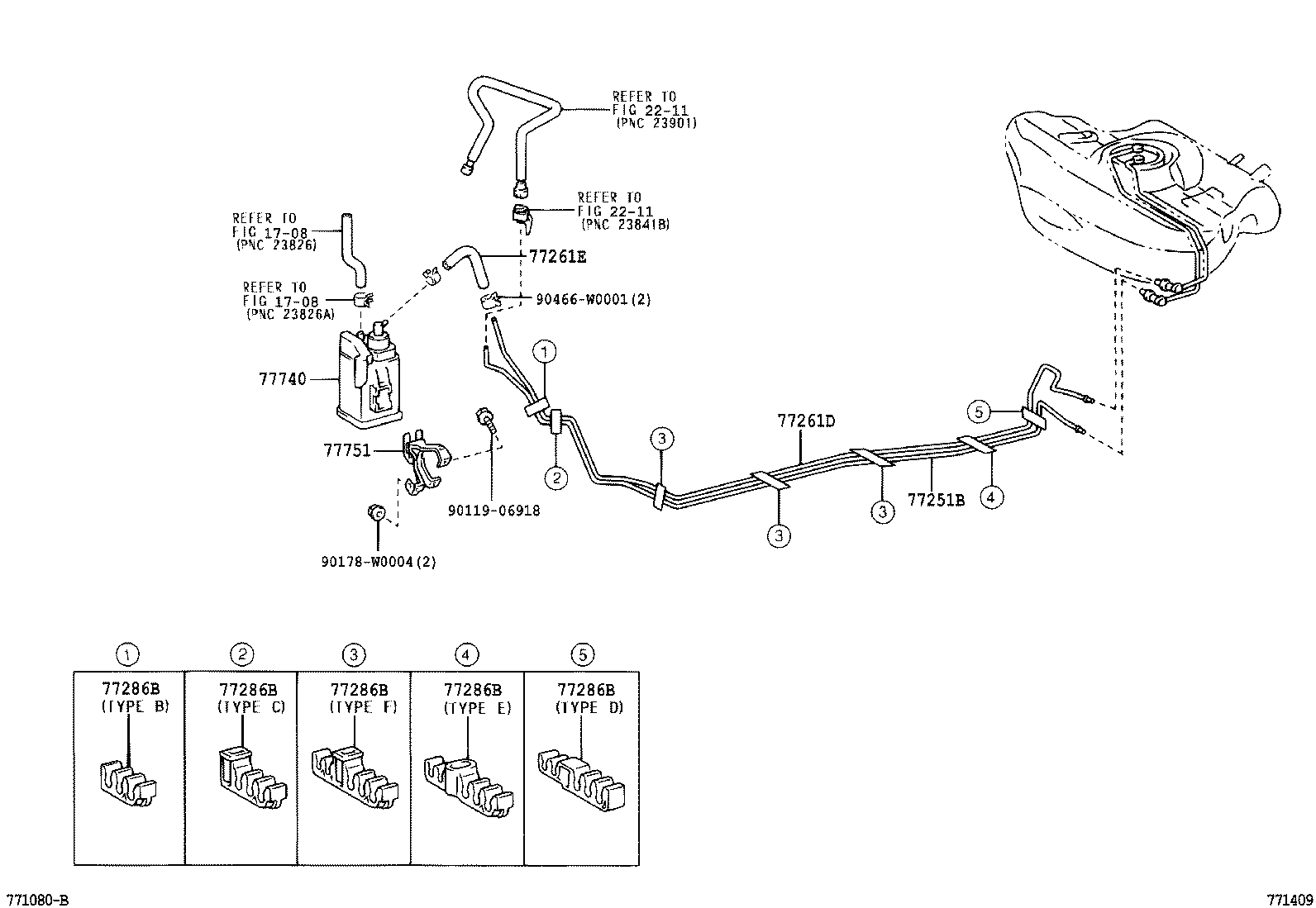

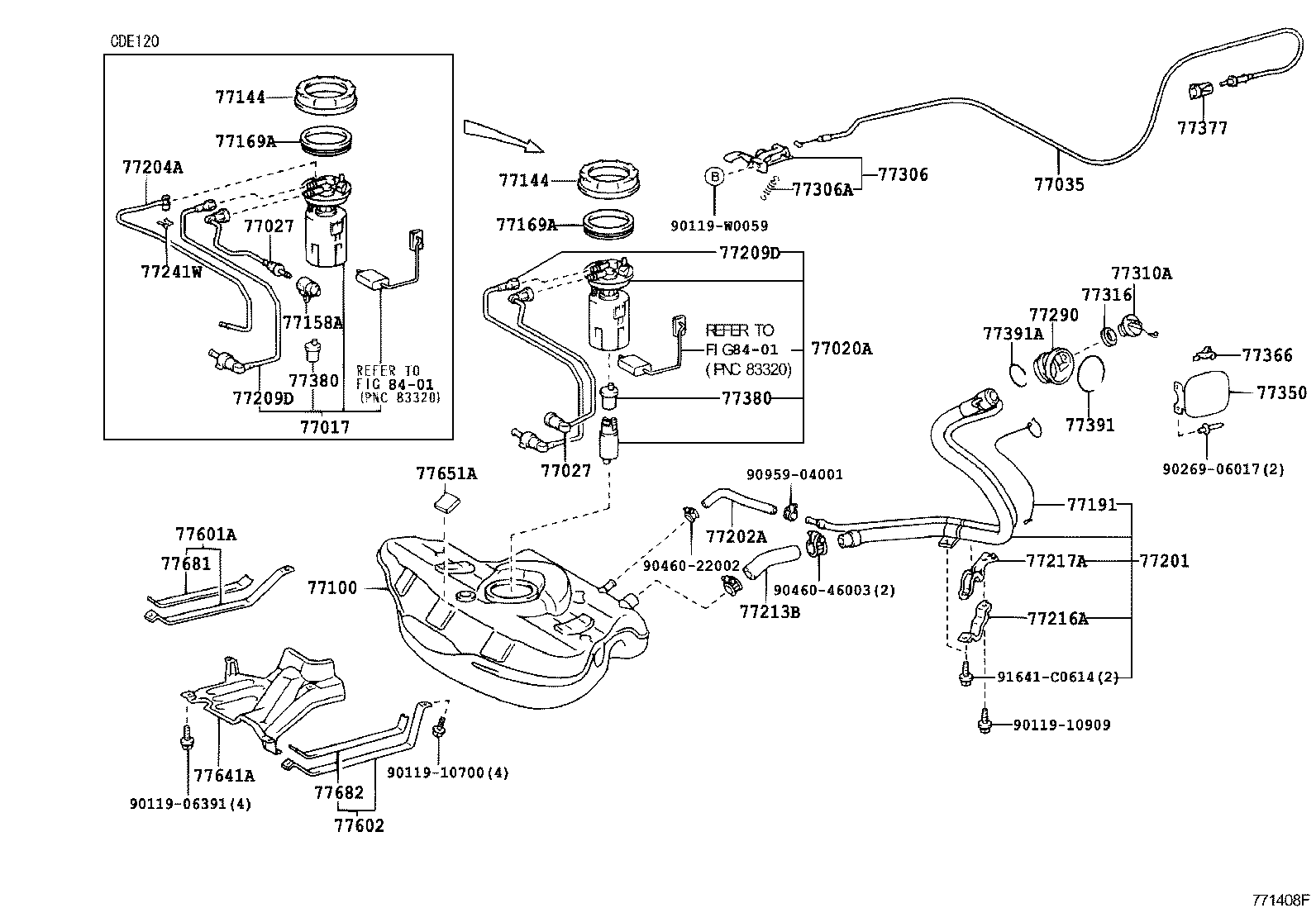

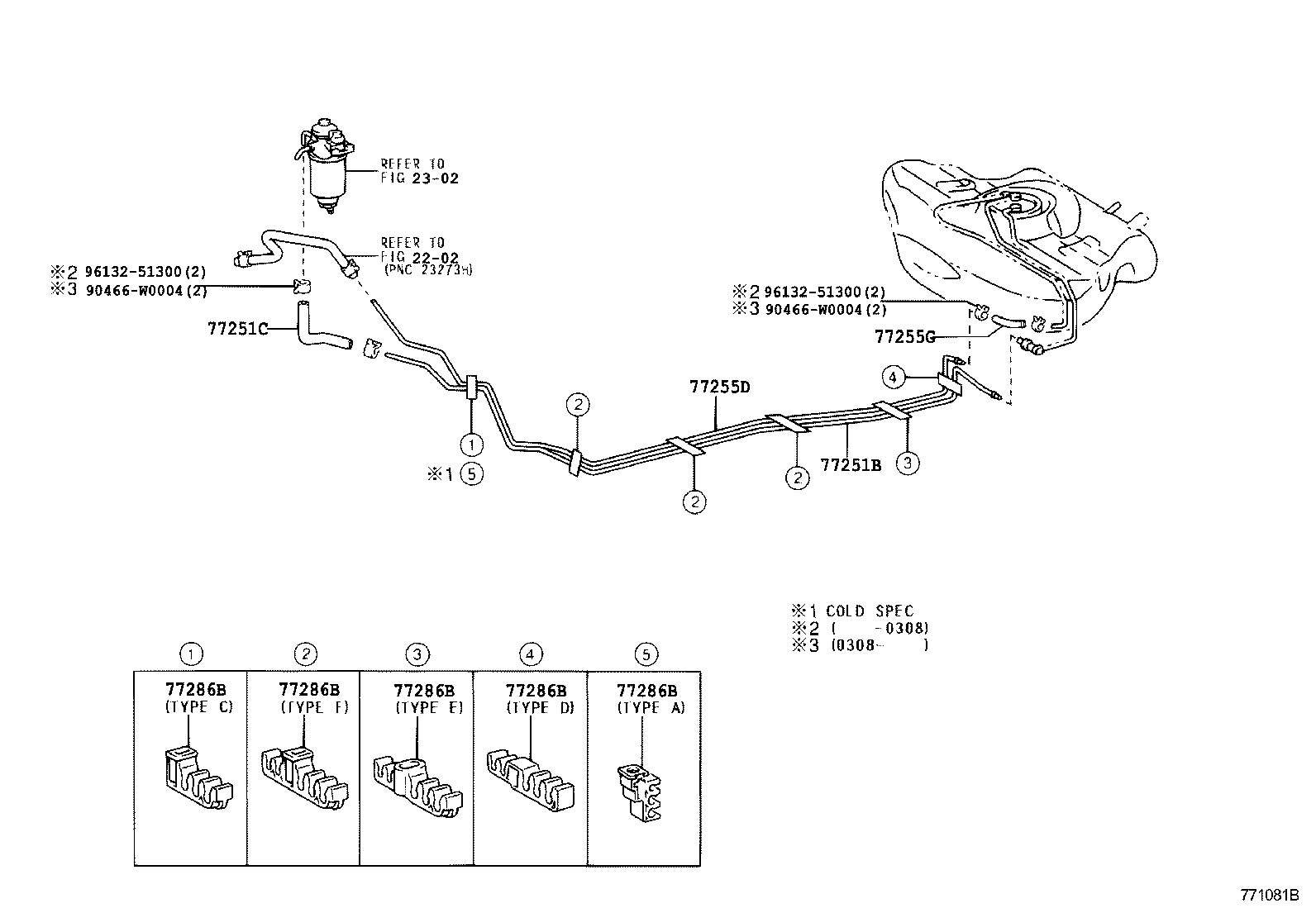

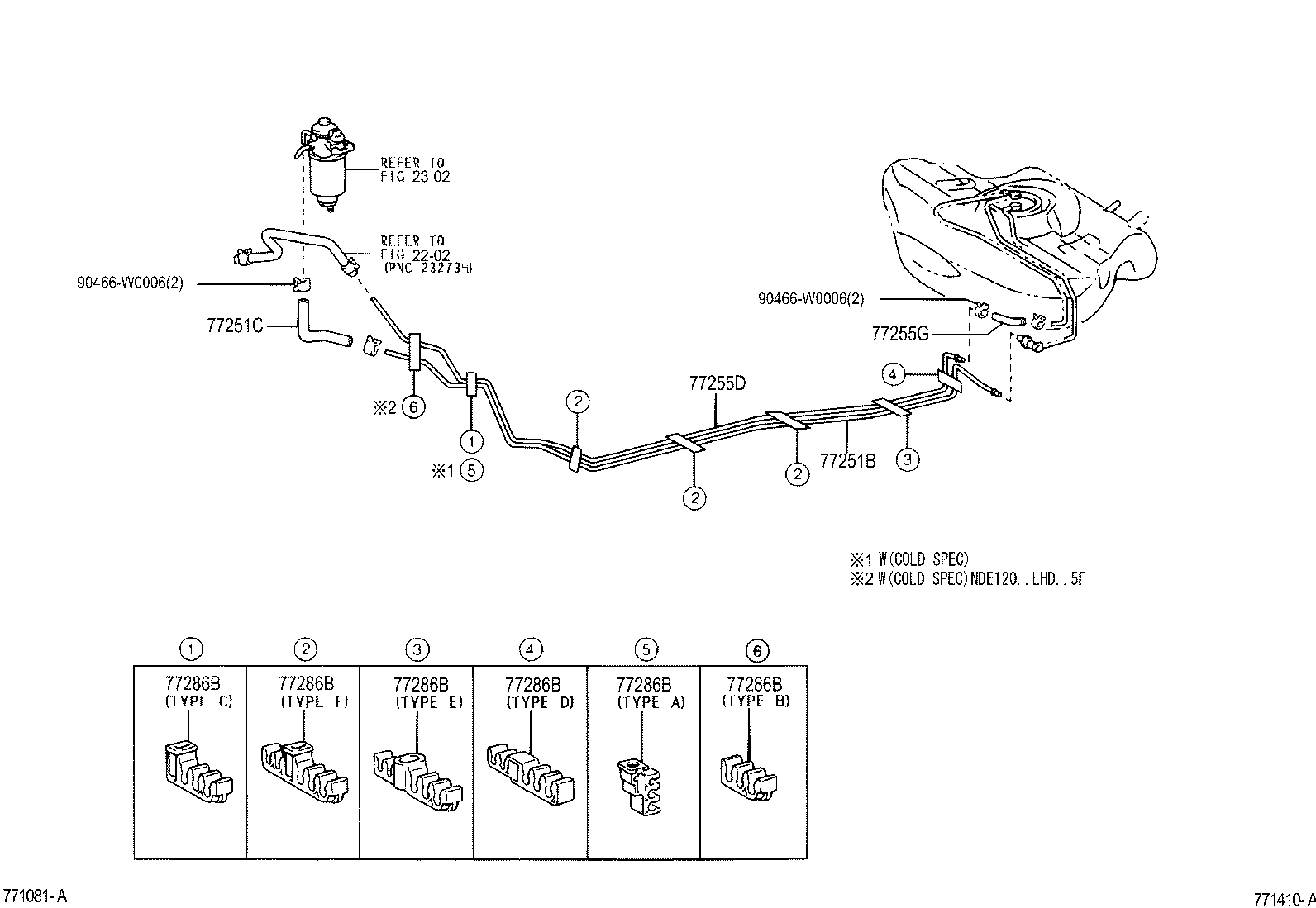

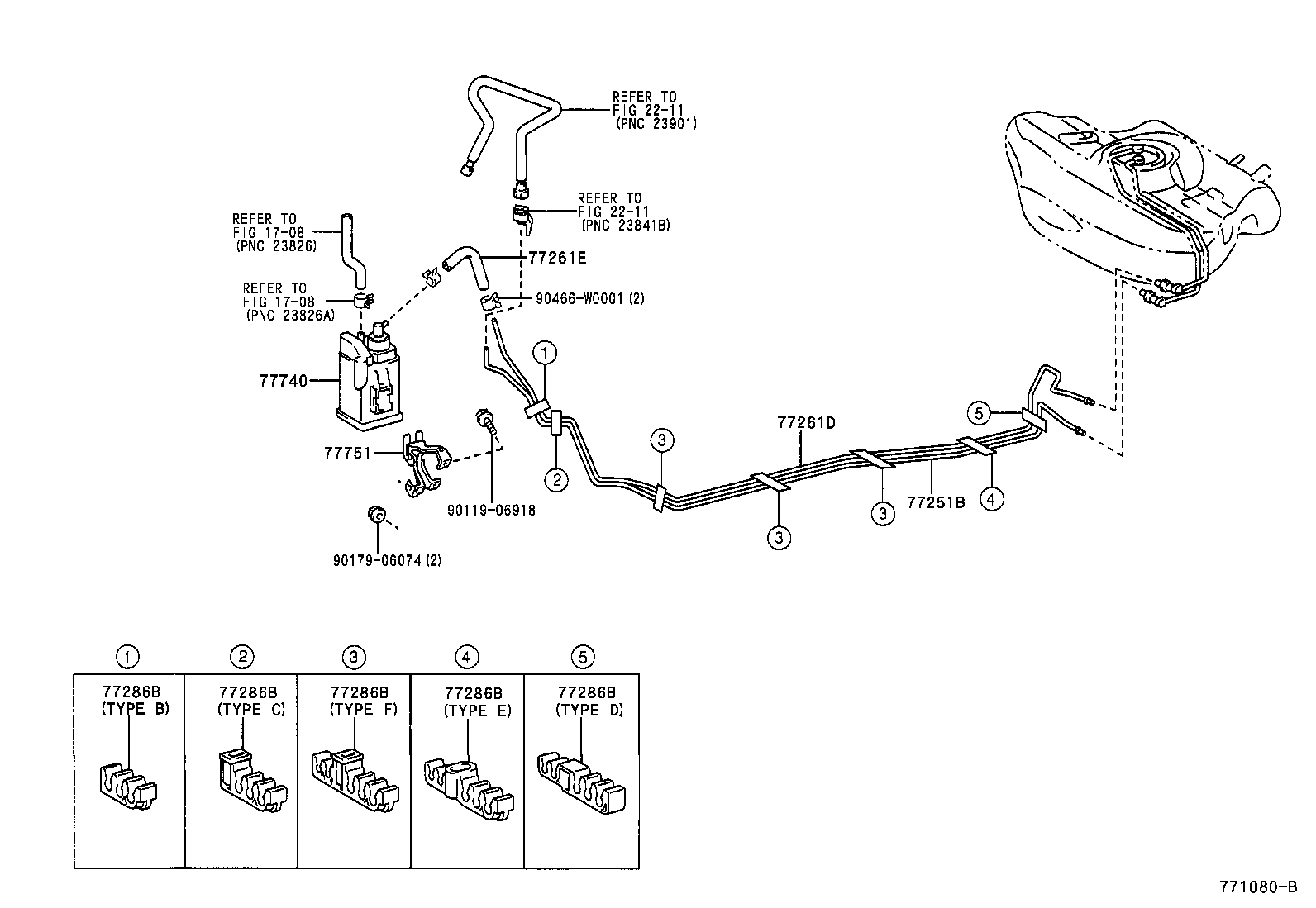

Figure 771082J 771082J 2001-11 → 2004-05 Figure 771080B 771080B 2001-11 → 2004-05 Figure 771081B 771081B 2001-11 → 2004-05 Figure 771408F 771408F 2004-05 → — Figure 771409 771409 2004-05 → — Figure 771410A 771410A 2004-05 → —

Part groups

PNCDescription
77017 Tube Sub-assy, Fuel And Evaporation Vent
77020A Tube Assy, Fuel Suction W/Pump & Gage
77027 Tube Sub-assy, Fuel Evaporation, NO.2
77035 Cable Sub-assy, Fuel Lid Lock Control
77100 Tank Assy, Fuel
77144 Retainer, Fuel Pump Gauge
77158A Support, Tank Suction Tube
77169A Gasket, Fuel Suction Tube Set
77191 Wire, Fuel Tank Earth
77201 Pipe Sub-assy, Fuel Tank Inlet
77202A Hose, Fuel, NO.1 (FOR BREATHER TUBE)
77204A Tube, Fuel Tank Return
77209D Tube Sub-assy, Fuel Tank Main
77213B Hose, Fuel Tank TO Filler Pipe
77216A Support, Fuel Tank Filler Pipe, NO.1
77217A Support, Fuel Tank Filler Pipe, NO.2
77241W Clip, Tube Joint
77251B Tube, Fuel Main
77251C Hose, Fuel, NO.1(FOR FUEL MAIN TUBE)
77255D Tube, Fuel Return
77255G Hose, Fuel Return, NO.1 (FOR FUEL RETURN TUBE)
77261D Tube, Fuel Tank TO Canister
77261E Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77286B Clamp, Fuel Tube W/Grommet, NO.2
77290 Shield Assy, Fuel Tank Filler Pipe
77306 Lever Sub-assy, Fuel Lid Lock Open
77306A Spring, Fuel Lid Open Lever
77310A Cap Assy, Fuel Tank
77316 Gasket, Fuel Tank Cap
77350 Lid Assy, Fuel Filler Opening
77366 Spring, Fuel Filler Opening Lid Hinge
77377 Retainer, Fuel Filler Opening Lid Lock
77380 Valve Assy, Fuel Cut Off
77391 Ring, Fuel Inlet Box
77391A Ring, Fuel Inlet Box
77601A Band Sub-assy, Fuel Tank, NO.1
77602 Case Sub-assy, Fuel Tank, Upper
77641A Protector, Fuel Tank, NO.1
77651A Cushion, Fuel Tank, NO.1
77681 Seat, Fuel Tank Band, RH
77682 Seat, Fuel Tank Band, LH
77740 Canister Assy, Charcoal
77751 Bracket, Charcoal Canister Base
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
