Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09
Overdrive & Electronic Controlled Transmission

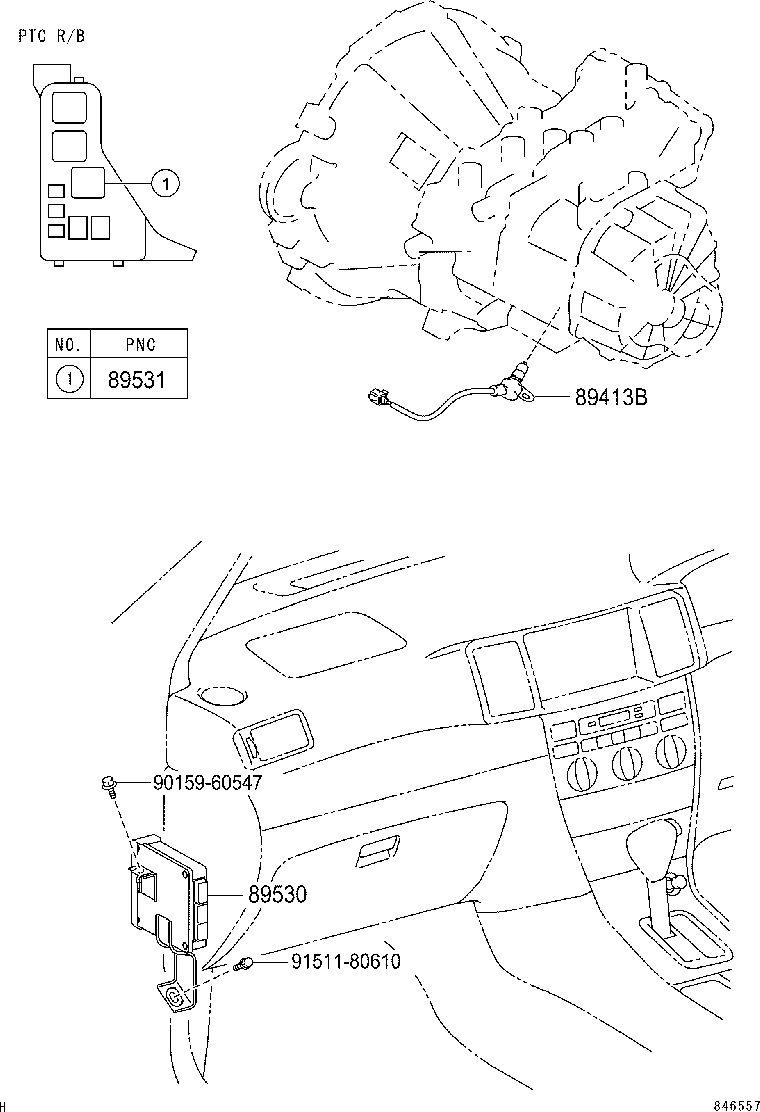

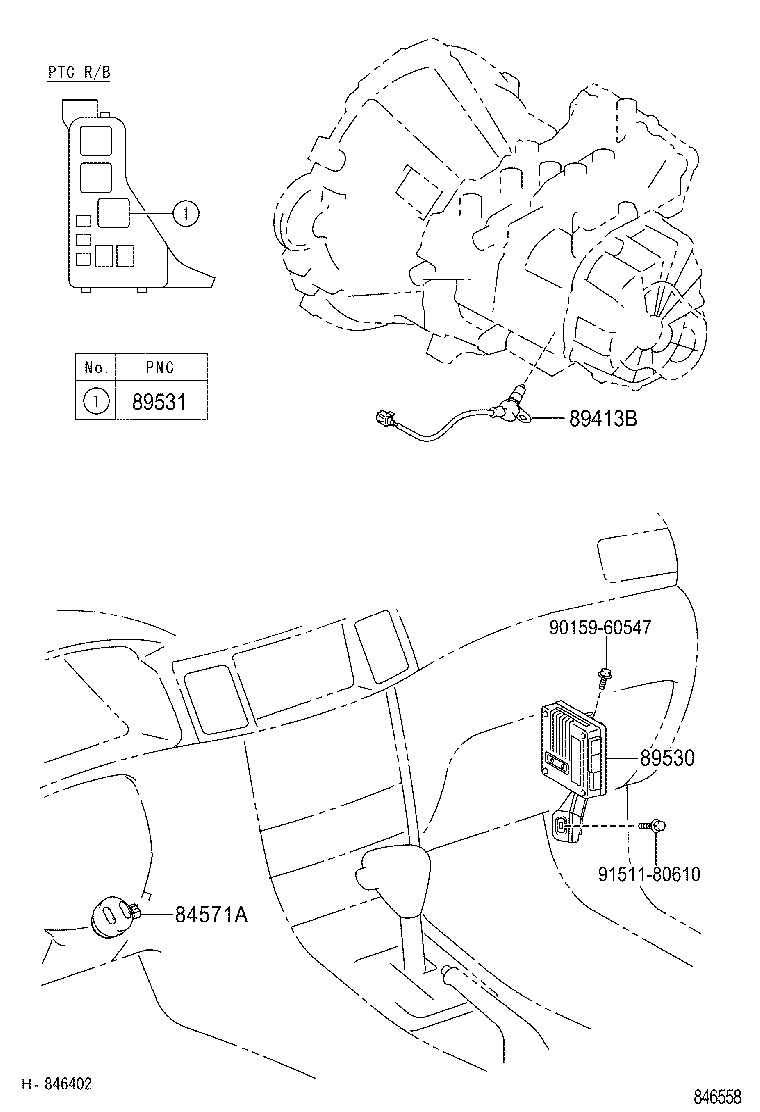

5 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 84571A | Switch, Kick Down |
| 84722 | Switch, Transmission Control |
| 89413B | Sensor, Transmission Revolution |
| 89530 | Computer Assy, Transmission Control |
| 89531 | Relay, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
