Toyota Corolla HB (UKP)

2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radio Receiver & Amplifier & Condenser

6 part groups · 2 illustrations

Illustrations

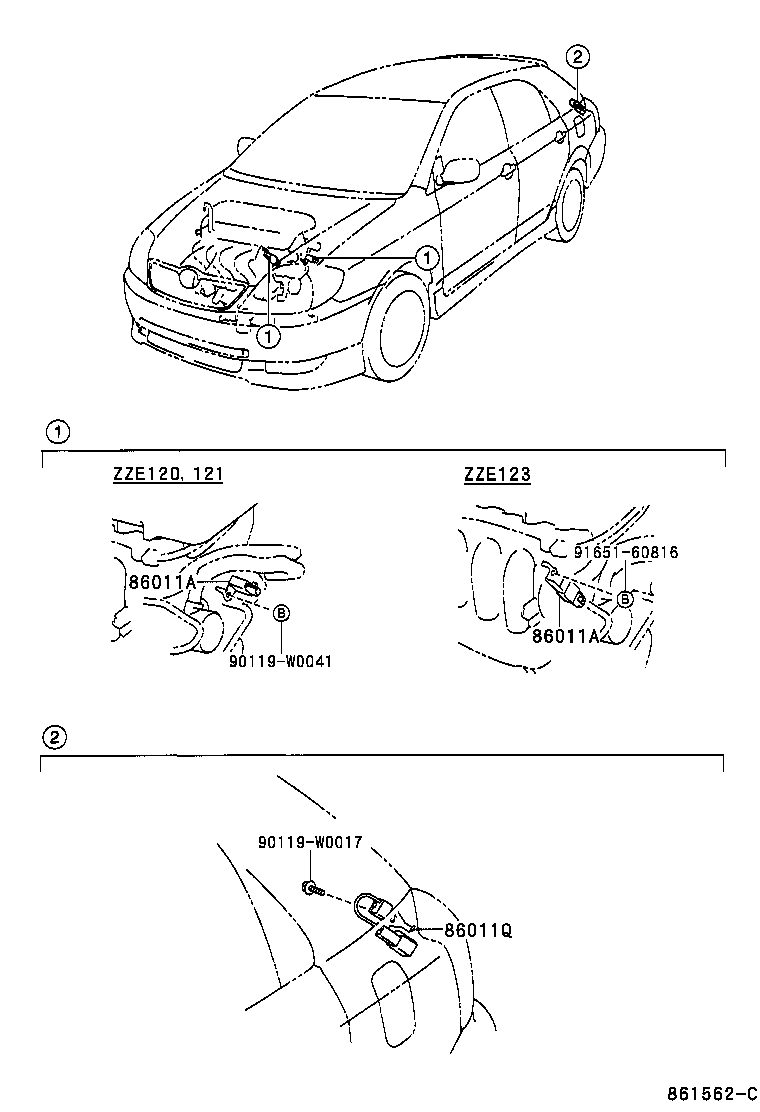

Figure 861561F 861561F 2001-11 → — Figure 861562C 861562C 2001-11 → —

Part groups

PNCDescription
86011A Condenser, Radio Setting
86011Q Condenser, Radio Setting
86120 Receiver Assy, Radio
86211 Bracket, Radio, NO.1
86212 Bracket, Radio, NO.2
86230 Controller Assy, Stereo Component
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
