Toyota Corolla HB (UKP)
2001-11 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 153550 · Europe
Discontinued model
Data version 2007-09

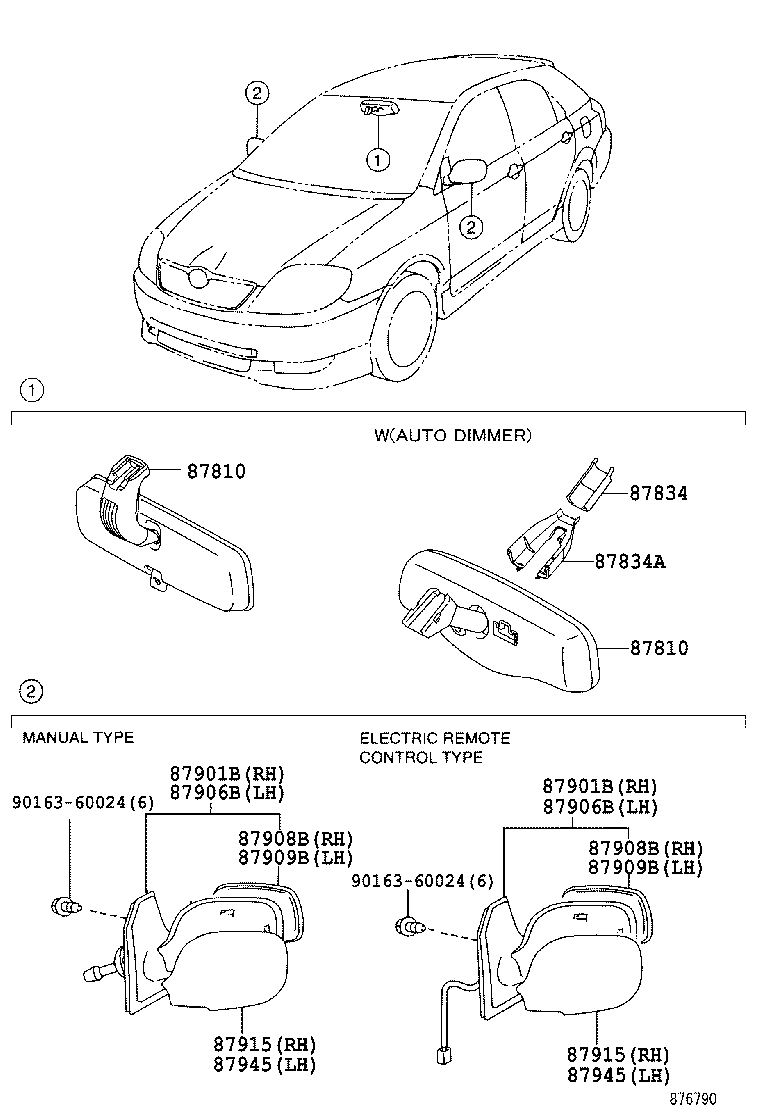

Mirror
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87810 | Mirror Assy, Inner Rear View |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87834A | Cover, Inner Rear View Mirror Stay Holder, NO.2 |
| 87901B | Mirror Sub-assy, Outer Rear View, RH |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87908B | Mirror Sub-assy, RH |
| 87909B | Mirror Sub-assy, LH |
| 87915 | Cover, Outer Mirror, RH |
| 87945 | Cover, Outer Mirror, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
