Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

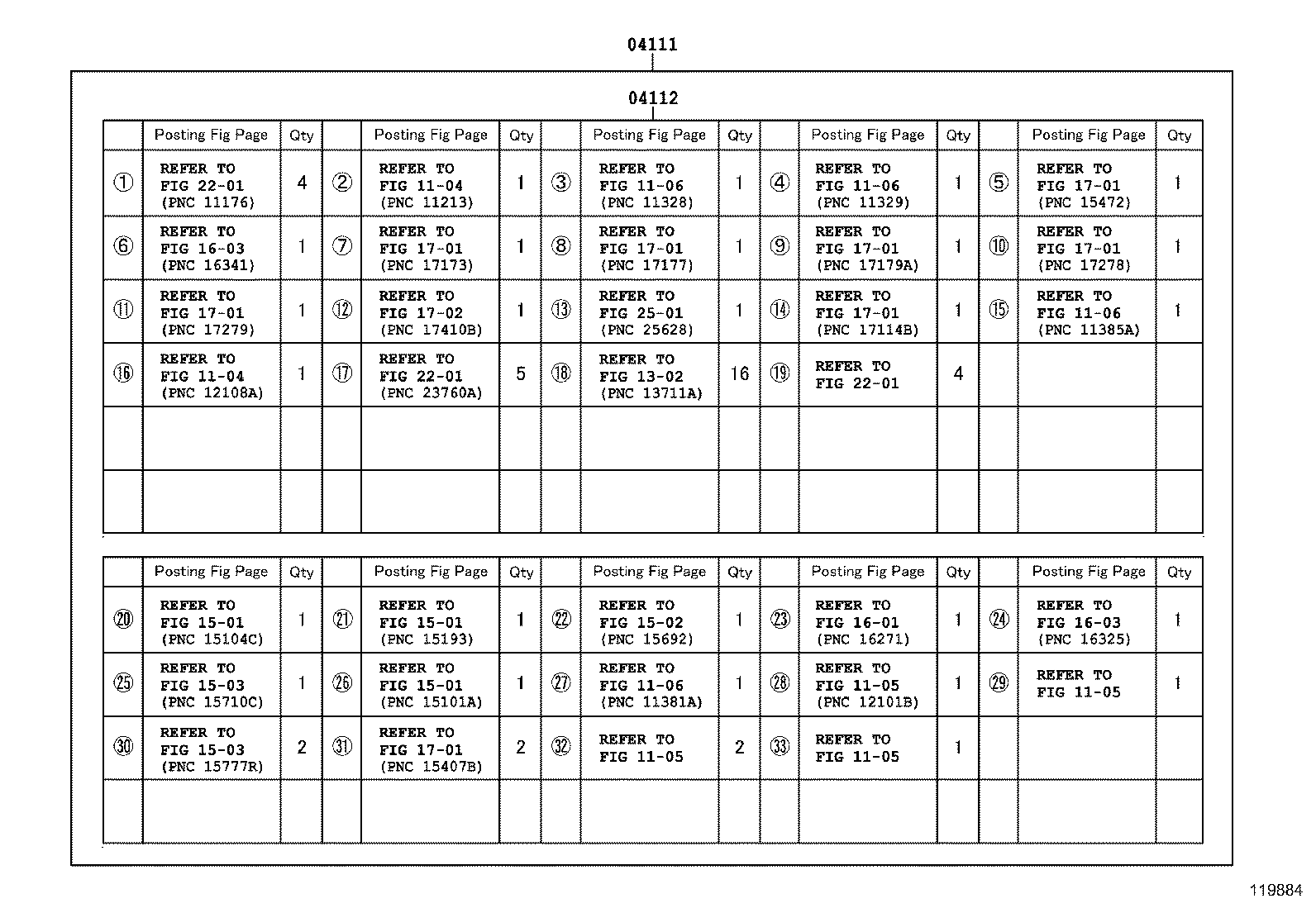

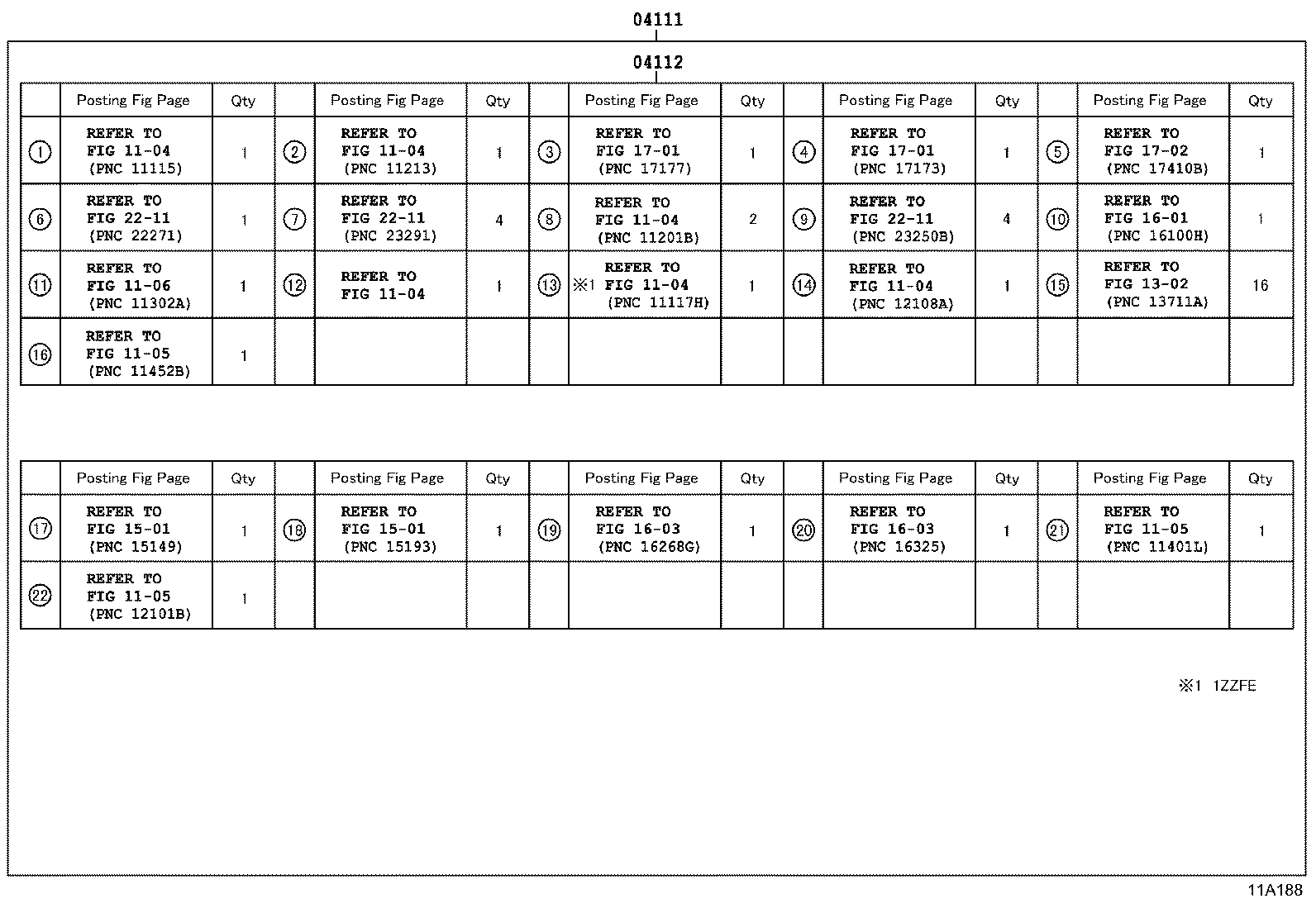

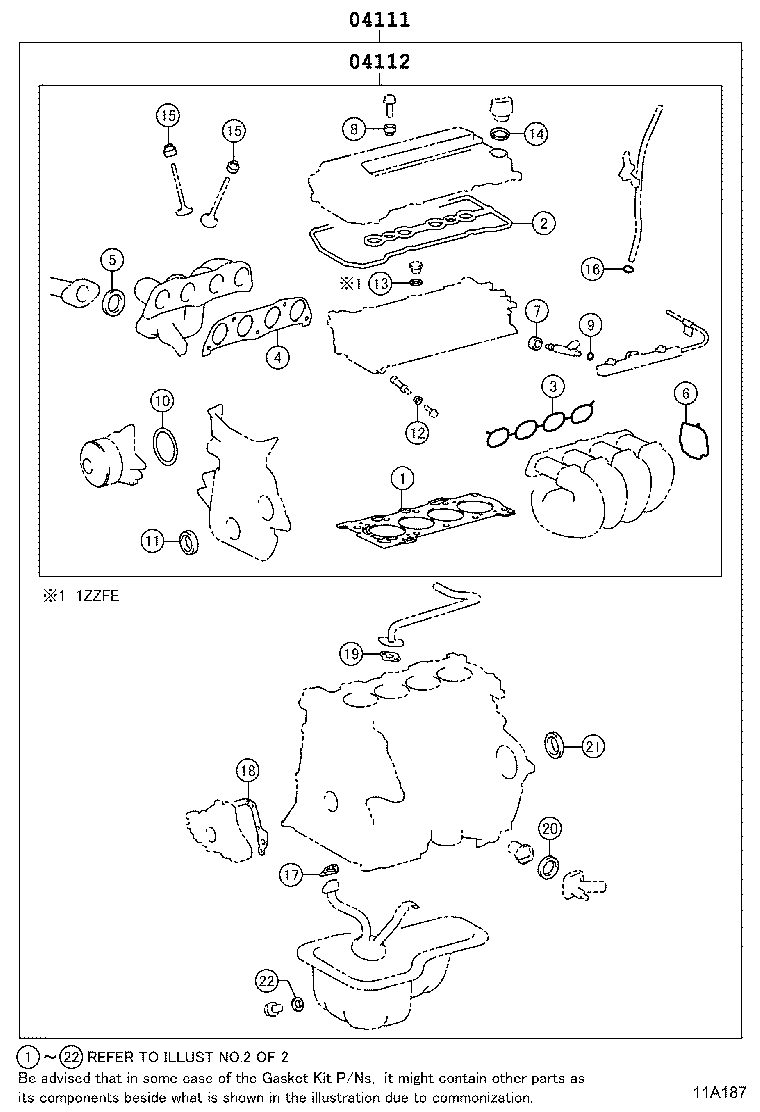

Figure 119883 119883 2001-10 → — Figure 119884 119884 2001-10 → — Figure 11A187 11A187 2001-09 → — Figure 11A188 11A188 2001-09 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
