Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

6 part groups · 2 illustrations

Illustrations

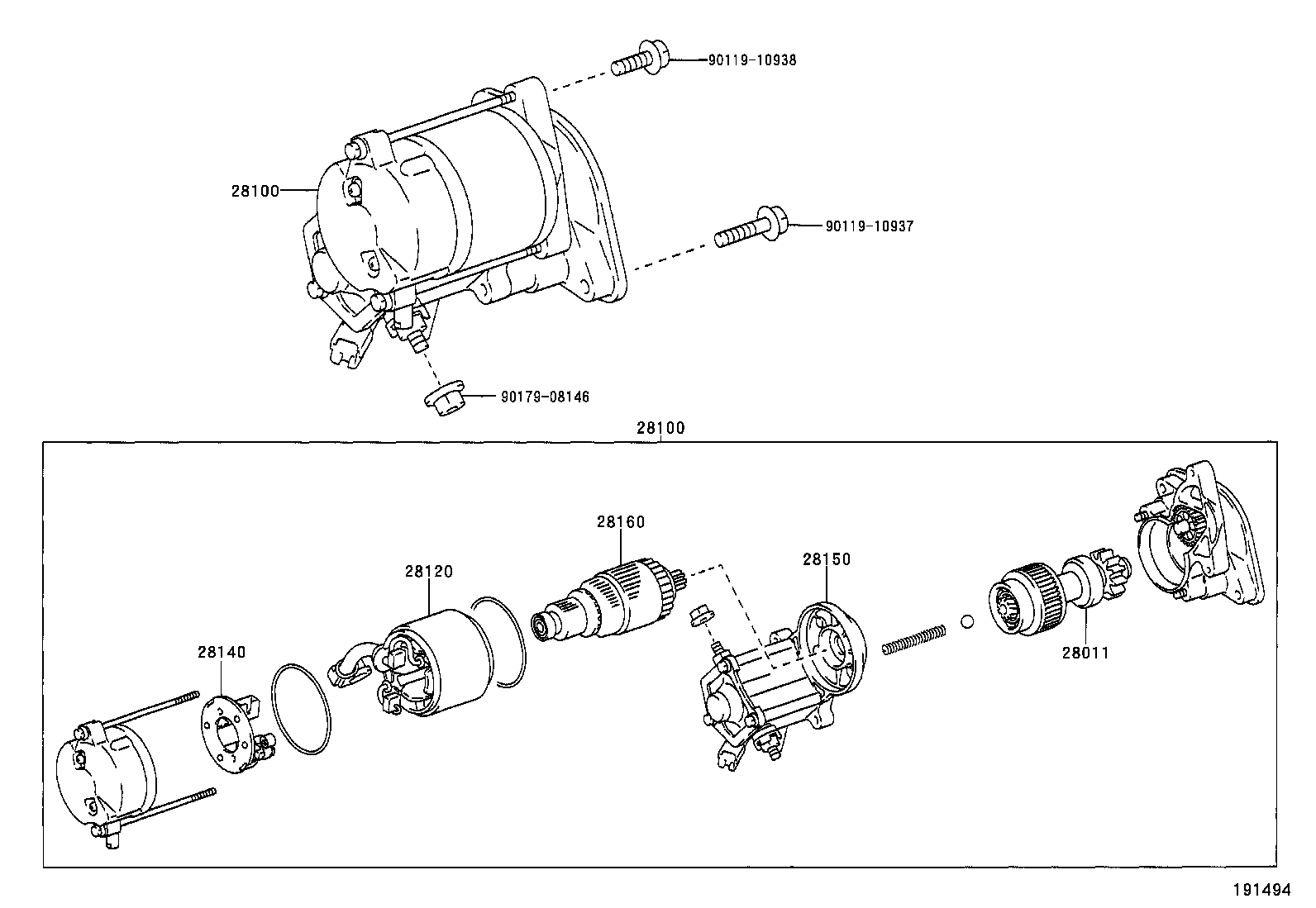

Figure 191493A 191493A 2001-09 → — Figure 191494 191494 2001-10 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28100 Starter Assy
28120 Yoke Assy, Starter
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
