Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

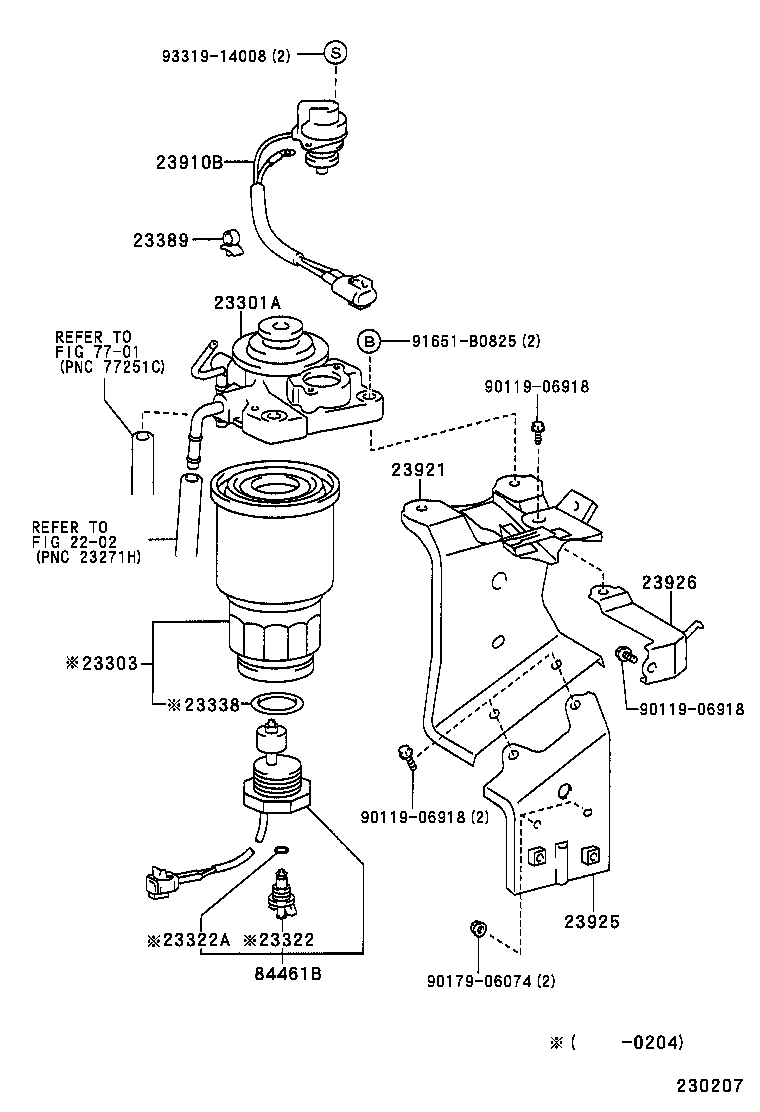

Fuel Filter
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23338 | Gasket(FOR WARNING SWITCH) |
| 23389 | Clamp, Fuel Filter |
| 23910B | Heater Assy, Fuel |
| 23921 | Support, Fuel Filter |
| 23925 | Stay, Fuel Filter Support |
| 23926 | Stay, Fuel Filter Support, NO.2 |
| 84461B | Switch, Level Warning |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
