Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06

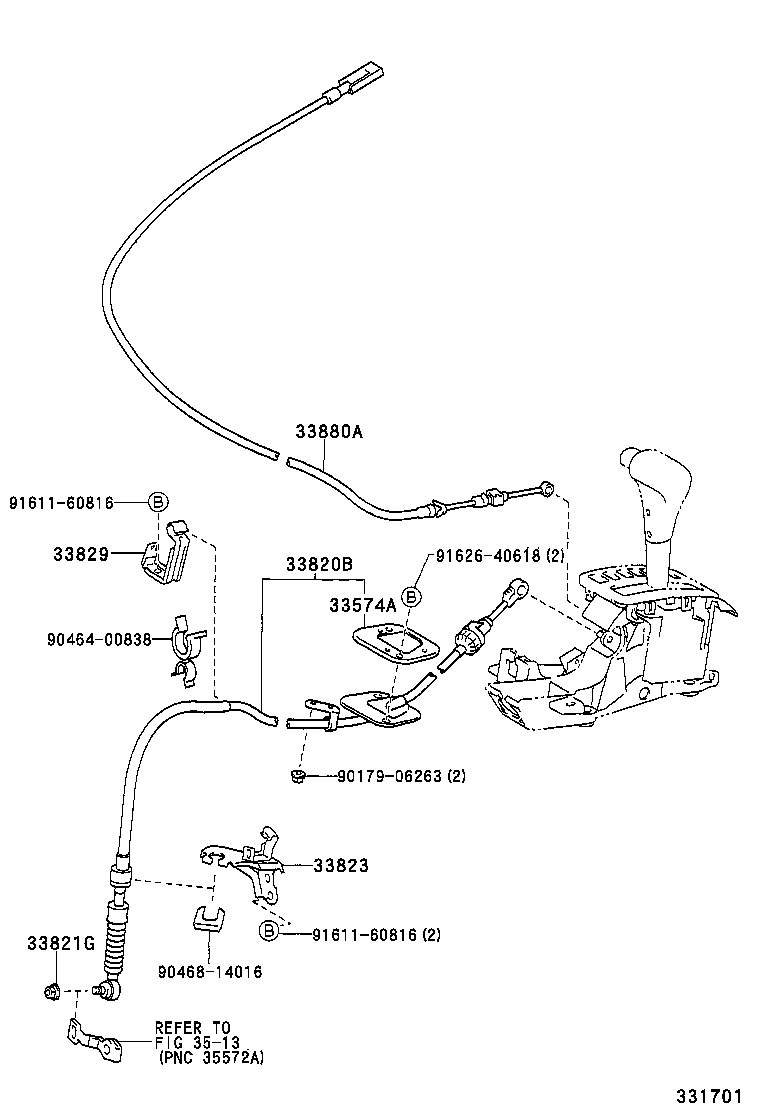

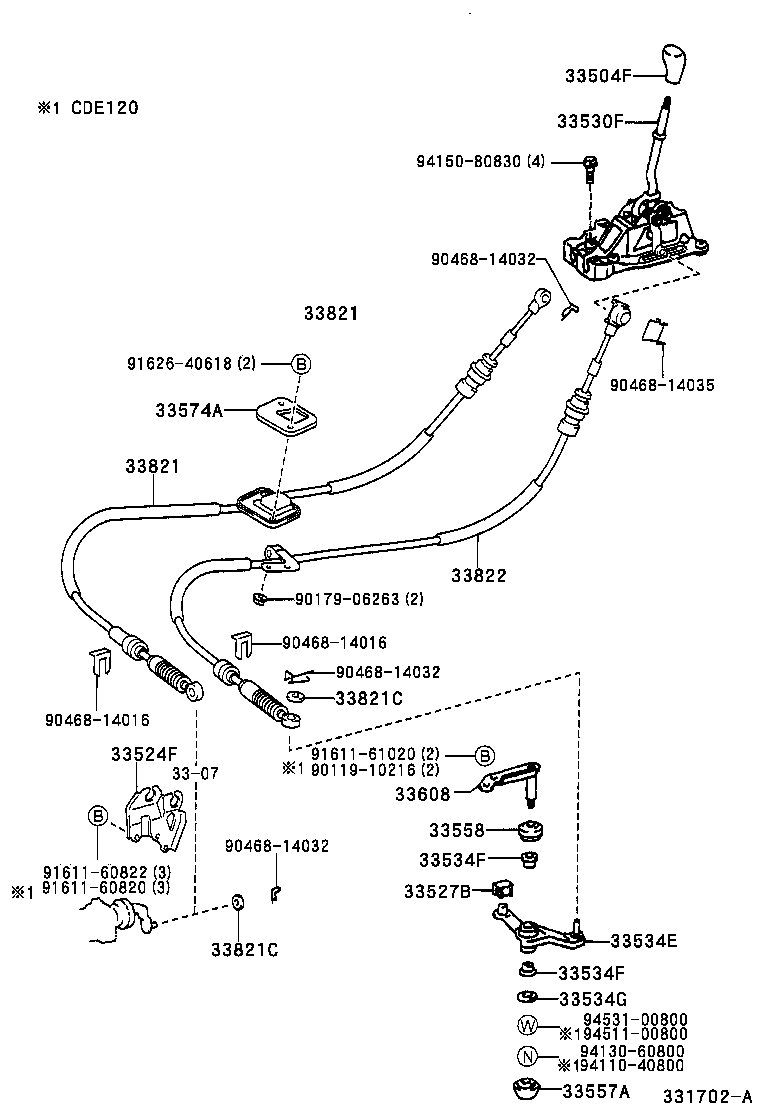

Shift Lever & Retainer

35 part groups · 3 illustrations

PNC	Description
33504F	Knob Sub-assy, Shift Lever
33524F	Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33527B	Bush (FOR CONTROL SHIFT LEVER)
33530F	Lever Assy, Shift (FOR FLOOR SHIFT)
33534E	Crank, Selecting Bell, NO.2
33534F	Bush (FOR SELECTING BELLCRANK NO.2)
33534G	Washer, Plate (FOR SELECTING BELLCRANK NO.2)
33557A	Cover, Selecting Bellcrank Dust, NO.1
33558	Cover, Selecting Bellcrank Dust, NO.2
33560	Unit Assy, Shift Lock Control
33563	Button, Shift Lock Release
33563A	Spring, Compression (FOR SHIFT LOCK RELEASE BUTTON)
33574A	Retainer, Shift Cable Grommet, NO.1
33608	Support Sub-assy, Selecting Bellcrank
33623	Button, Shift Lever Knob
33623A	Spring, Compression (FOR SHIFT LEVER KNOB BUTTON)
33635A	Guide, Wire, NO.1 (FOR SHIFT LEVER)
33820B	Cable Assy, Transmission Control
33821	Cable Transmission Control Shift (FOR FLOOR SHIFT)
33821C	Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
33821G	Nut (FOR TRANSMISSION CONTROL CABLE)
33822	Cable Transmission Control Select (FOR FLOOR SHIFT)
33823	Bracket, Transmission Control Cable, NO.1
33829	Support, Transmission Control Cable
33877	Label, Shift Lock Information, NO.1
33880A	Cable Assy, Parking Lock (FOR FLOOR SHIFT)
35906	Wire Sub-assy, Indicator Lamp
35921	Plate, Control Position Indicator
35921B	Plate, Control Position Indicator NO,2
35971A	Housing, Position Indicator, Upper
35974	Housing, Position Indicator, Lower
35975	Cover, Slide (FOR POSITION INDICATOR)
35976	Cover, Slide, NO.2 (FOR POSITION INDICATOR)
85431A	Solenoid, Shift Lock
85933B	Computer, Shift Lock Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
