Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 4 illustrations

Illustrations

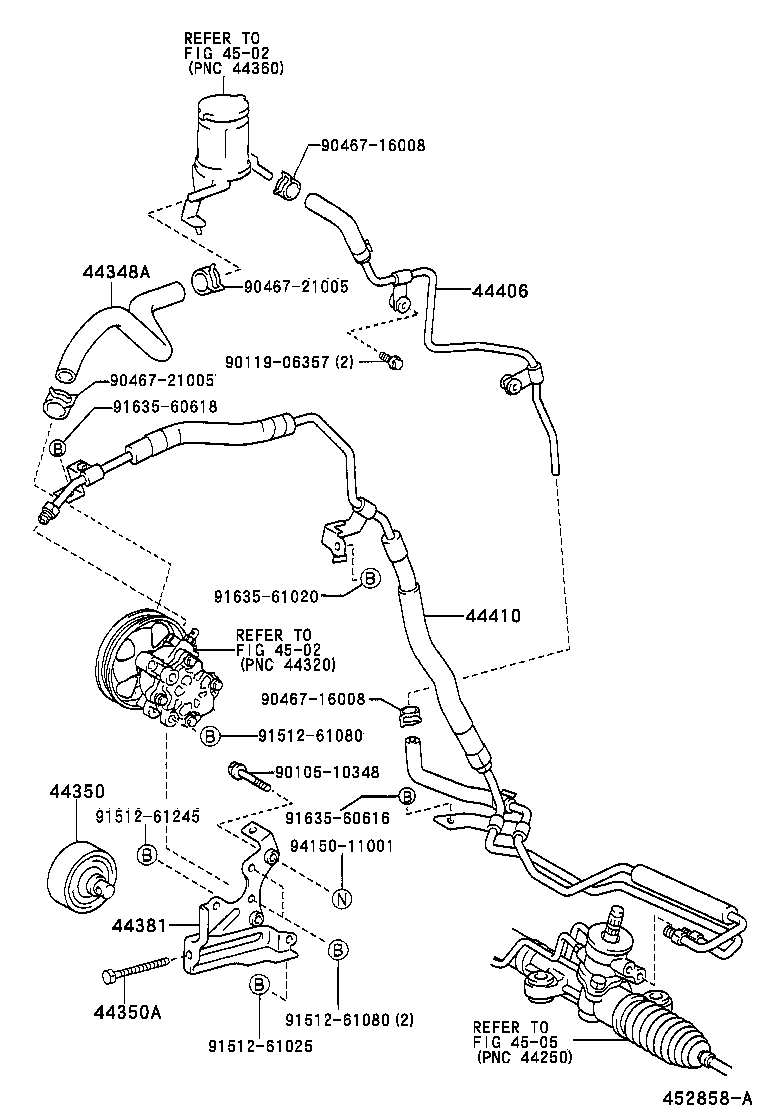

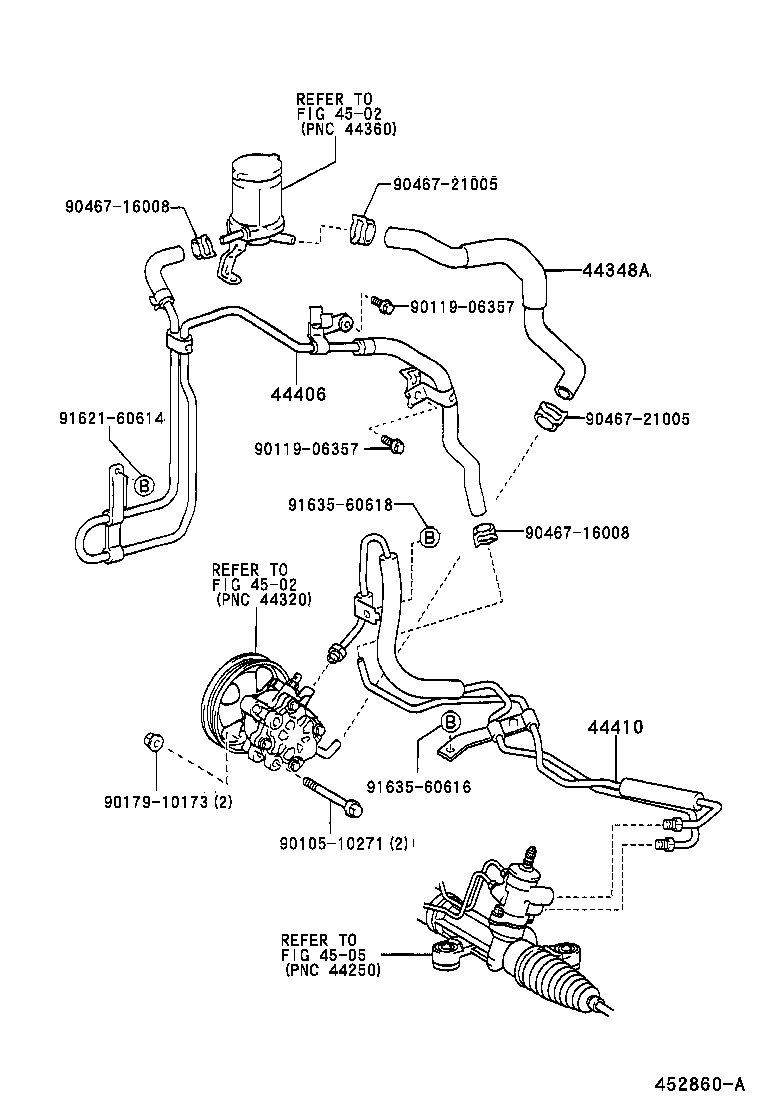

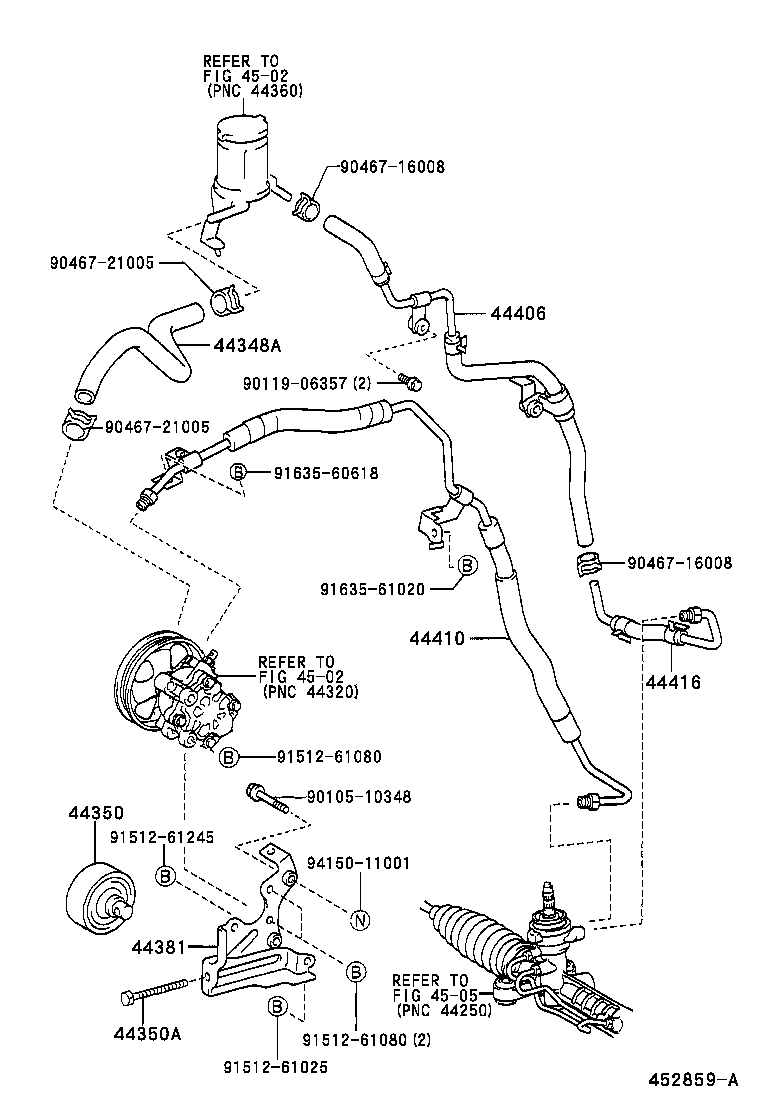

Figure 452857A 452857A 2001-09 → — Figure 452858A 452858A 2001-10 → — Figure 452859A 452859A 2001-10 → — Figure 452860A 452860A 2001-10 → —

Part groups

PNCDescription
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
