Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

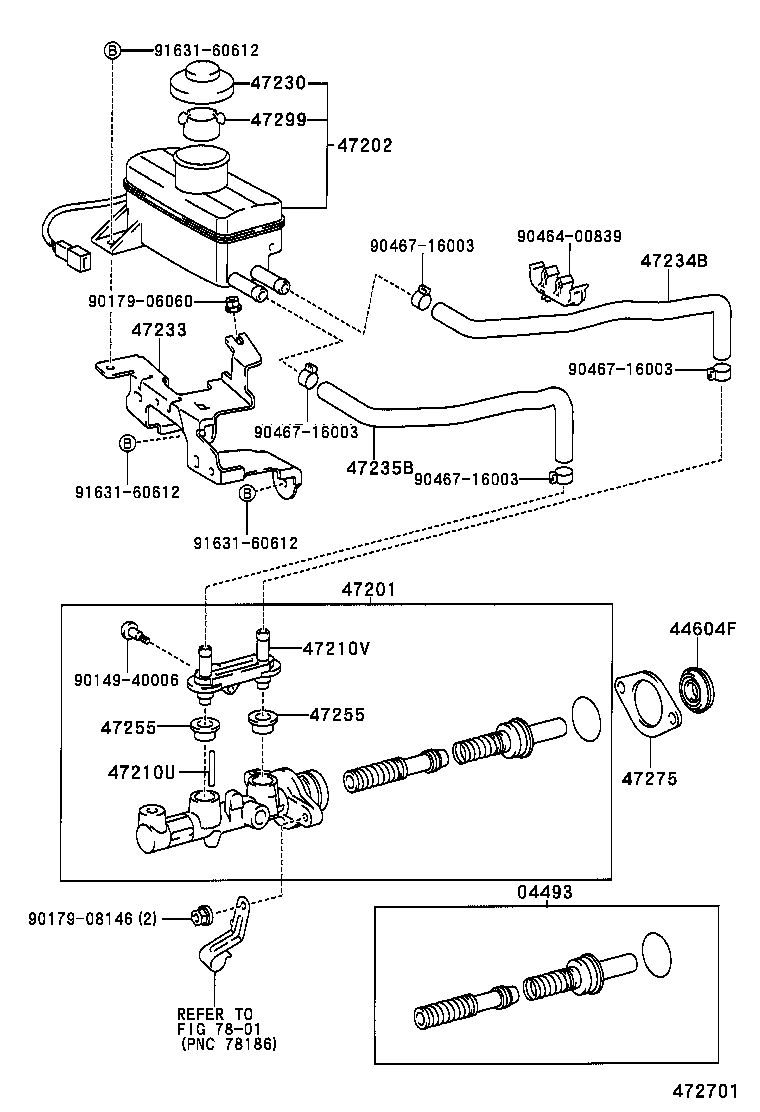

Brake Master Cylinder
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04493 | Cylinder Kit, Brake Master |
| 44604F | Seal, Brake Booster Body |
| 47201 | Cylinder Sub-assy, Brake Master |
| 47201B | Ring, O(FOR BRAKE MASTER CYLINDER) |
| 47202 | Reservoir Sub-assy, Brake Master Cylinder |
| 47210J | Gasket(FOR MASTER CYLINDER) |
| 47210T | Bolt(FOR BRAKE MASTER CYLINDER) |
| 47210U | Pin, Straight(FOR BRAKE MASTER CYLINDER) |
| 47210V | Union(FOR BRAKE MASTER CYLINDER) |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47233 | Bracket, Reservoir |
| 47234B | Tube, Reservoir, NO.1 |
| 47235B | Tube, Brake Master Cyrinder Reservoir, NO.2 |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47275 | Gasket, Brake Master Cylinder |
| 47299 | Strainer, Brake Master Cylinder Reservoir |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
