Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

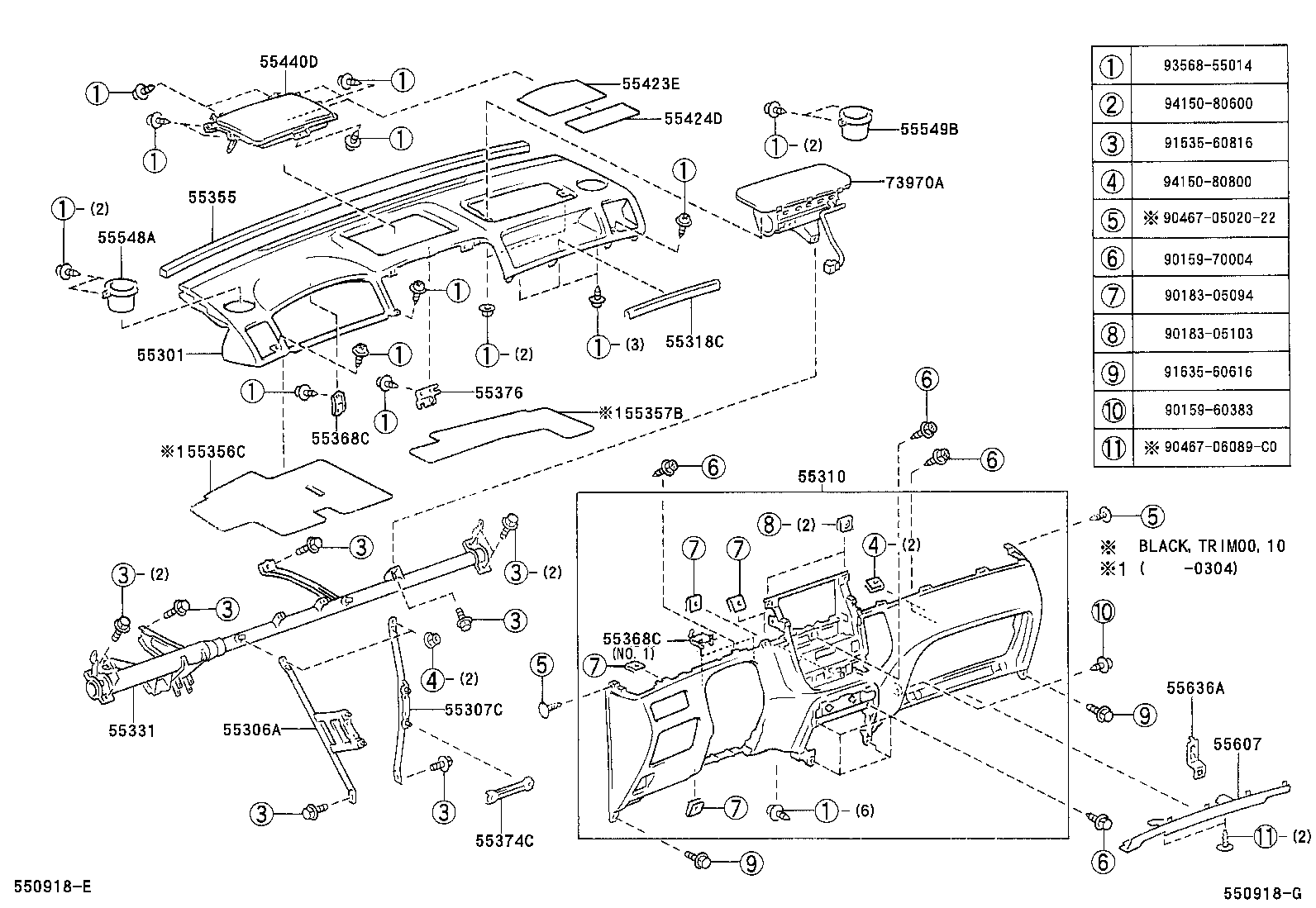

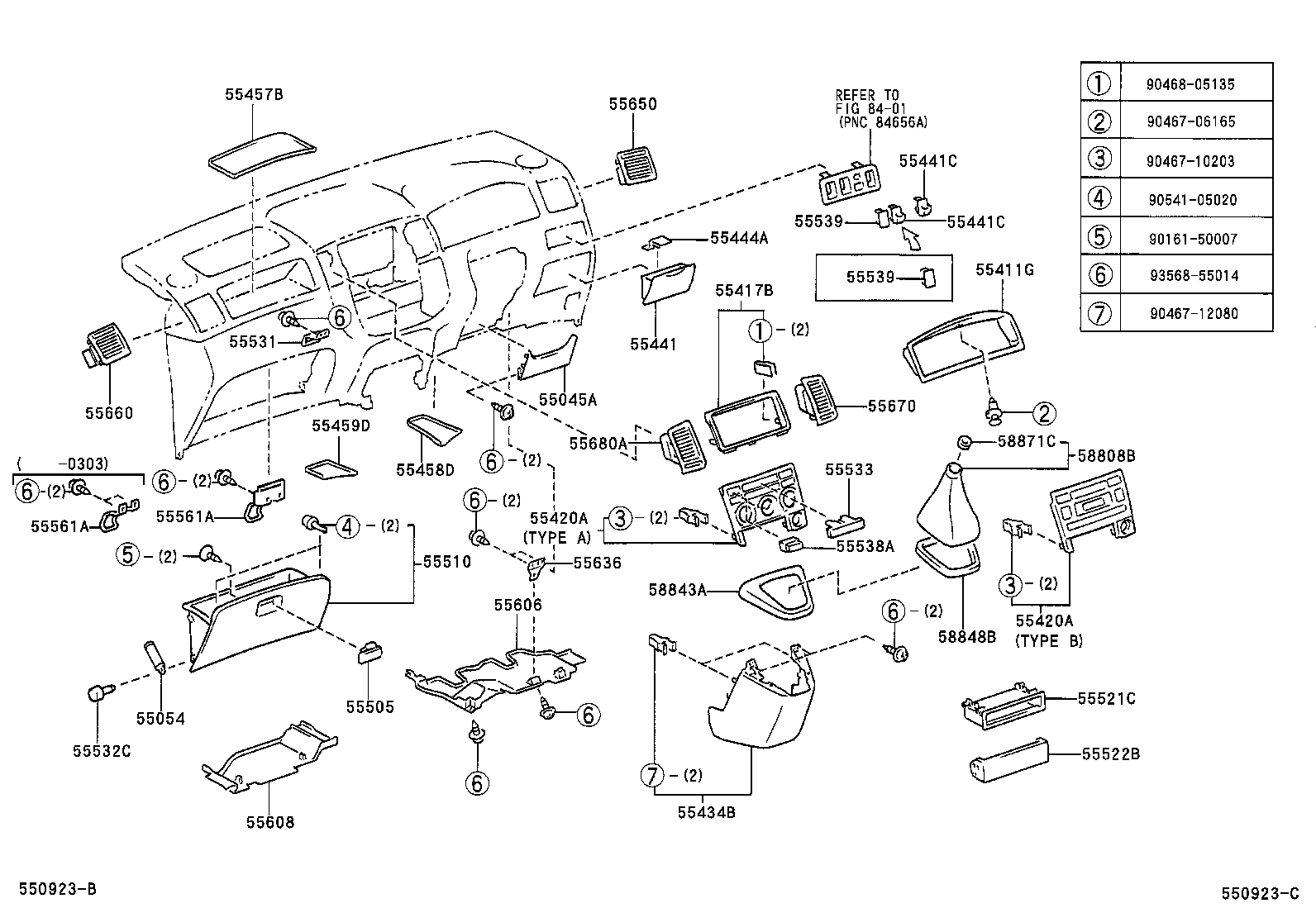

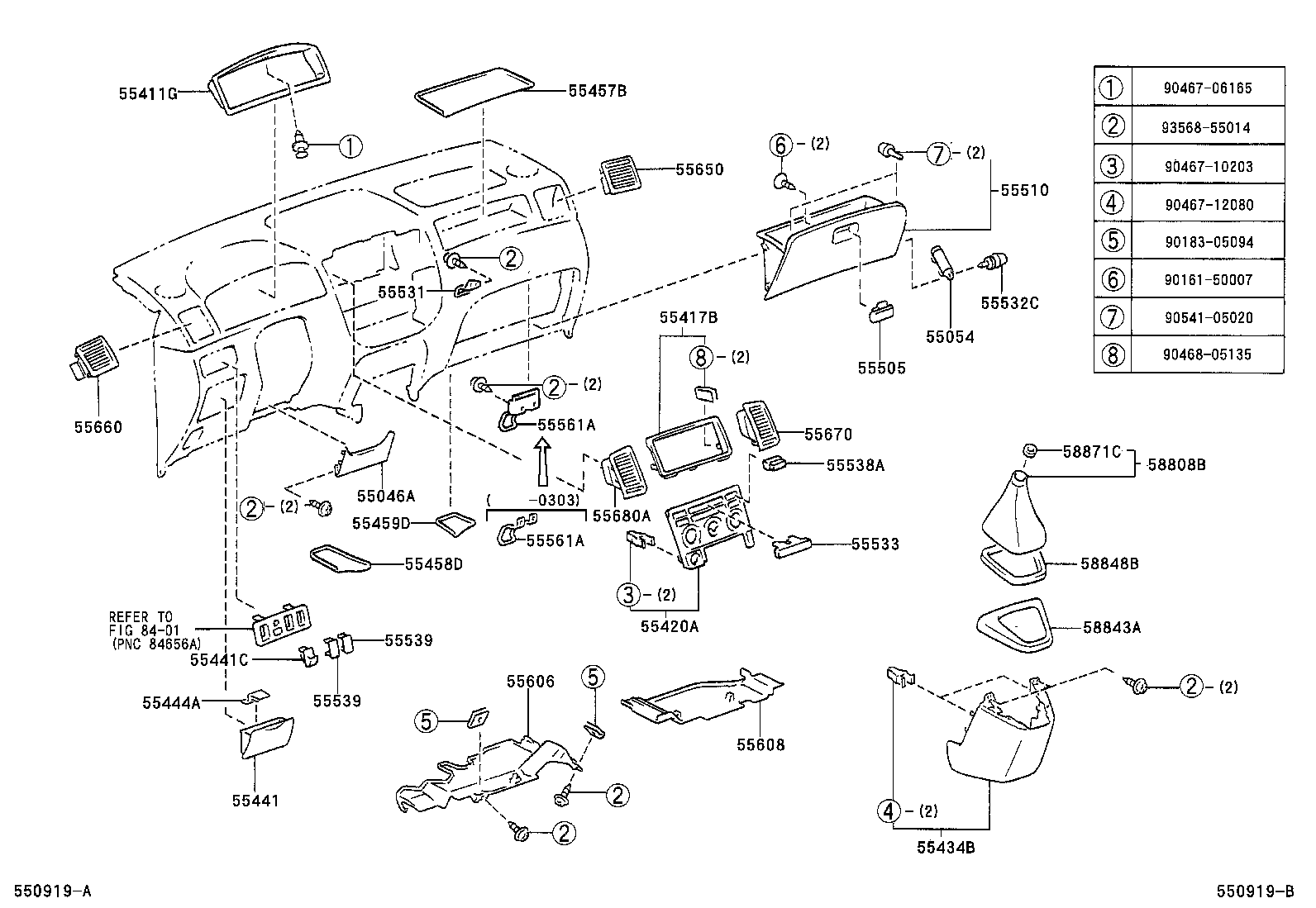

Instrument Panel & Glove Compartment
55 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045A | Panel Sub-assy, Instrument Panel Finish, Lower RH |
| 55046A | Panel Sub-assy, Instrument Panel Finish, Lower LH |
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55301 | Panel Sub-assy, Instrument |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55310 | Panel Assy, Instrument, Lower |
| 55317A | Panel, Instrument Side, RH |
| 55318C | Panel, Instrument Side, LH |
| 55331 | Reinforcement, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55368C | Bracket, Meter Mounting |
| 55374C | Bracket, Instrument Panel Lower Mounting, NO.1 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55417B | Retainer, Radio Tuner Finish |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55423E | Cushion, Center Cluster, NO.1 |
| 55424D | Cushion, Center Cluster, NO.2 |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55440D | Box Assy, Instrument Panel |
| 55441 | Box, Instrument Panel |
| 55441C | Box, Instrument Panel Coin |
| 55444A | Spring, Instrument Panel Box |
| 55457B | Spacer, Instrument Panel Safety Pad |
| 55458D | Cover, Instrument Lower, RH |
| 55459D | Cover, Instrument, Lower LH |
| 55505 | Lock Sub-assy, Glove Compartment Door |
| 55510 | Door Assy, Glove Compartment |
| 55521C | Cover, Stereo Opening |
| 55522B | Cover, Radio Tuner Opening |
| 55531 | Panel, Glove Compartment |
| 55532C | Stopper, Glove Door |
| 55533 | Cover, Auto Clock Hole |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55548A | Cover, Instrument Panel Hole |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55561A | Striker, Glove Compartment Door Lock |
| 55606 | Cover Sub-assy, Instrument Panel Under, NO.1 |
| 55607 | Cover Sub-assy, Instrument Panel Under, NO.2 |
| 55608 | Cover Sub-assy, Instrument Panel Under, NO.3 |
| 55636 | Bracket, Instrument Panel Under Cover, NO.1 |
| 55636A | Bracket, Instrument Panel Under Cover, NO.2 |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 58808B | Cover, Shifting Hole |
| 58843A | Bezel, Shifting Hole |
| 58848B | Cover, Shift Lever Hole |
| 58871C | Cushion, Console Box |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
