Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

12 part groups · 2 illustrations

Illustrations

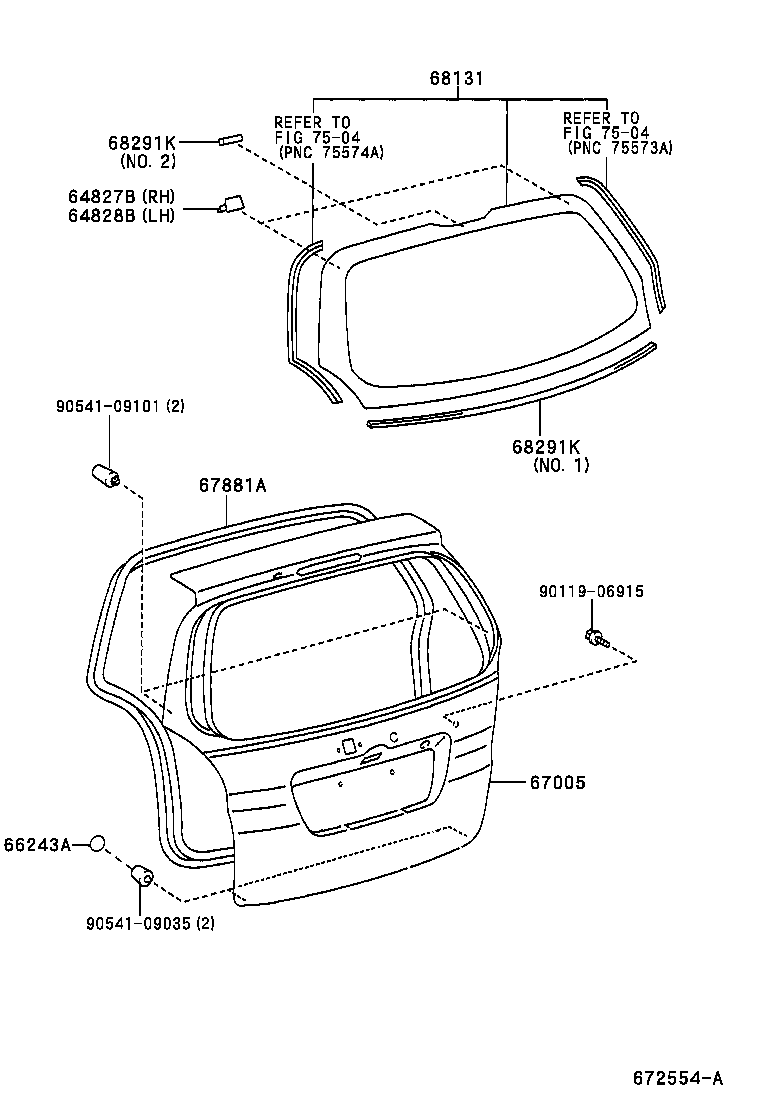

Figure 672537A 672537A 2001-09 → — Figure 672554A 672554A 2001-09 → —

Part groups

PNCDescription
64708B Clip, Back Door Trim
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
66243A Protector, Rear Body, NO.1
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67881A Weatherstrip, Back Door
67937B Garnish, Back Door Side, RH
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68291K Dam Kit, Back Window Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
