Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06
Lock Cylinder Set

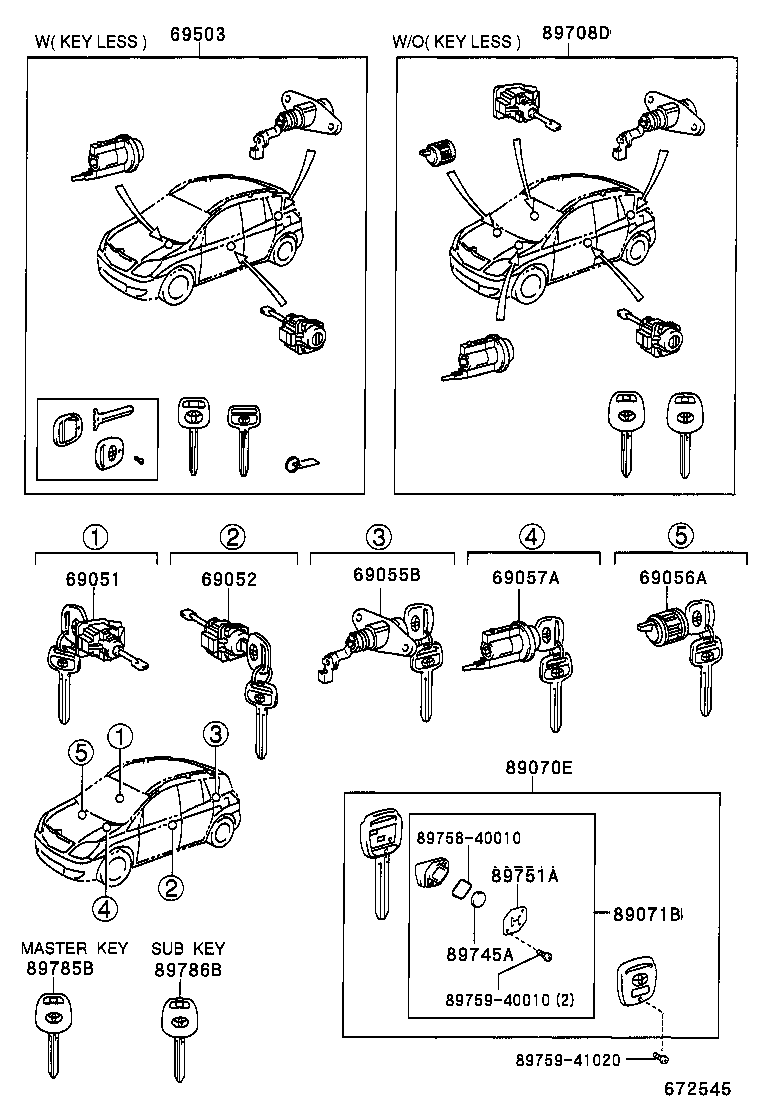

13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69055B | Cylinder & Key Set, Back Door Lock |
| 69056A | Cylinder & Key Set, Glove Compartment Lock |
| 69057A | Cylinder & Key Set, Ignition Switch Lock |
| 69503 | Cylinder Set, Lock |
| 89070E | Transmitter Assy, Door Control |
| 89071B | Module Set, Transmitter Sub-assy, Door Control |
| 89708D | Cylinder Set, Lock W/Transponder Key Transmitter |
| 89745A | Battery, Transmitter |
| 89751A | Cover, Transmitter Housing |
| 89785B | Transmitter, Transponder Key Master |
| 89786B | Transmitter, Transponder Key Sub |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
