Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

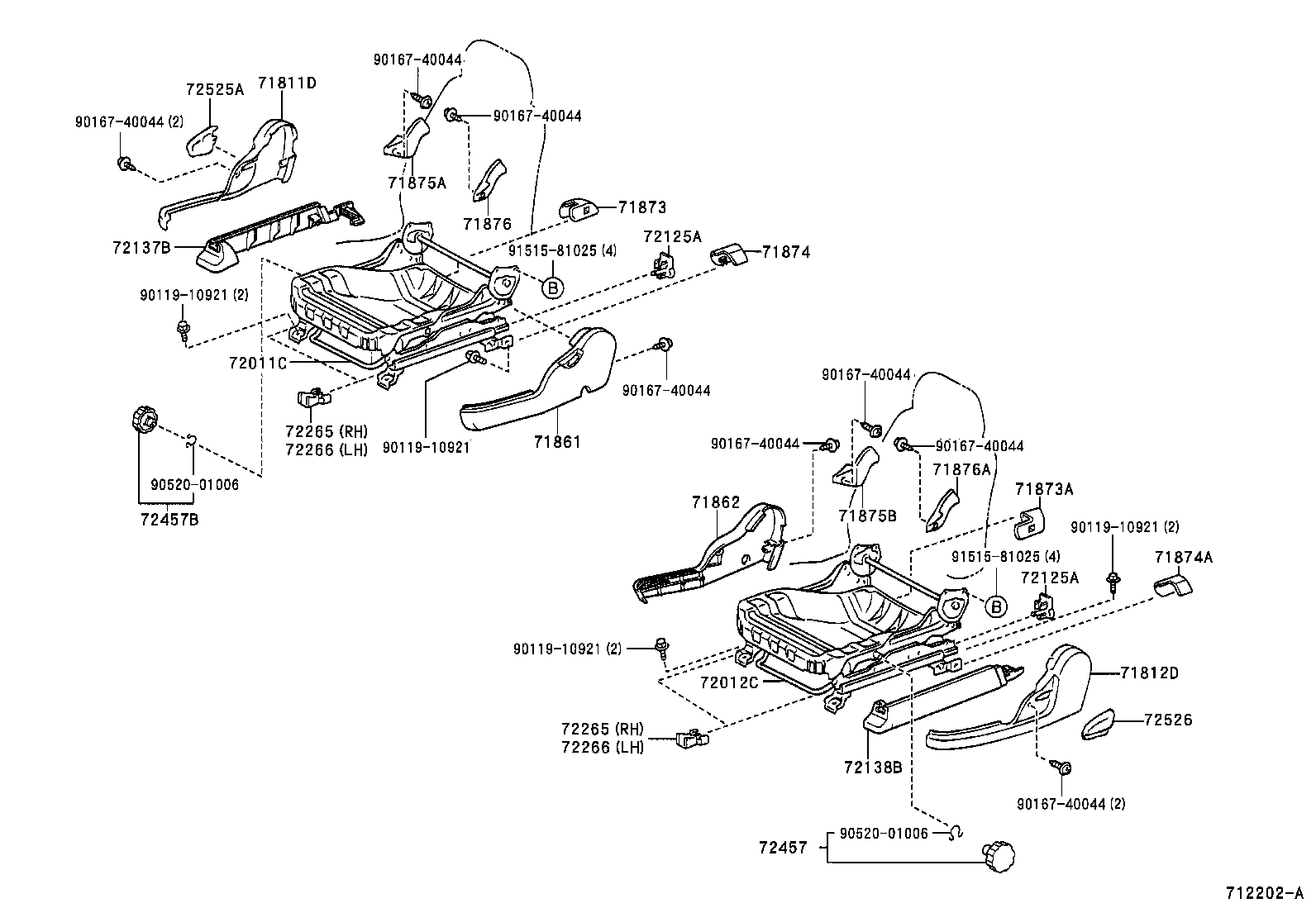

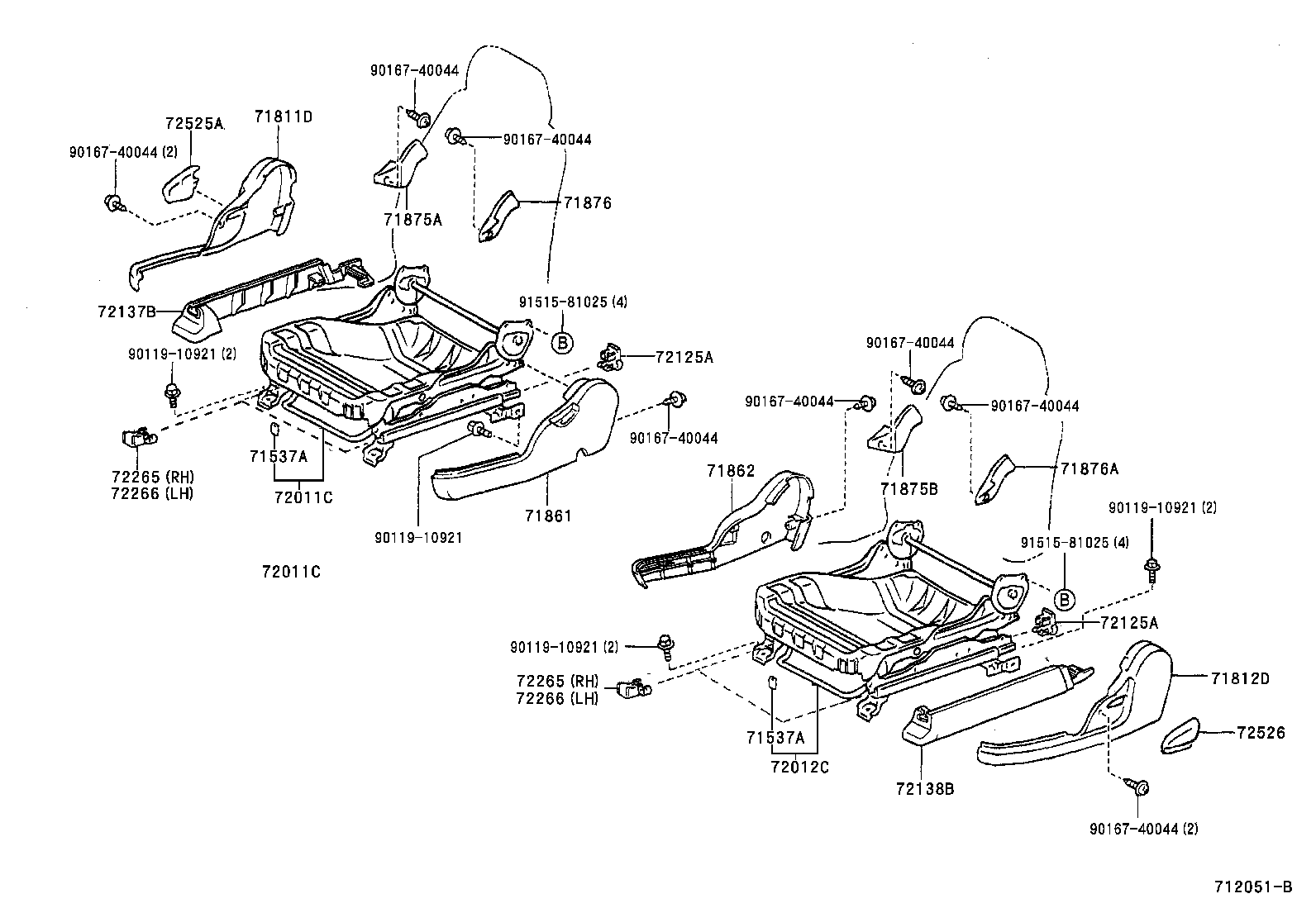

Front Seat & Seat Track
49 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55620D | Holder Assy, Front Seat Cup |
| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71511S | Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71512S | Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71537A | Protector, Front Seat Cushion |
| 71551S | Pad, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71552S | Pad, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71630S | Spring Assy, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71640S | Spring Assy, Front Seatback, LH(FOR SEPARATE TYPE) |
| 71753 | Tray, Front Seat Under |
| 71759B | Hook, Front Seatback |
| 71811D | Shield, Front Seat Cushion, RH |
| 71812D | Shield, Front Seat Cushion, LH |
| 71861 | Shield, Front Seat Cushion, Inner RH |
| 71862 | Shield, Front Seat Cushion, Inner LH |
| 71873 | Shield, Front Seat Cushion, Lower RH |
| 71873A | Shield, Front Seat Cushion, Lower |
| 71874 | Shield, Front Seat Cushion, Lower LH |
| 71874A | Shield, Front Seat Cushion, Lower LH |
| 71875A | Cover, Reclining Adjuster Inside, RH |
| 71875B | Cover, Reclining Adjuster Inside, RH |
| 71876 | Cover, Reclining Adjuster Inside, LH |
| 71876A | Cover, Reclining Adjuster Inside, LH |
| 71910A | Headrest Assy, Front Seat |
| 71931 | Support, Front Seat Headrest |
| 72011C | Adjuster Sub-assy, Front Seat, RH |
| 72012C | Adjuster Sub-assy, Front Seat, LH |
| 72125A | Cover, Seat Track, Upper Rear |
| 72137B | Cover, Seat Track, RH |
| 72138B | Cover, Seat Track, LH |
| 72265 | Cover, Seat Track Upper Rail, RH |
| 72266 | Cover, Seat Track Upper Rail, LH |
| 72457 | Knob, Vertical Seat Adjuster |
| 72457B | Knob, Vertical Seat Adjuster, RH |
| 72525A | Handle, Reclining Adjuster Release, RH |
| 72526 | Handle, Reclining Adjuster Release, LH |
| 72877 | Cover, Seat Armrest, RH |
| 72878 | Cover, Seat Armrest, LH |
| 72880 | Armrest Assy, Seat, C RH |
| 72890 | Armrest Assy, Seat, C LH |
| 87510K | Heater Assy, Front Seat Cushion, RH |
| 87510L | Heater Assy, Front Seat Cushion, LH |
| 87510M | Heater Assy, Front Seatback, RH |
| 87510N | Heater Assy, Front Seatback, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
