Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

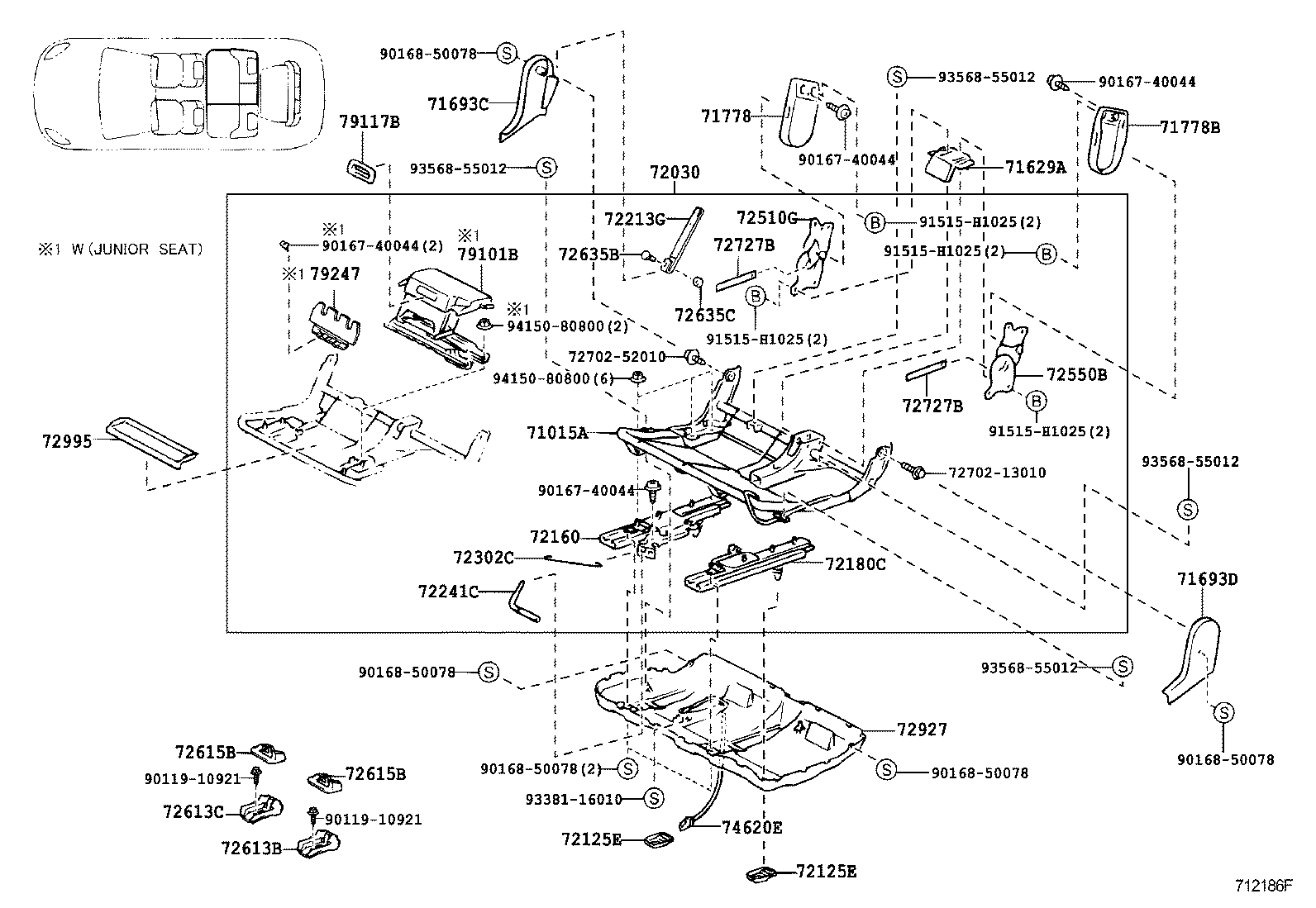

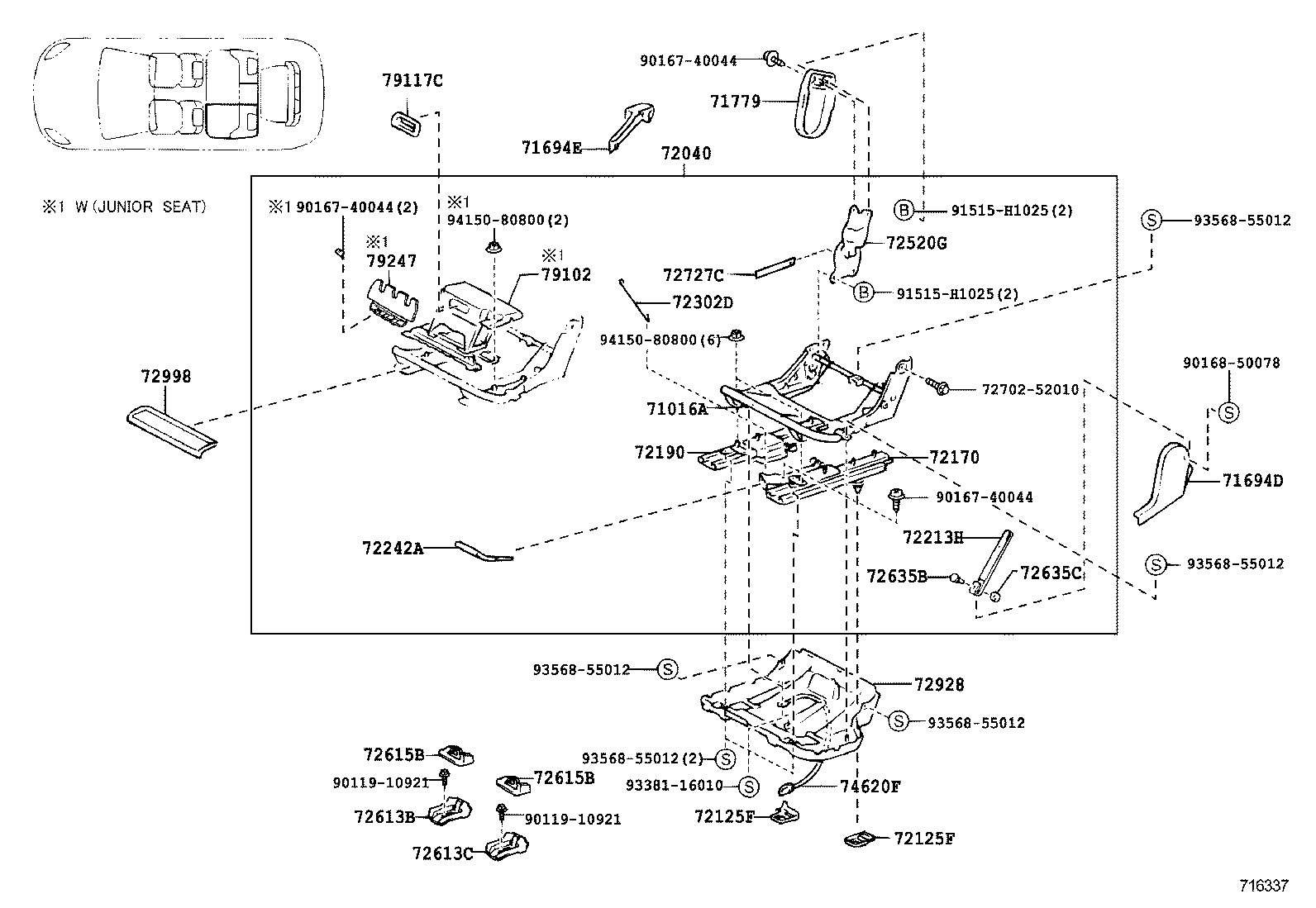

Rear Seat & Seat Track
67 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 66993 | Tray, Rear Center Seat Cup Holder |
| 71015A | Frame Sub-assy, Rear Seat Cushion, RH |
| 71016A | Frame Sub-assy, Rear Seat Cushion, LH |
| 71017A | Frame Sub-assy, Rear Seatback |
| 71018 | Frame Sub-assy, Rear Seatback, LH |
| 71075D | Cover Sub-assy, Rear Seat Cushion, RH |
| 71075S | Cover, Rear Seat Cushion, RH (FOR SEPARATE TYPE) |
| 71076D | Cover, Rear Seat Cushion, Rear LH |
| 71076S | Cover, Rear Seat Cushion, LH (FOR SEPARATE TYPE) |
| 71077S | Cover, Rear Seatback, RH (FOR SEPARATE TYPE) |
| 71078S | Cover, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71095S | Cover Sub-assy, Center Seatback |
| 71305S | Frame Sub-assy, Center Seatback |
| 71358 | Pad, Center Seatback |
| 71611A | Pad, Rear Seat Cushion, RH |
| 71612A | Pad, Rear Seat Cushion, LH |
| 71629A | Cover, Rear Seat Cushion Hinge, RH |
| 71651S | Pad, Rear Seatback, RH(FOR SEPARATE TYPE) |
| 71652S | Pad, Rear Seatback, LH(FOR SEPARATE TYPE) |
| 71693C | Cover, Rear Seat Cushion Hinge, Outer RH |
| 71693D | Cover, Rear Seat Cushion Hinge, Inner RH |
| 71694D | Cover, Rear Seat Cushion Hinge, Outer LH |
| 71694E | Cover, Rear Seat Cushion Hinge, Inner LH |
| 71778 | Cover, Rear Seat Side Hinge Male, RH |
| 71778B | Cover, Rear Seat Side Hinge Male, RH |
| 71779 | Cover, Rear Seat Side Hinge Male, LH |
| 71931B | Support Assy, Rear NO.1 Seat Headrest |
| 71931C | Support Assy, Rear NO.2 Seat Headrest |
| 71940A | Headrest Assy, Rear Seat |
| 71960B | Headrest Assy, Rear Seat, Center |
| 72030 | Adjuster Assy, Rear NO.1 Seat |
| 72040 | Adjuster Assy, Rear NO.2 Seat |
| 72125E | Cover, Seat Track, Upper Rear RH |
| 72125F | Cover, Seat Track, Upper Rear LH |
| 72160 | Track Assy, Rear Seat, Outer RH |
| 72170 | Track Assy, Rear Seat, Outer LH |
| 72180C | Track Assy, Rear Seat, Inner RH |
| 72190 | Track Assy, Rear Seat Inner, LH |
| 72213G | Knob, Seat Track Adjusting Handle, RH |
| 72213H | Knob, Seat Track Adjusting Handle, LH |
| 72241C | Lever, Outer Seat Track Lock, RH |
| 72242A | Lever, Outer Seat Track Lock, LH |
| 72302C | Wire Sub-assy, Rear Seat Track Equalizing, RH |
| 72302D | Wire Sub-assy, Rear Seat Track Equalizing, LH |
| 72510G | Adjuster Assy, Rear Reclining Seat, Outer RH |
| 72520G | Adjuster Assy, Rear Reclining Seat, Outer LH |
| 72550B | Adjuster Assy, Reclining Seat, Center RH |
| 72613B | Striker, Rear Seat Lock |
| 72613C | Striker, Rear Seat Lock |
| 72615B | Cover, Rear Seat Lock Striker, RH |
| 72635B | Hook, Rear Seatback Lock(MALE) |
| 72635C | Hook, Rear Seatback Lock(FEMALE) |
| 72727B | Knob, Rear Seat Reclining Control Lever, RH |
| 72727C | Knob, Rear Seat Reclining Control Lever, LH |
| 72927 | Cover, Rear Seat Cushion Under, RH |
| 72928 | Cover, Rear Seat Cushion Under, LH |
| 72995 | Cover, Rear Seat Cushion, RH |
| 72998 | Cover, Rear Seat Cushion, LH |
| 74620E | Strap Assy, Assist, RH |
| 74620F | Strap Assy, Assist, LH |
| 79101B | Frame Sub-assy, NO.1 Seat Cushion, RH |
| 79102 | Frame Sub-assy, NO.1 Seat Cushion, LH |
| 79117B | Cover, NO.1 Seat Cushion, RH |
| 79117C | Cover, NO.1 Seat Cushion, LH |
| 79135A | Pad, NO.1 Seat Cushion, RH |
| 79136B | Pad, NO.1 Seat Cushion, LH |
| 79247 | Pad, Junior Seat Cushion Cover, A |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
