Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06
Radio Receiver & Amplifier & Condenser

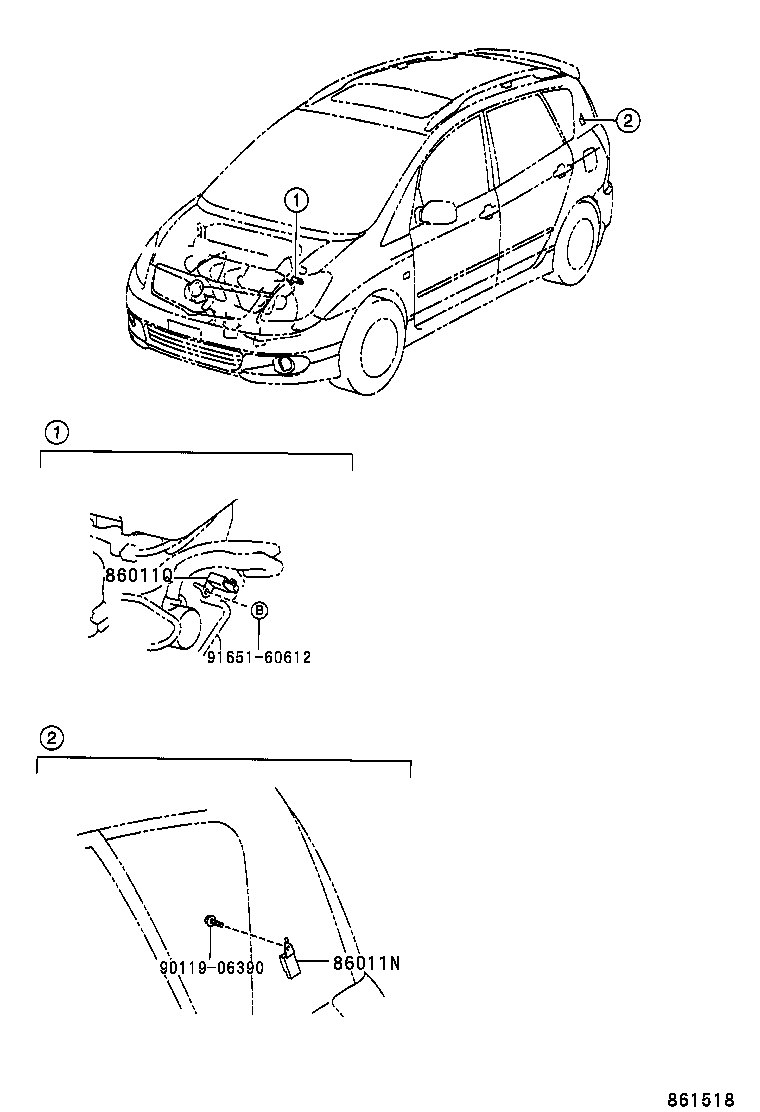

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011N | Filter, Noise |
| 86011Q | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86221A | Panel, Radio Receiver |
| 86221D | Panel, Radio Receiver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
