Toyota Corolla Verso
2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe
Discontinued model
Data version 2004-06

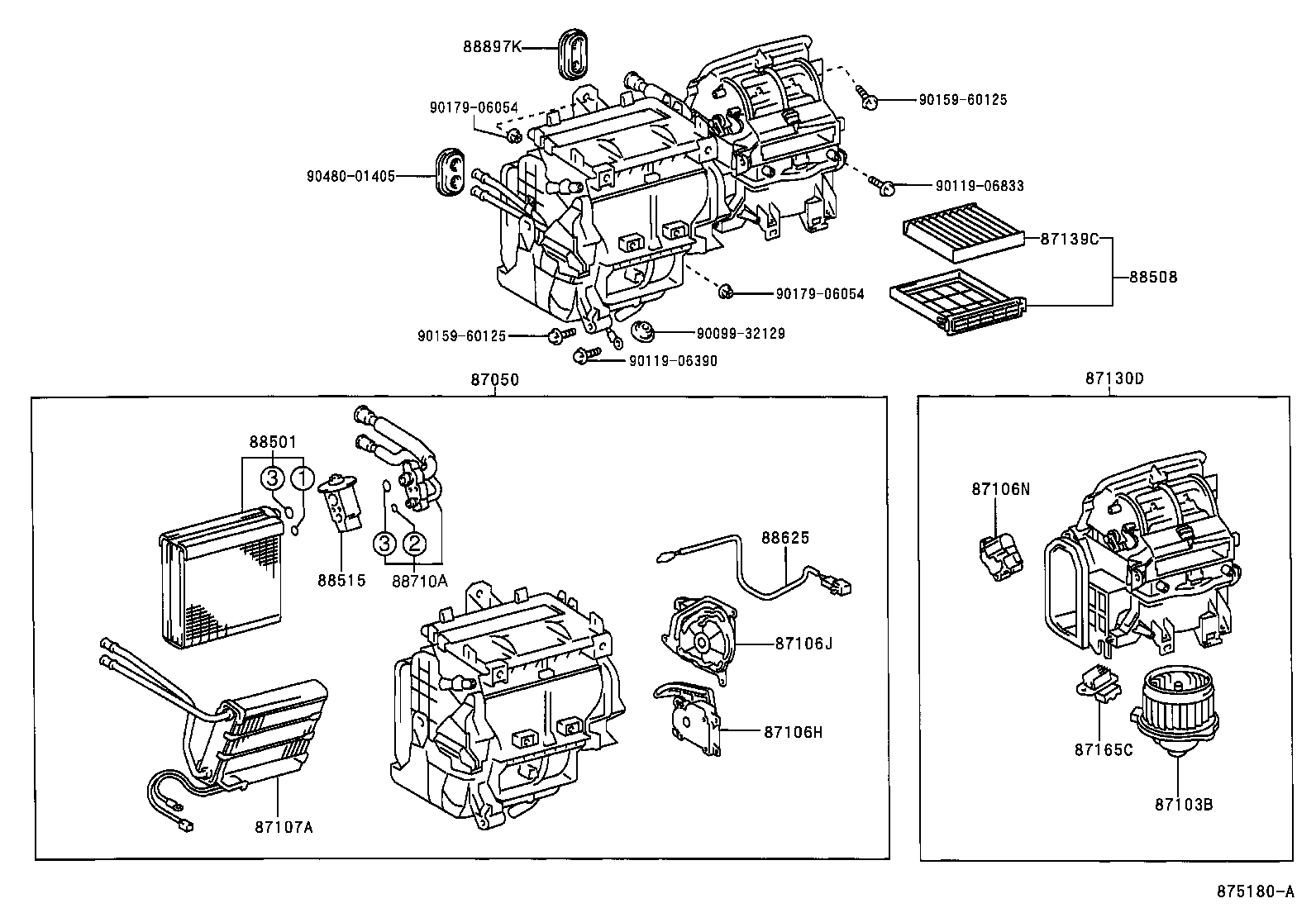

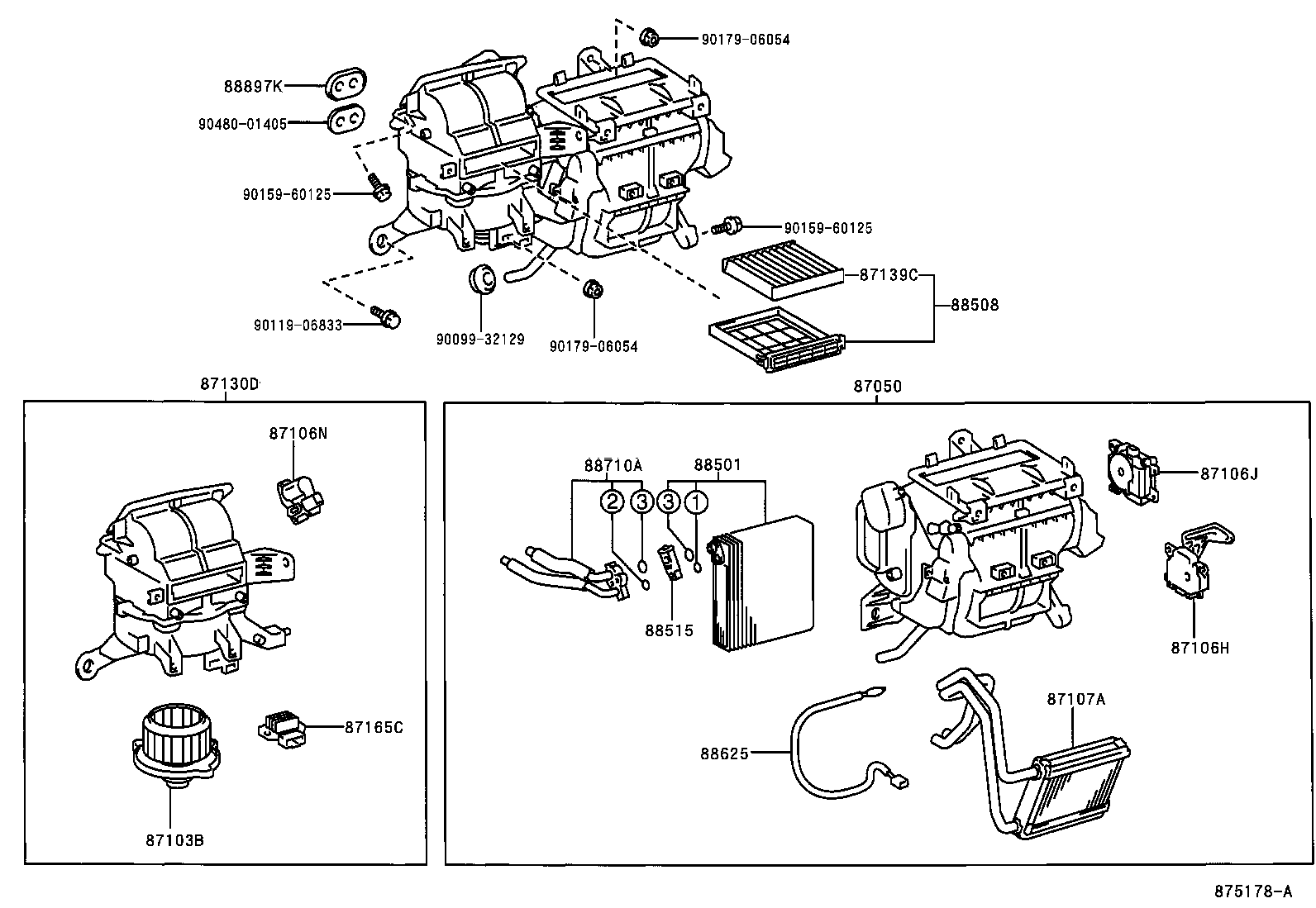

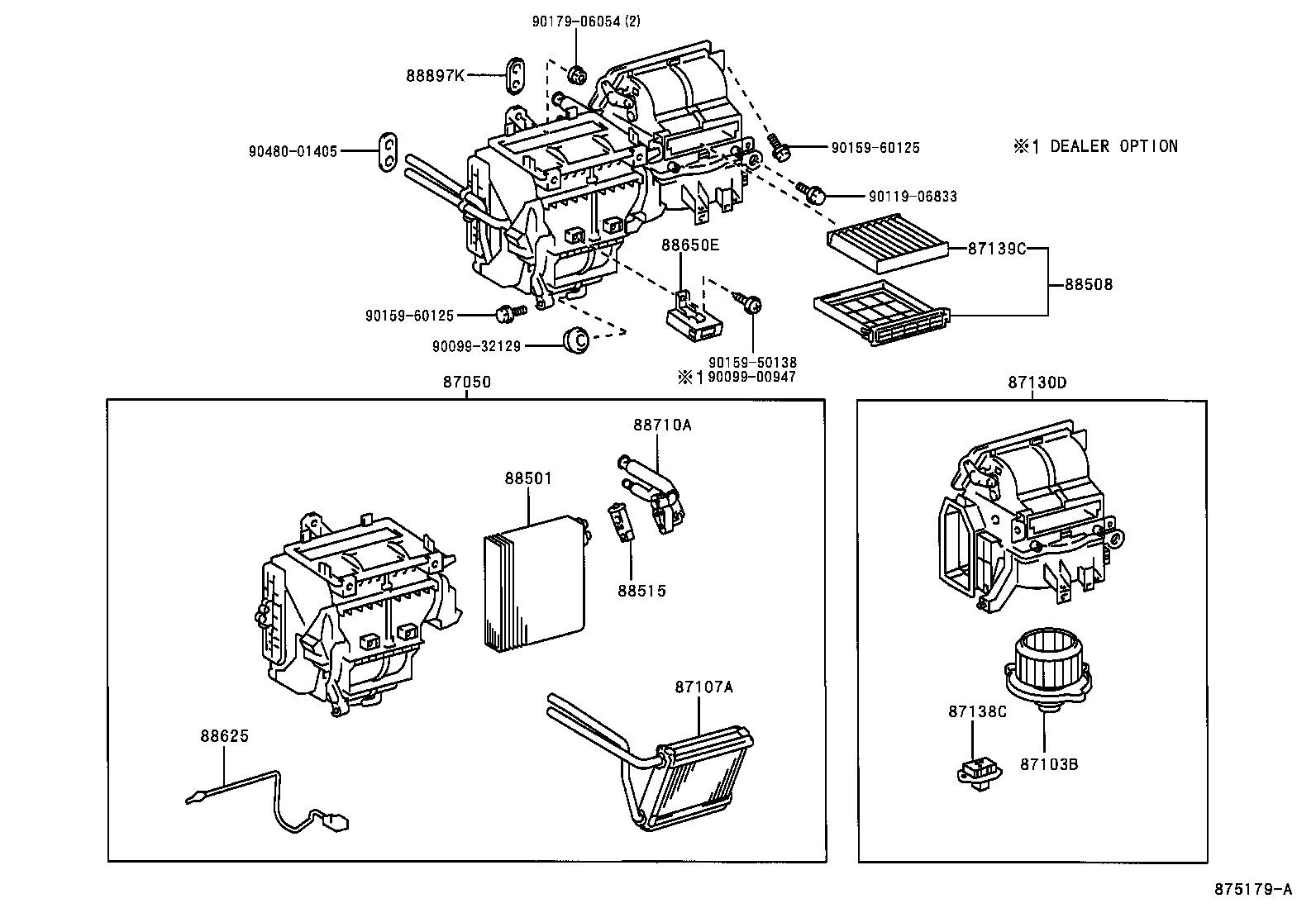

Heating & Air Conditioning - Cooler Unit
17 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87139C | Filter, Clean Air |
| 87165C | Control, Blower Motor |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88508 | Filter Sub-assy, Clean Air |
| 88515 | Valve, Cooler Expansion |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650E | Amplifier Assy, Air Conditioner, NO.1 |
| 88710A | Tube Assy, Air Conditioner |
| 88897K | Grommet, (FOR COOLER PIPE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
