Toyota Corolla Verso

2001-09 → 2004-01 · chassis CDE120,ZZE12# · catalogue 154250 · Europe

Discontinued model Data version 2004-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

10 part groups · 7 illustrations

Illustrations

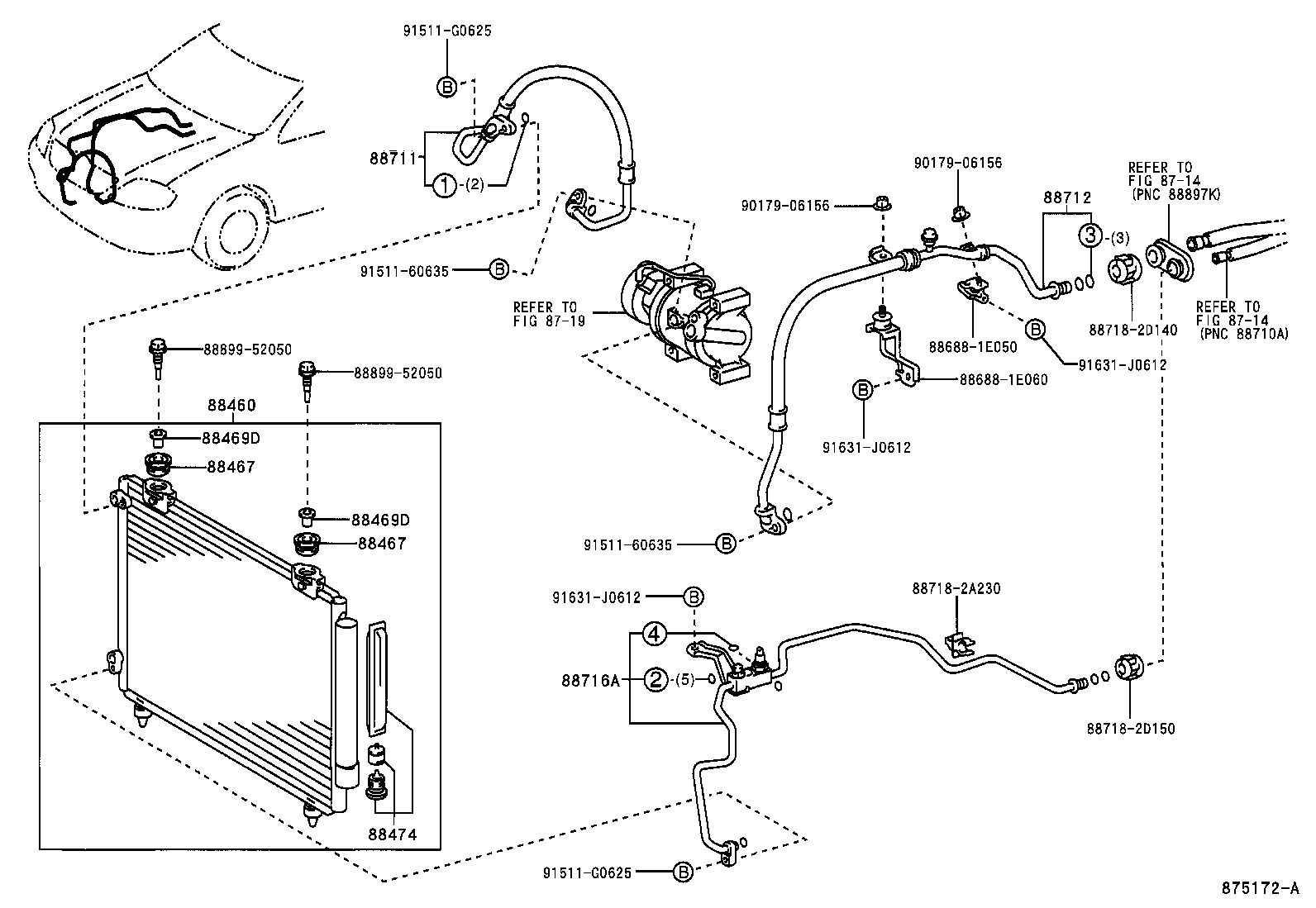

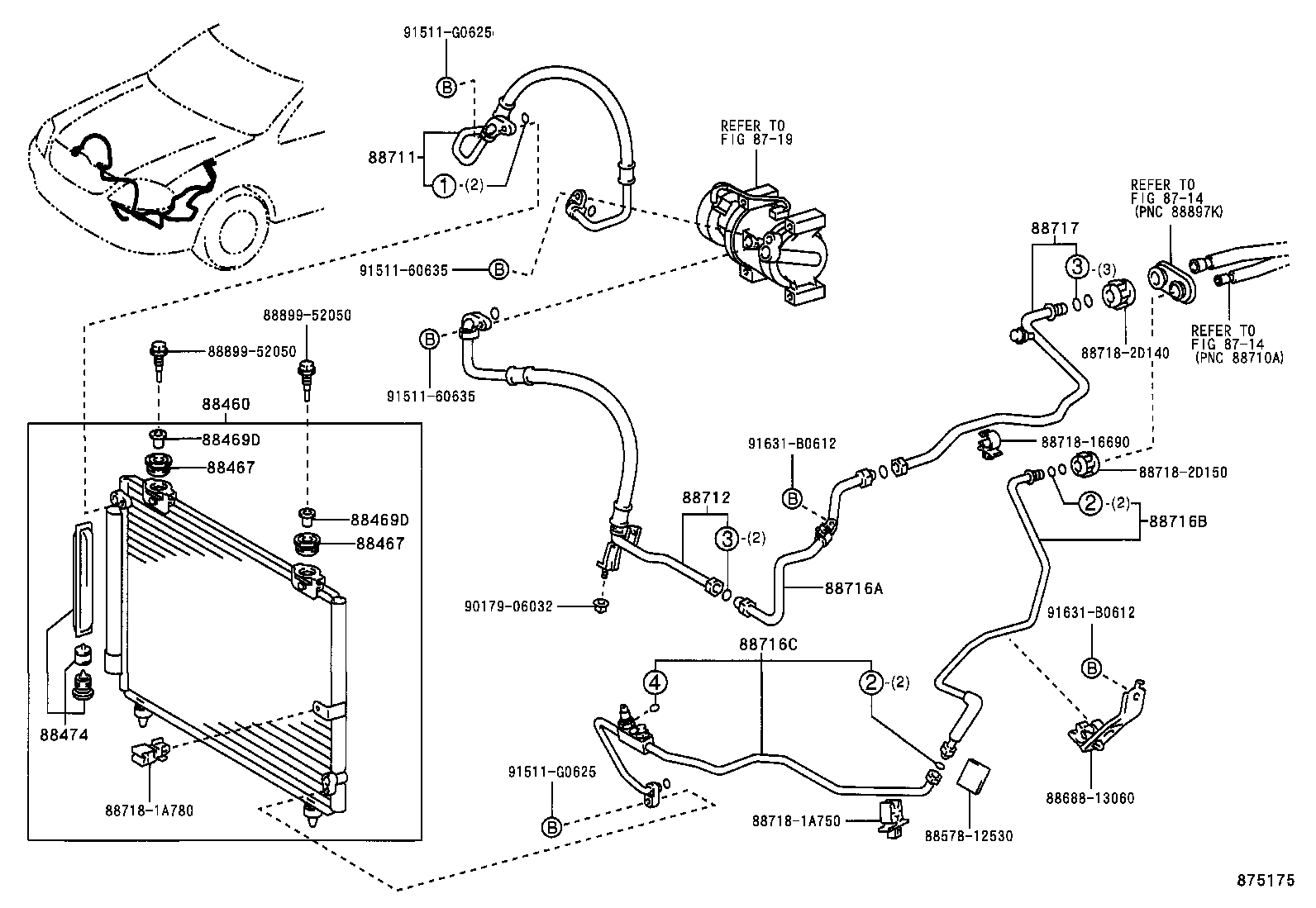

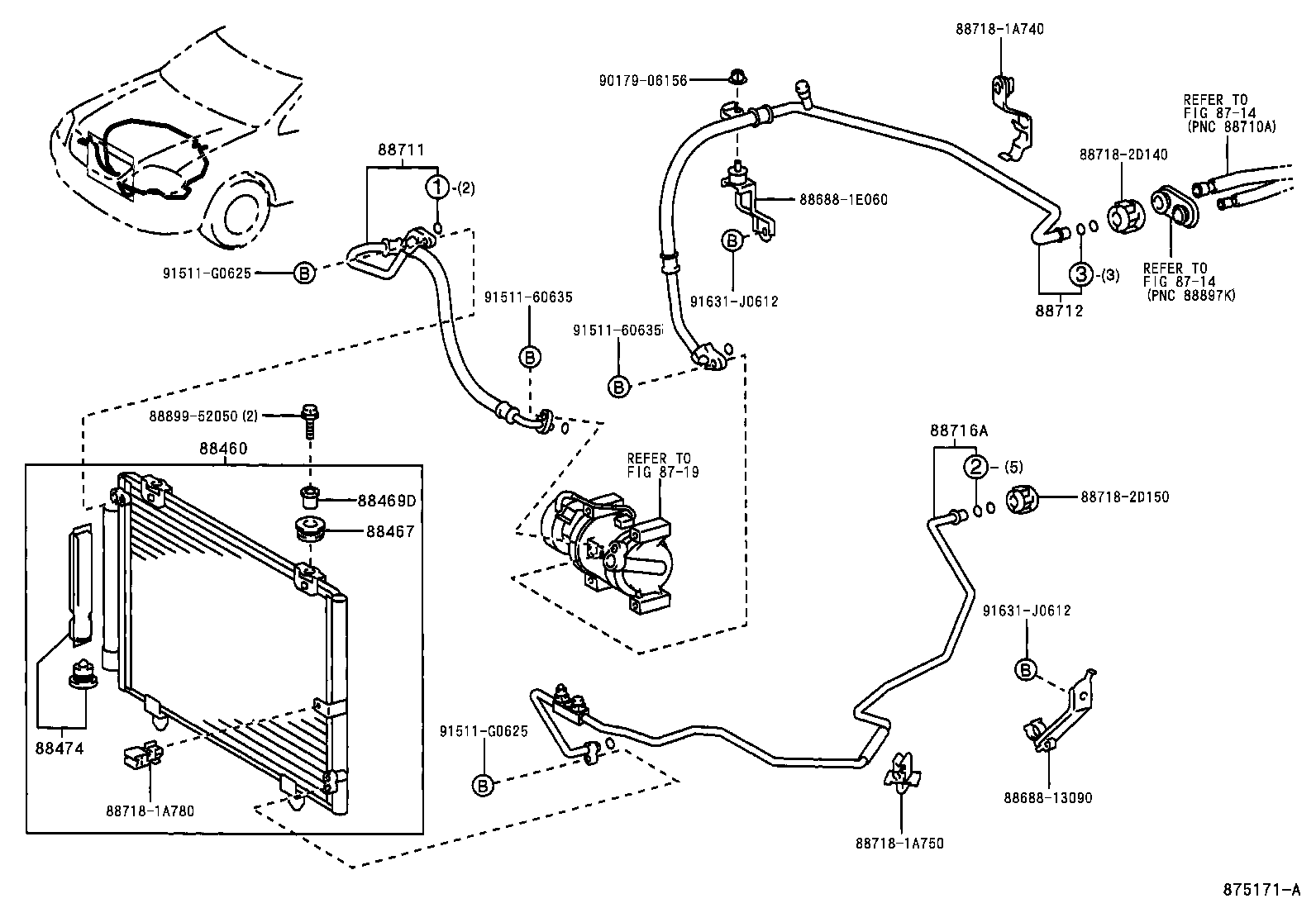

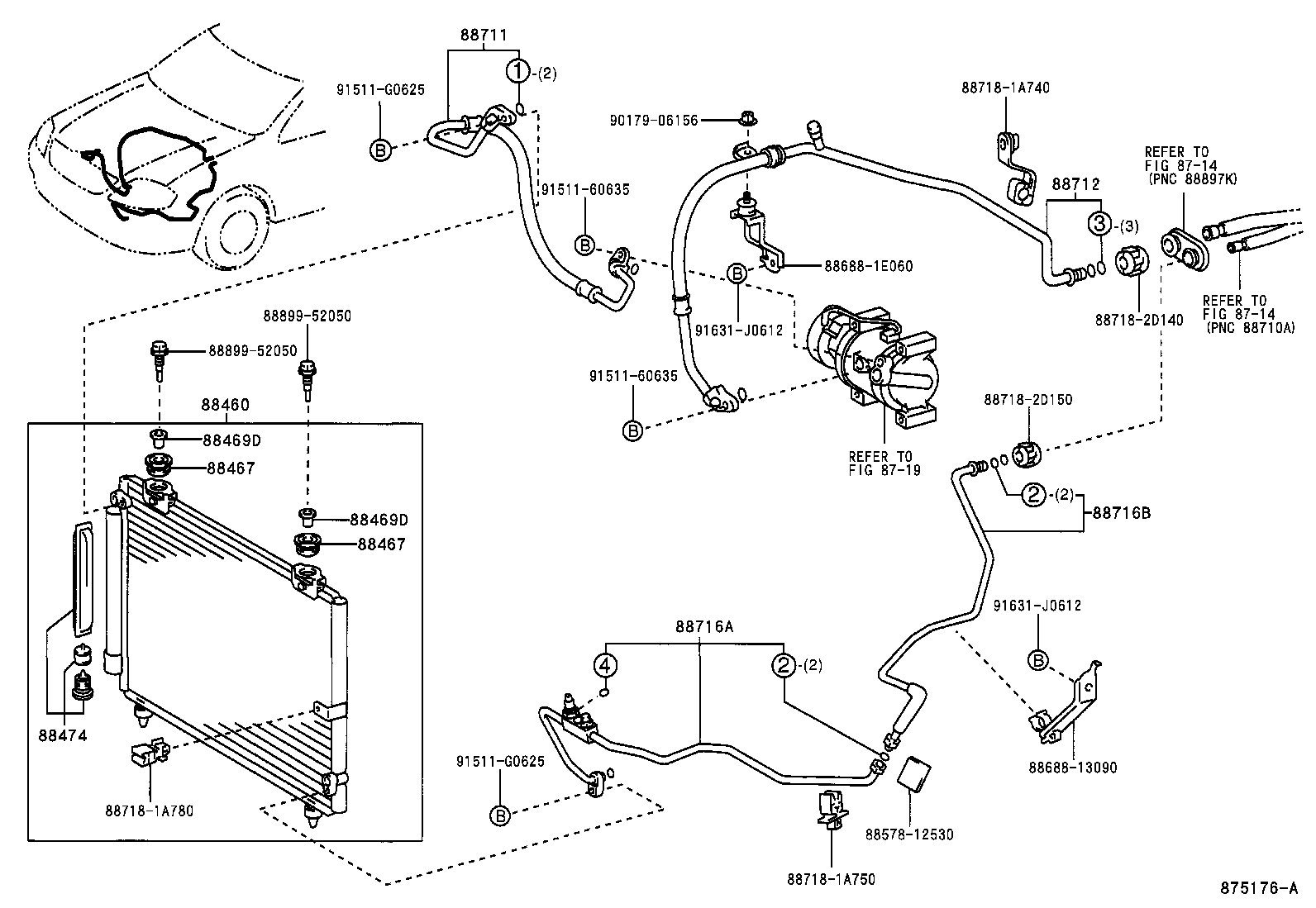

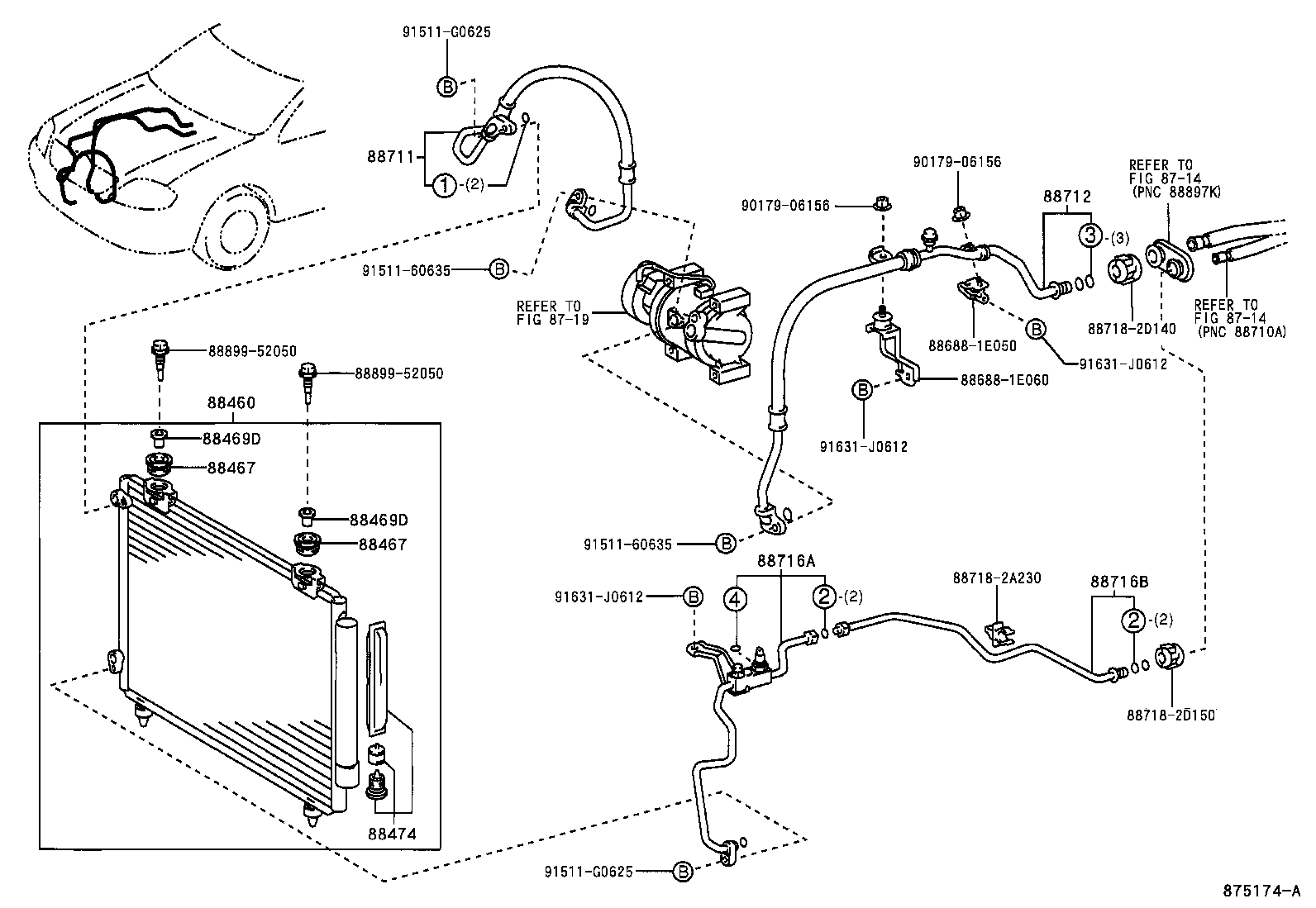

Figure 875173 875173 2001-10 → — Figure 875175 875175 2001-10 → — Figure 875171A 875171A 2001-09 → — Figure 875176A 875176A 2001-09 → — Figure 875172A 875172A 2001-10 → — Figure 875174A 875174A 2001-10 → — Figure 874869 874869 2001-09 → —

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717 Pipe, Cooler Refrigerant Suction, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
