Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09

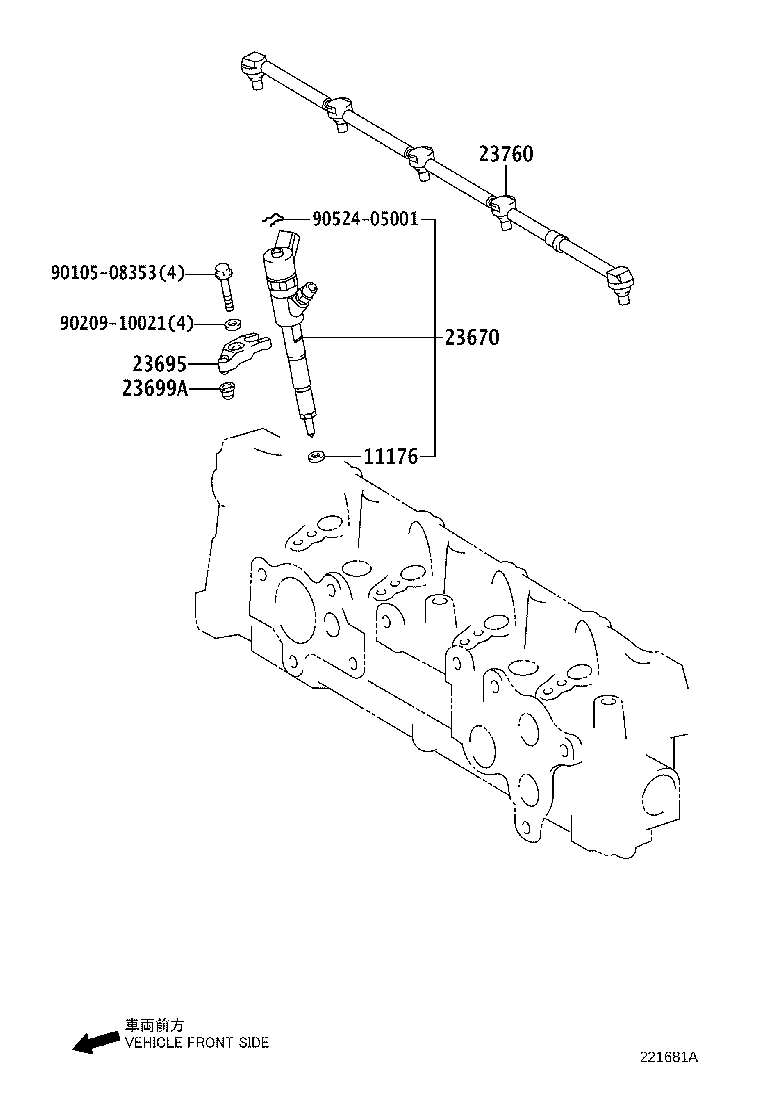

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

17 parts on this figure

Part number	Description	Fitment	Price
11176 — Seat, Injection Nozzle
11176-27010	Seat, Injection Nozzle 2002-01 → 2004-06 ended	1CDFTV CDE120 UKP	—
11176-27010	Seat, Injection Nozzle 2004-06 → —	1CDFTV CDE120 UKP	—
11176-33010	Seat, Injection Nozzle 2004-08 → —	1NDTV NDE120 UKP	—
23670 — Injector Assy
23670-29025	Injector Assy 2002-01 → 2004-06 ended	1CDFTV CDE120 UKP DCR	—
23670-09030	Injector Assy 2004-06 → —	1CDFTV CDE120 UKP	—
23670-39105-A0 note	Injector Assy 2004-08 → —	1NDTV NDE120 UKP	—
23670-39105-B0 note	Injector Assy 2004-08 → —	1NDTV NDE120 UKP	—
23670-39105-C0 note	Injector Assy 2004-08 → —	1NDTV NDE120 UKP	—
23695 — Clamp, Nozzle Holder, NO.1
23695-27010	Clamp, Nozzle Holder, NO.1 2002-01 → 2002-10 ended	1CDFTV CDE120 UKP	—
23695-27020	Clamp, Nozzle Holder, NO.1 2002-10 → 2004-06 ended	1CDFTV CDE120 UKP	—
23695-27020	Clamp, Nozzle Holder, NO.1 2004-06 → —	1CDFTV CDE120 UKP	—
23695-33010	Clamp, Nozzle Holder, NO.1 2004-08 → —	1NDTV NDE120 UKP	—
23699A — Seat, Nozzle Holder Clamp
23699-33010	Seat, Nozzle Holder Clamp 2004-11 → —	1NDTV NDE120 UKP	—
23699-74010	Seat, Nozzle Holder Clamp 2004-08 → 2004-11 ended	1NDTV NDE120 UKP	—
23760 — Pipe Assy, Nozzle Leakage
23761-27010	Pipe Assy, Nozzle Leakage 2002-01 → 2004-06 ended	1CDFTV CDE120 UKP	—
23760-33020	Pipe Assy, Nozzle Leakage 2004-08 → —	1NDTV NDE120 UKP	—
23761-27010	Pipe Assy, Nozzle Leakage 2004-06 → —	1CDFTV CDE120 UKP	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
