Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

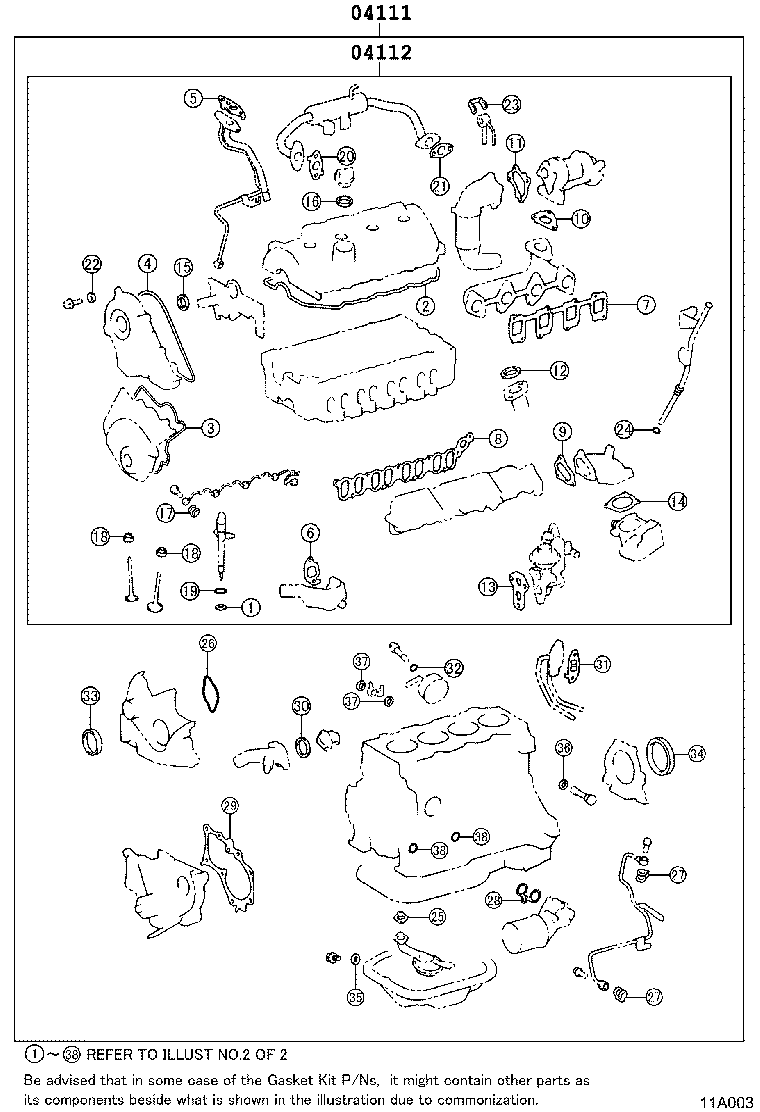

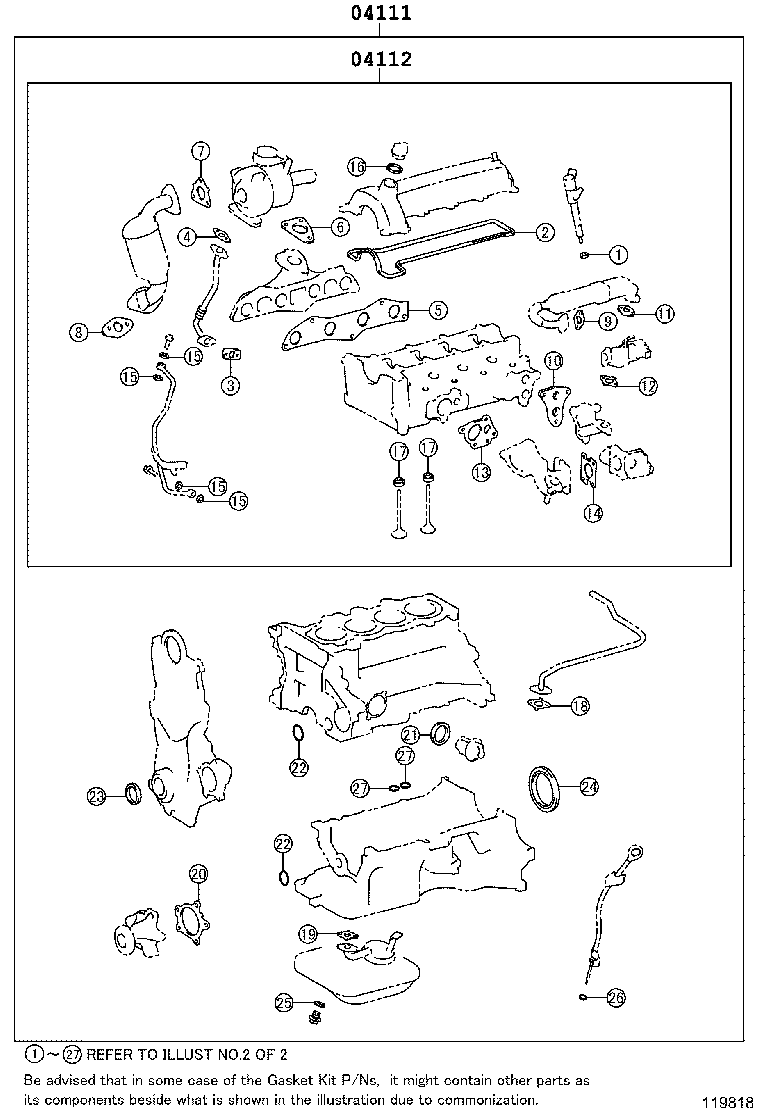

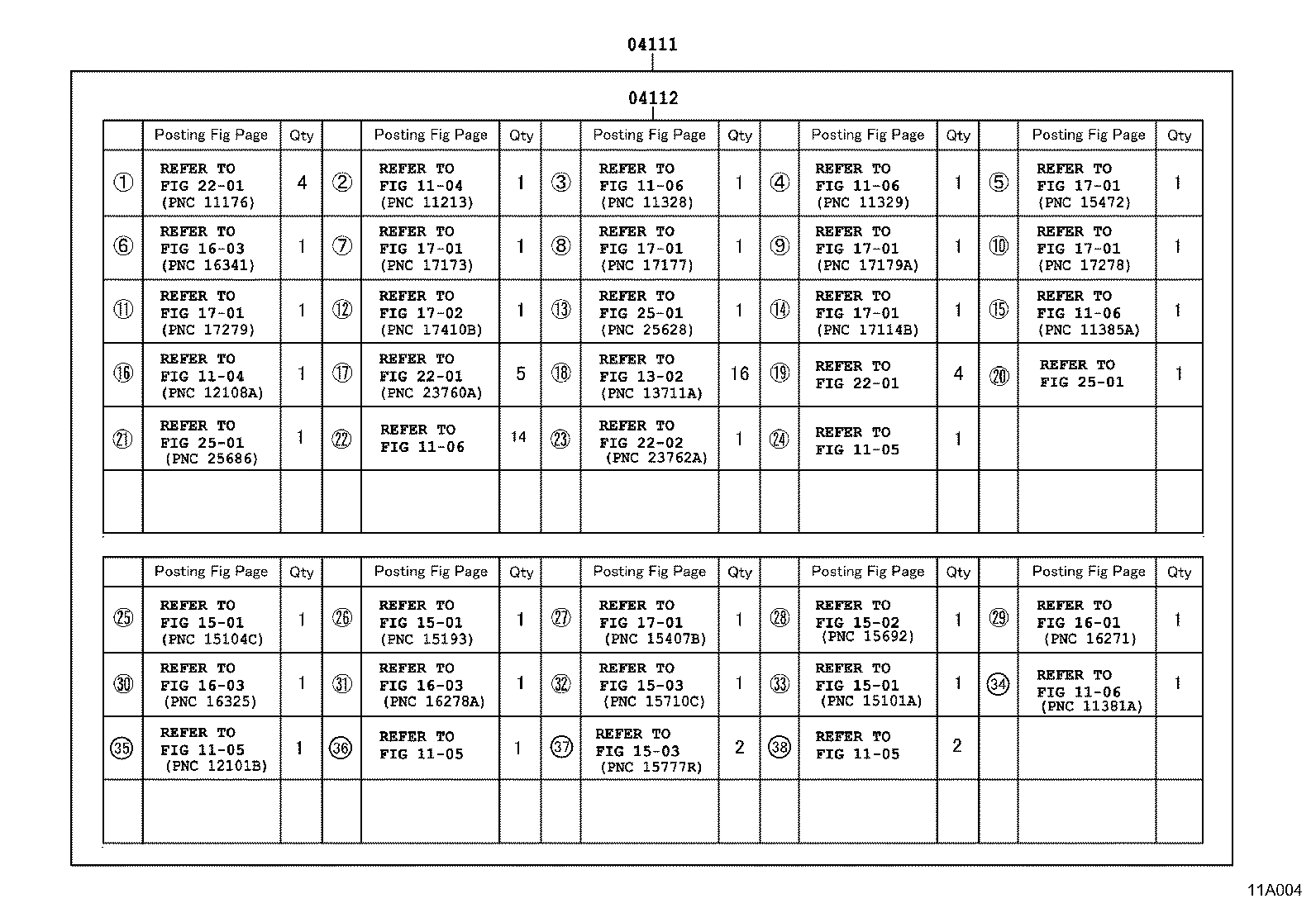

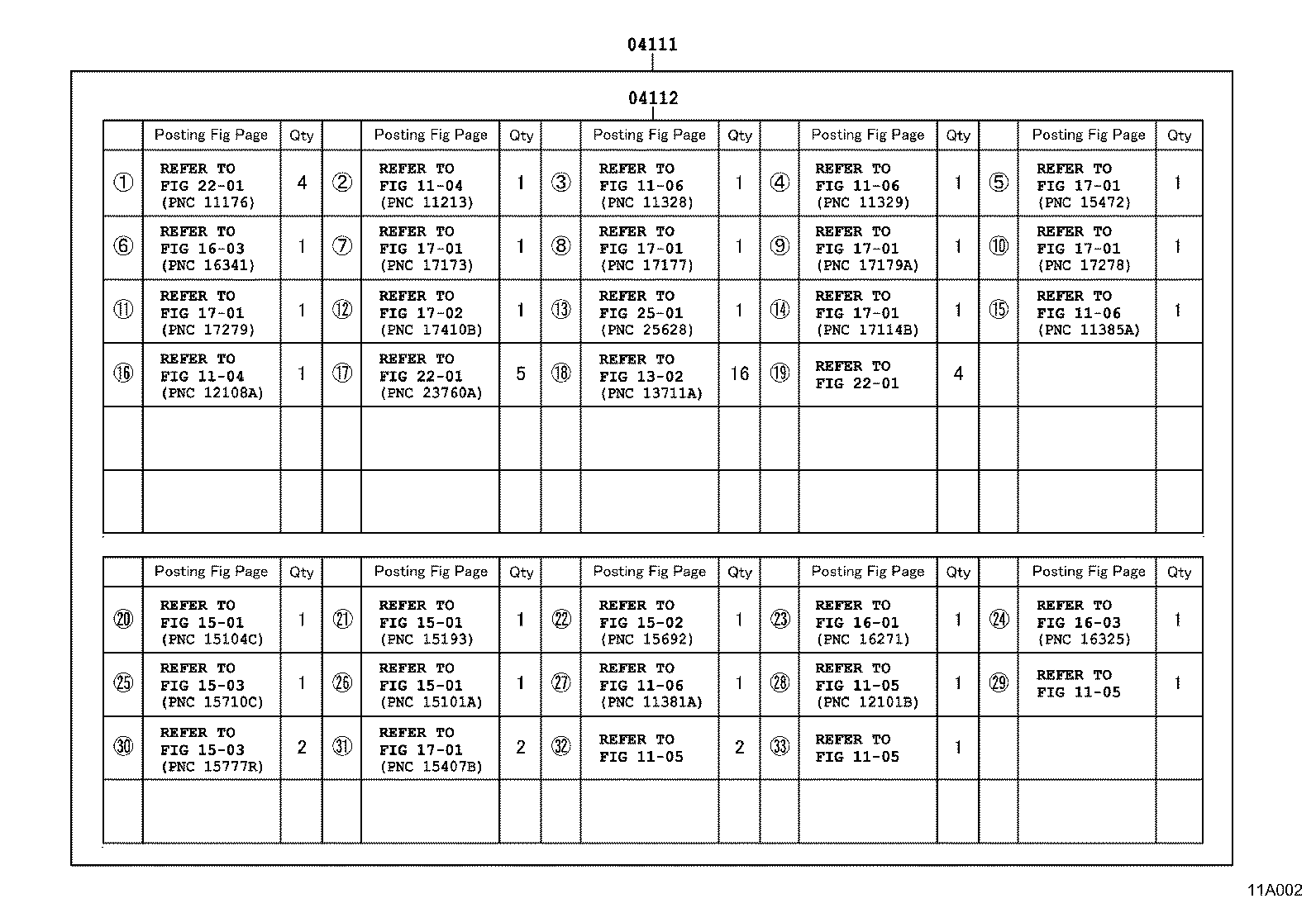

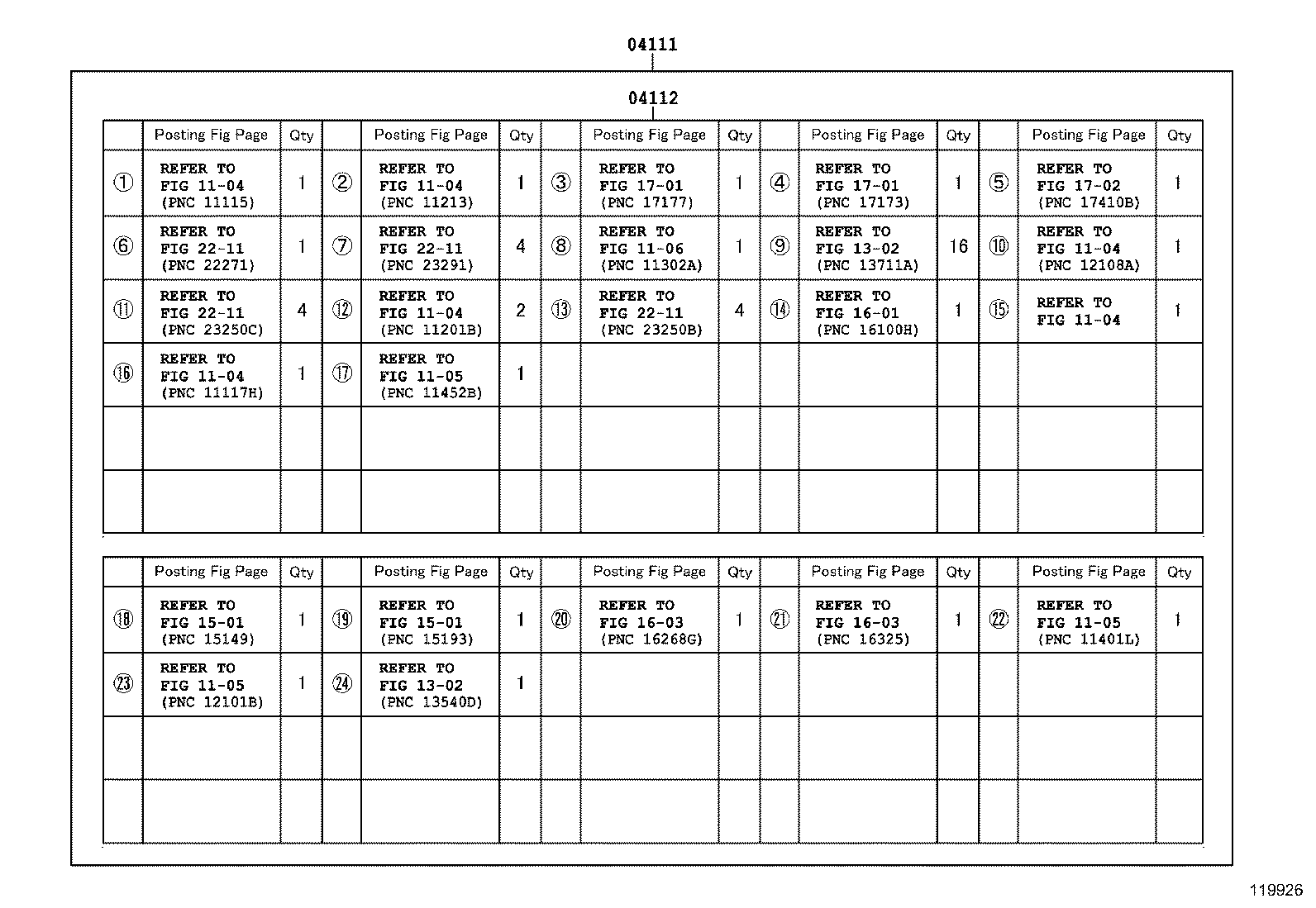

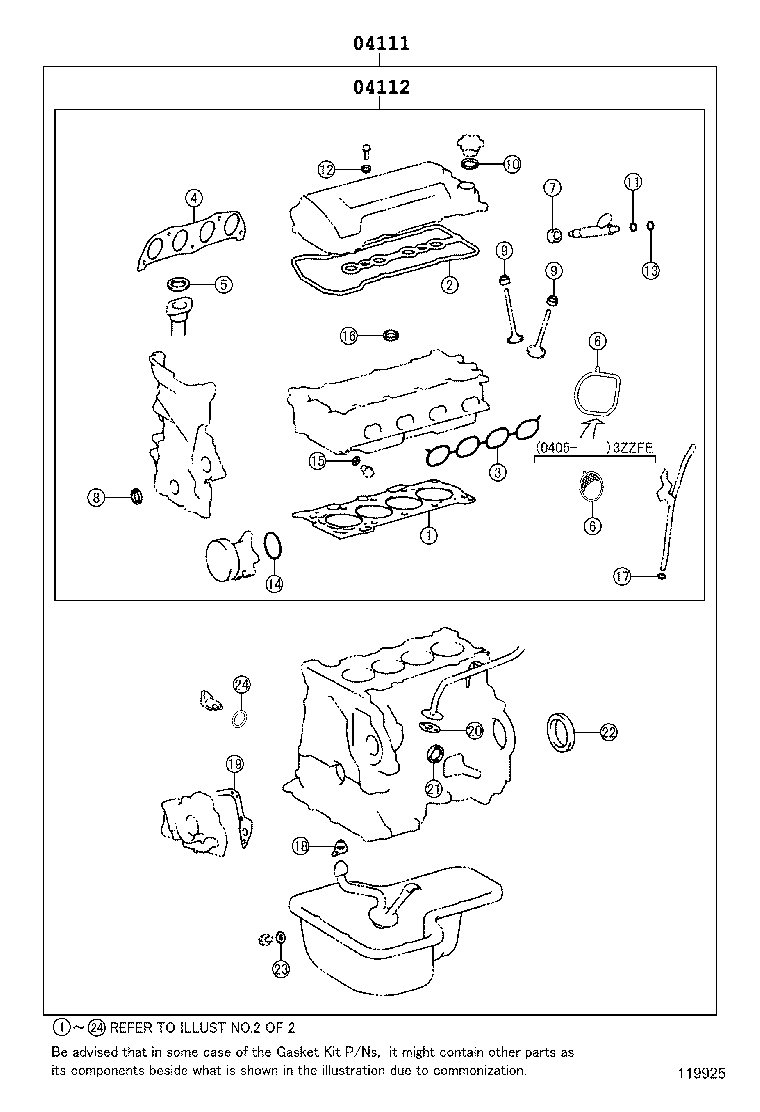

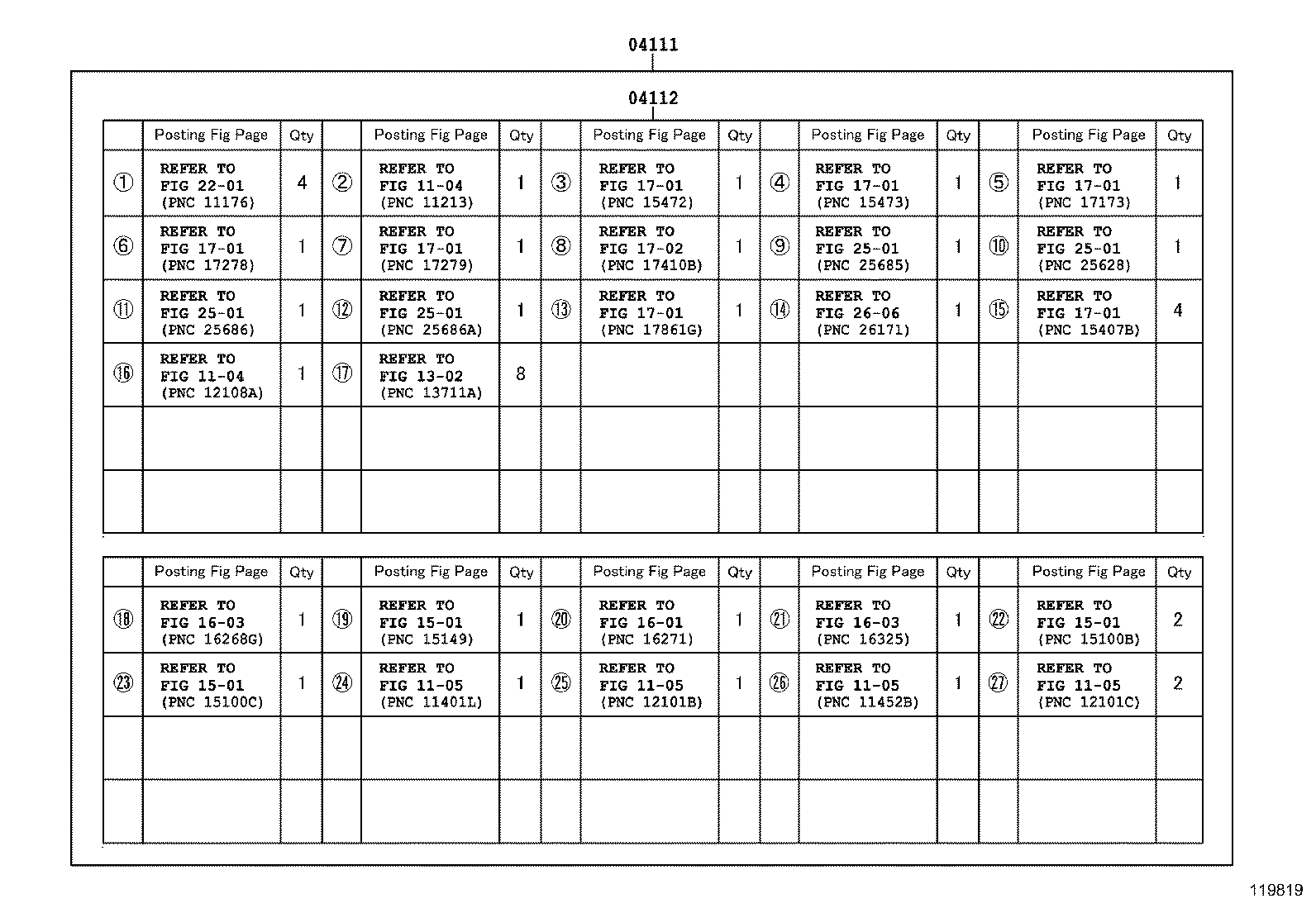

Figure 11A001 11A001 2002-01 → 2004-06 Figure 11A002 11A002 2002-01 → 2004-06 Figure 11A003 11A003 2004-06 → — Figure 11A004 11A004 2004-06 → — Figure 119818 119818 2004-08 → — Figure 119819 119819 2004-08 → — Figure 119925 119925 2002-01 → — Figure 119926 119926 2002-01 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
