Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

62 part groups · 11 illustrations

Illustrations

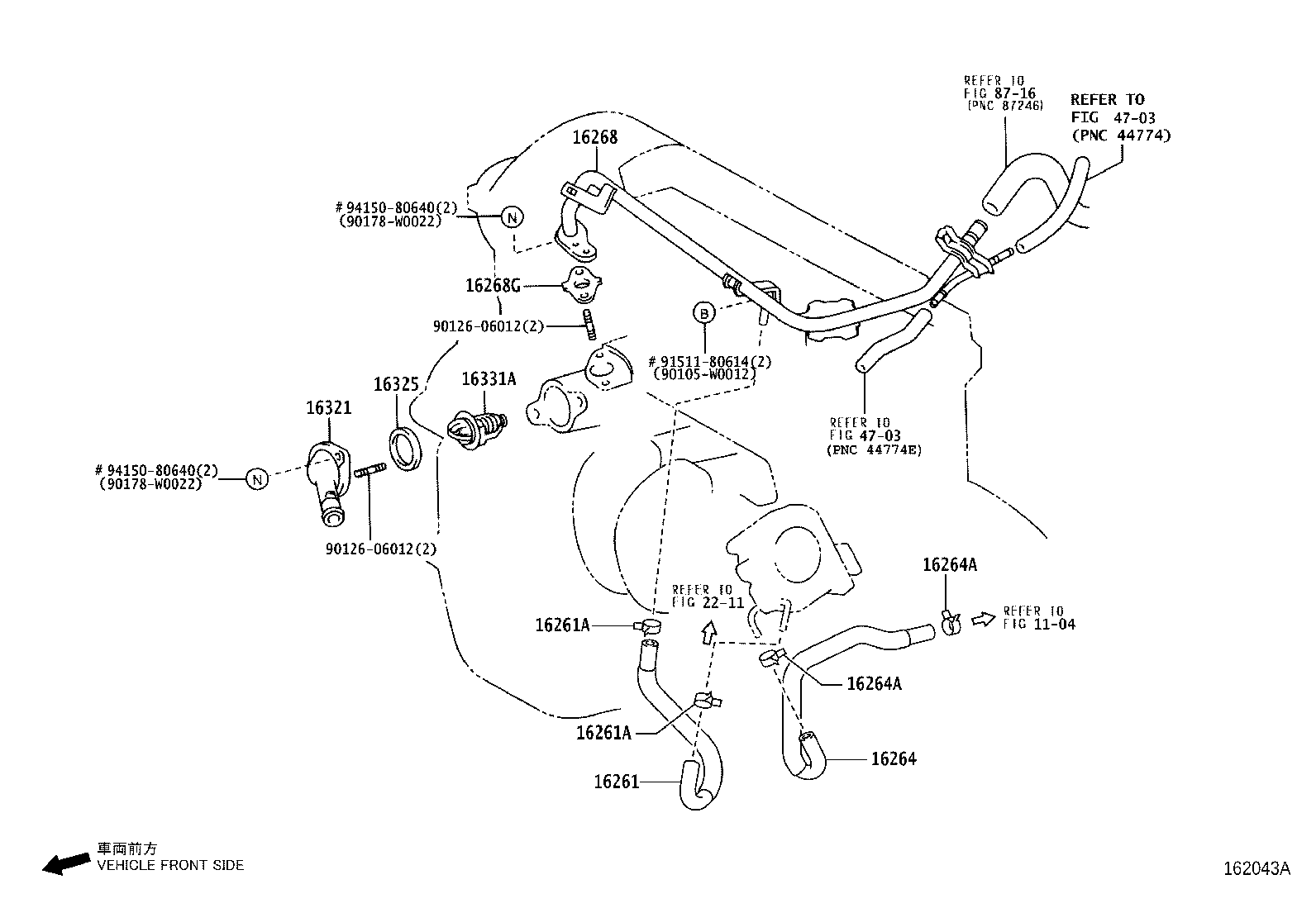

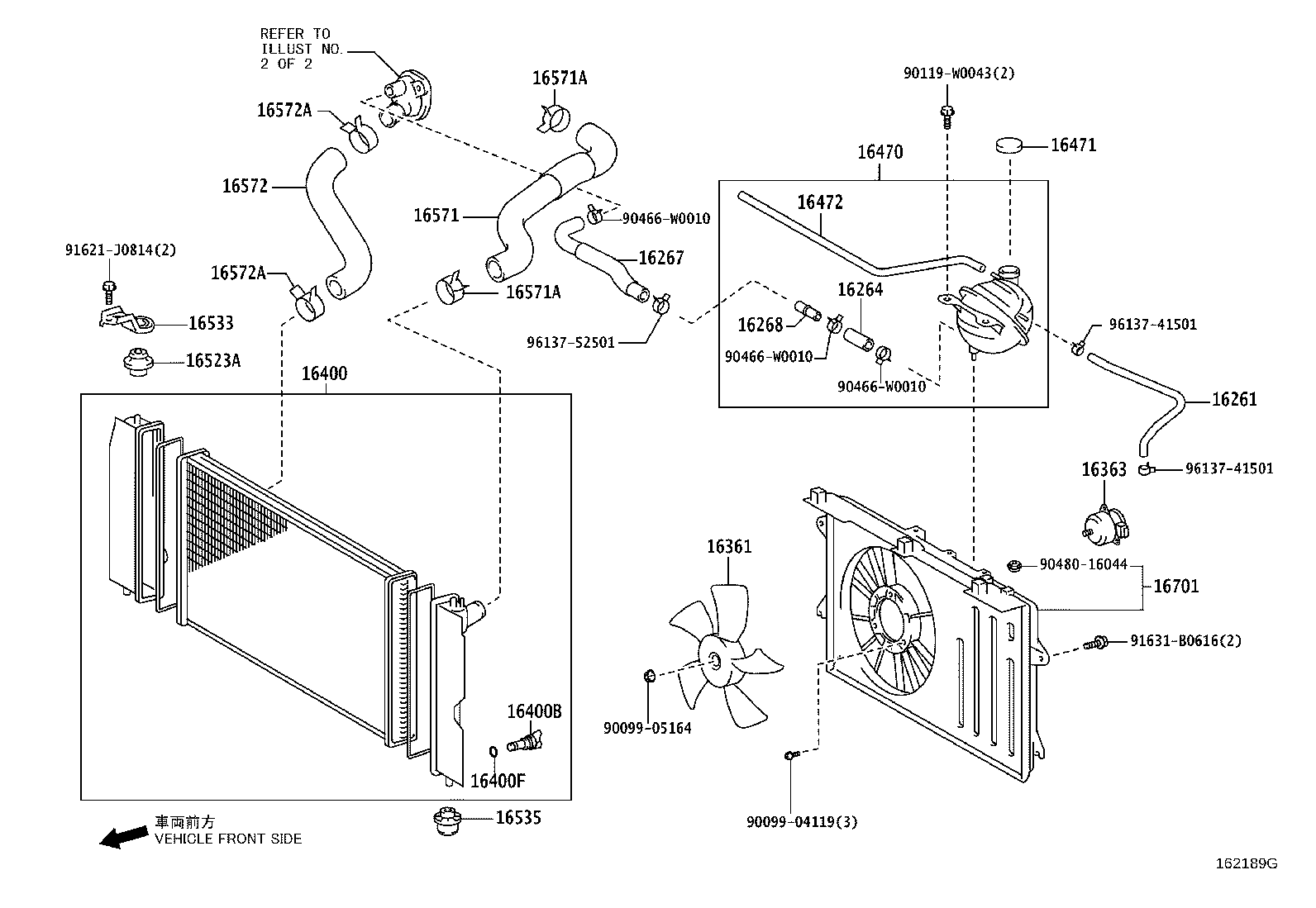

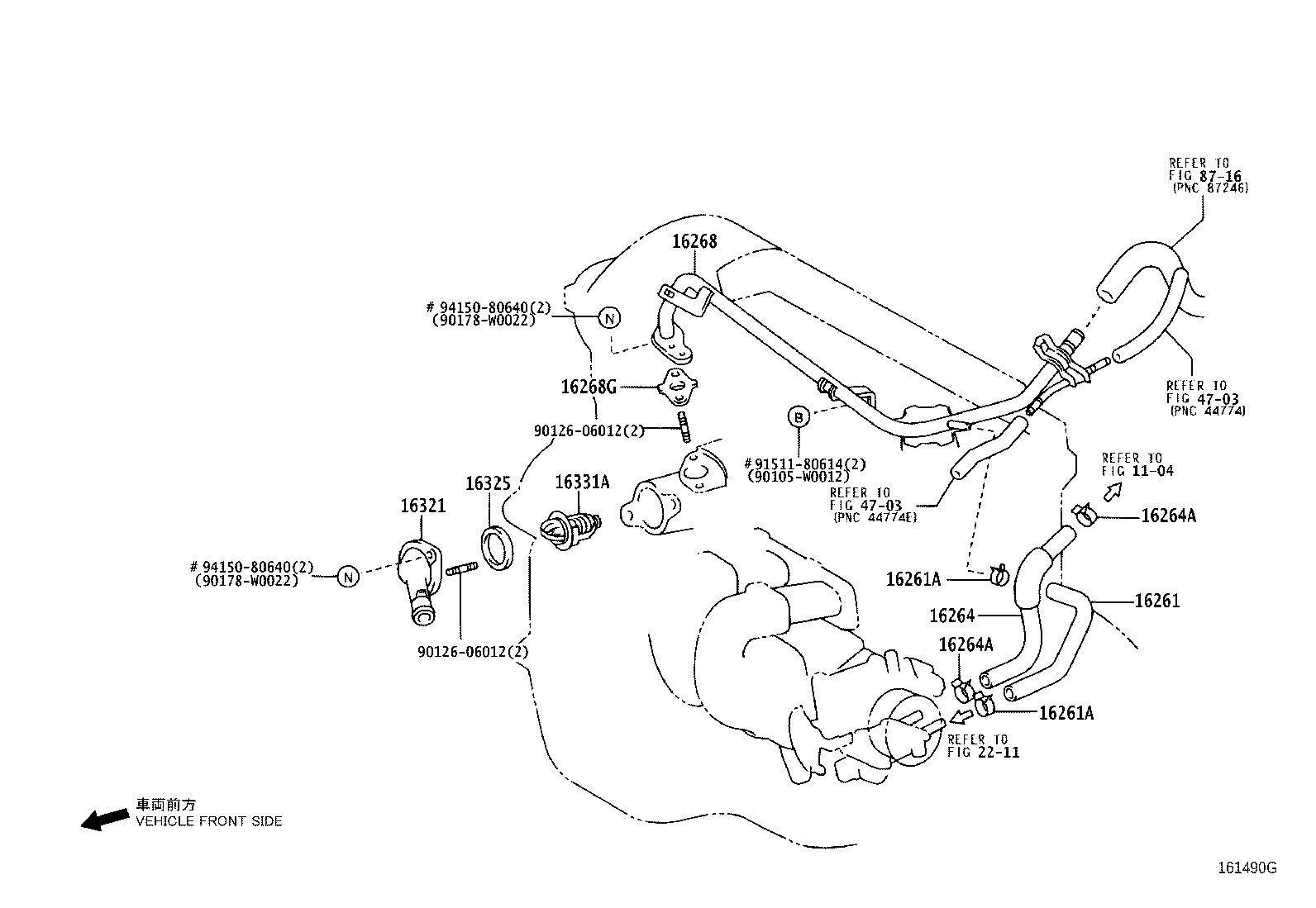

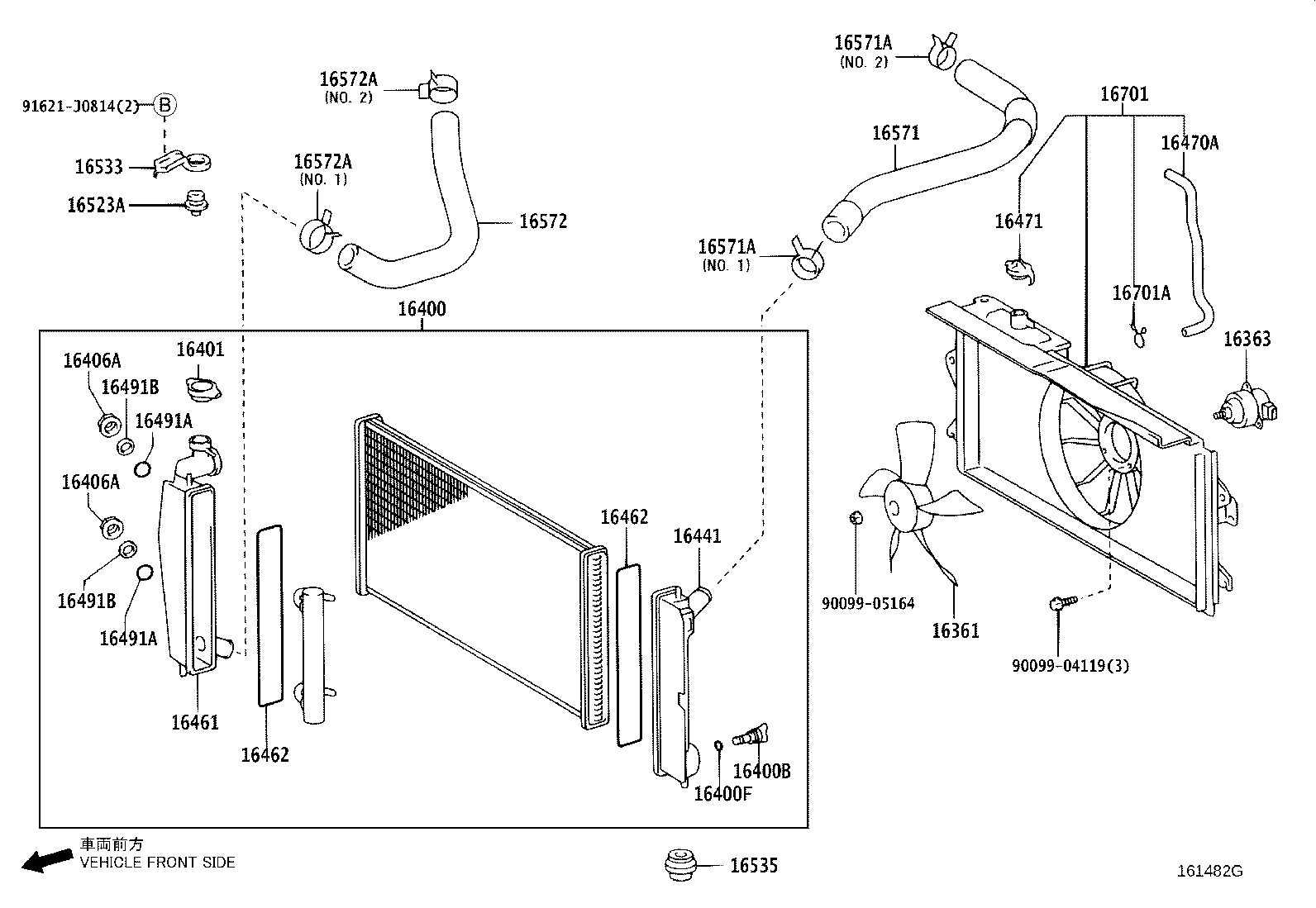

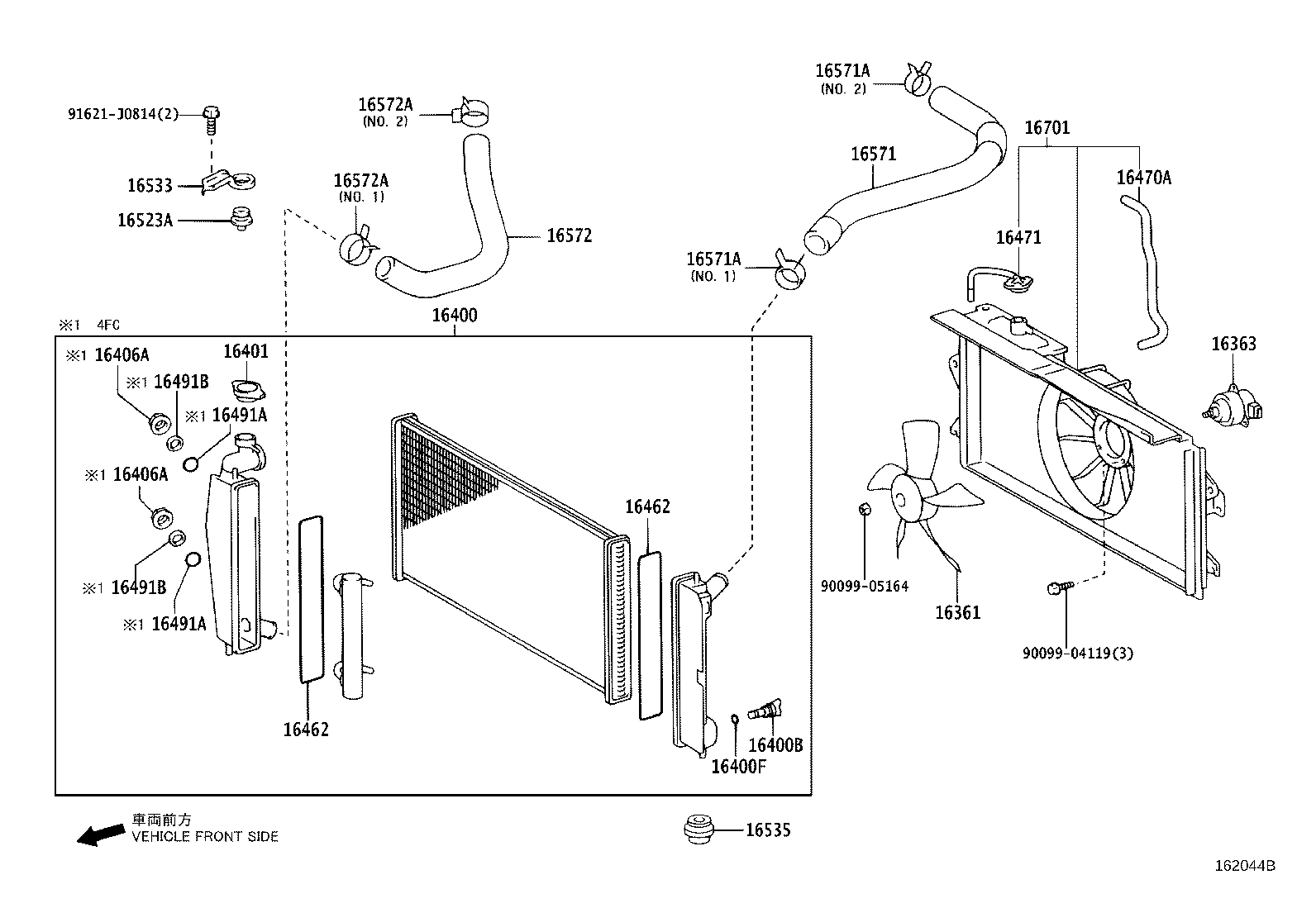

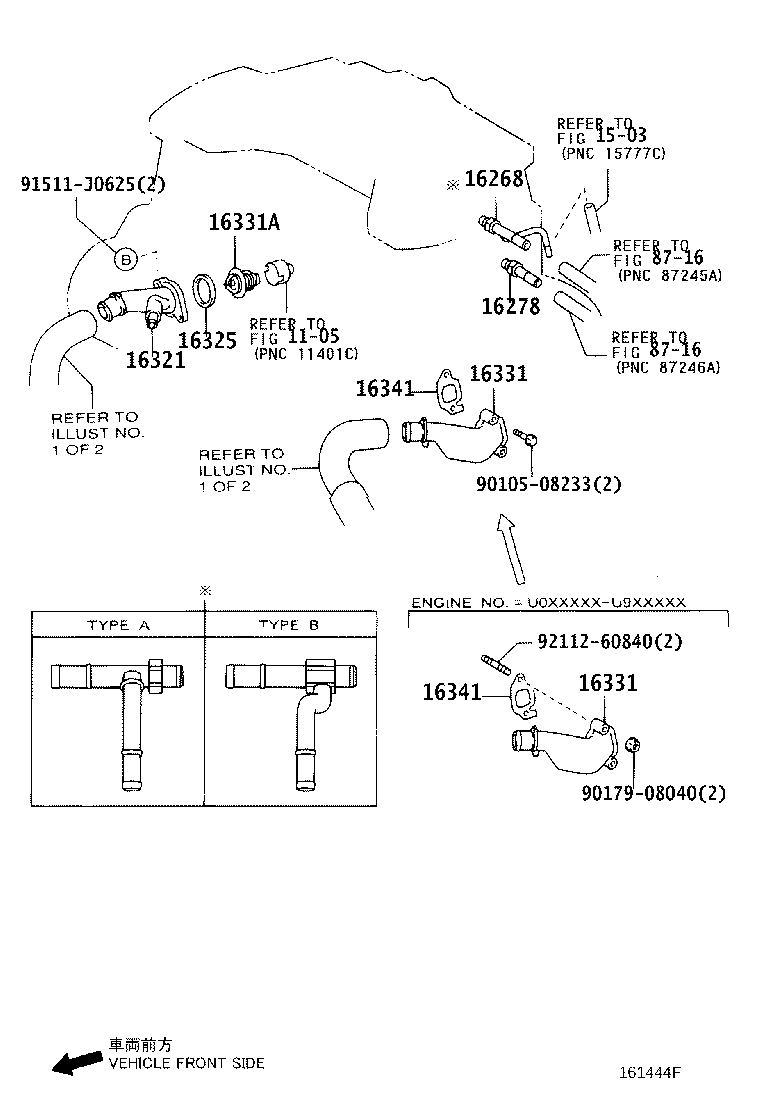

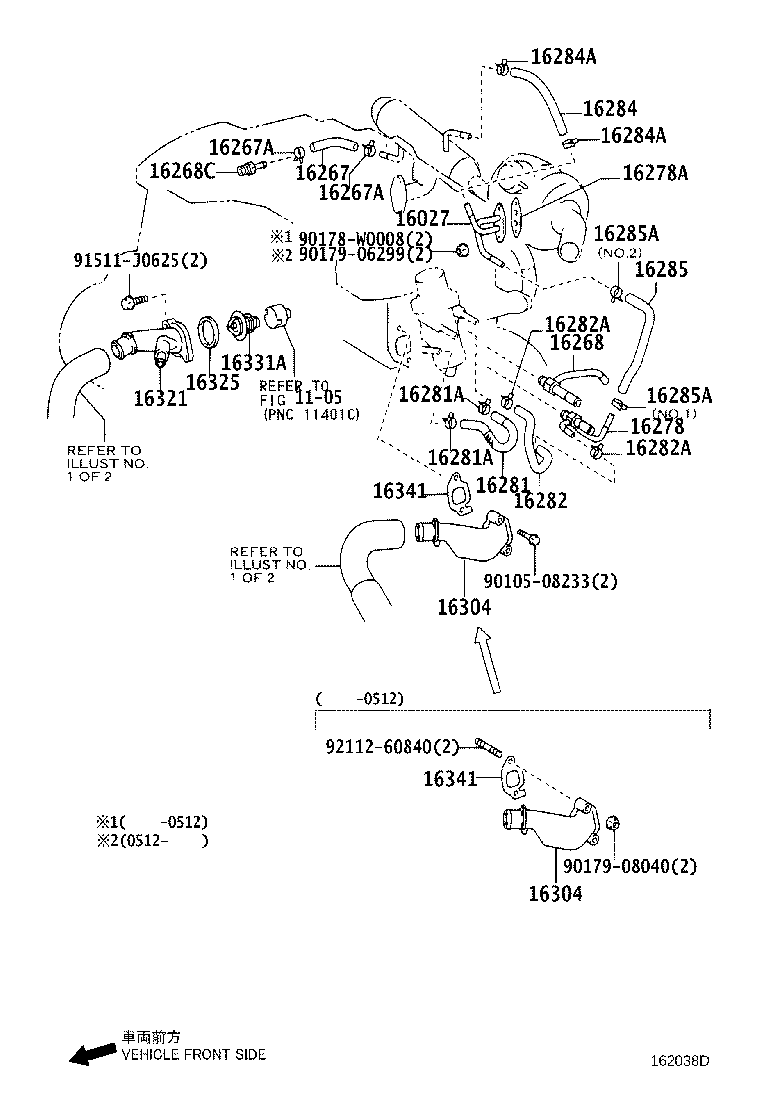

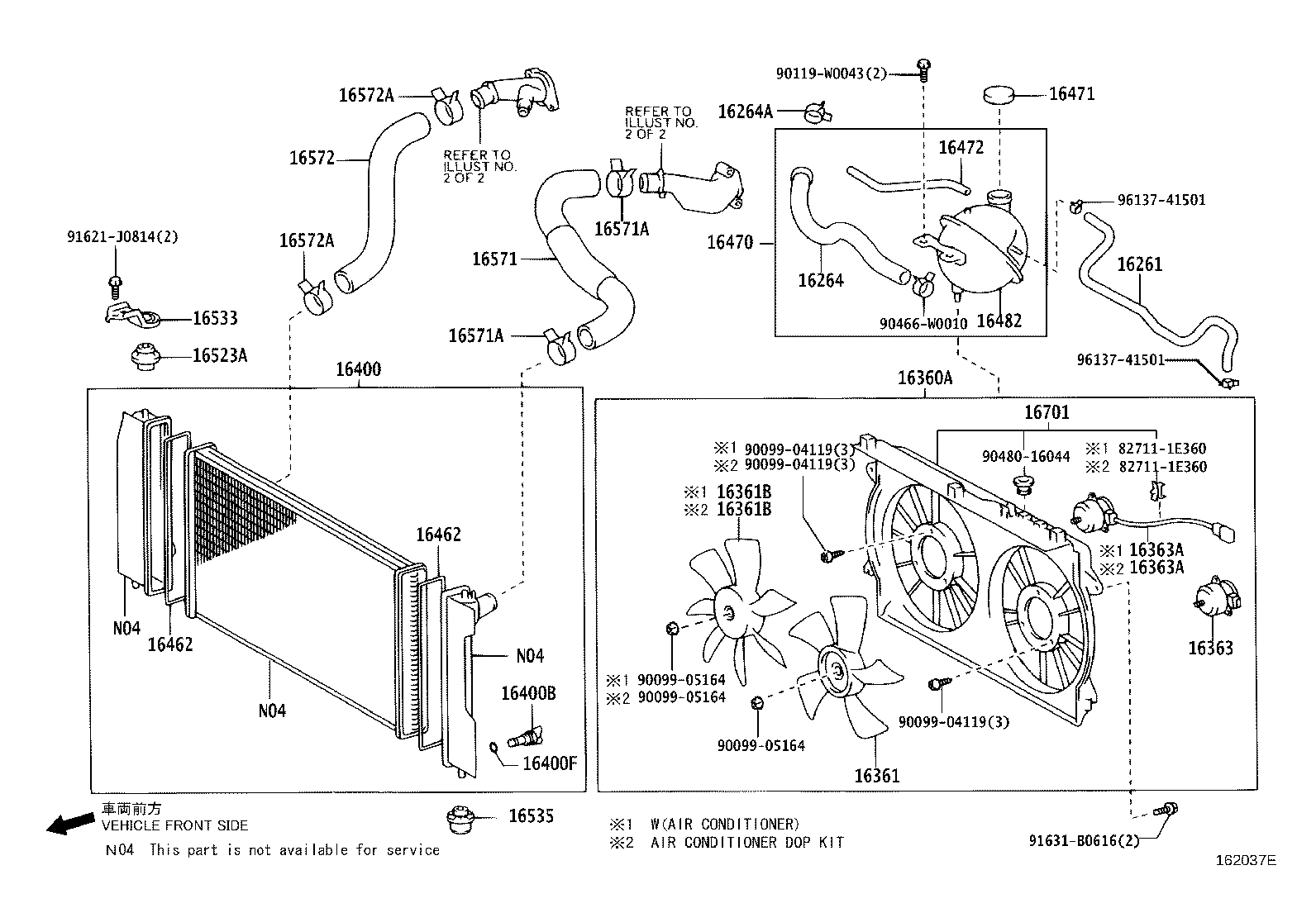

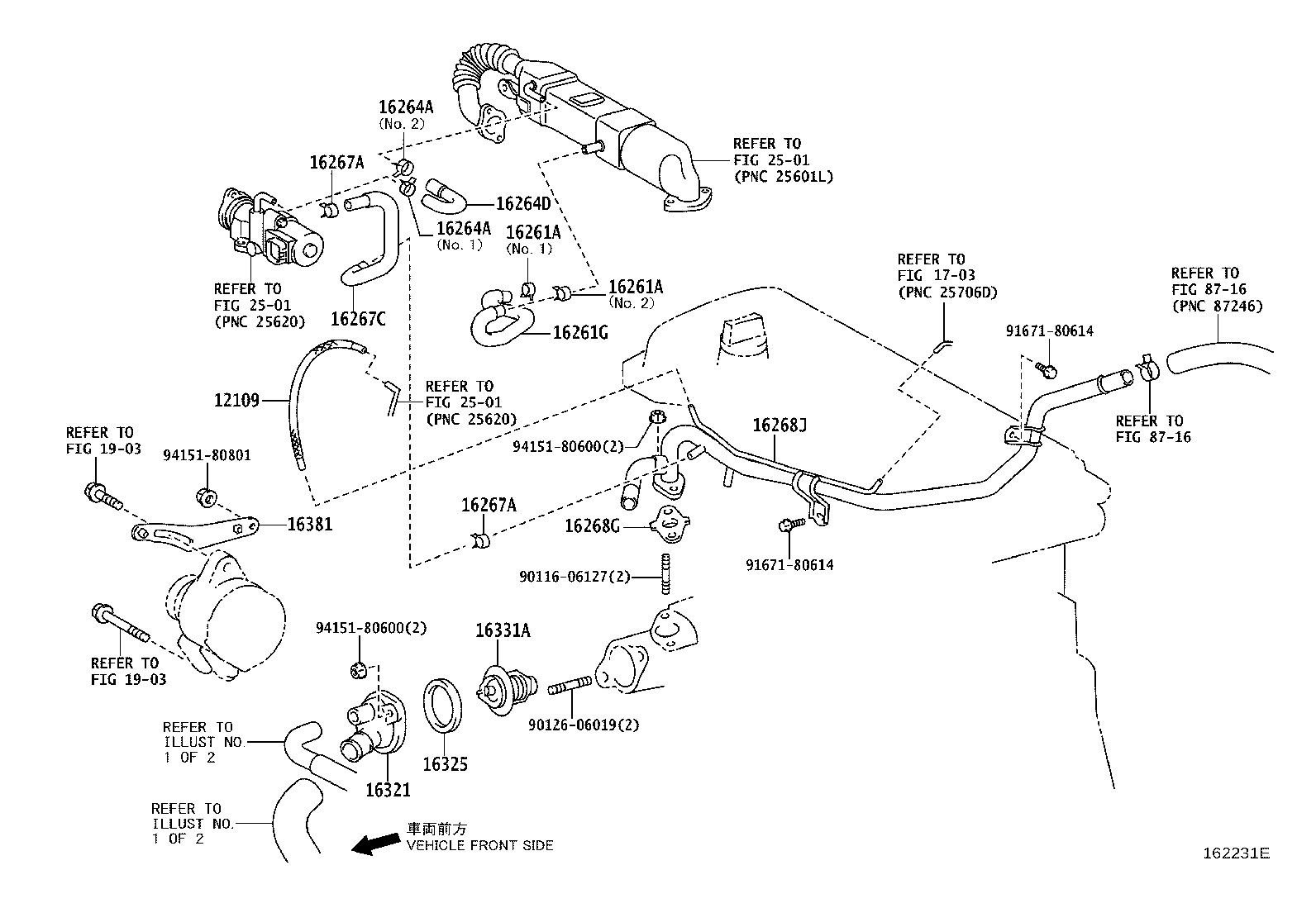

Figure 161556K 161556K 2002-01 → — Figure 162037E 162037E 2004-06 → — Figure 161444F 161444F 2002-01 → — Figure 162038D 162038D 2004-06 → — Figure 162189G 162189G 2004-08 → — Figure 162231E 162231E 2004-08 → — Figure 161482G 161482G 2002-01 → 2004-06 Figure 162044B 162044B 2004-06 → — Figure 161490G 161490G 2002-01 → 2004-06 Figure 161490G 161490G 2004-06 → — Figure 162043A 162043A 2004-06 → —

Part groups

PNCDescription
12109 Hose, Water Drain
16027 Pipe Sub-assy, Turbo Water, NO.1
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267C Hose, Water By-pass, NO.4
16268 Pipe, Water By-pass, NO.1
16268C Union, Water By-pass Pipe
16268G Gasket(FOR WATER BY-PASS PIPE)
16268J Pipe, Water By-pass, NO.5
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16331 Outlet, Water
16331A Thermostat
16341 Gasket, Water Outlet
16360A Fan Assy, W/Motor
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16381 Bar, Fan Belt Adjusting
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16406A Support(FOR OIL COOLER)
16441 Tank, Radiator, Upper
16461 Tank, Radiator, Lower
16462 Ring, O(FOR RADIATOR LOWER TANK)
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16482 Tank Sub-assy, Radiator Reserve
16491A Ring, O(FOR ATM OIL COOLER)
16491B Washer, Plate(FOR ATM OIL COOLER)
16523A Cushion, Radiator Support
16533 Support, Radiator, Upper
16535 Support, Radiator, Lower
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16701 Shroud Sub-assy, Fan
16701A Clip(FOR FAN SHROUD)
17863A Separator, Air Intake
