Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

11 part groups · 5 illustrations

Illustrations

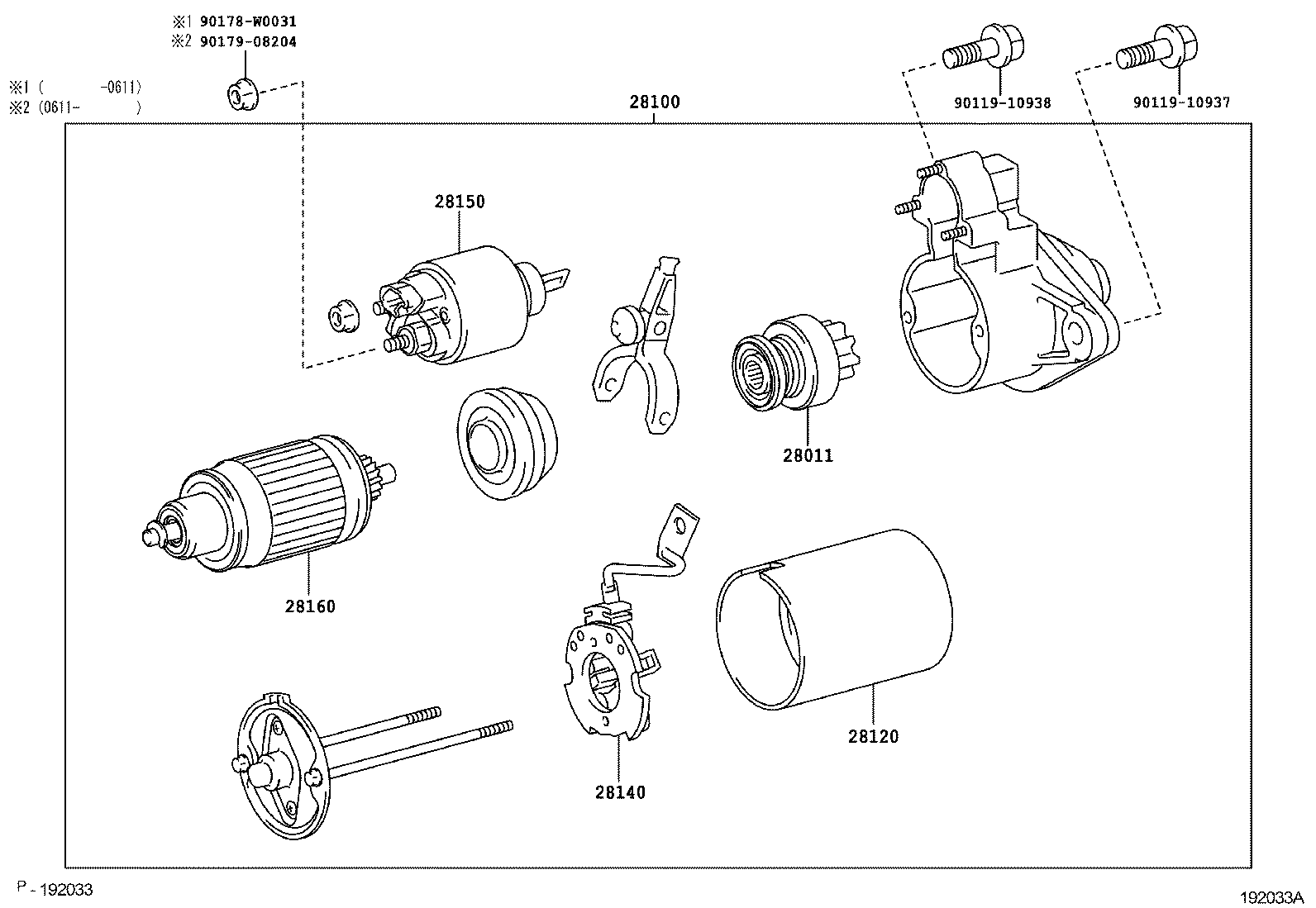

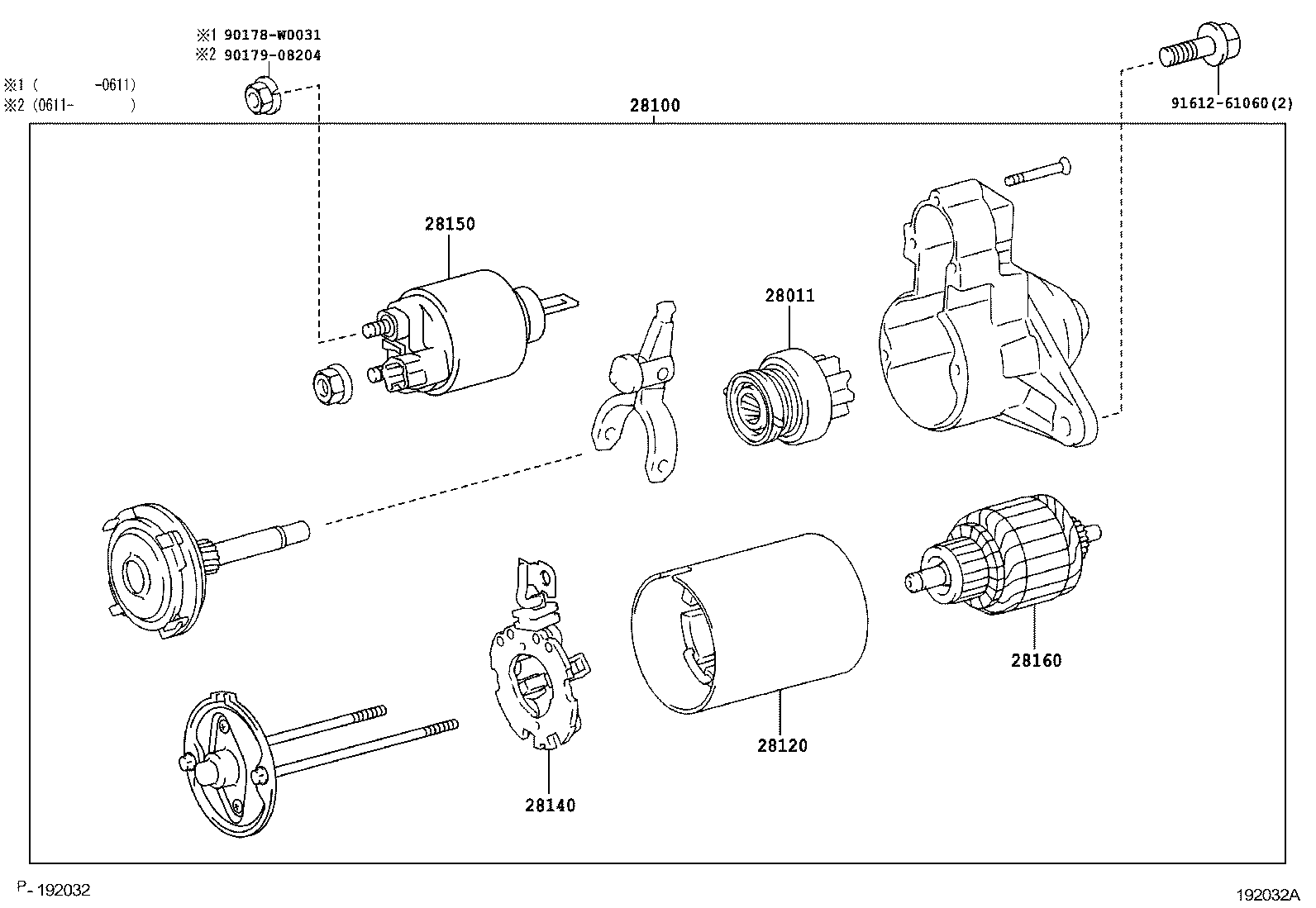

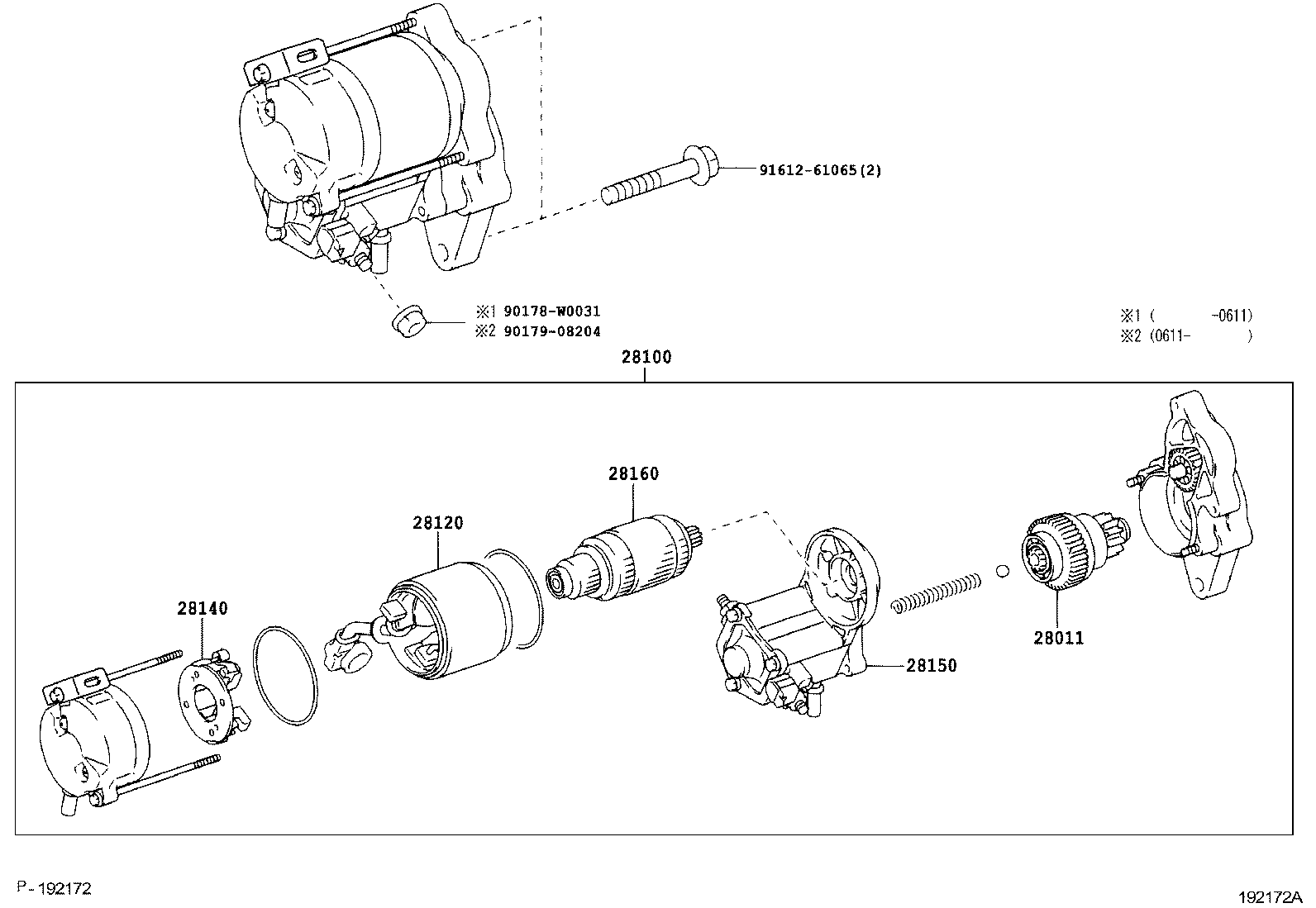

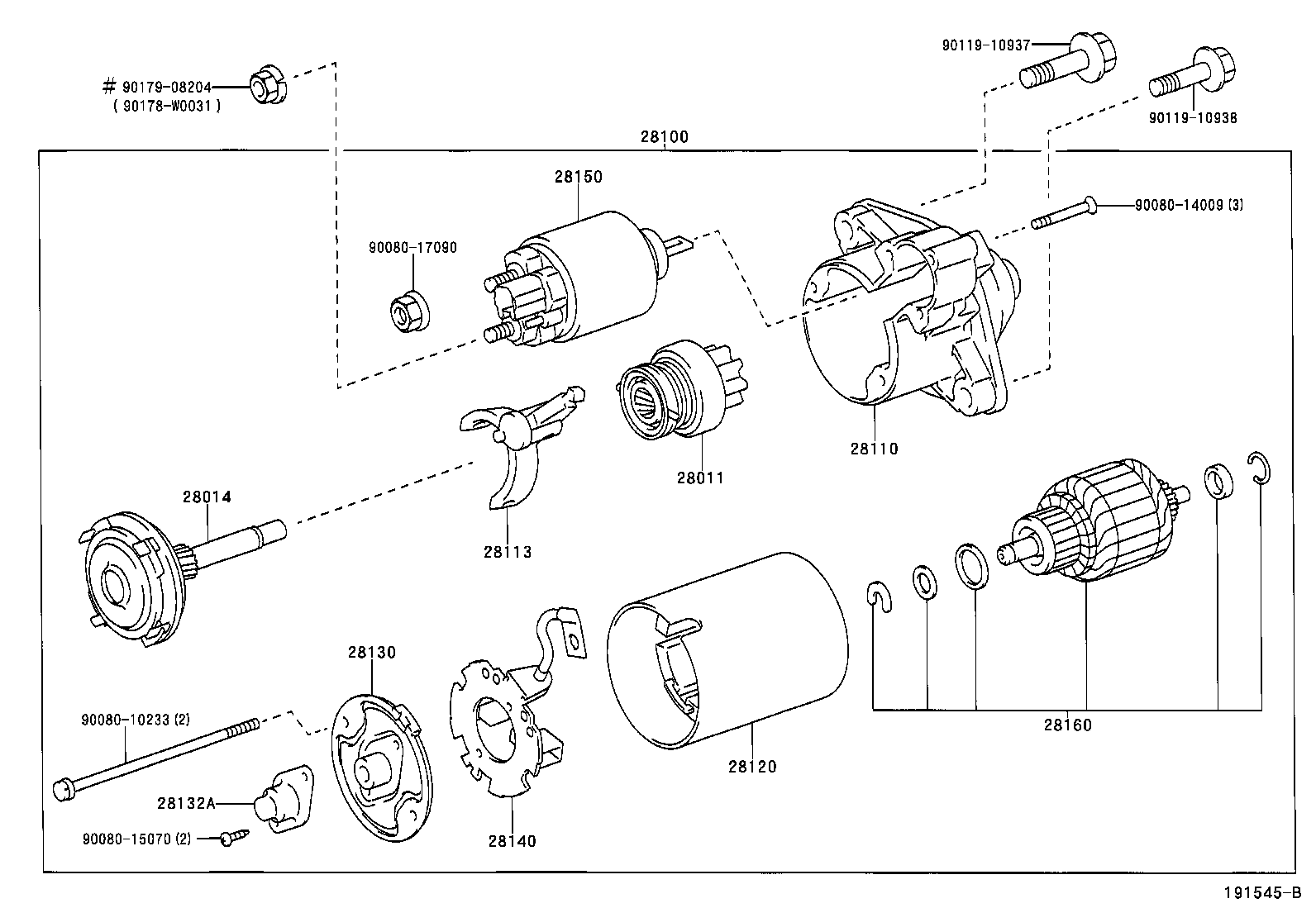

Figure 191544B 191544B 2002-01 → 2004-06 Figure 191545B 191545B 2002-01 → 2004-06 Figure 192032A 192032A 2004-06 → — Figure 192033A 192033A 2004-06 → — Figure 192172A 192172A 2004-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28014 Shaft Sub-assy, Planet Carrier
28100 Starter Assy
28110 Housing Assy, Starter Drive
28113 Lever, Starter Pinion Drive
28120 Yoke Assy, Starter
28130 Frame Assy, Starter Commutator End
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
