Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

13 part groups · 4 illustrations

Illustrations

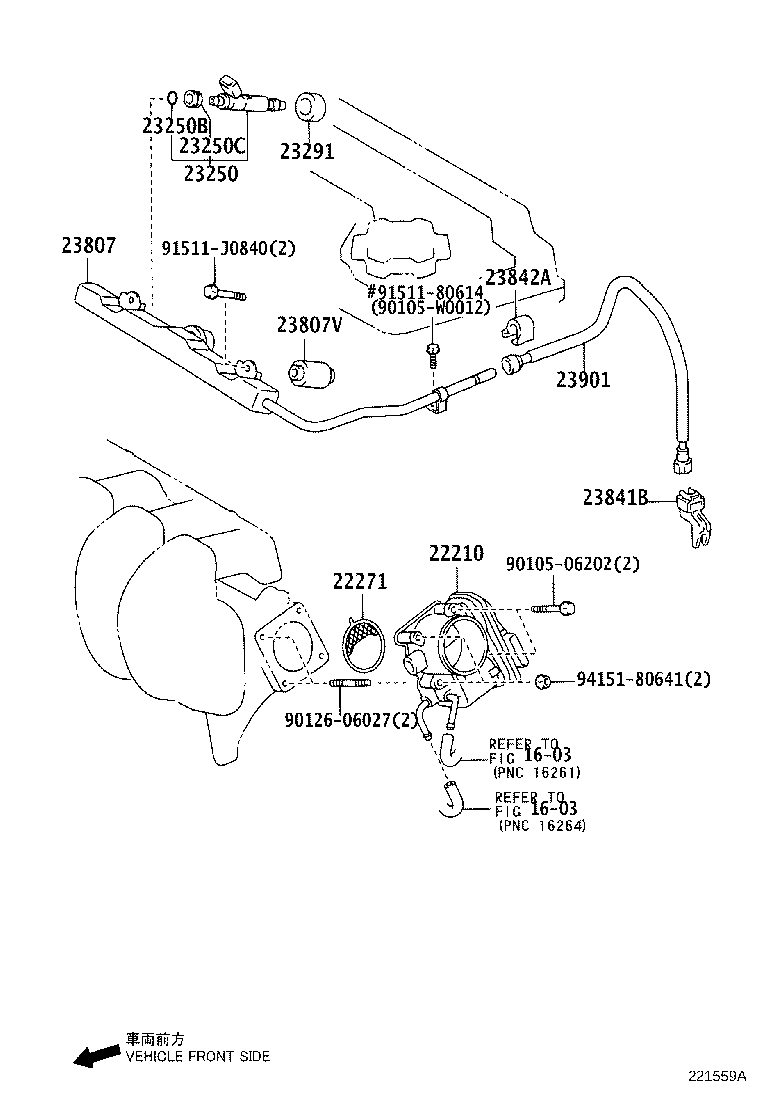

Figure 221235F 221235F 2002-01 → 2004-06 Figure 221235F 221235F 2004-06 → — Figure 221559A 221559A 2004-06 → — Figure 221116C 221116C 2002-01 → —

Part groups

PNCDescription
22210 Body Assy, Throttle
22215 Gasket, Throttle Body Cover
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
