Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

20 part groups · 13 illustrations

Illustrations

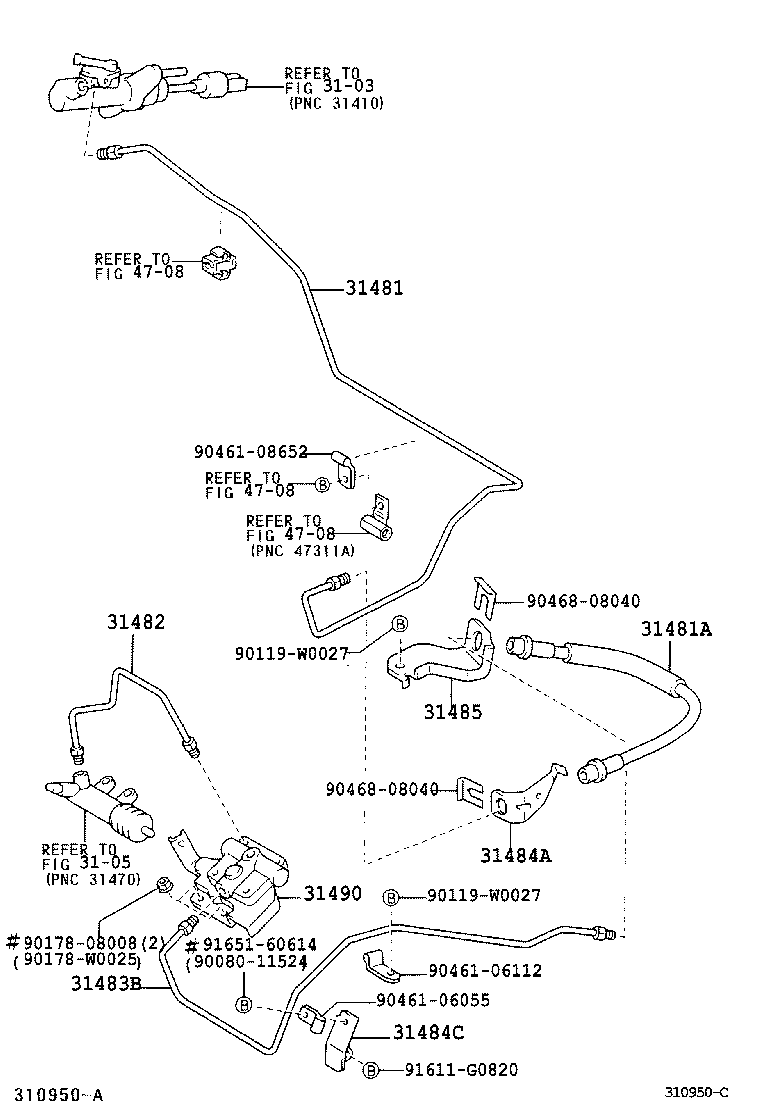

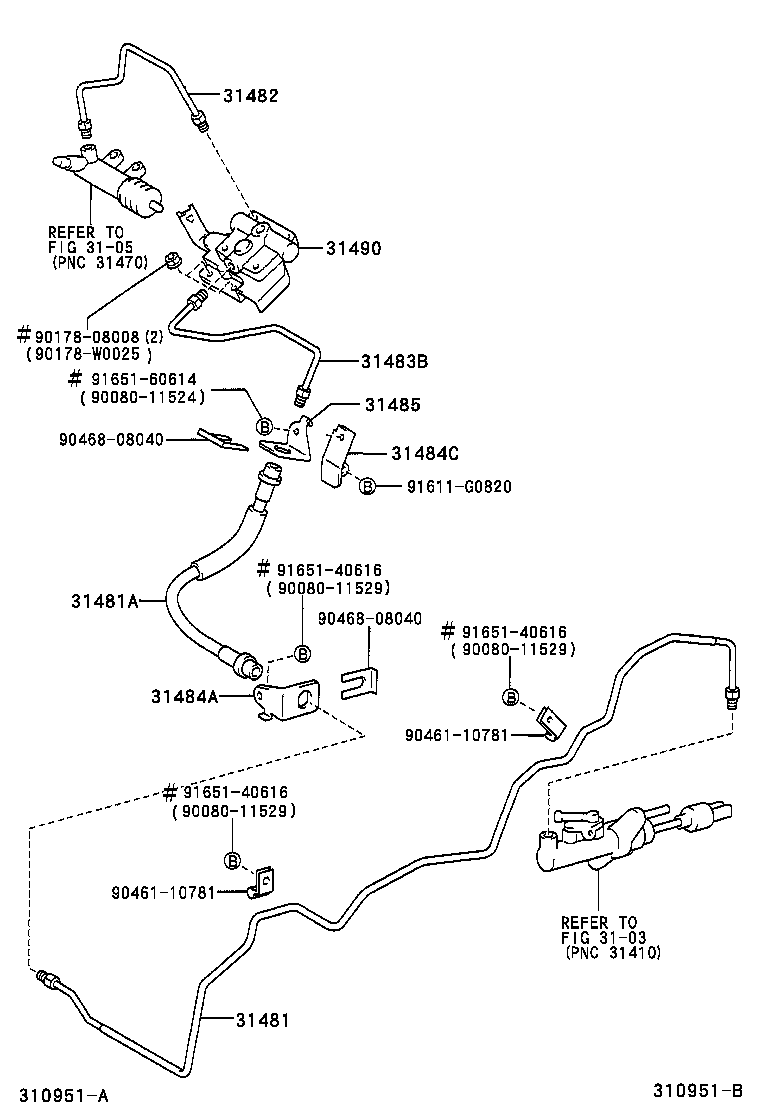

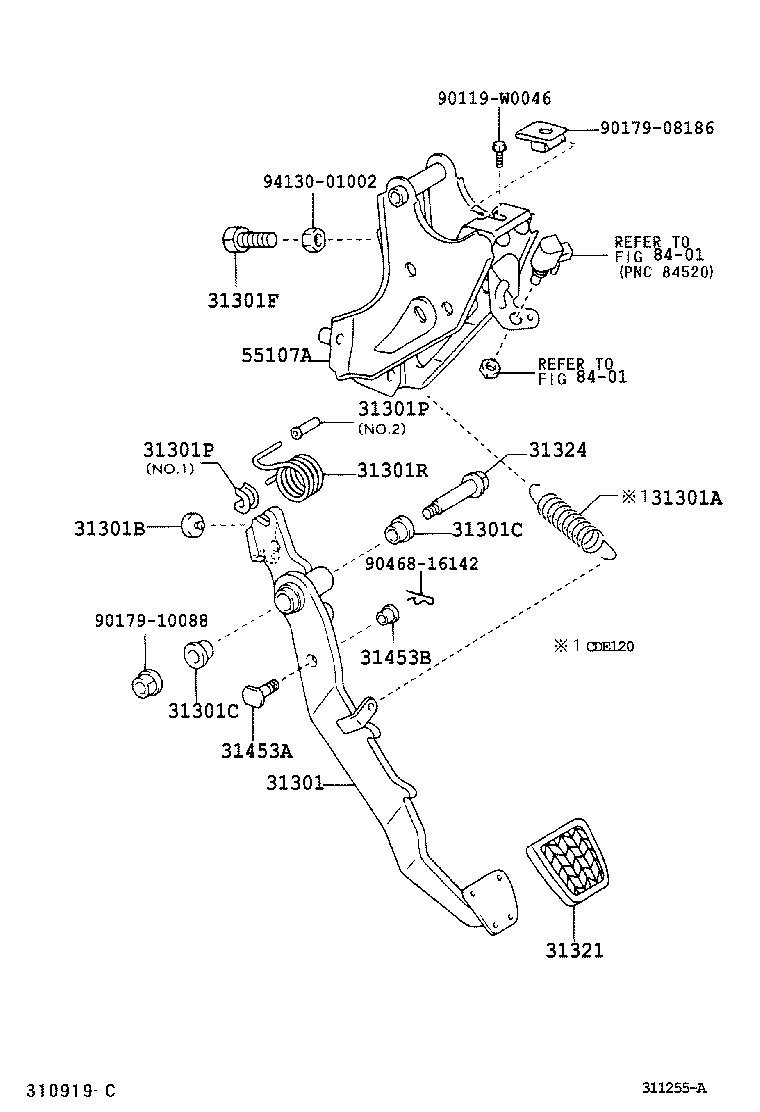

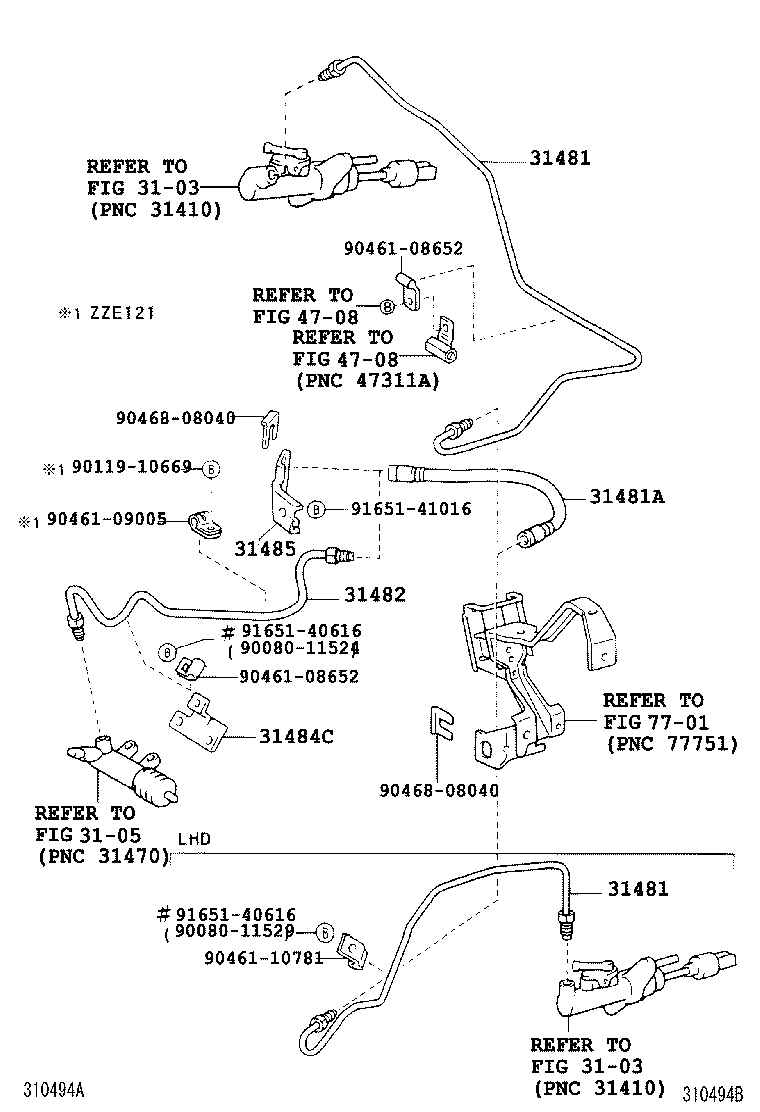

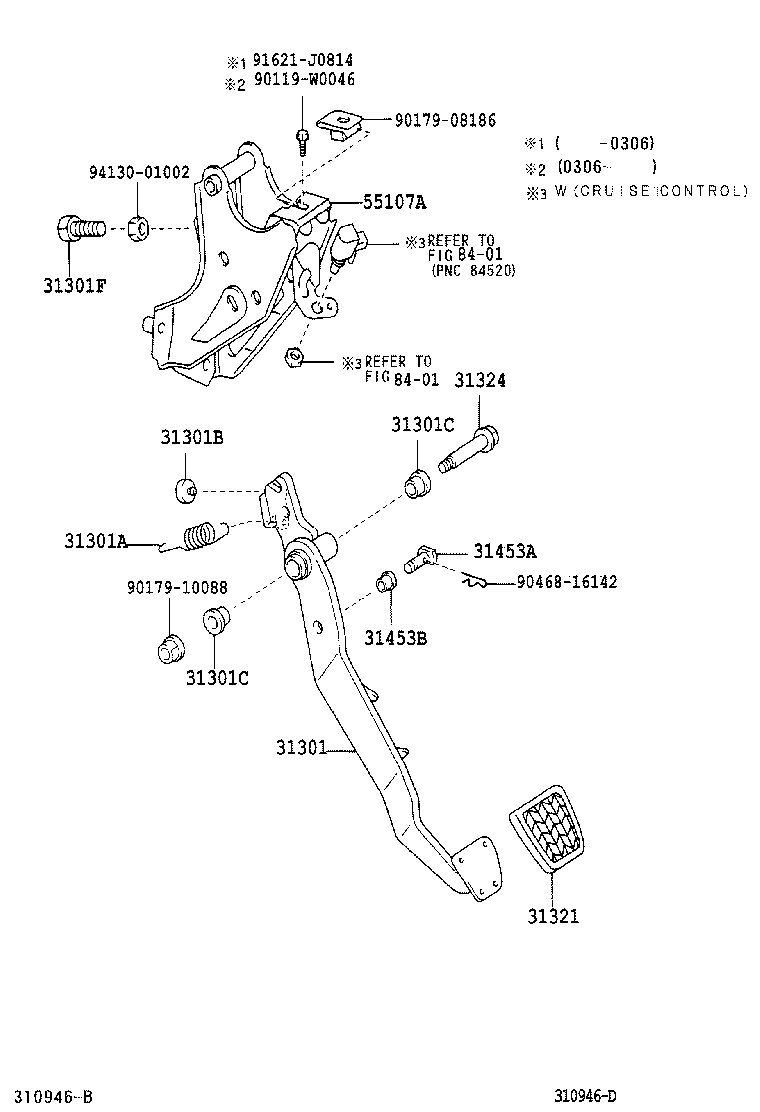

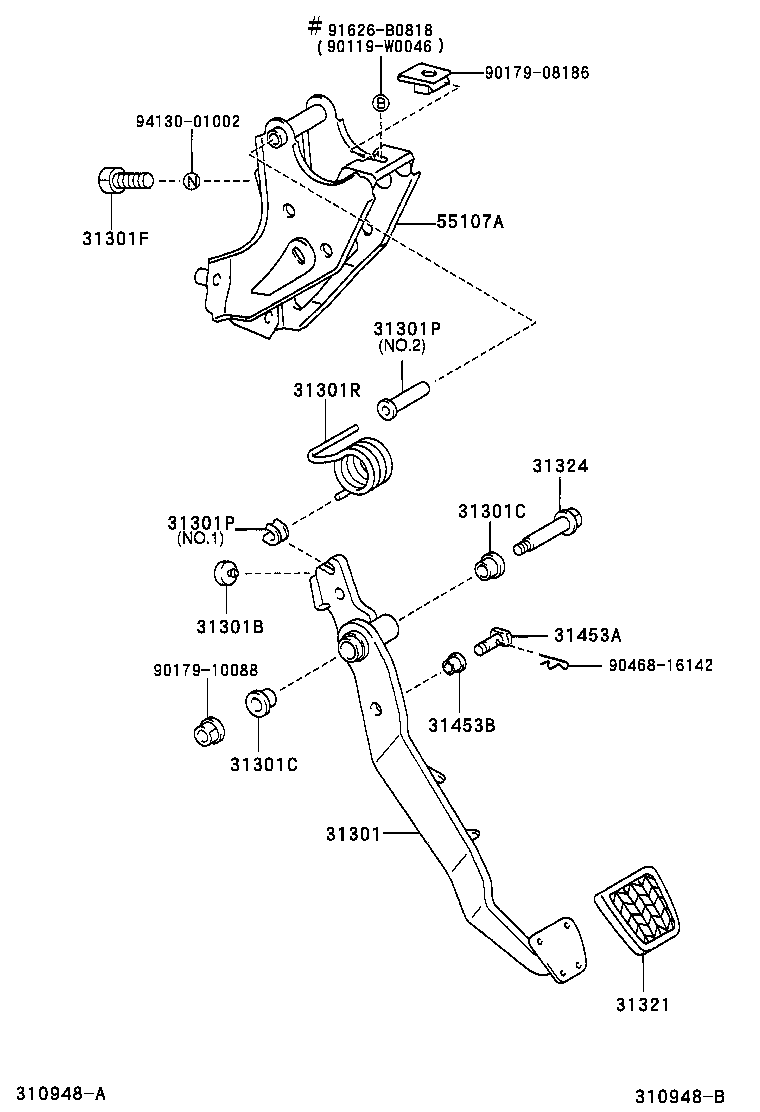

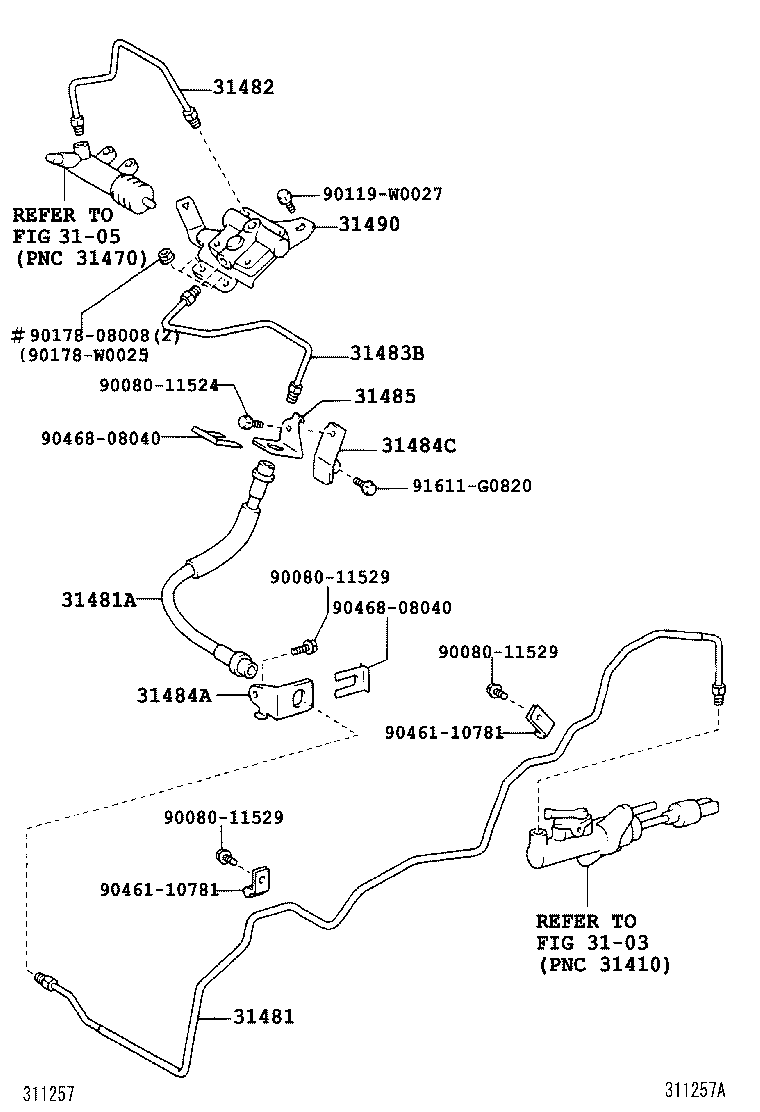

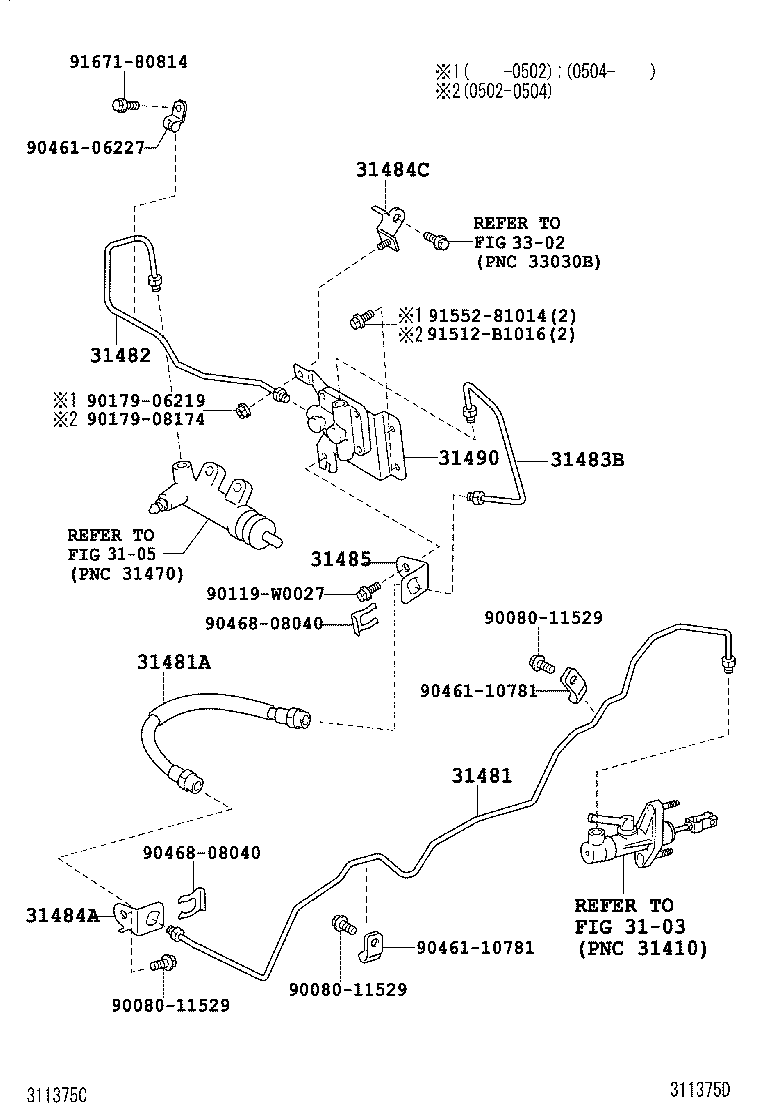

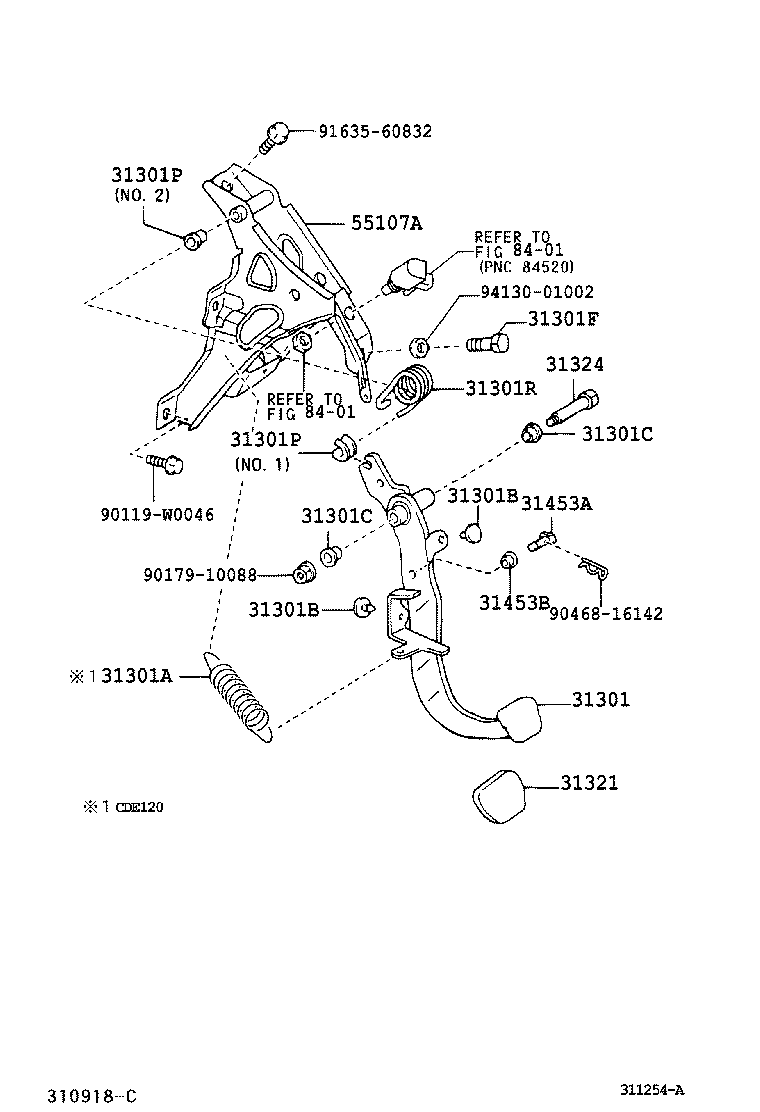

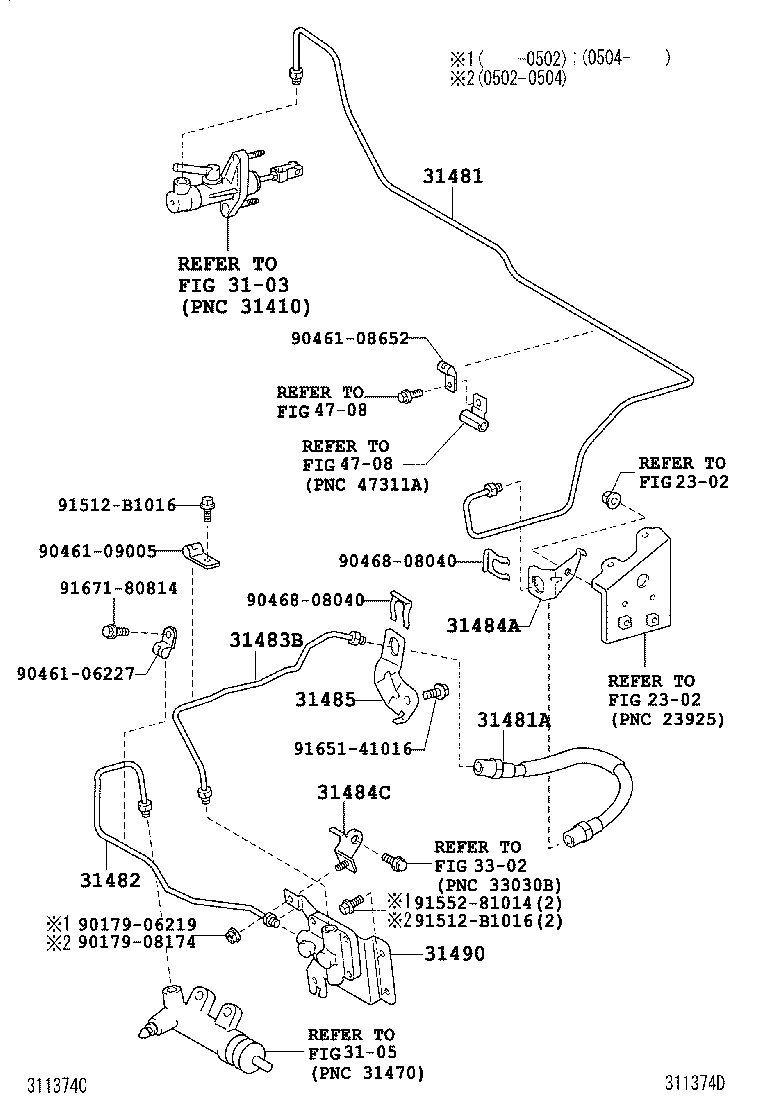

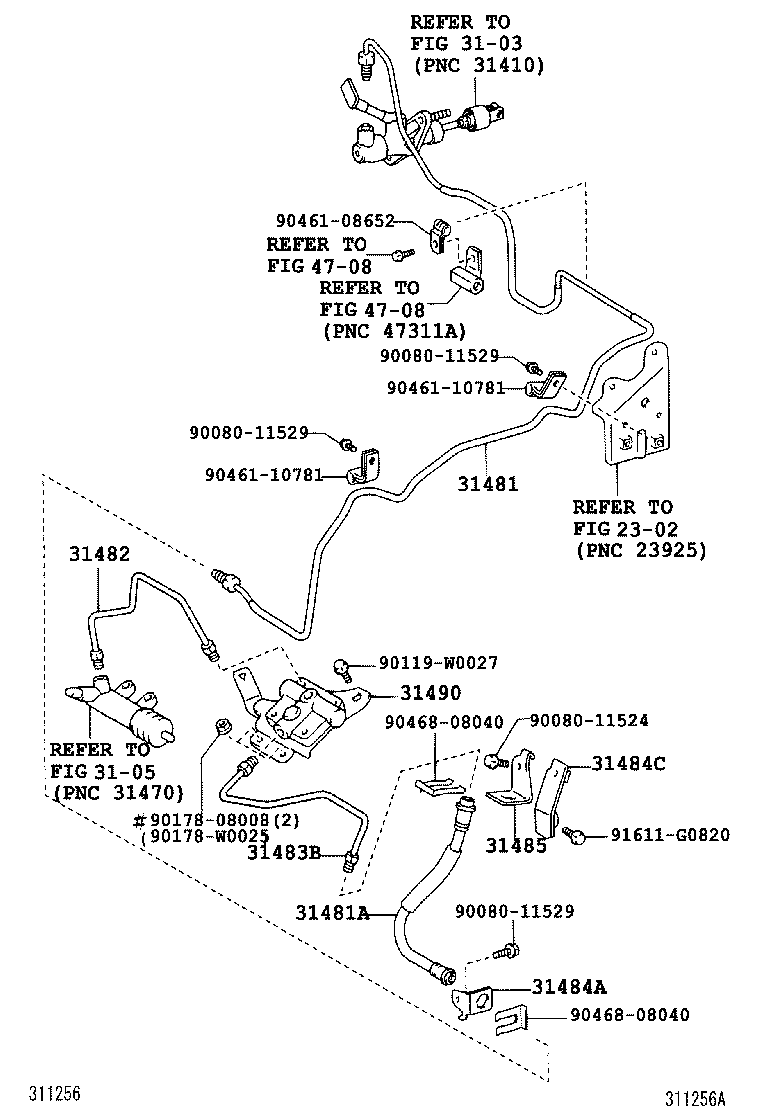

Figure 310945C 310945C 2002-01 → — Figure 310946D 310946D 2002-01 → — Figure 310947C 310947C 2002-01 → 2004-06 Figure 311254A 311254A 2004-06 → — Figure 310948B 310948B 2002-01 → 2004-06 Figure 311255A 311255A 2004-06 → — Figure 310949B 310949B 2002-01 → — Figure 310950C 310950C 2002-01 → 2004-06 Figure 311256A 311256A 2004-06 → — Figure 310951B 310951B 2002-01 → 2004-06 Figure 311257A 311257A 2004-06 → — Figure 311374D 311374D 2004-08 → — Figure 311375D 311375D 2004-08 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301P Bush(FOR CLUTCH PEDAL TURNOVER)
31301R Spring, Compression(FOR TURNOVER SPRING SEAT)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31453A Pin, W/Hole(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31453B Bush(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31481A Hose, Clutch, NO.1
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31483B Tube, Accumulator TO Flexible Hose
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
31490 Accumulator Assy, Clutch
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
