Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

14 part groups · 4 illustrations

Illustrations

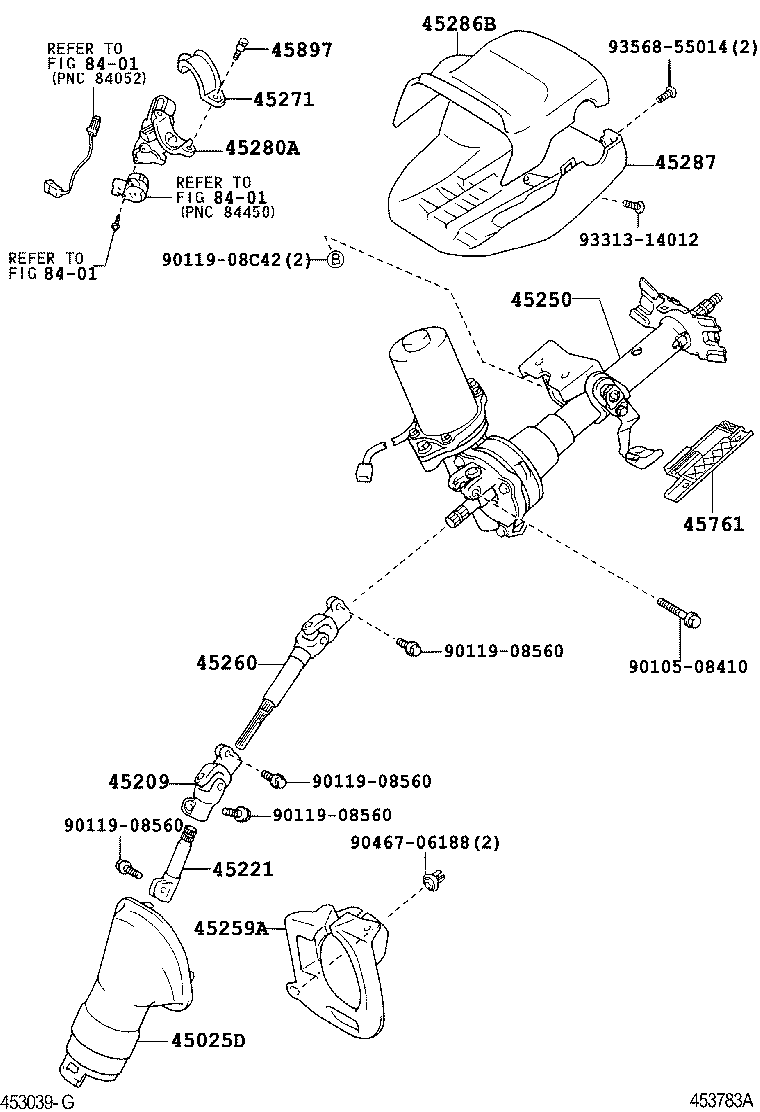

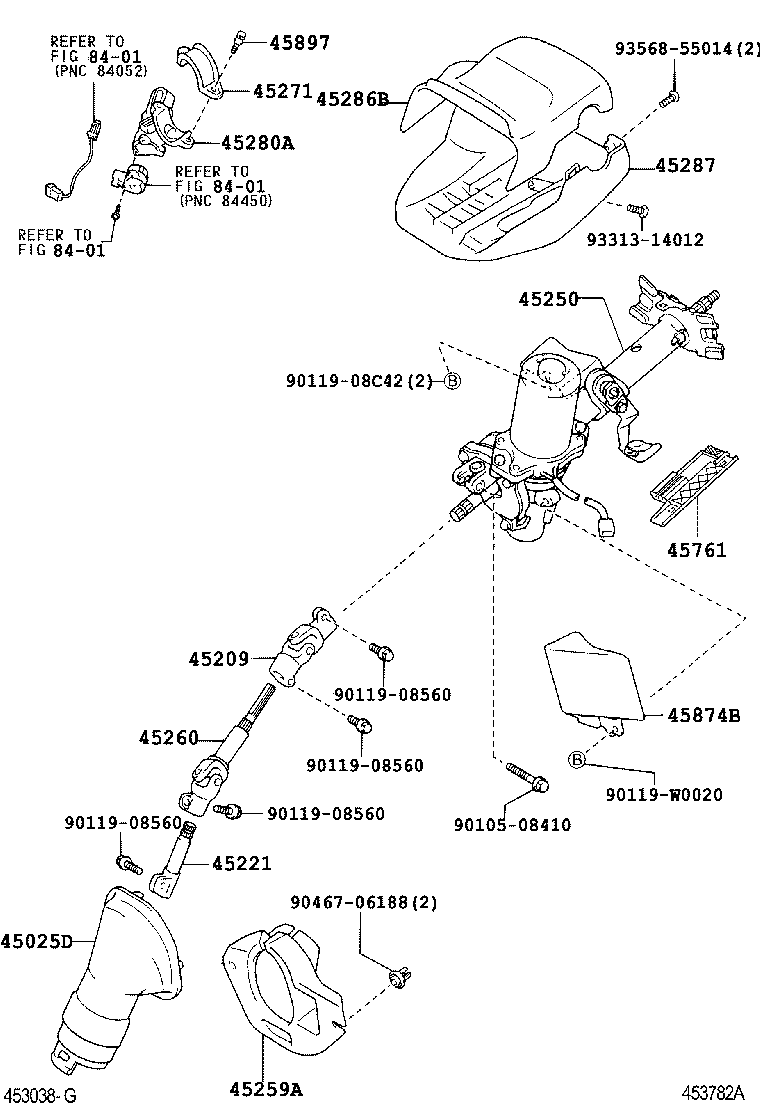

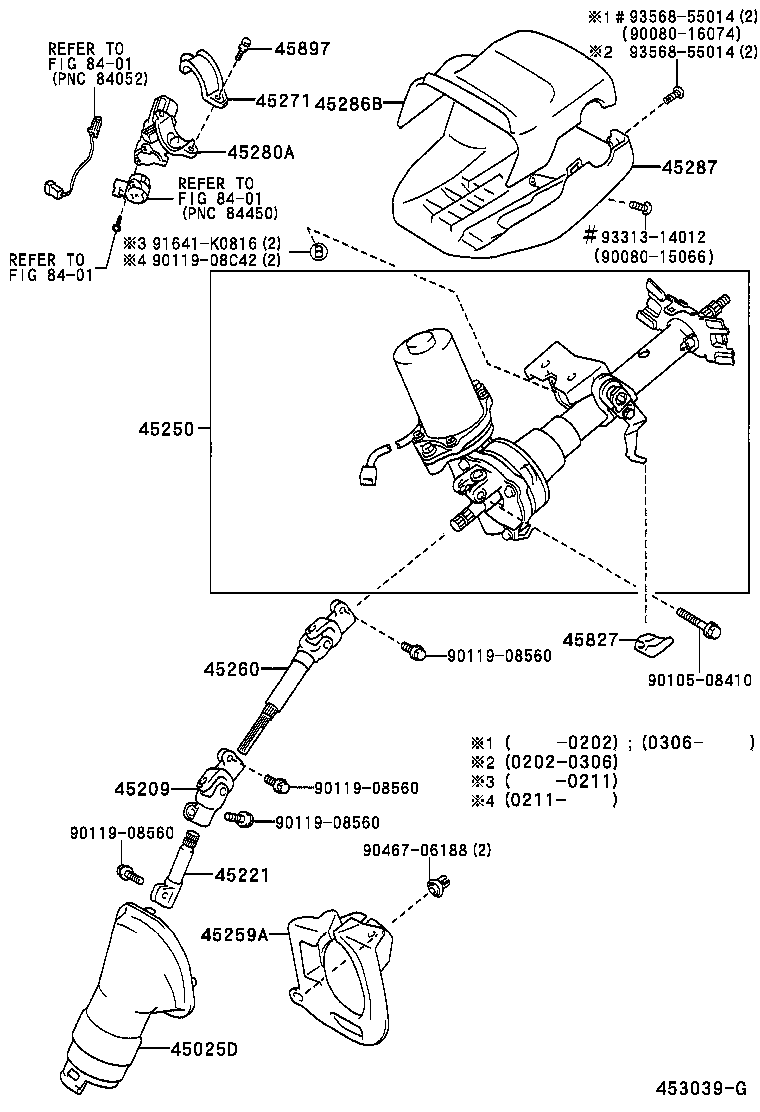

Figure 453038G 453038G 2002-01 → 2004-06 Figure 453039G 453039G 2002-01 → 2004-06 Figure 453782A 453782A 2004-06 → — Figure 453783A 453783A 2004-06 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
45209 Yoke Sub-assy, Steering Sliding
45221 Shaft, Steering Intermediate
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45260 Shaft Assy, Steering Intermediate, NO.2
45271 Clamp, Steering Column, Upper
45280A Bracket Assy, Steering Column, Upper
45286B Cover, Steering Column, Upr
45287 Cover, Steering Column, Lwr
45761 Slider, Telescopic Steering
45827 Knob, Steering Tilt Lever
45874B Protector, Steering Column, NO.1
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
