Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

16 part groups · 8 illustrations

Illustrations

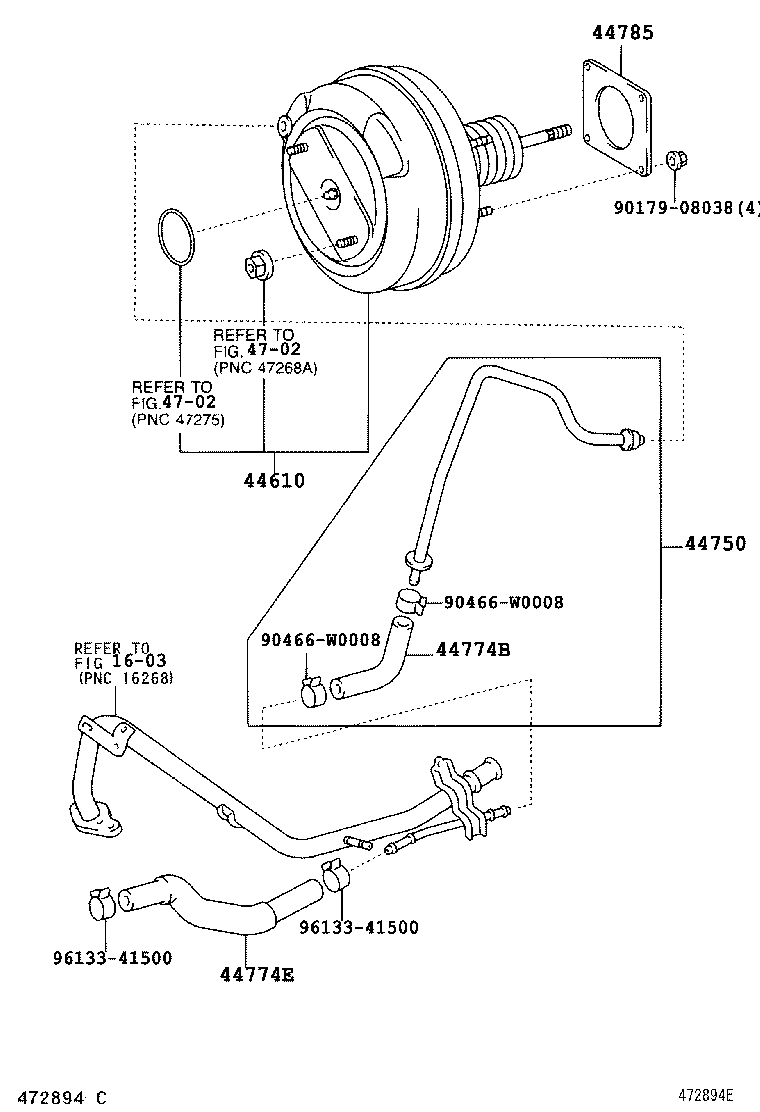

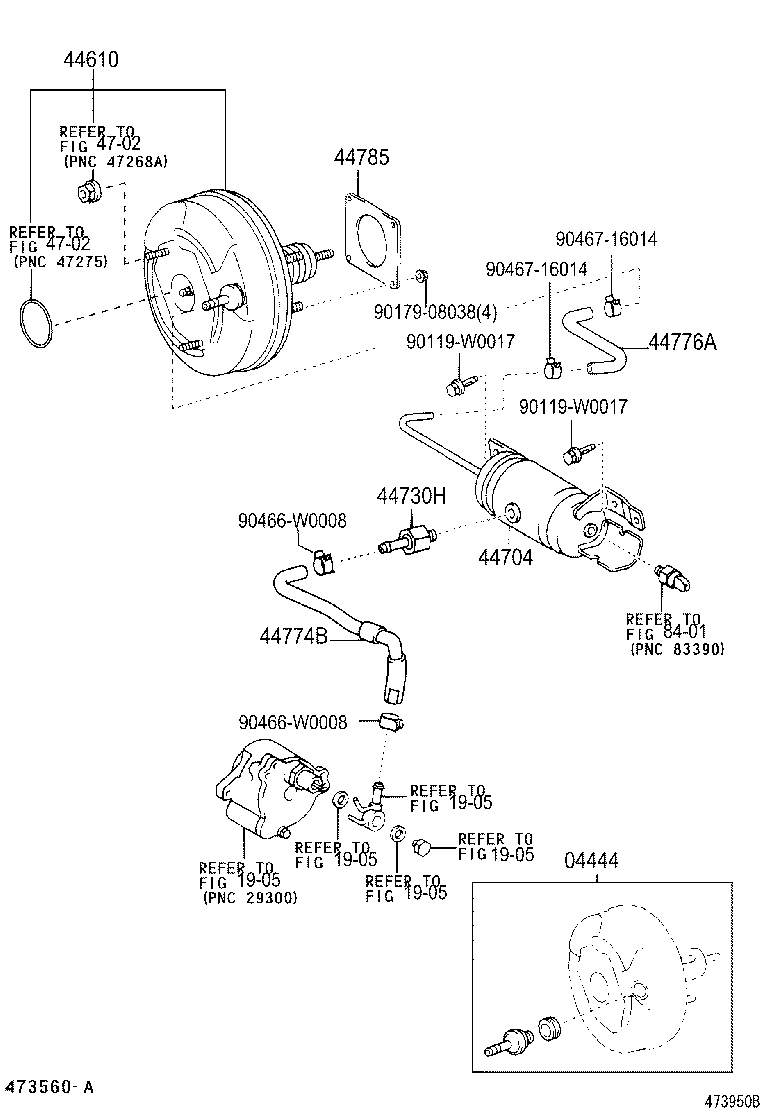

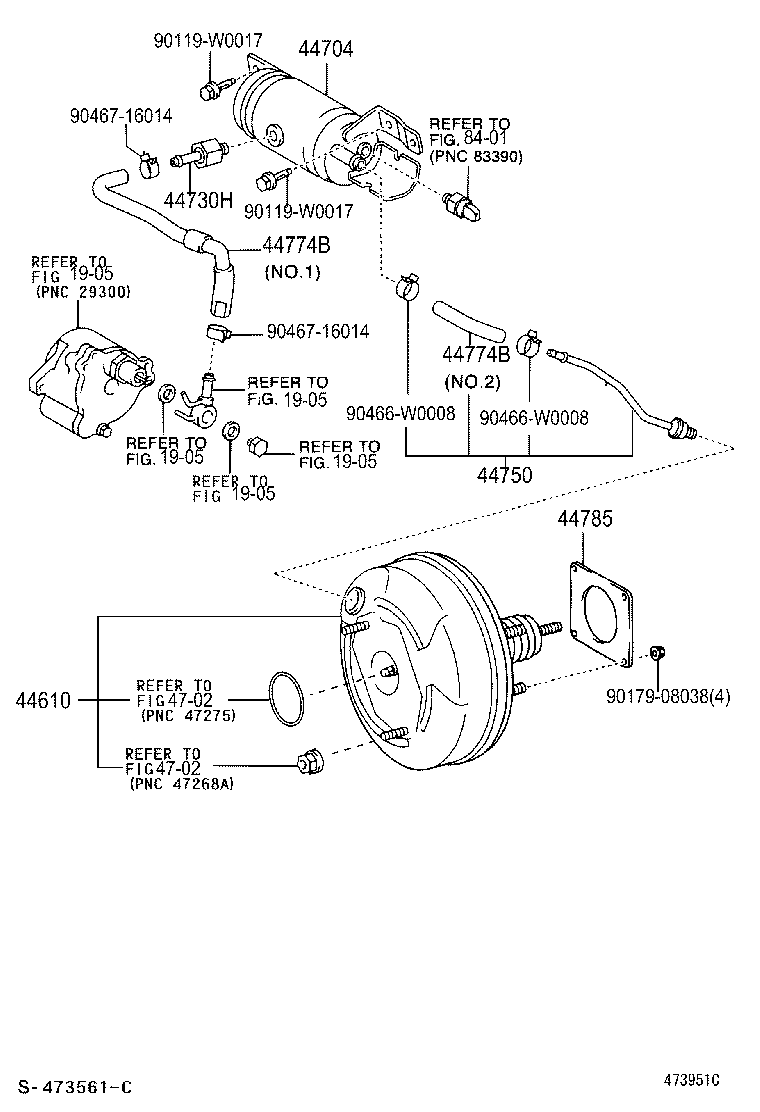

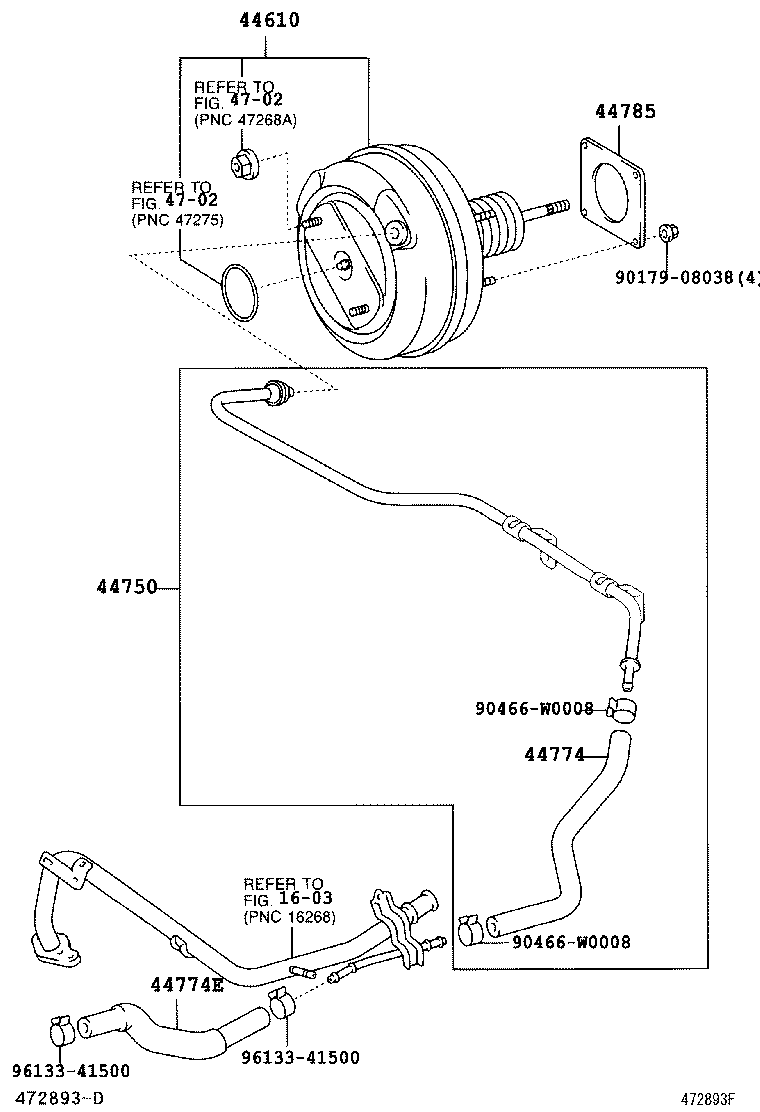

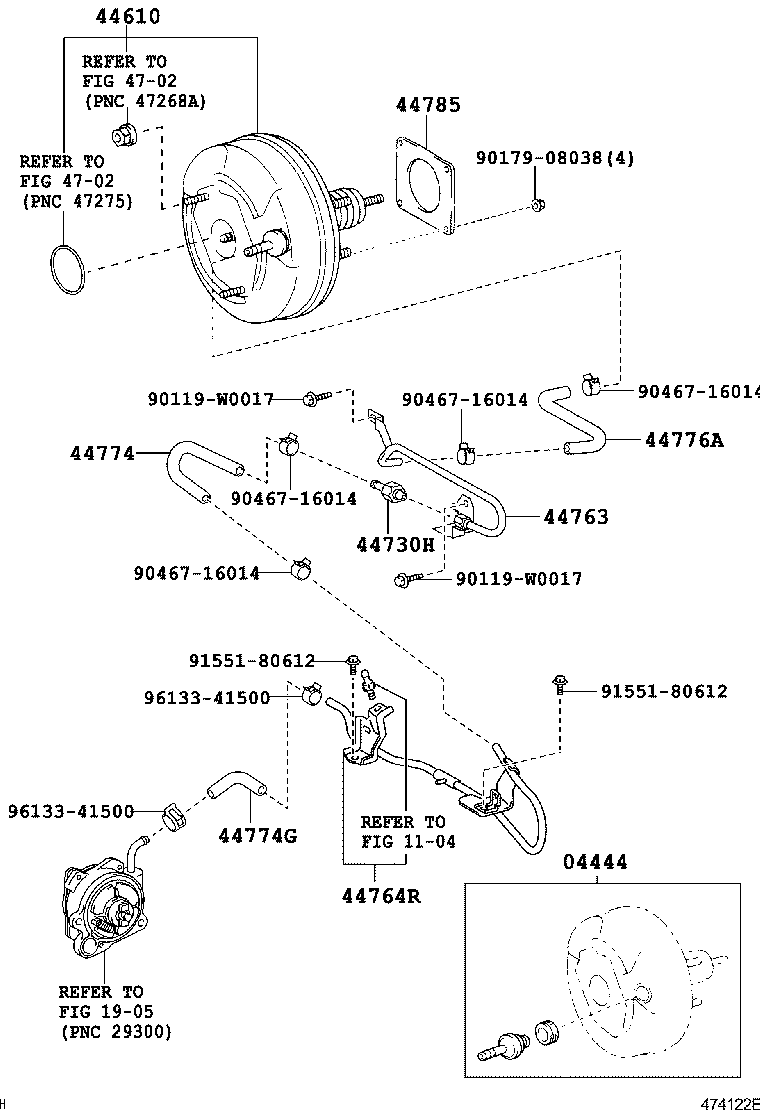

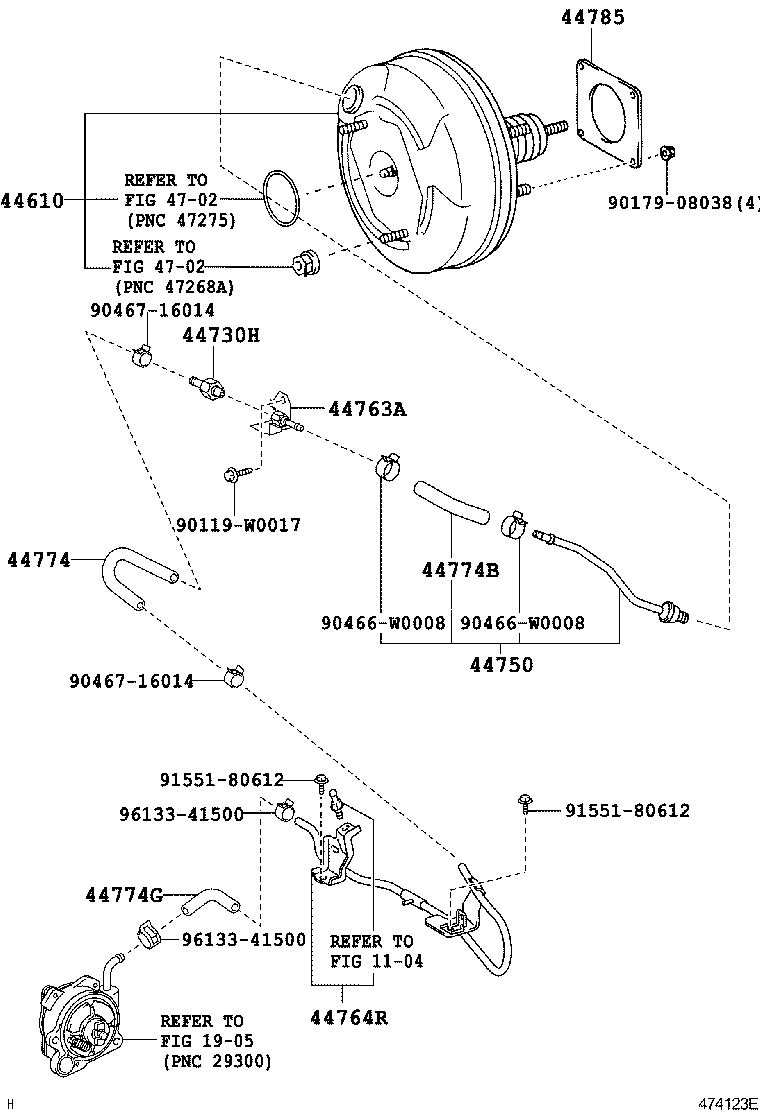

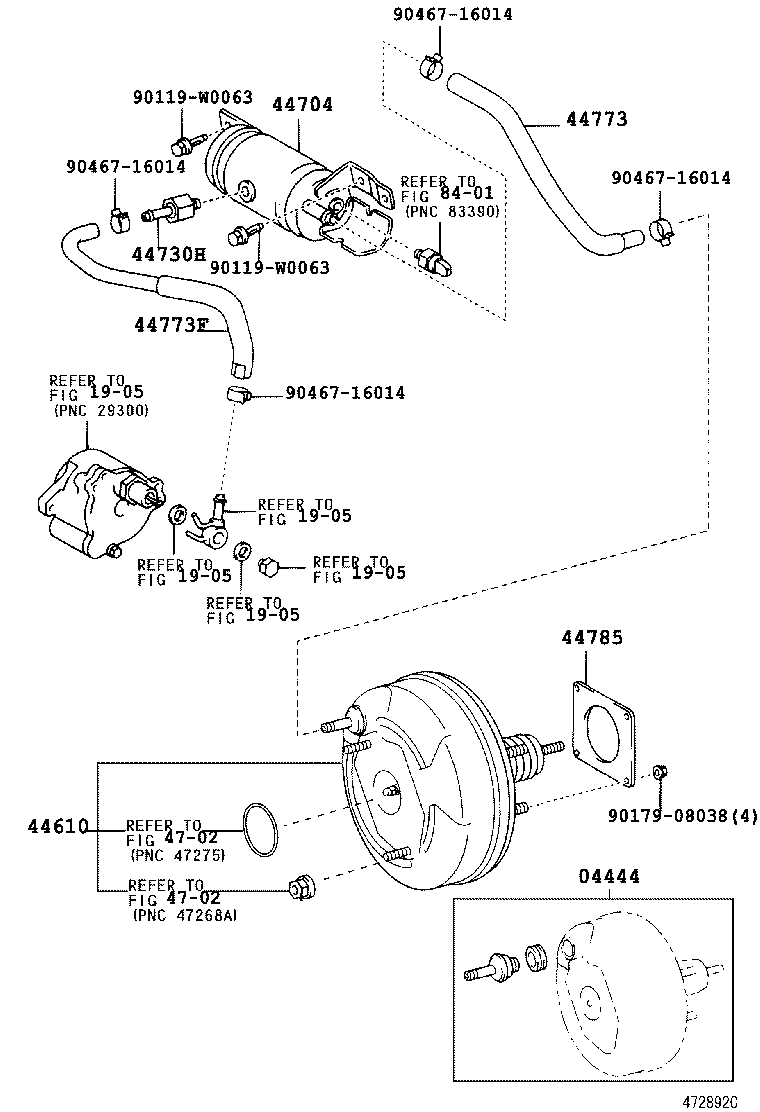

Figure 472891B 472891B 2002-01 → 2004-06 Figure 473950B 473950B 2004-06 → — Figure 472892C 472892C 2002-01 → 2004-06 Figure 473951C 473951C 2004-06 → — Figure 472893F 472893F 2002-01 → — Figure 472894E 472894E 2002-01 → — Figure 474122E 474122E 2004-08 → — Figure 474123E 474123E 2004-08 → —

Part groups

PNCDescription
04444 Valve Kit, Booster Control
44610 Booster Assy, Brake
44704 Reservoir Sub-assy, Vacuum
44730H Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR)
44750 Hose Assy, Vacuum
44763 Tube, Booster Vacuum
44763A Tube, Hose TO Hose, NO.1
44764R Tube, Connector TO Vacuum Reservoir
44773 Hose, Vacuum, NO.2
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44774B Hose, Union TO Connector Tube
44774E Hose, Union TO Connector Tube
44774G Hose, Union TO Solenoid
44776A Hose, Vacuum Reservoir TO Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
