Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

12 part groups · 3 illustrations

Illustrations

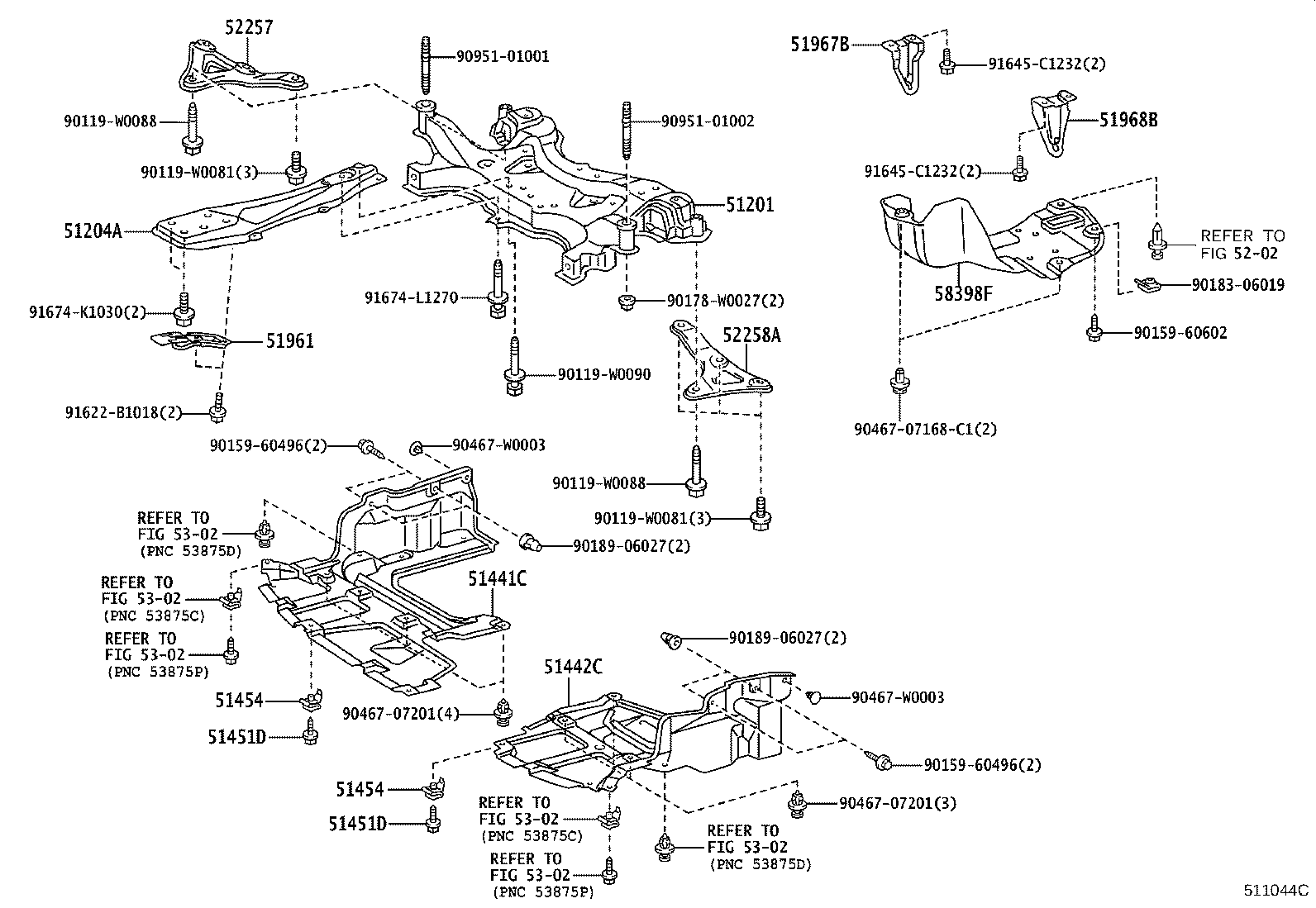

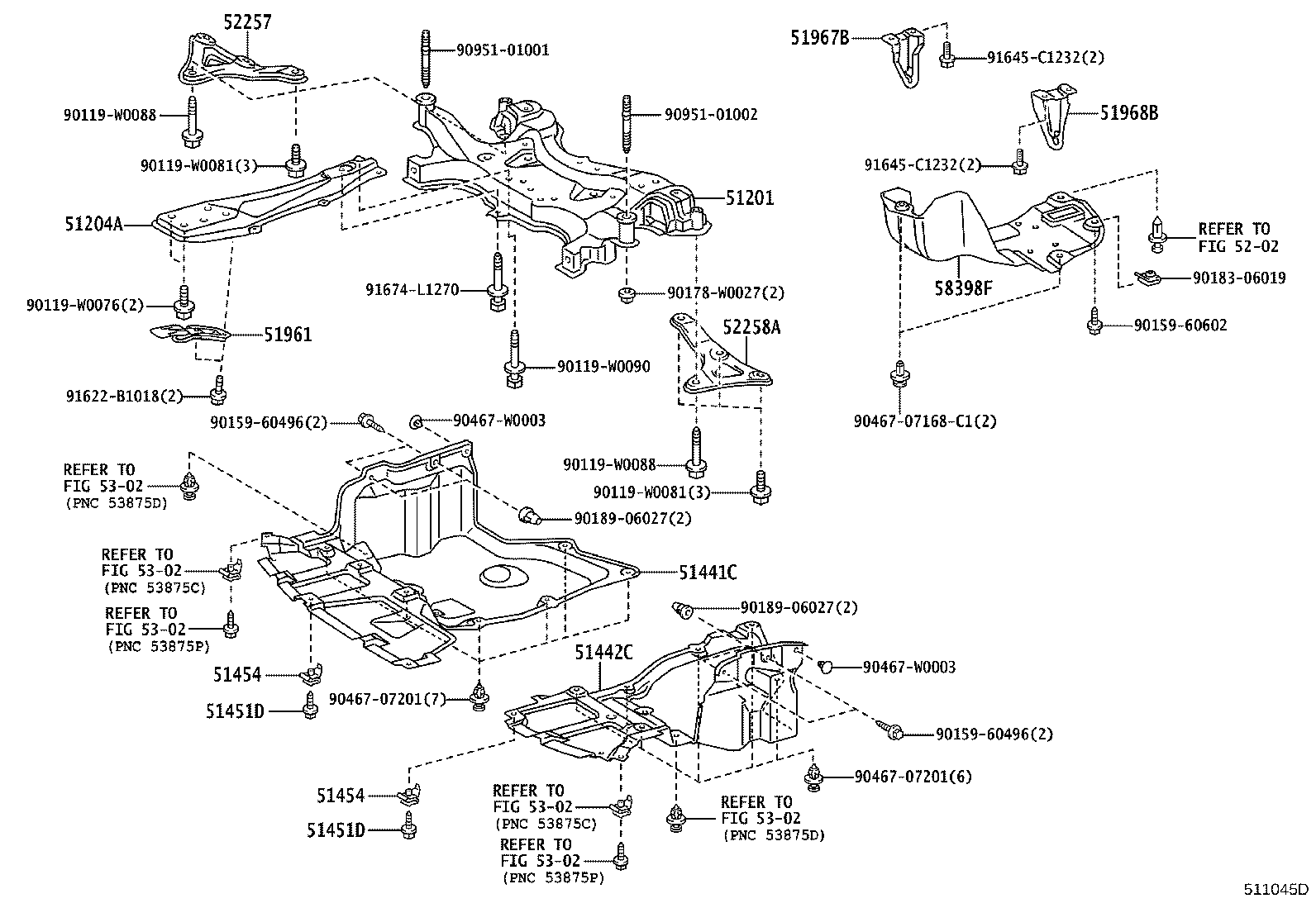

Figure 510761G 510761G 2002-01 → 2004-06 Figure 511044C 511044C 2004-06 → — Figure 511045D 511045D 2004-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51204A Member Sub-assy, Engine Mounting, Center
51441C Cover, Engine Under, RH
51442C Cover, Engine Under, LH
51451D Screw, NO.1
51454 Clip
51961 Hook, NO.1
51967B Hook, Transport, Rear RH
51968B Hook, Transport, Rear LH
52257 Brace, Front Suspension Member, Rear RH
52258A Brace, Front Suspension Member, Rear LH
58398F Cover, Floor Under, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
