Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

13 part groups · 3 illustrations

Illustrations

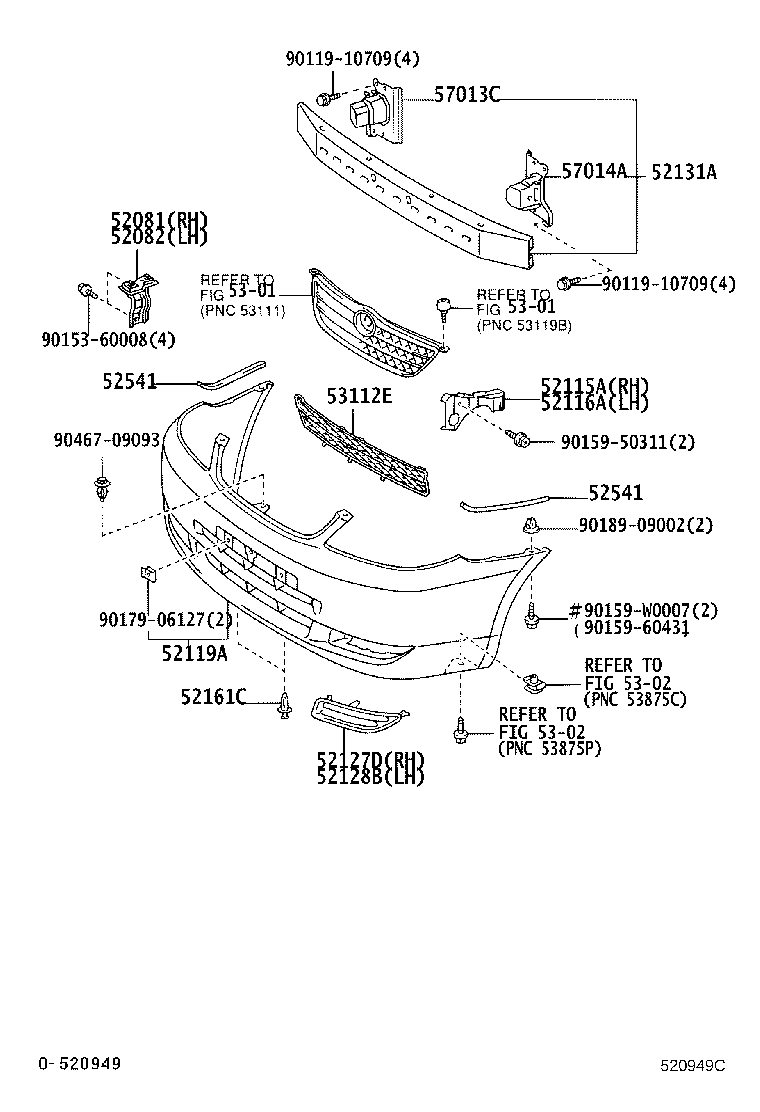

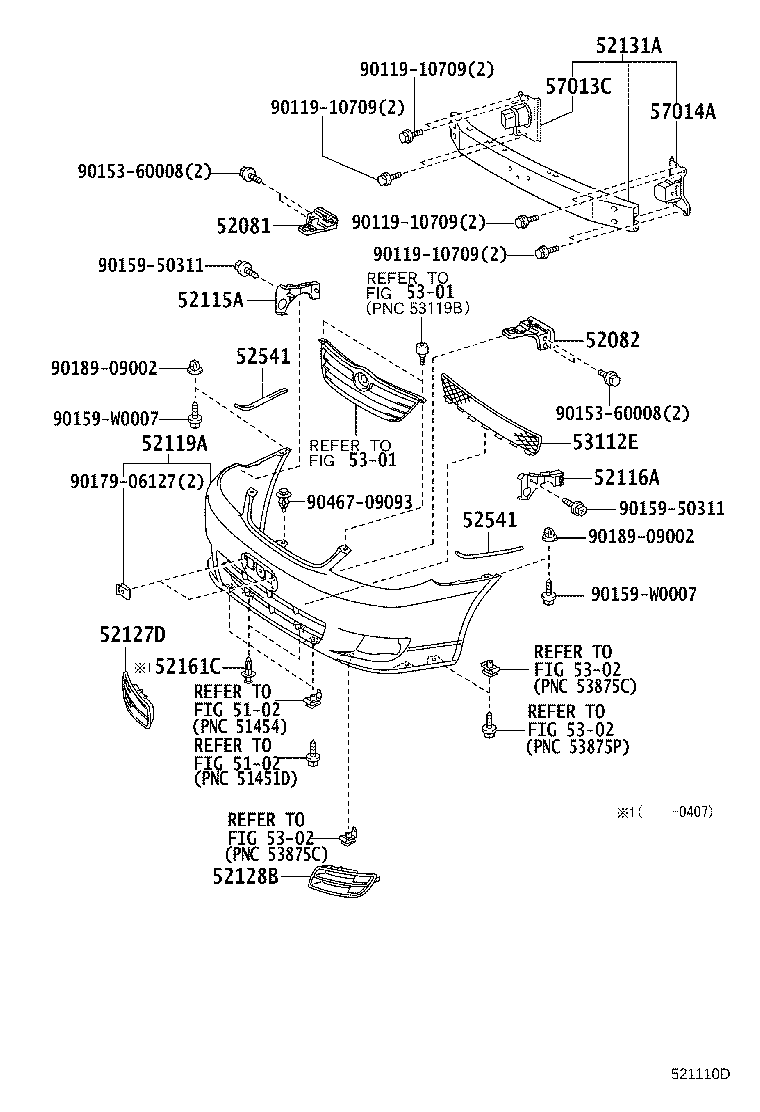

Figure 520818B 520818B 2002-01 → 2003-01 Figure 520949C 520949C 2003-01 → 2004-06 Figure 521110D 521110D 2004-06 → —

Part groups

PNCDescription
52081 Stay Sub-assy, Front Bumper
52082 Stay Sub-assy, Front Bumper, LH
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127D Cover, Front Bumper Hole, RH
52128B Cover, Front Bumper Hole, LH
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52541 Protector, Front Bumper
53112E Grille, Radiator, Lower NO.1
57013C Bracket Sub-assy, Front Side Member, RH
57014A Bracket Sub-assy, Front Side Member, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
