Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09

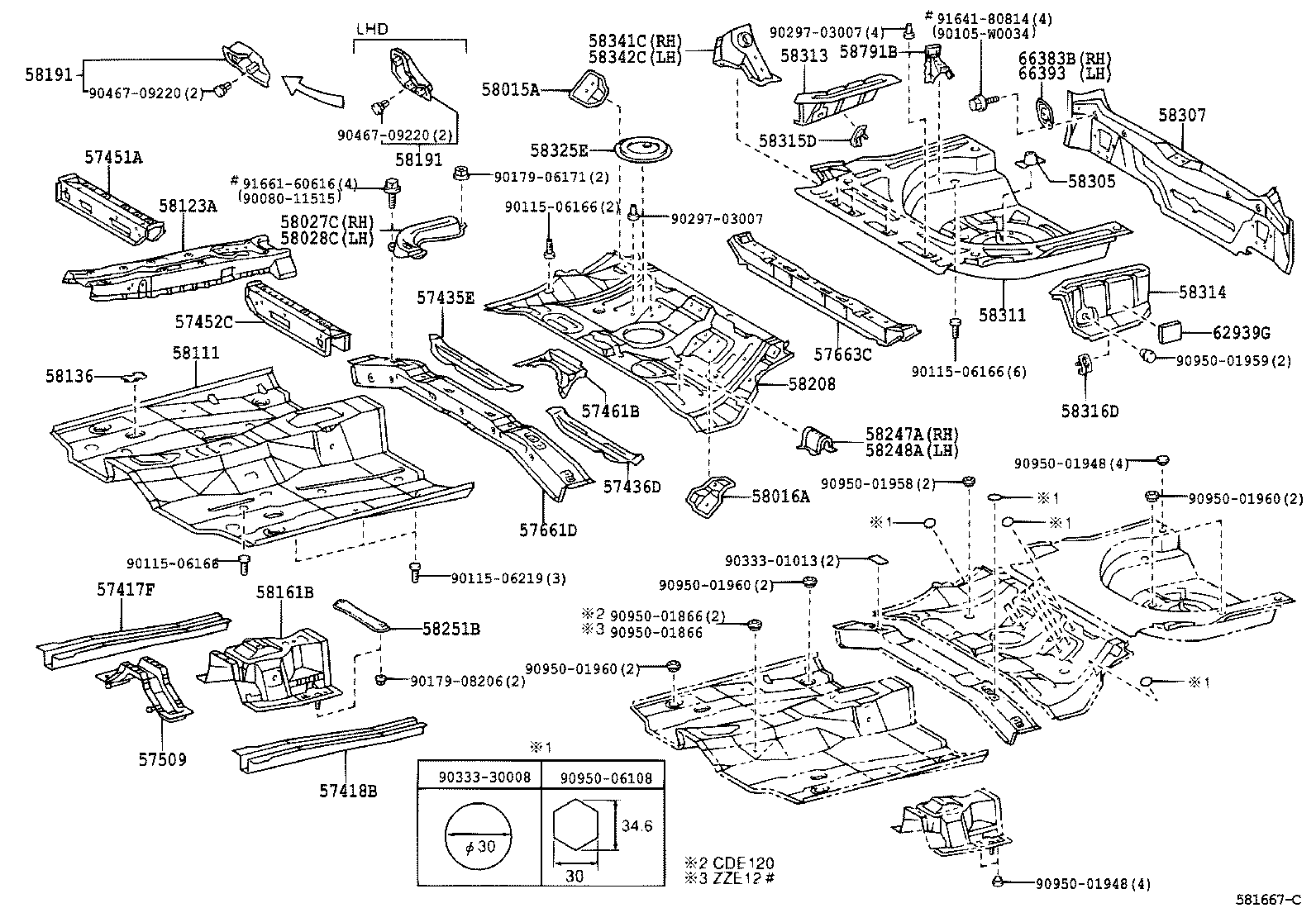

Floor Pan & Lower Back Panel

39 part groups · 2 illustrations

PNC	Description
57417F	Reinforcement, Front Floor Under, RH
57418B	Reinforcement, Front Floor Under, LH
57435E	Member, Center Floor Side, RH
57436D	Member, Center Floor Side, LH
57451A	Member, Front Floor Cross, RH
57452C	Member, Front Floor Cross, LH
57461B	Member Sub-assy, Center Floor Cross, NO.1
57509	Reinforcement Sub-assy, Front Floor, Center
57661D	Member, Rear Floor Cross, Front
57663C	Member, Rear Floor Cross, Center
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58016A	Reinforce Sub-assy, Belt Anchor, NO.3 LH
58027C	Panel Sub-assy, Center Floor Side, RH
58028C	Panel Sub-assy, Center Floor Side, LH
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58161B	Reinforcement, Belt Anchor TO Floor Pan
58191	Footrest, Front Floor
58208	Pan, Center Floor
58247A	Reinforcement, Rear Seat Cushion Hinge, RH
58248A	Reinforcement, Rear Seat Cushion Hinge, LH
58251B	Brace, Floor Panel, Front
58305	Bracket Sub-assy, Spare Wheel Clamp
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58315D	Extension, Rear Floor Pan, RH
58316D	Extension, Rear Floor Pan, LH
58325E	Cover, Rear Floor Service Hole
58336F	Reinforcement, Rear Floor Pan, RH
58337D	Reinforcement, Rear Floor Pan, LH
58341C	Bracket, Rear Absorber Mounting, NO.1 RH
58342C	Bracket, Rear Absorber Mounting, NO.1 LH
58791B	Carrier, Jack
62939G	Silencer, Quarter Vent
66383B	Bracket, Rope Hook, NO.1 RH
66393	Bracket, Rope Hook, NO.1 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
