Toyota Corolla Sed/WG (UKP)
2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe
Discontinued model
Data version 2007-09

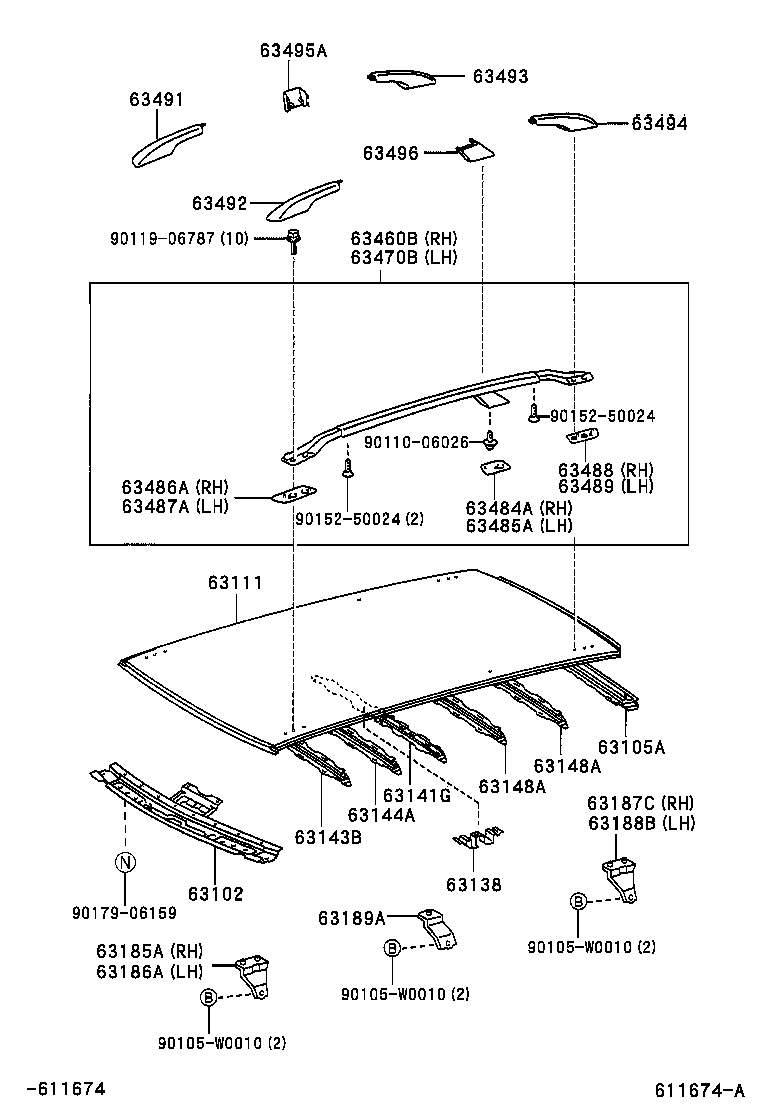

Roof Panel & Back Window Glass
35 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 56115B | Stopper, Back Window Glass, NO.1 |
| 56116D | Stopper, Back Window Glass, NO.2 |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63133B | Frame, Back Window |
| 63138 | Bracket, Dome Lamp, NO.2 |
| 63141G | Reinforcement, Roof Panel, NO.1 |
| 63143B | Reinforcement, Roof Panel, NO.3 |
| 63144A | Reinforcement, Roof Panel, NO.4 |
| 63148A | Reinforcement, Roof Panel, NO.7 |
| 63175D | Reinforcement, Back Door Hinge Female, RH |
| 63176D | Reinforcement, Back Door Hinge Female, LH |
| 63185A | Bracket, Roof Rack, Front RH |
| 63186A | Bracket, Roof Rack, Front LH |
| 63187C | Bracket, Roof Rack, NO.1 Rear RH |
| 63188B | Bracket, Roof Rack, NO.1 Rear LH |
| 63189A | Bracket, Roof Rack, Center |
| 63460B | Rack Assy, Roof, RH |
| 63470B | Rack Assy, Roof, LH |
| 63484A | Cushion, Roof Rack Leg, Center RH |
| 63485A | Cushion, Roof Rack Leg, Center LH |
| 63486A | Cushion, Roof Rack Leg, Front RH |
| 63487A | Cushion, Roof Rack Leg, Front LH |
| 63488 | Cushion, Roof Rack Leg, Rear RH |
| 63489 | Cushion, Roof Rack Leg, Rear LH |
| 63491 | Cover, Roof Rack Leg, Front RH |
| 63492 | Cover, Roof Rack Leg, Front LH |
| 63493 | Cover, Roof Rack Leg, Rear RH |
| 63494 | Cover, Roof Rack Leg, Rear LH |
| 63495A | Cover, Roof Rack Leg, Center |
| 63496 | Cover, Roof Rack Leg, Center LH |
| 64101 | Panel Sub-assy, Upper Back |
| 64811 | Glass, Back Window |
| 64813D | Dam, Back Window Glass Adhesive |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
