Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Luggage Compartment Door & Lock

15 part groups · 2 illustrations

Illustrations

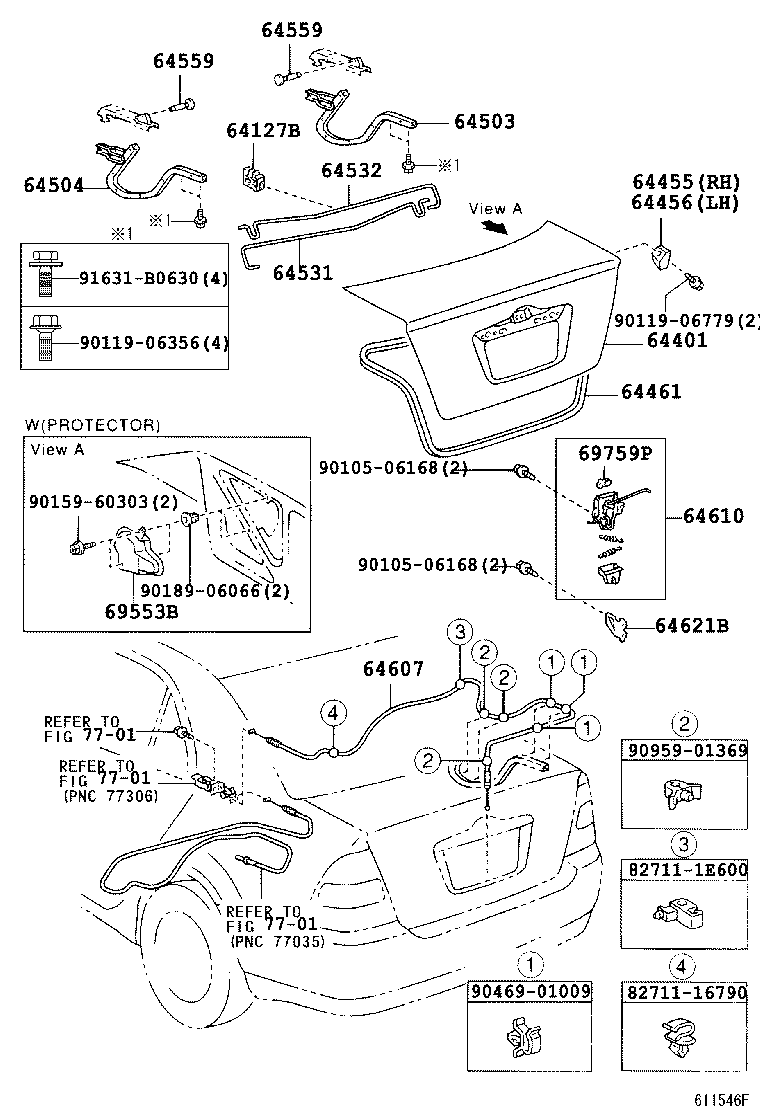

Figure 611547C 611547C 2002-01 → — Figure 611546F 611546F 2002-01 → —

Part groups

PNCDescription
64127B Support, Luggage Compartment Door Torsion Bar
64401 Panel Sub-assy, Luggage Compartment Door
64455 Cushion, Luggage Compartment Door Side, RH
64456 Cushion, Luggage Compartment Door Side, LH
64461 Weatherstrip, Luggage Compartment Door
64503 Arm Sub-assy, Luggage Compartment Door Hinge, RH
64504 Arm Sub-assy, Luggage Compartment Door Hinge, LH
64531 Bar, Luggage Door Hinge Torsion, RH
64532 Bar, Luggage Door Hinge Torsion, LH
64559 Pin, Luggage Door Hinge
64607 Cable Sub-assy, Luggage Door Lock Control
64610 Lock Assy, Luggage Compartment Door
64621B Striker, Luggage Compartment Door Lock
69553B Protector, Luggage Compartment Key Cylinder
69759P Snap, Door Lock Control Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
