Toyota Corolla Sed/WG (UKP)
2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe
Discontinued model
Data version 2007-09

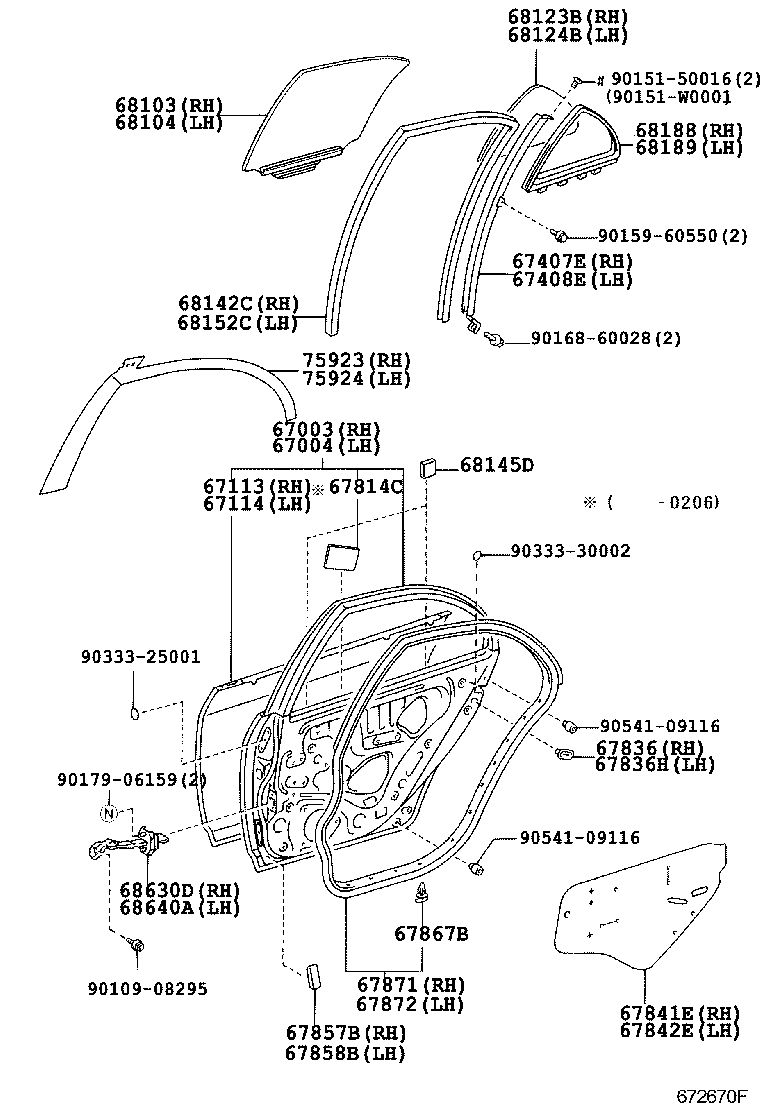

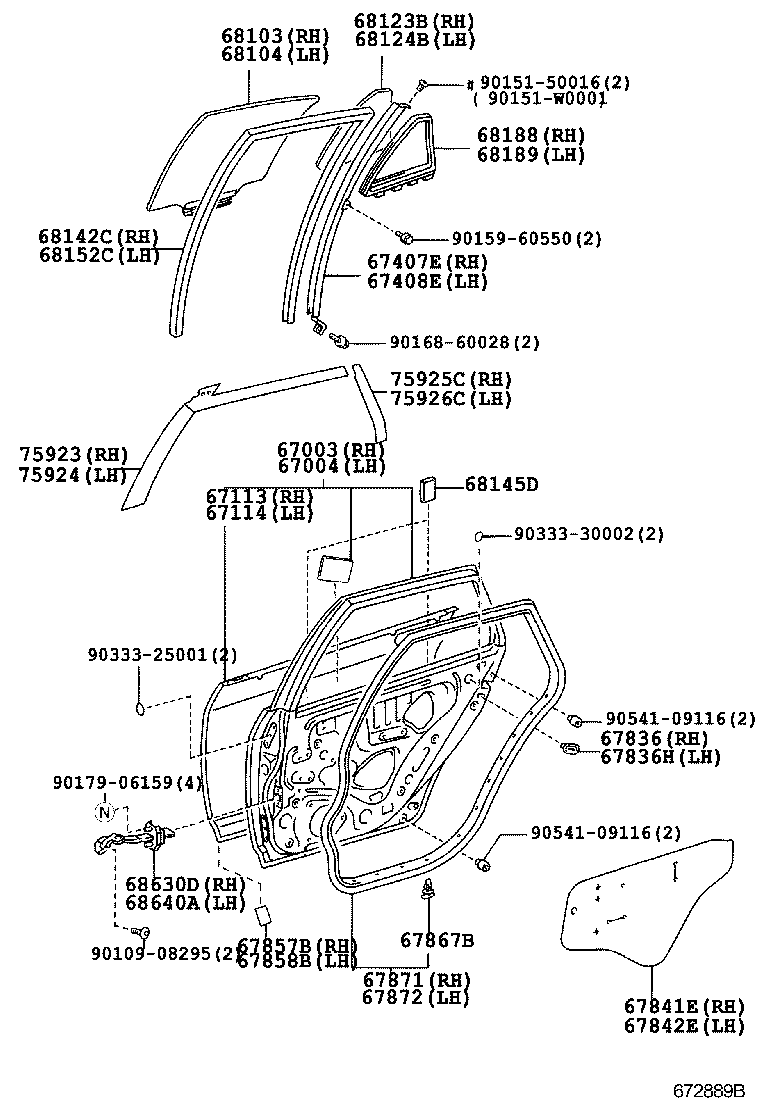

Rear Door Panel & Glass
36 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603A | Retainer(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67814C | Packing, Door Protector |
| 67836 | Cover, Rear Door Lock Child Protection, RH |
| 67836H | Cover, Rear Door Lock Child Protection, LH |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67871 | Weatherstrip, Rear Door, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124B | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68145D | Cushion, Rear Door Window |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68640A | Check Assy, Rear Door, LH |
| 75923 | Tape, Black Out, NO.2 RH |
| 75924 | Tape, Black Out, NO.2 LH |
| 75925C | Tape, Black Out, NO.3 RH |
| 75926C | Tape, Black Out, NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
