Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

12 part groups · 2 illustrations

Illustrations

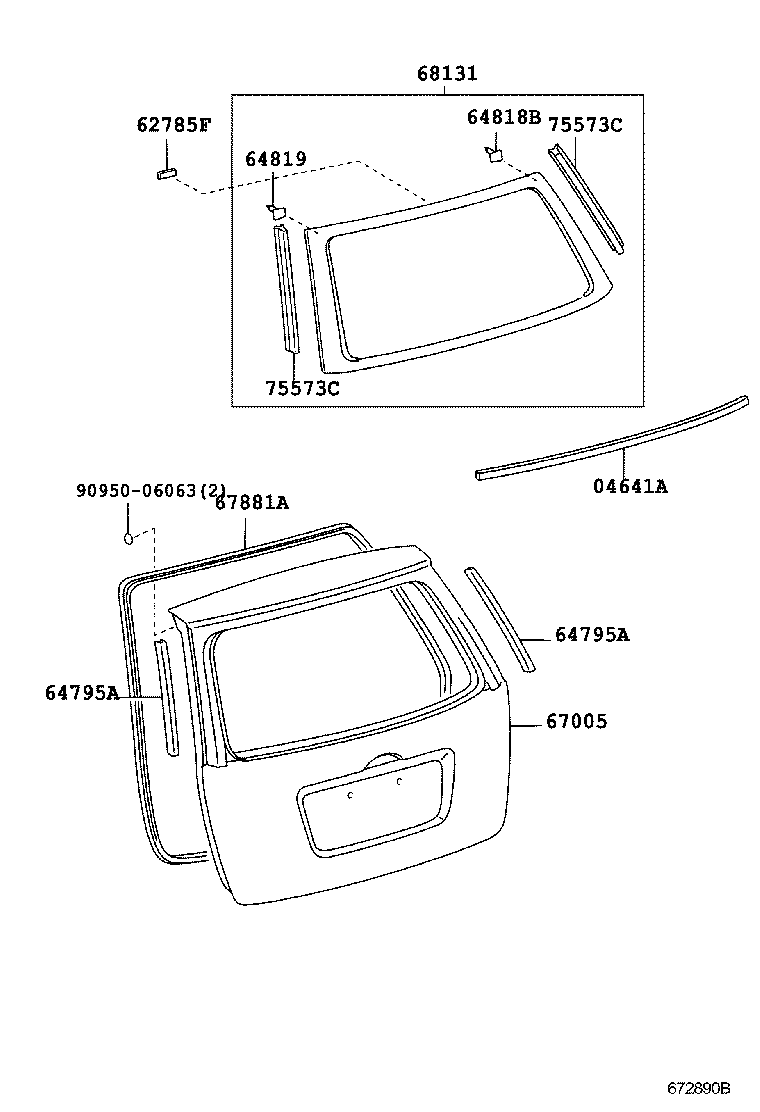

Figure 672876E 672876E 2002-08 → — Figure 672890B 672890B 2002-08 → —

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
62785F Spacer, Back Door Glass
64795A Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
64819 Spacer, Back Window Glass, NO.2
67005 Panel Sub-assy, Back Door
67750 Board Assy, Back Door Trim
67881A Weatherstrip, Back Door
67939B Garnish, Back Door, Center
68131 Glass, Back Door
74811D Handle, Door Pull
75573C Moulding, Back Window, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
