Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

16 part groups · 4 illustrations

Illustrations

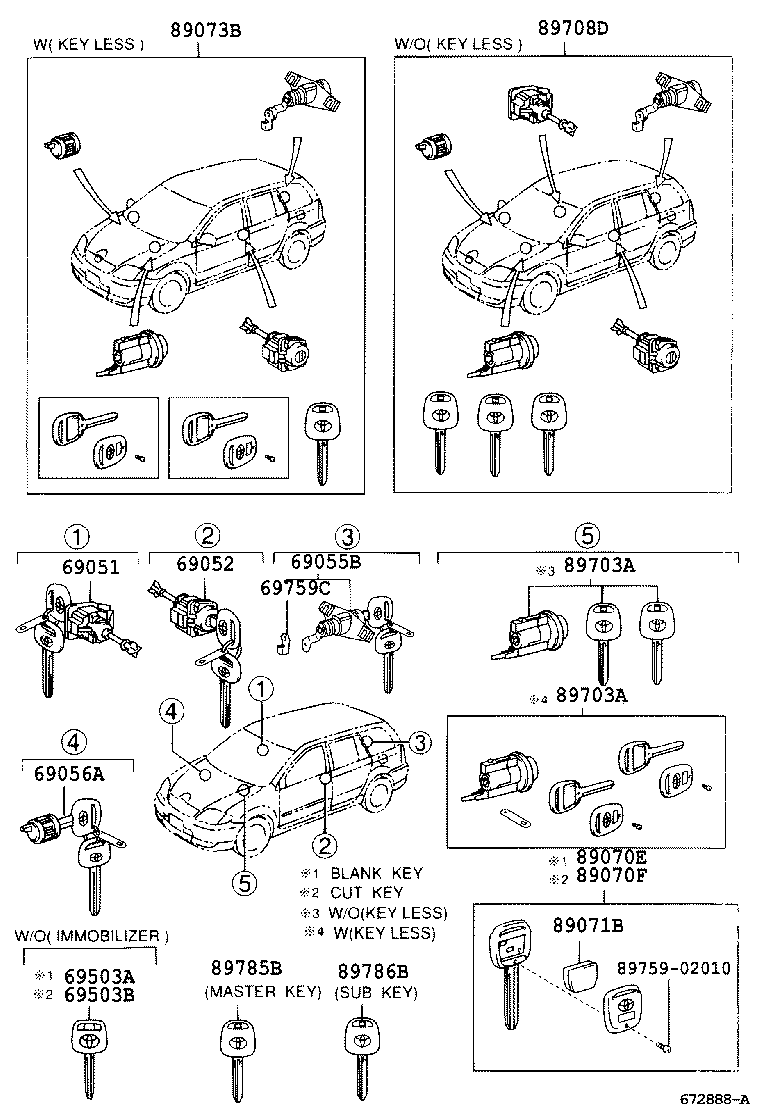

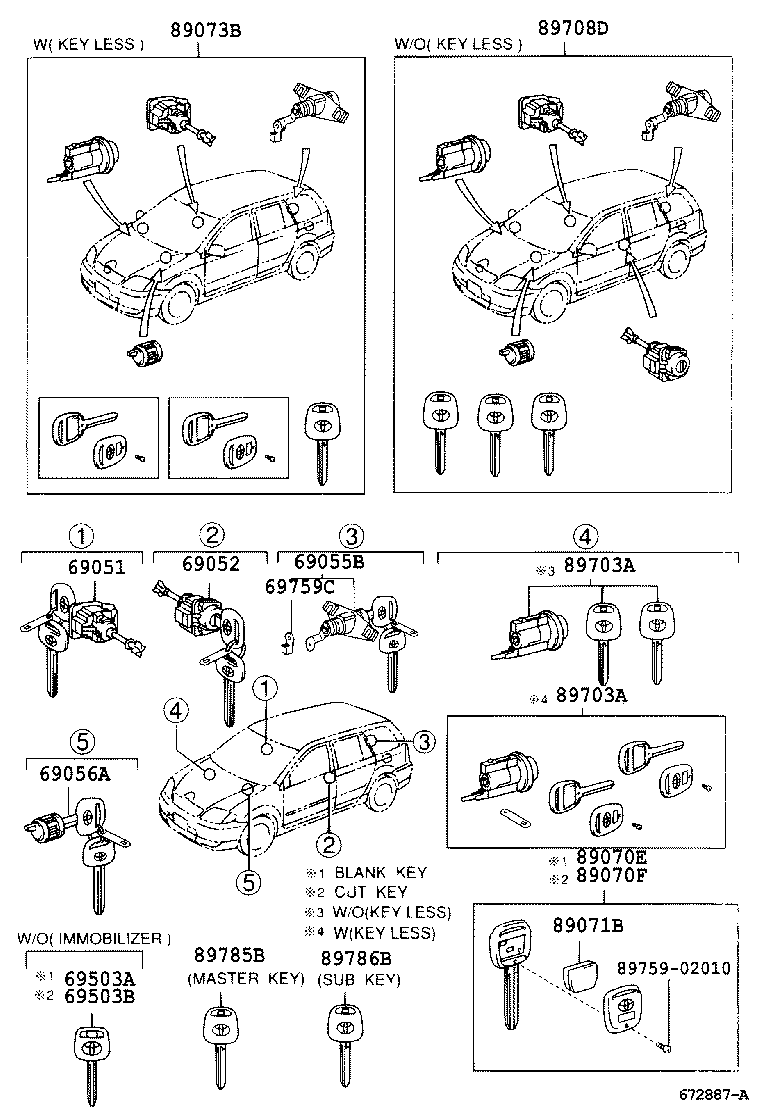

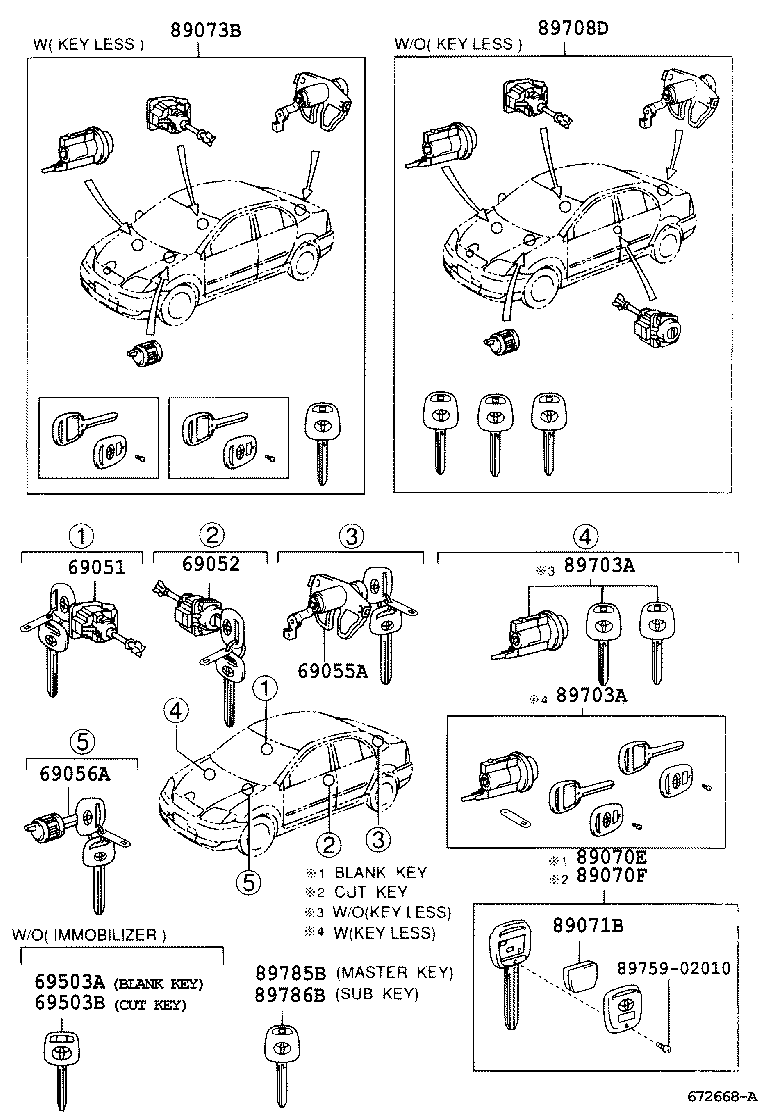

Figure 672669A 672669A 2002-01 → — Figure 672668A 672668A 2002-01 → — Figure 672888A 672888A 2002-08 → — Figure 672887A 672887A 2002-08 → —

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69055A Cylinder & Key Set, Luggage Compartment Lock
69055B Cylinder & Key Set, Back Door Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69503A Key, Blank
69503B Key, Cut
69759C Snap, Back Door Lock Cylinder
89070E Transmitter Assy, Door Control
89070F Transmitter Assy, Door Control (CUT KEY)
89071B Module Set, Transmitter Sub-assy, Door Control
89073B Cylinder Set, Lock W/Transmitter Housing(LESS MODULE)
89703A Cylinder & Key Set, Ignition W/Transponder
89708D Cylinder Set, Lock W/Transponder Key Transmitter
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
