Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

42 part groups · 15 illustrations

Illustrations

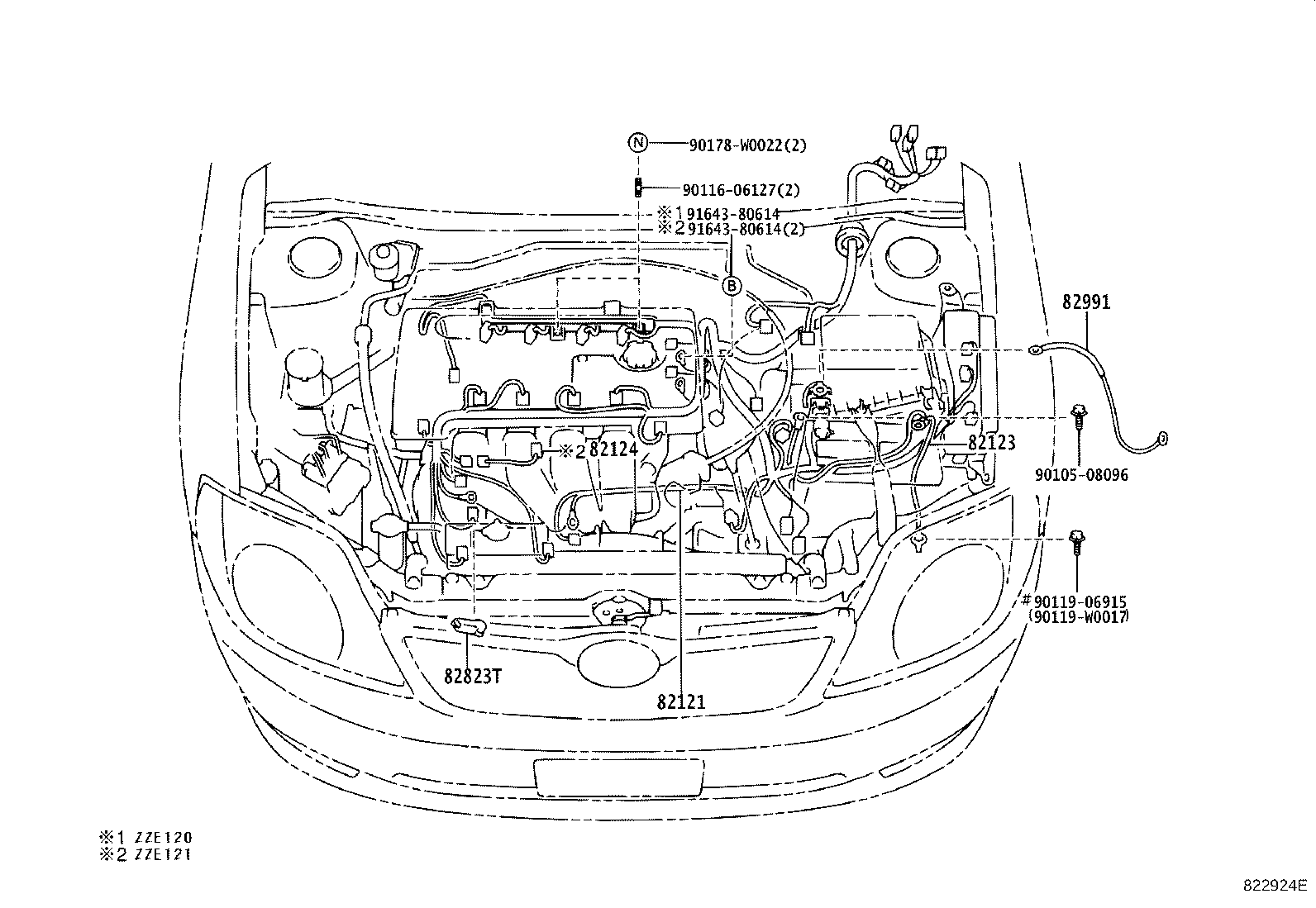

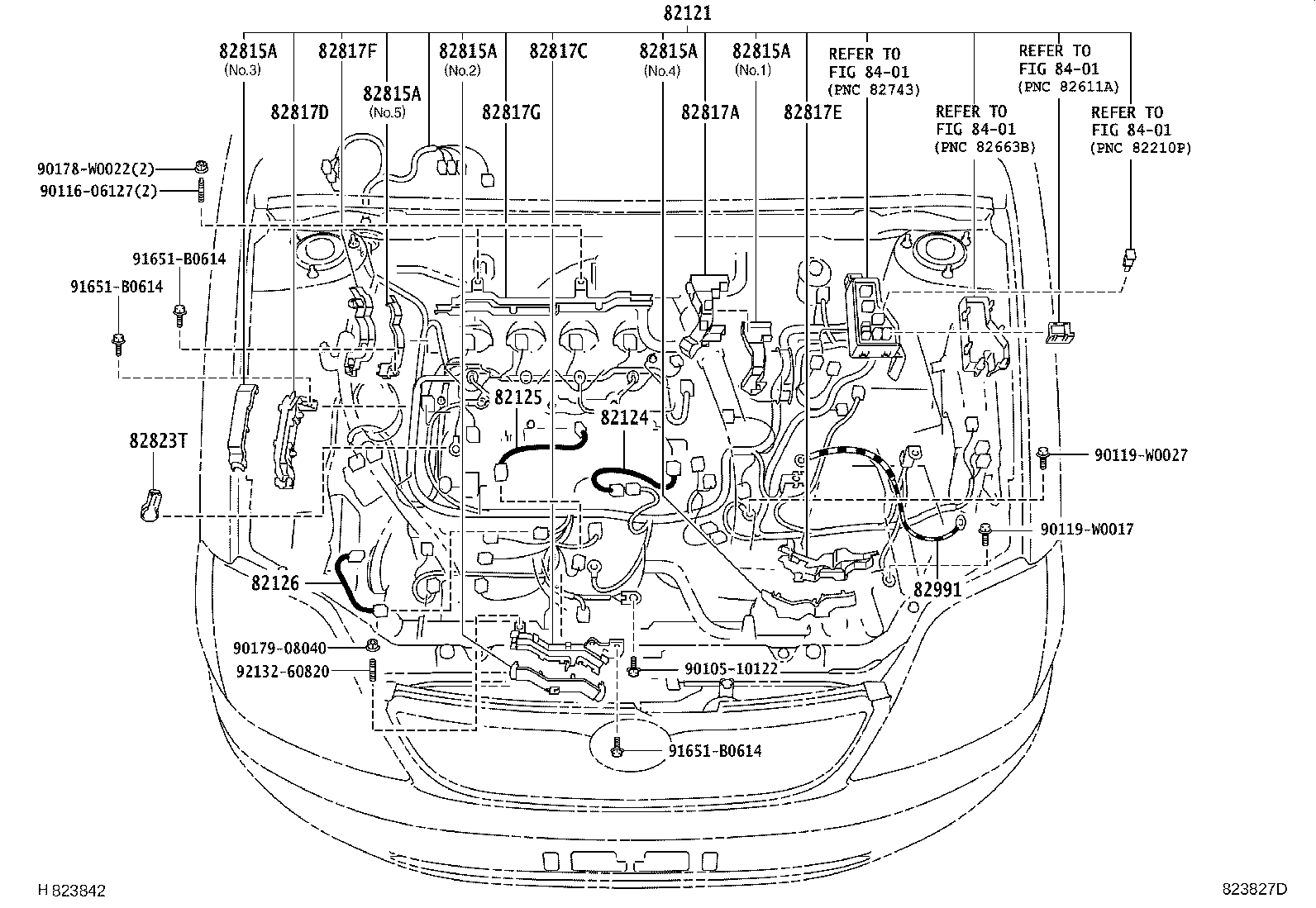

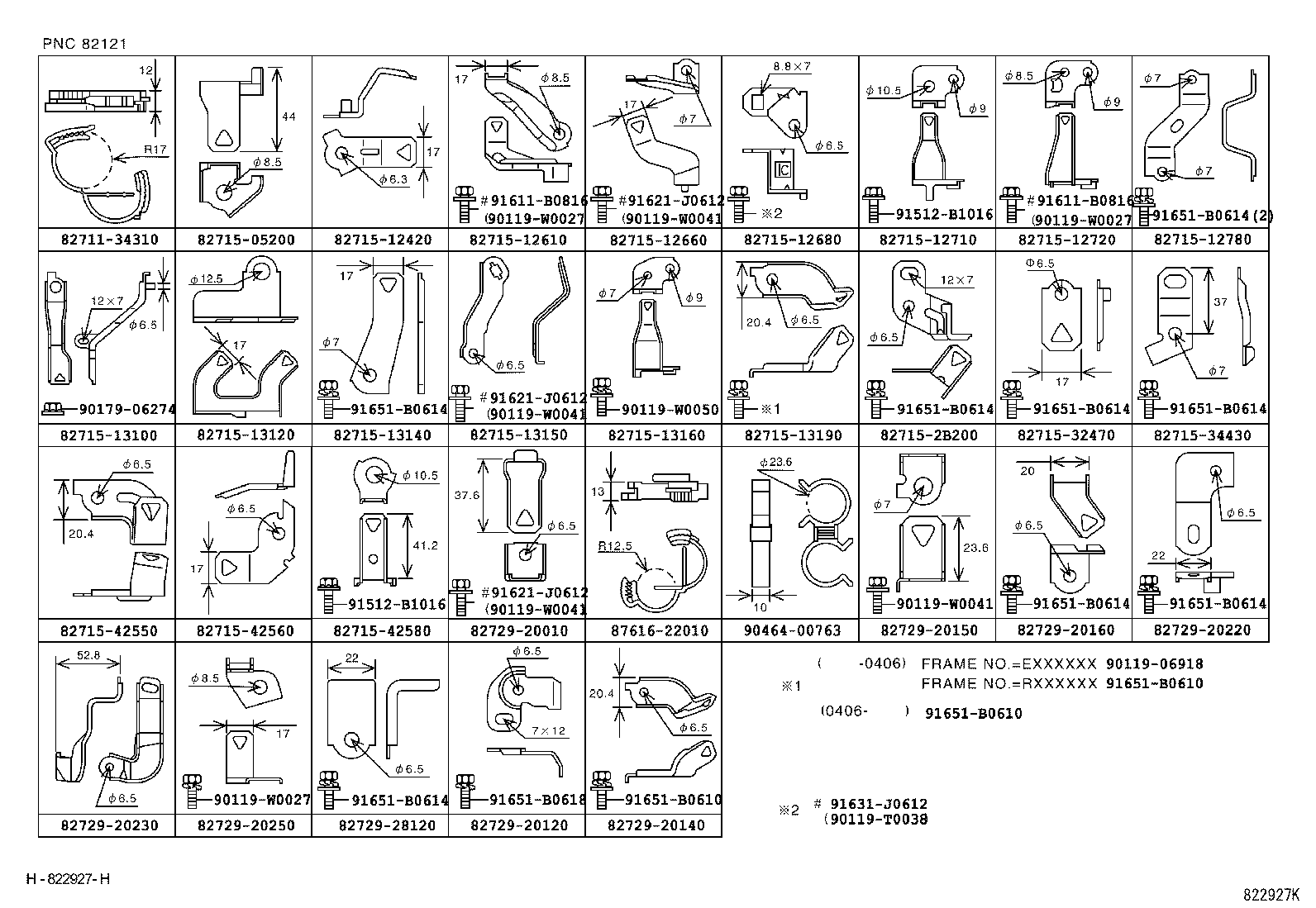

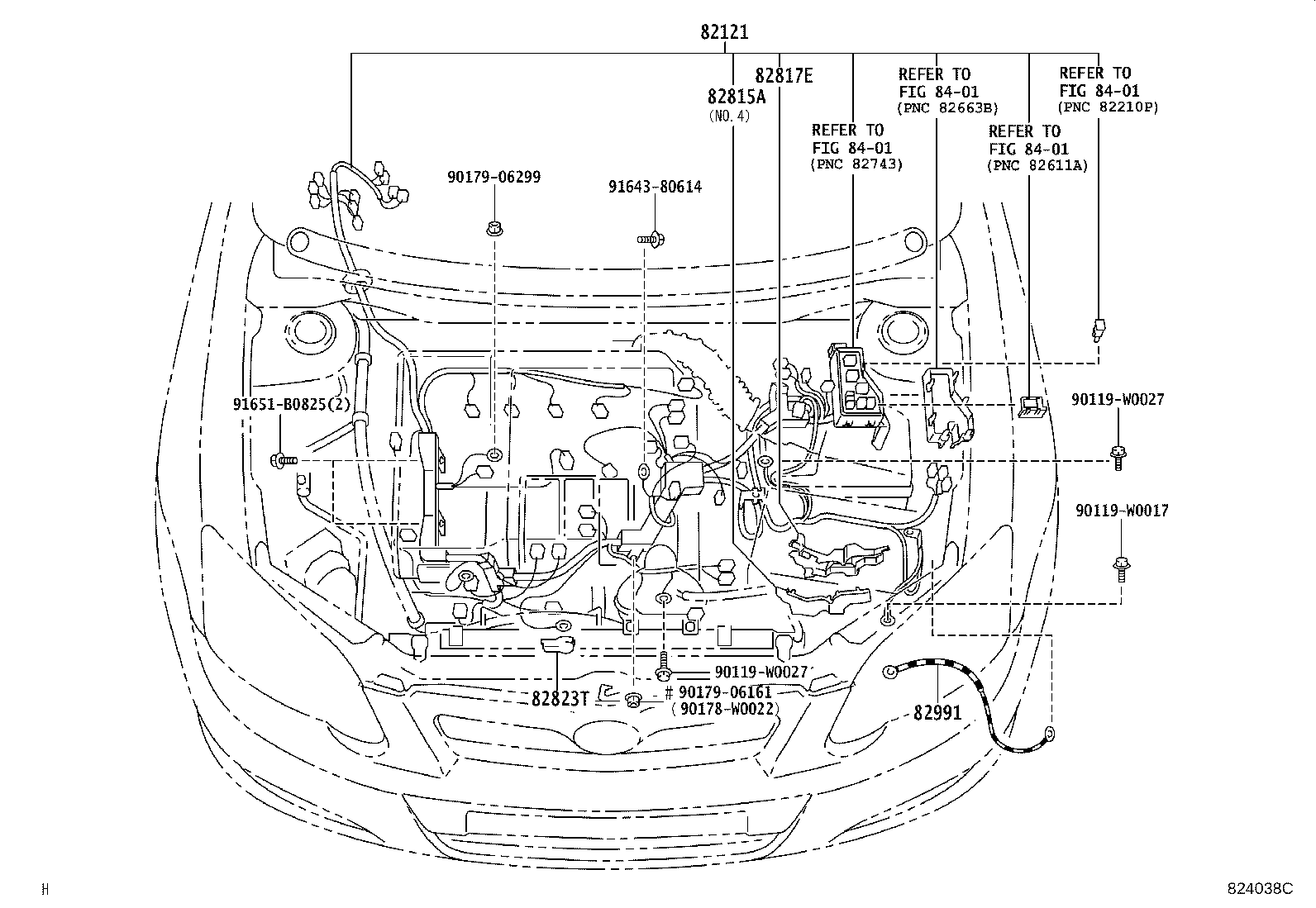

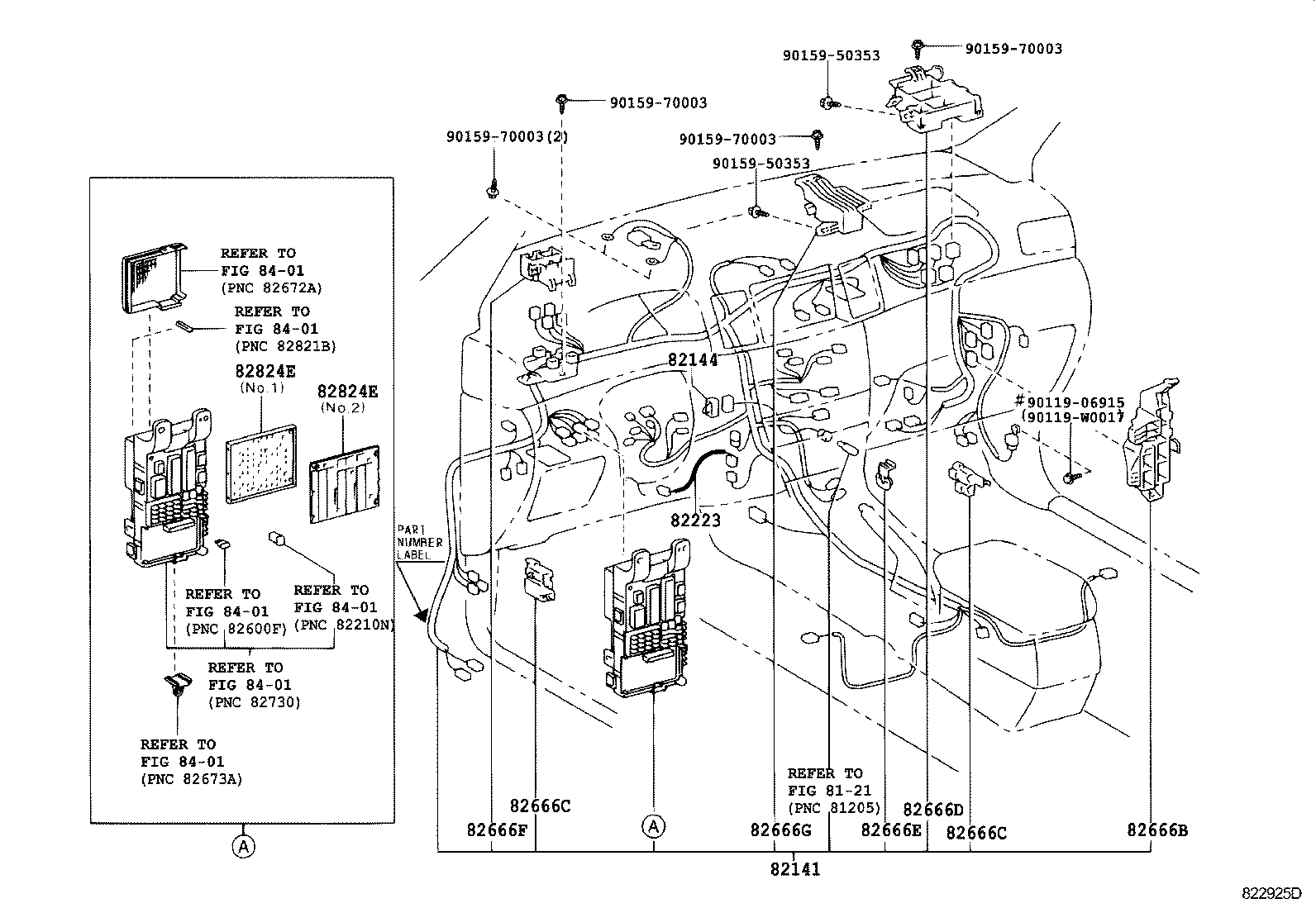

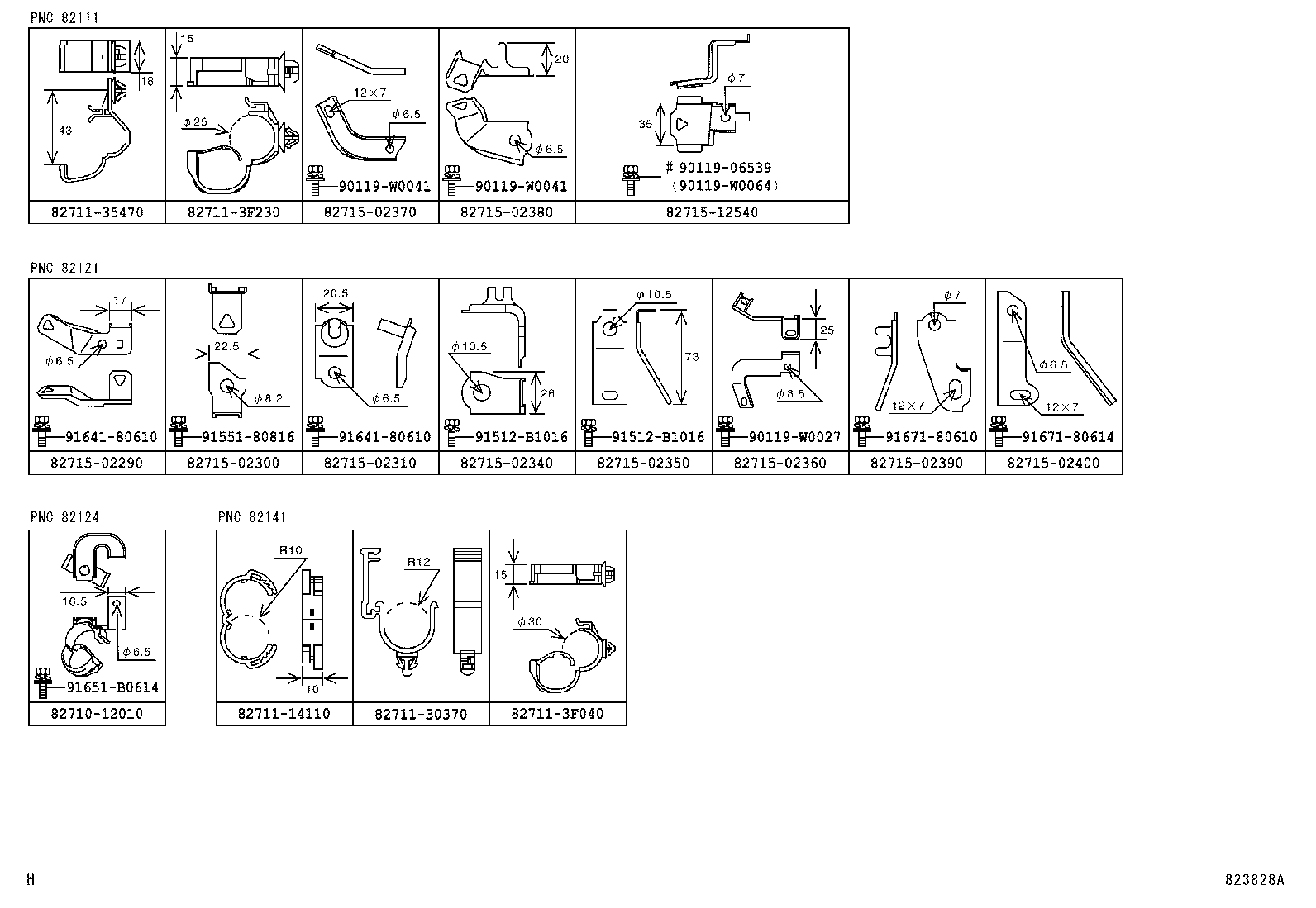

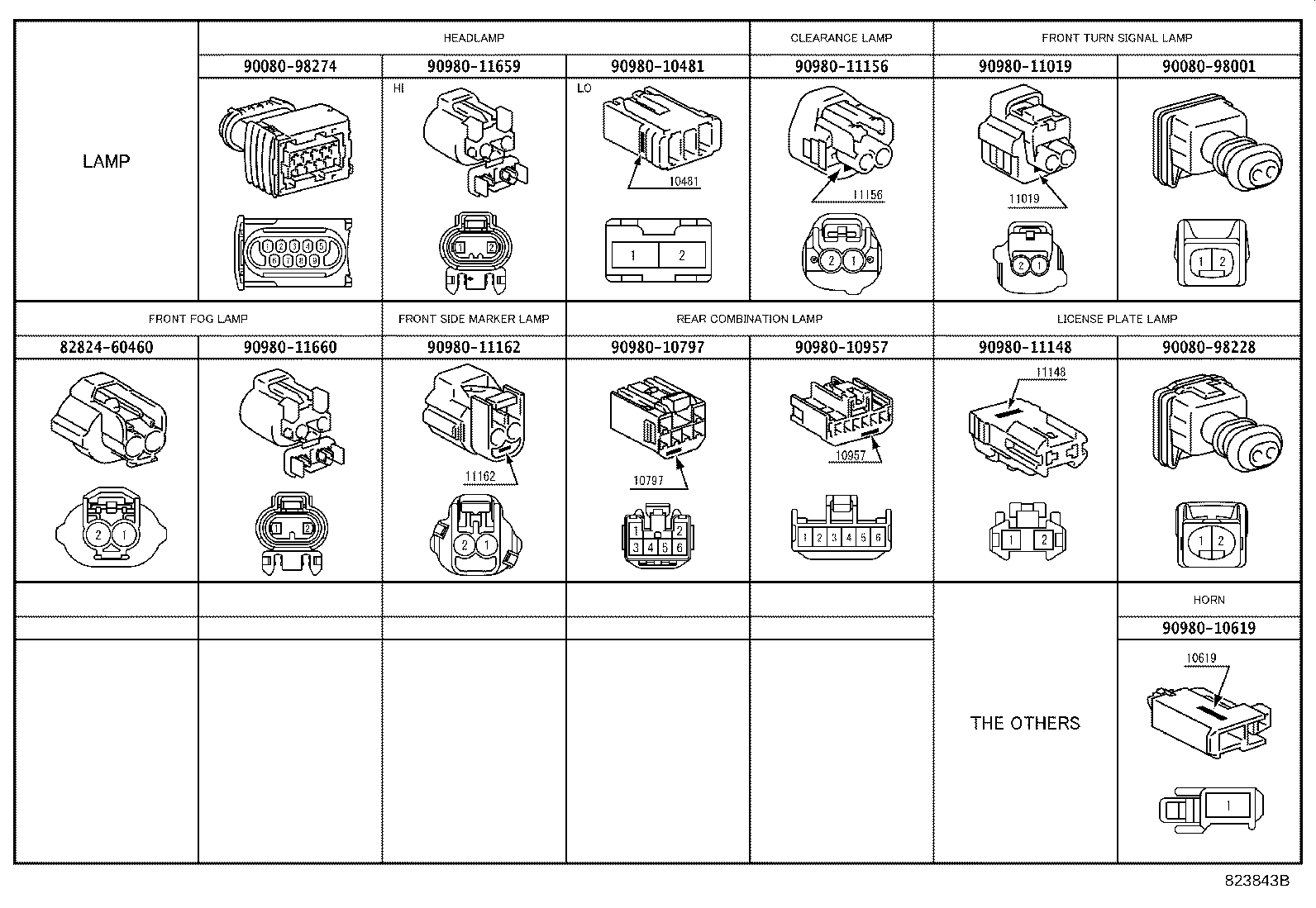

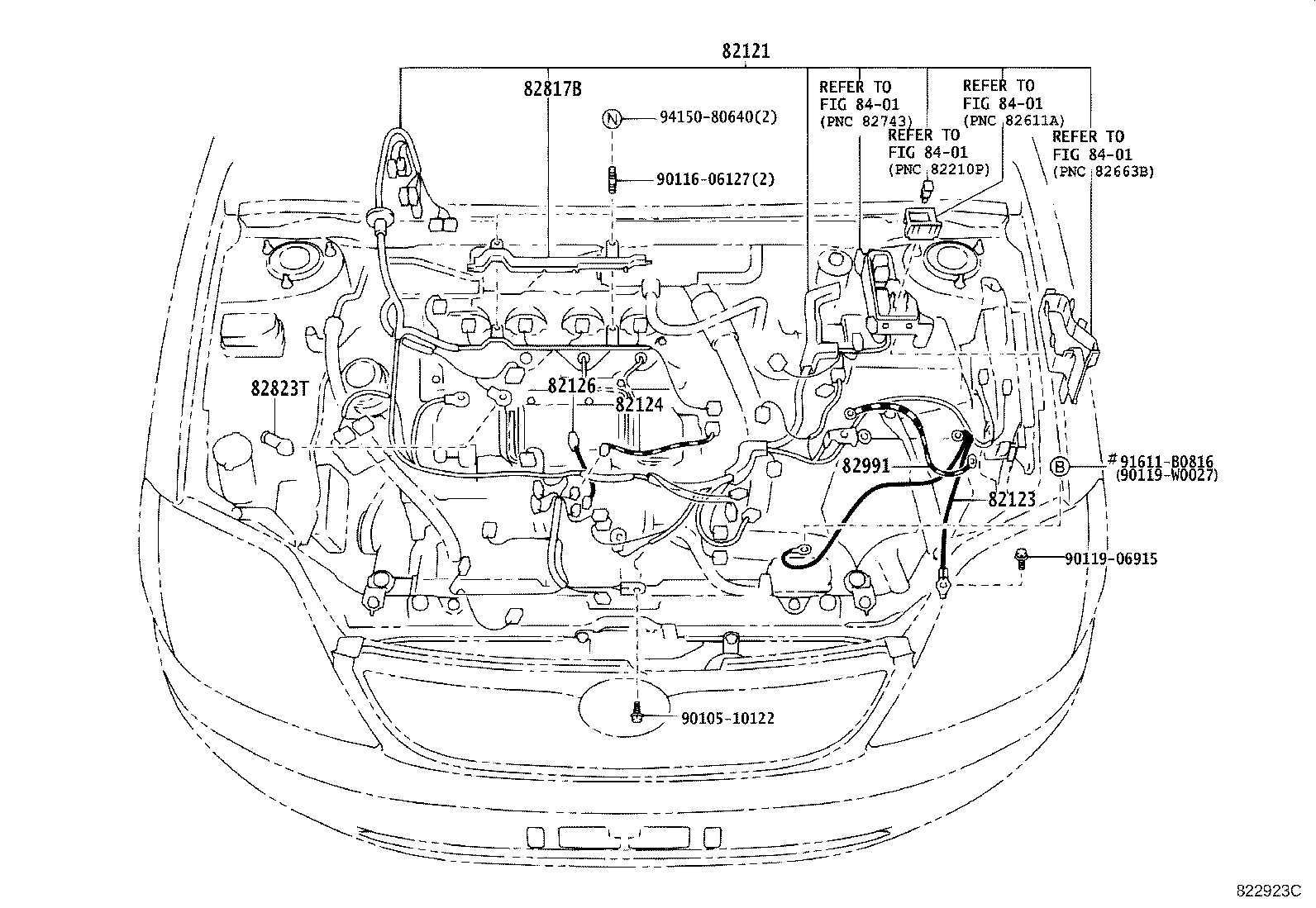

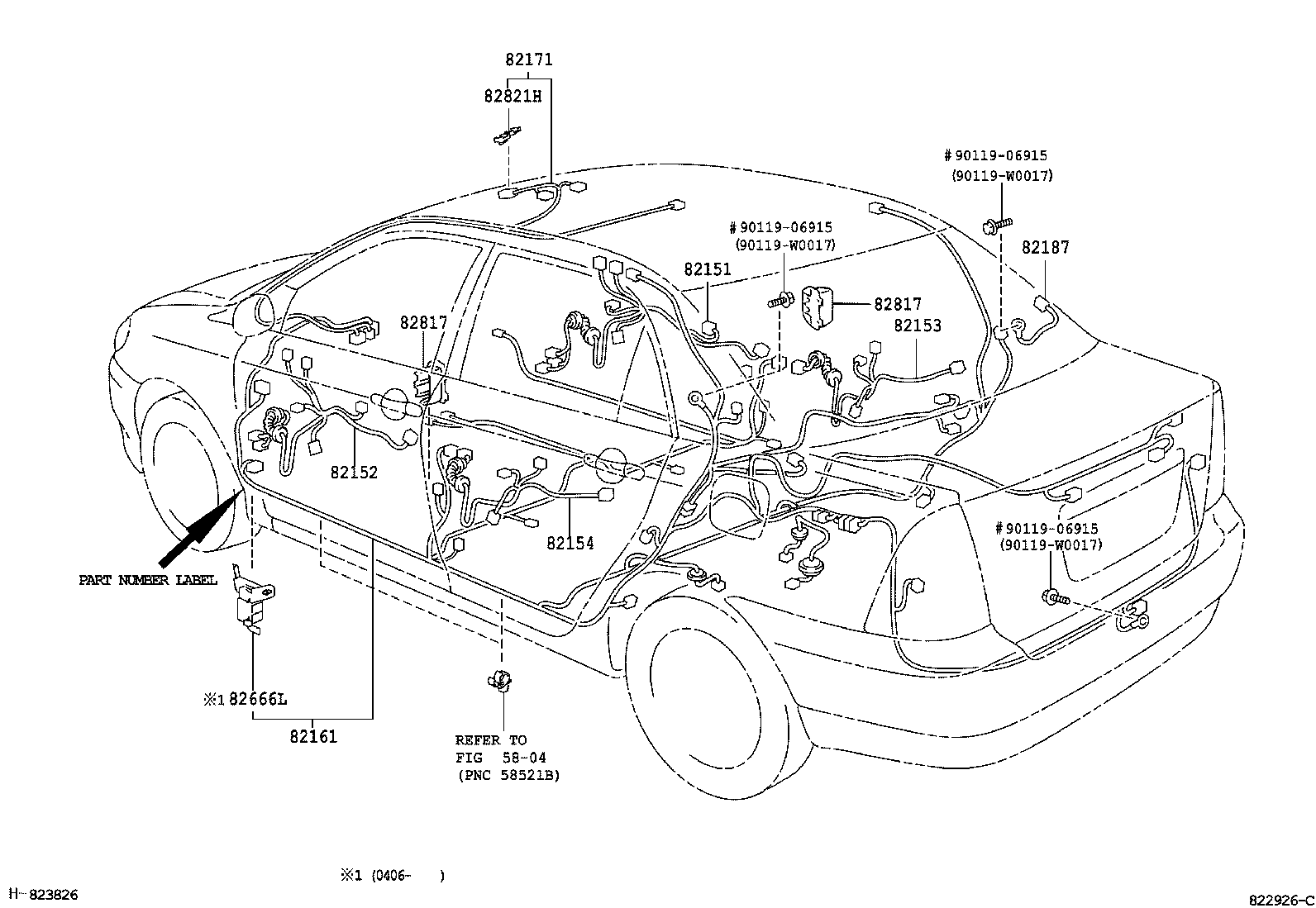

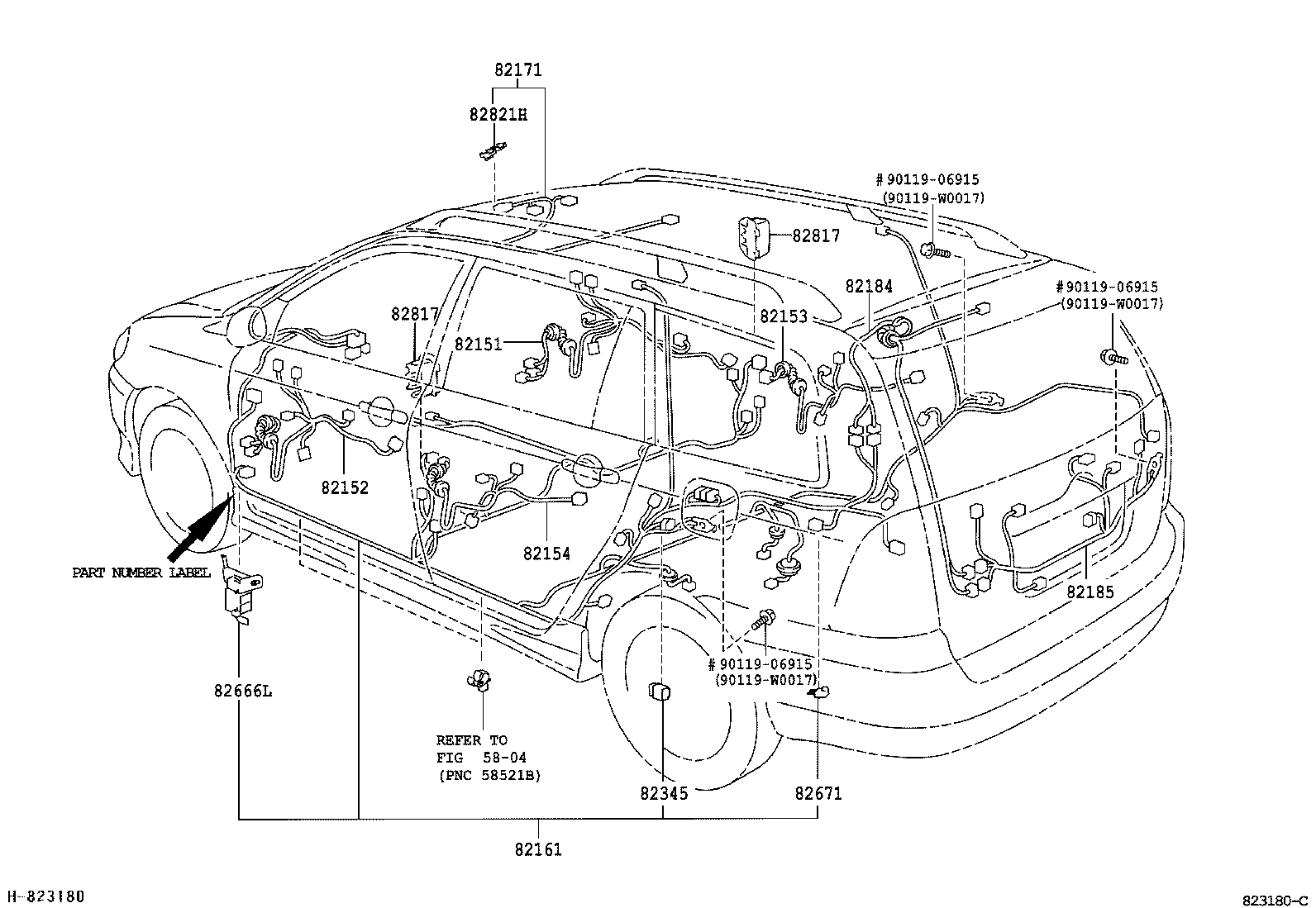

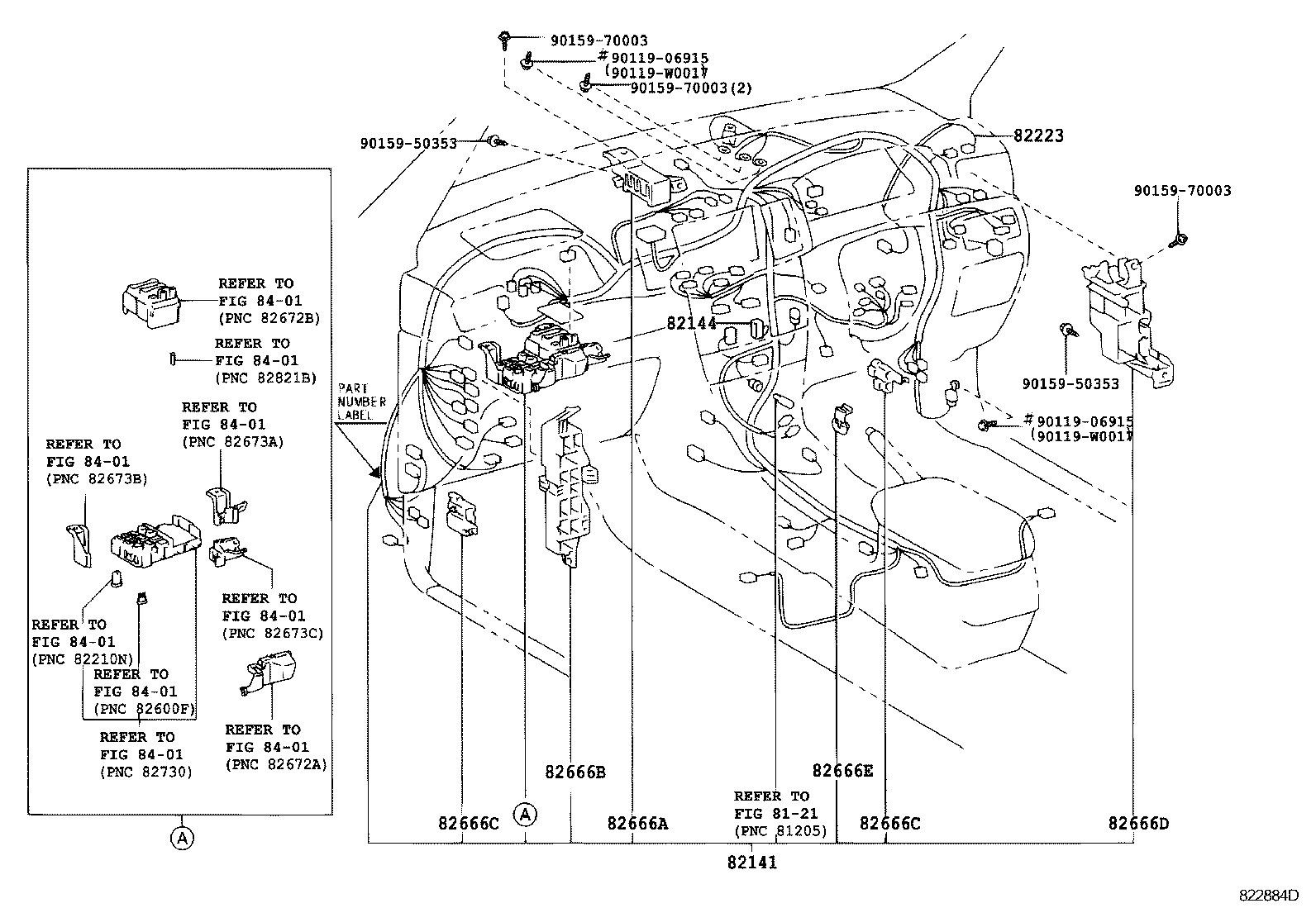

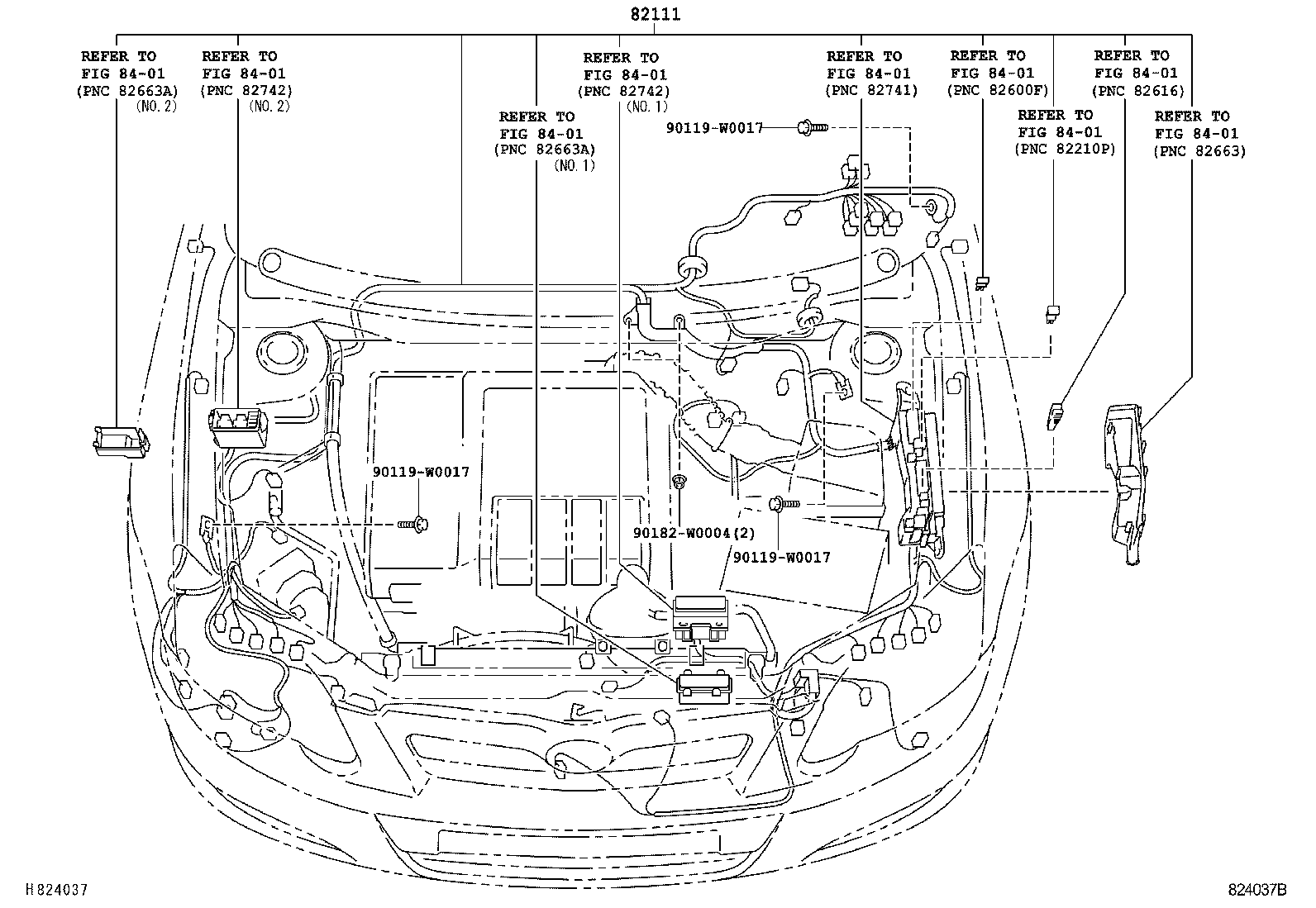

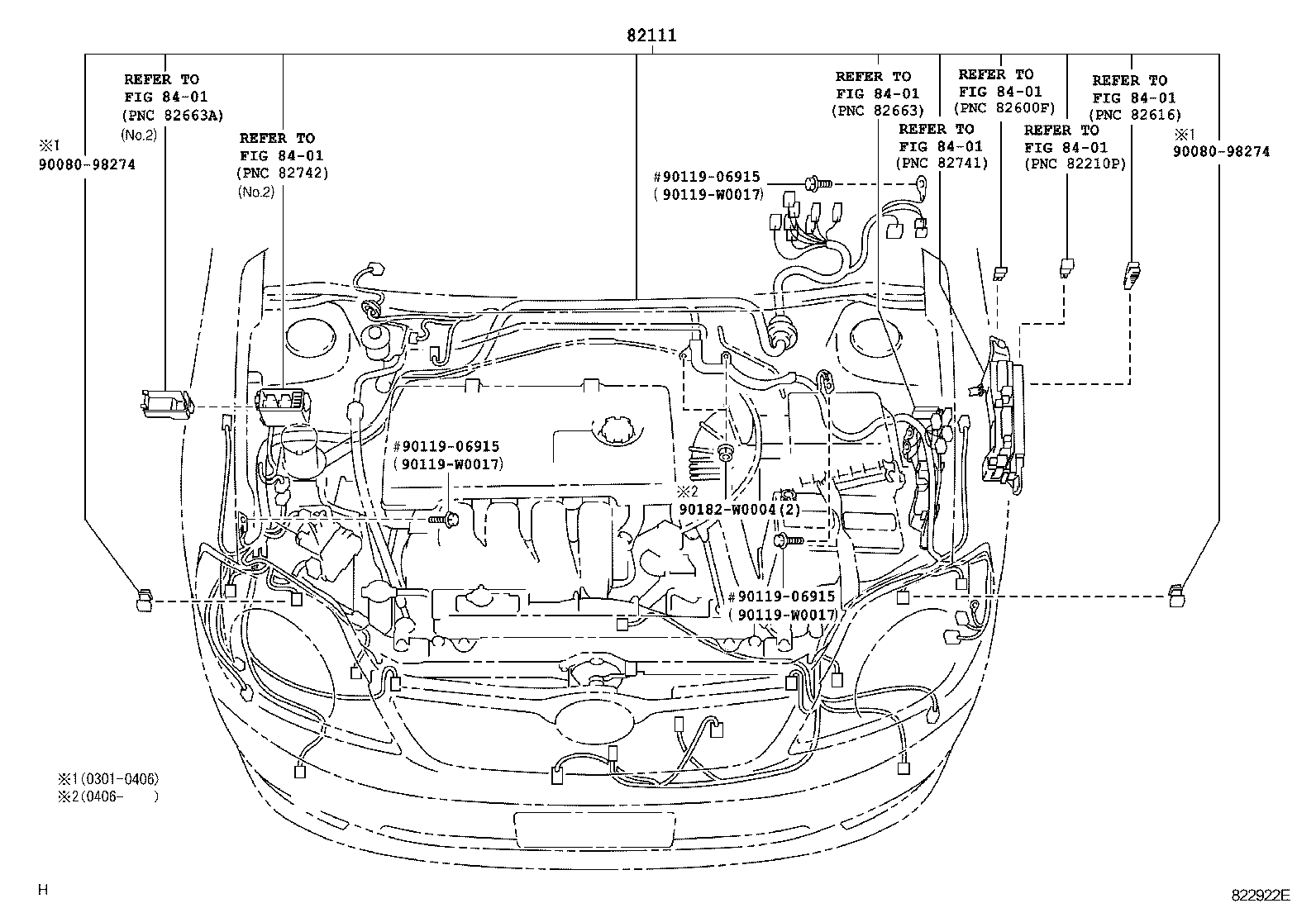

Figure 822879E 822879E 2002-01 → — Figure 822922E 822922E 2002-01 → — Figure 824037B 824037B 2004-08 → — Figure 822923C 822923C 2002-01 → 2004-06 Figure 823827D 823827D 2004-06 → — Figure 822924E 822924E 2002-01 → — Figure 824038C 824038C 2004-08 → — Figure 822884D 822884D 2002-01 → — Figure 822925D 822925D 2002-01 → — Figure 822926C 822926C 2002-01 → — Figure 823180C 823180C 2002-08 → — Figure 822927K 822927K 2002-01 → — Figure 823828A 823828A 2002-01 → — Figure 822928C 822928C 2002-01 → — Figure 823843B 823843B 2002-01 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82125 Wire, Transmission
82126 Wire, Engine
82141 Wire, Instrument Panel
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82187 Wire, Rear Window, NO.2
82223 Wire, Switch
82345 Diode
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82815A Cover, Wiring Harness Protector
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82821H Cover, Connector
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
