Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

7 part groups · 2 illustrations

Illustrations

Figure 844643D

844643D 2002-01 → 2004-06

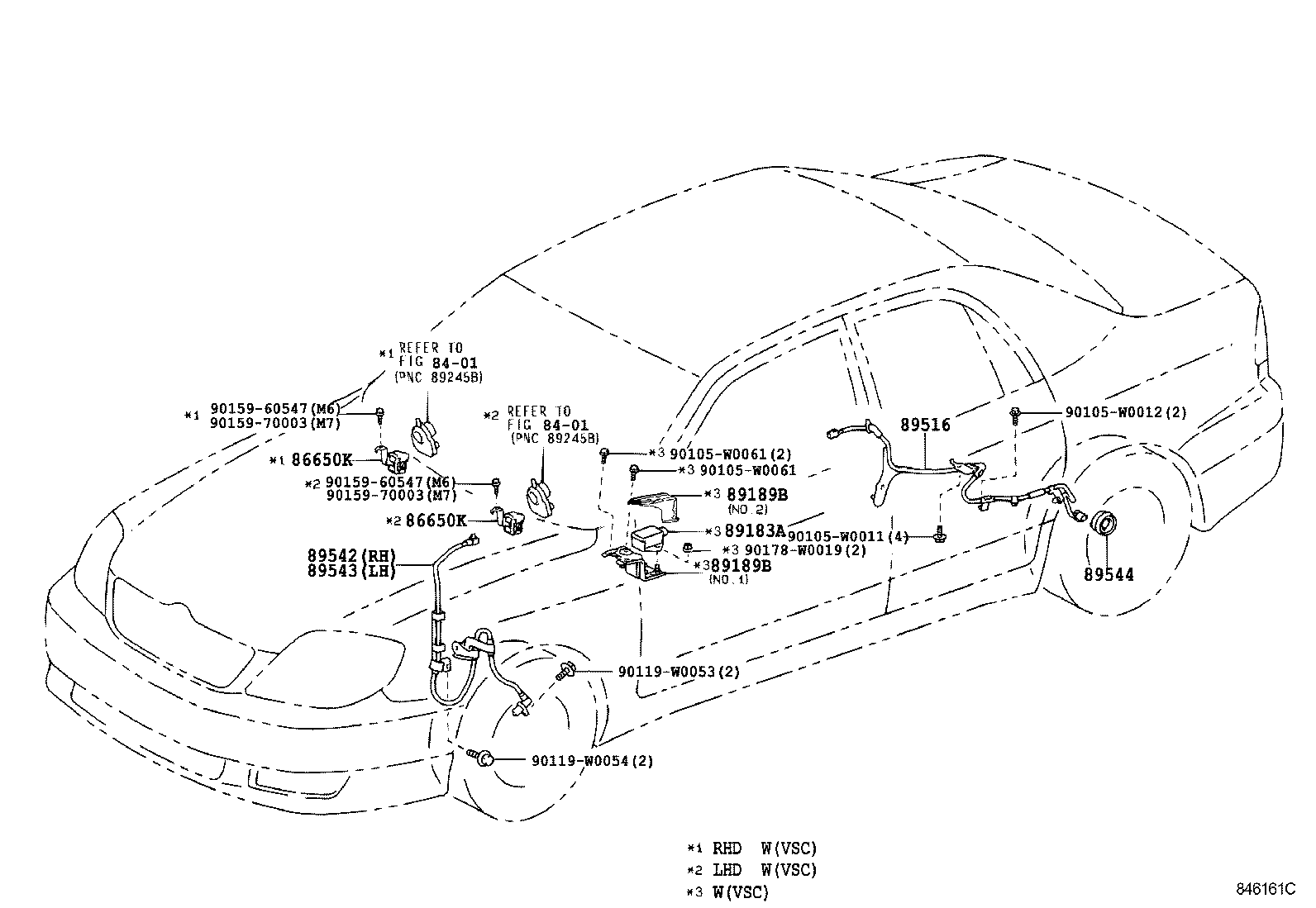

Figure 846161C

846161C 2004-06 → —

Part groups

PNC	Description
86650K	Buzzer Assy, Skid Control
89183A	Sensor, Yawrate
89189B	Bracket, Yawrate Sensor
89516	Wire, Skid Control Sensor
89542	Sensor, Speed, Front RH
89543	Sensor, Speed, Front LH
89544	Sensor, Skid Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
