Factory parts data · Europe

Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Bag

8 part groups · 3 illustrations

Illustrations

Figure 844559A

844559A 2002-01 → 2003-01

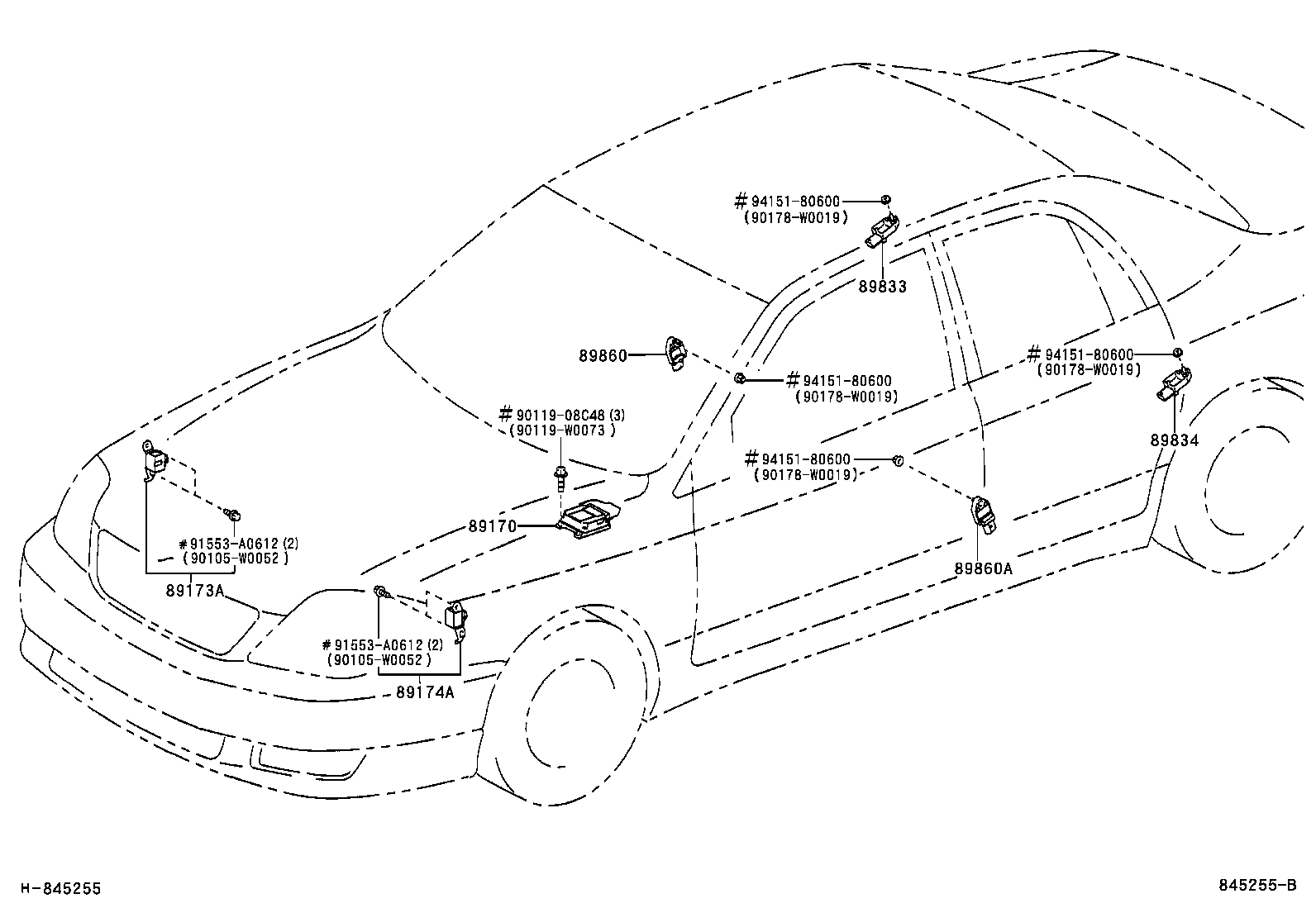

Figure 845255B

845255B 2003-01 → 2004-06

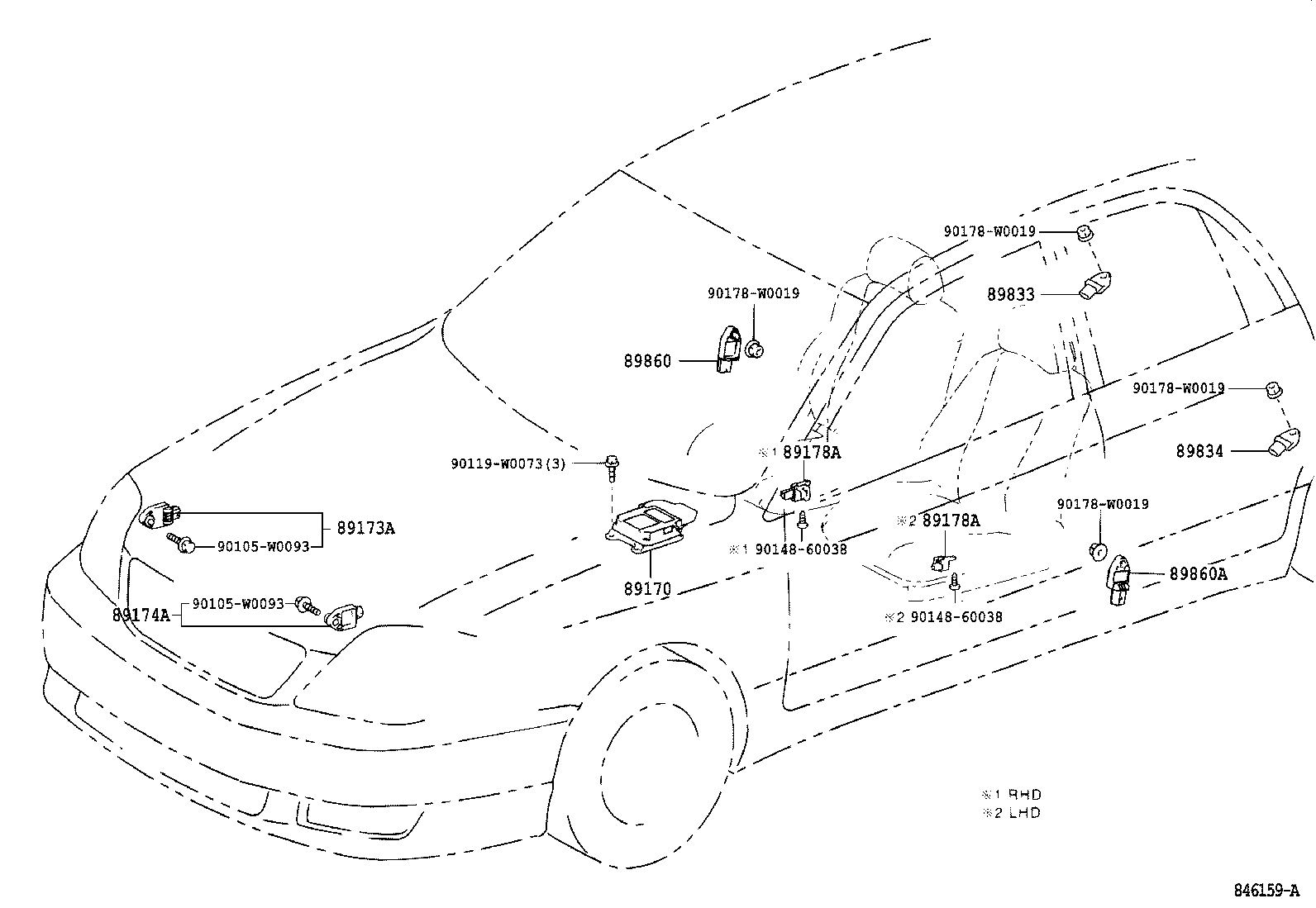

Figure 846159A

846159A 2004-06 → —

Part groups

PNC	Description
89170	Sensor Assy, Airbag
89173A	Sensor, Airbag, Front RH
89174A	Sensor, Airbag, Front LH
89178A	Sensor, Seat Position Airbag
89833	Sensor, Airbag, Rear RH
89834	Sensor, Airbag, Rear LH
89860	Sensor Assy, Side Airbag, RH
89860A	Sensor Assy, Side Airbag, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
