Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Anti-theft Device

7 part groups · 3 illustrations

Illustrations

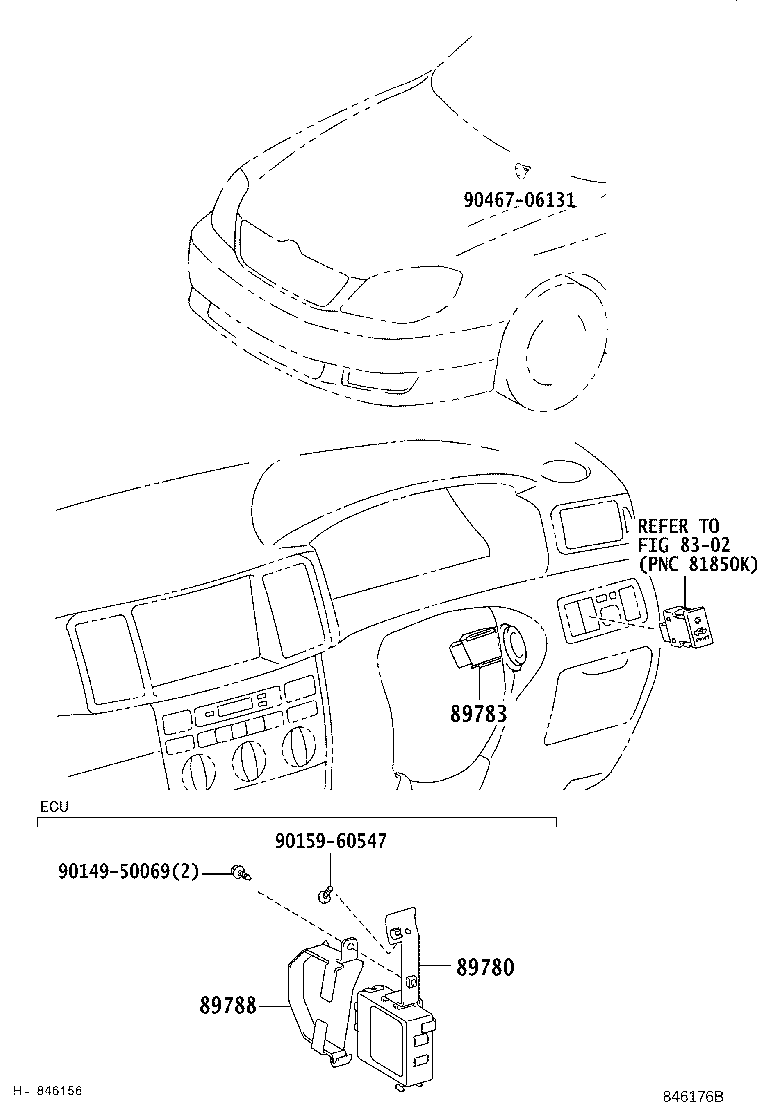

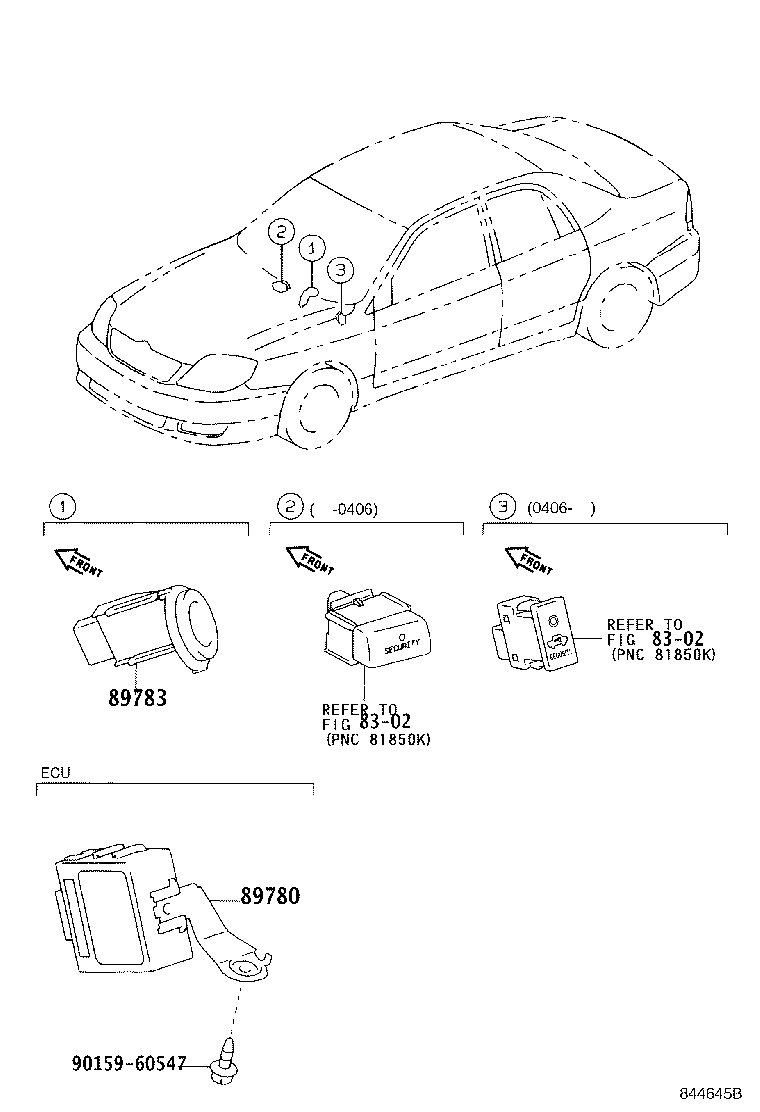

Figure 844644E 844644E 2002-01 → 2004-06 Figure 844645B 844645B 2002-01 → — Figure 846176B 846176B 2004-06 → —

Part groups

PNCDescription
89040 Siren Assy, Theft Warning
89729 Switch, Theft Warning Courtesy
89730B Computer Assy, Theft Warning
89732 Sensor, Theft Warning Radar
89780 Computer Assy, Transponder Key
89783 Amplifier, Transponder Key
89788 Bracket, Transponder Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
