Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

26 part groups · 8 illustrations

Illustrations

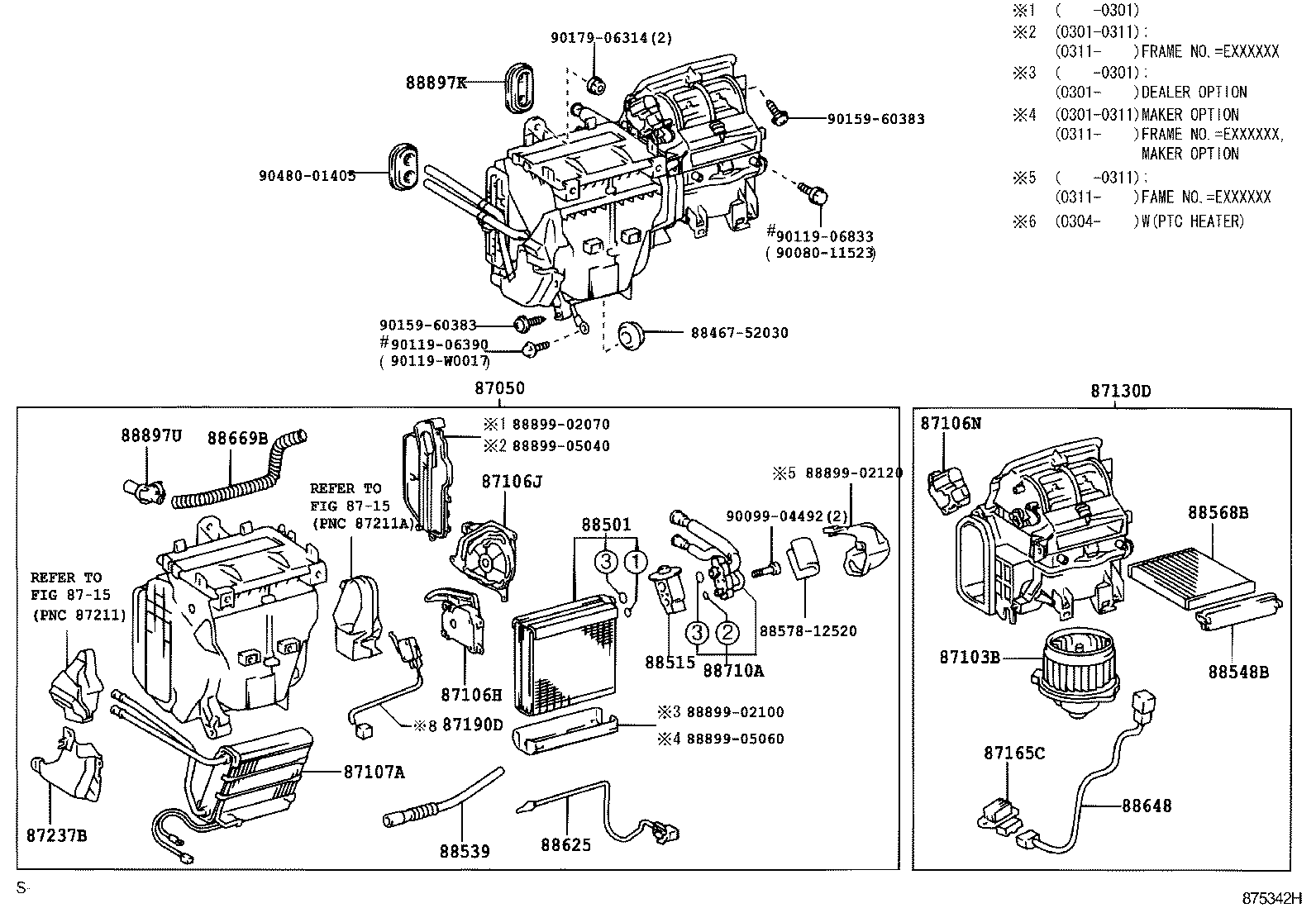

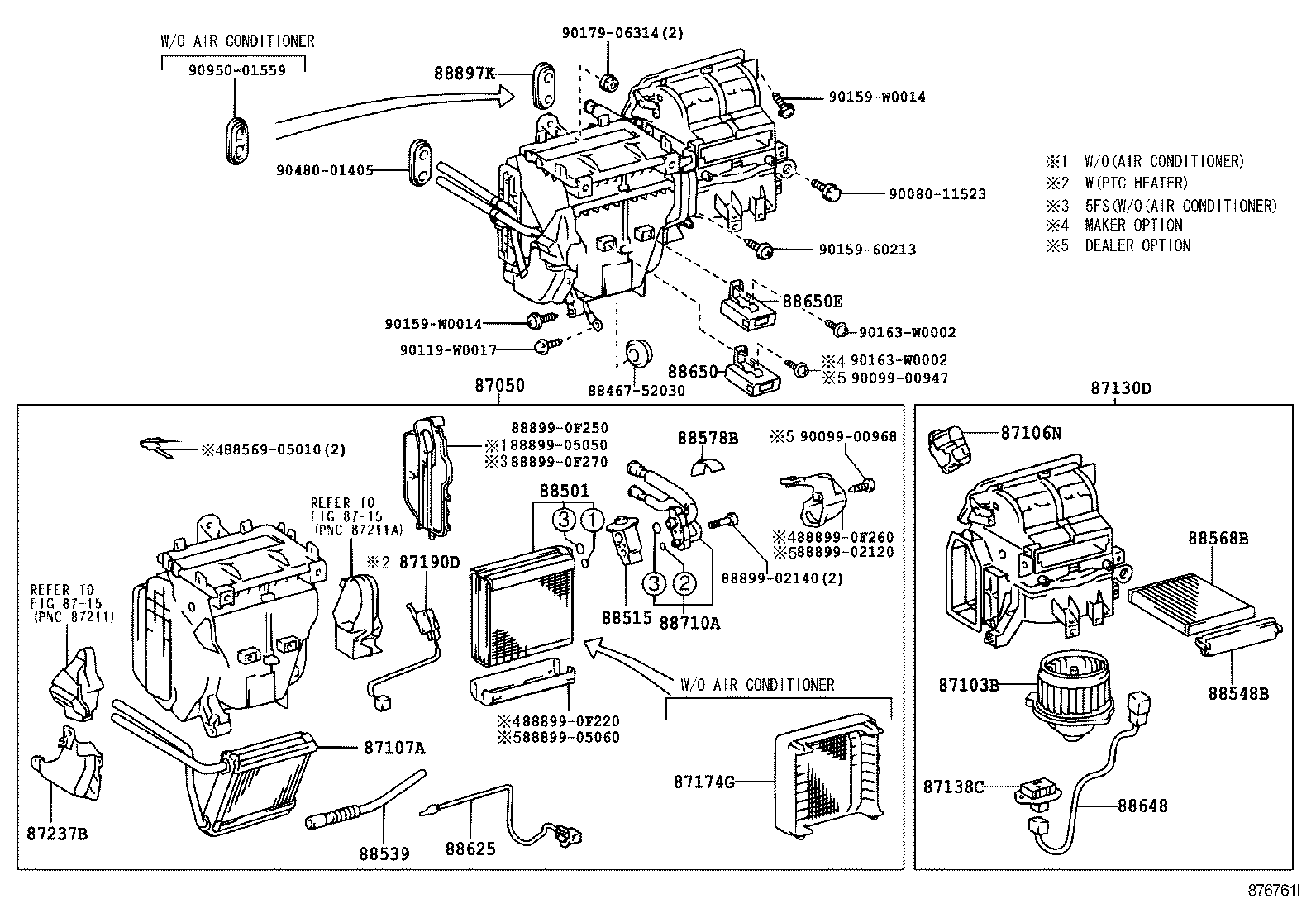

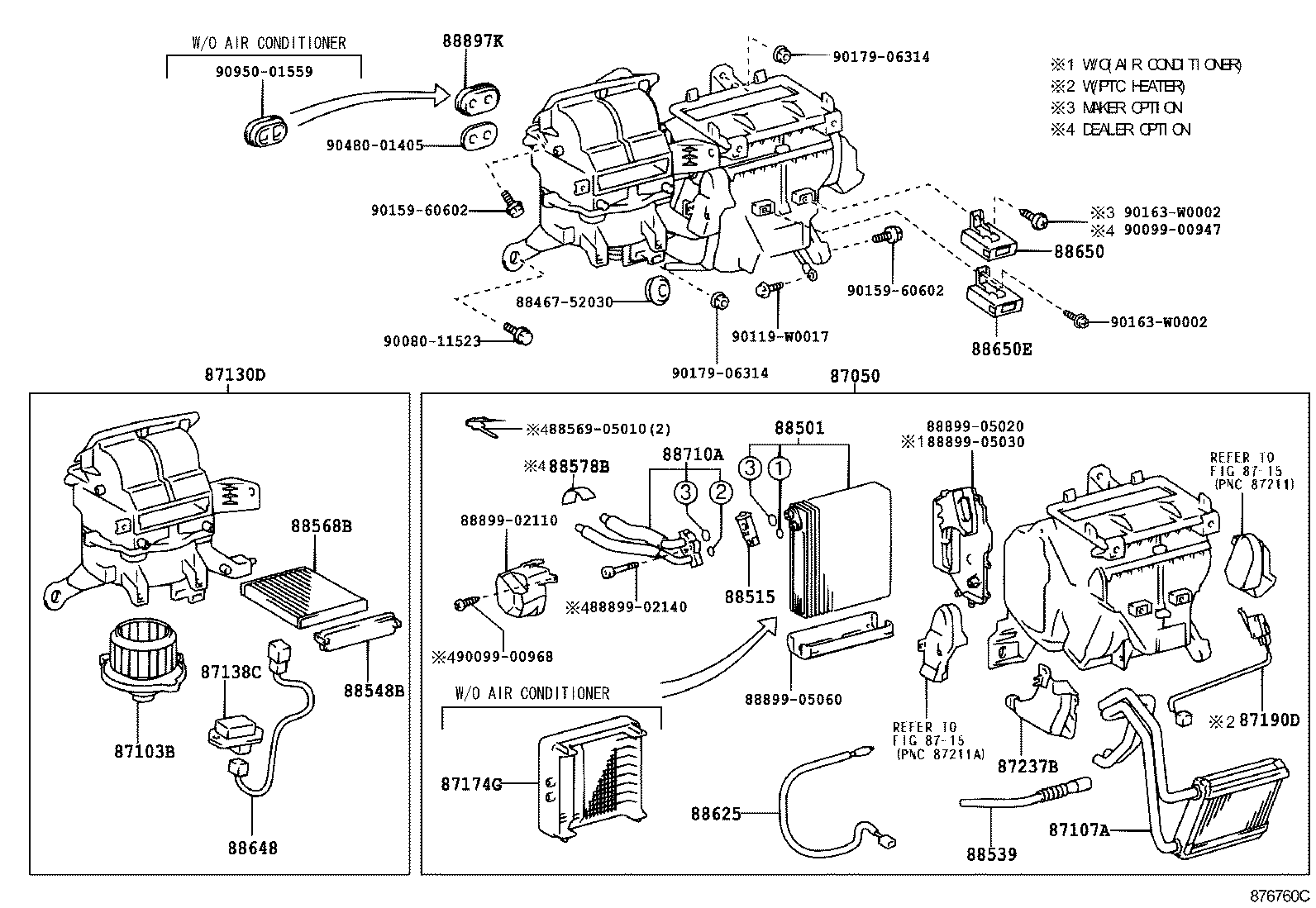

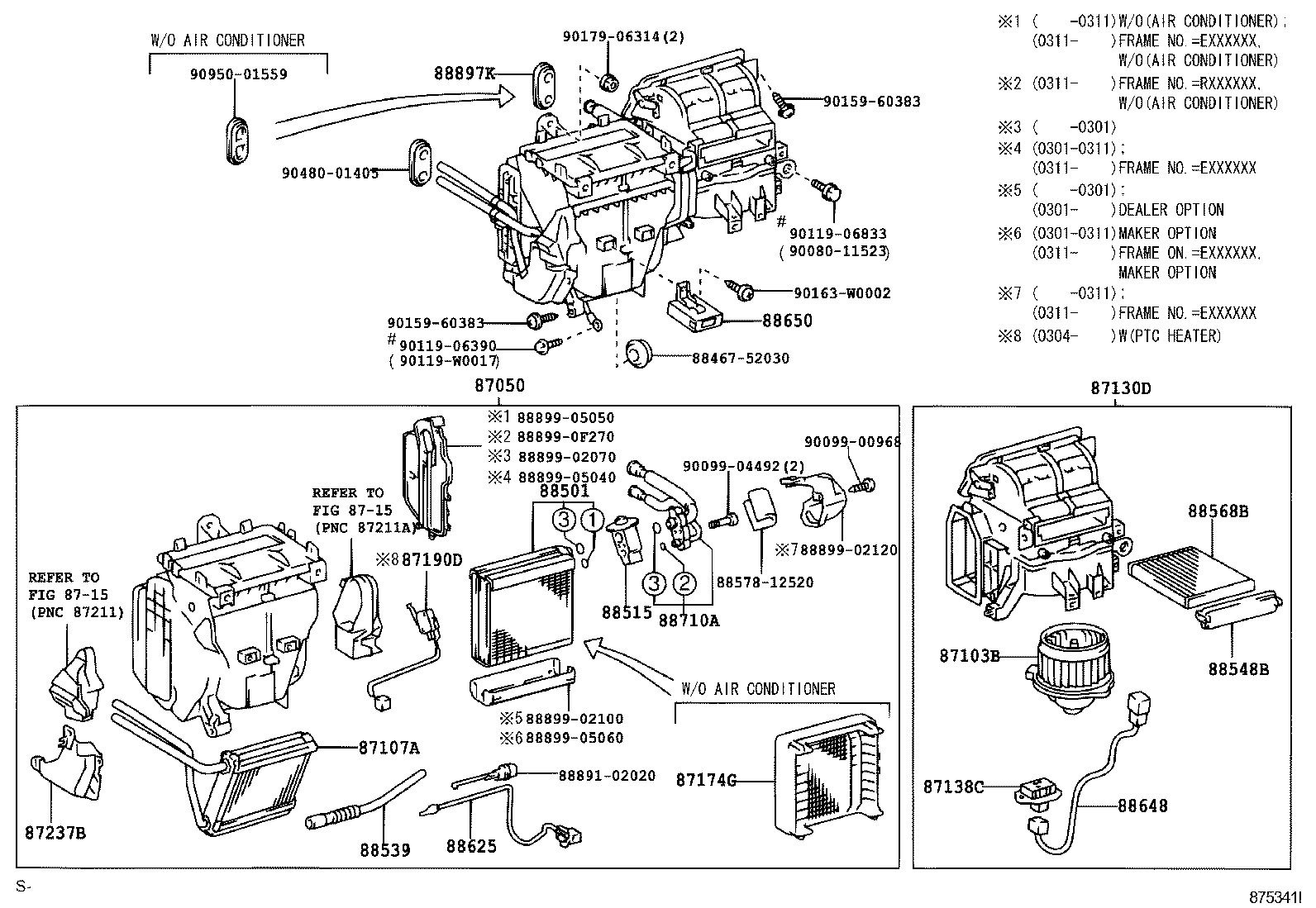

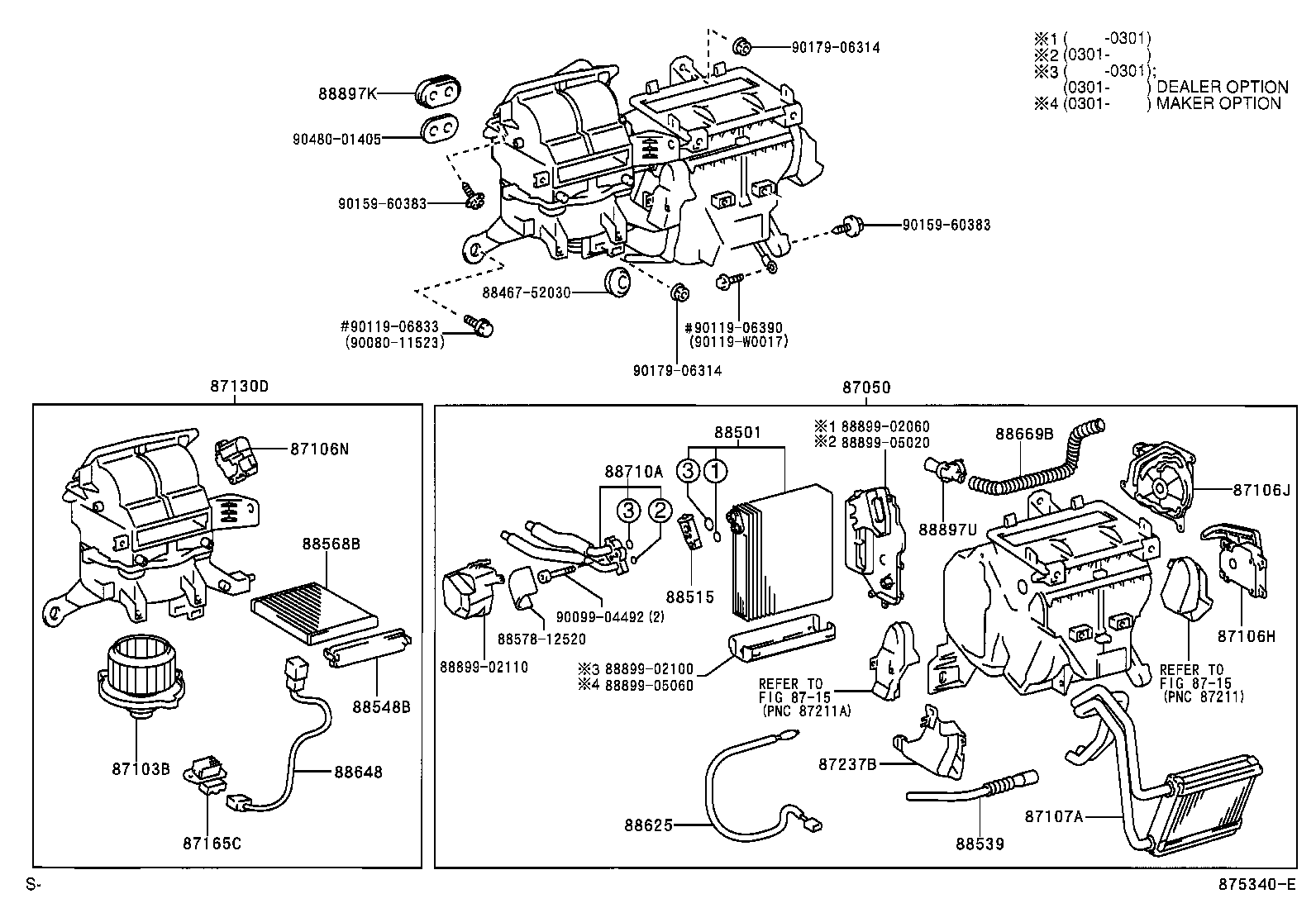

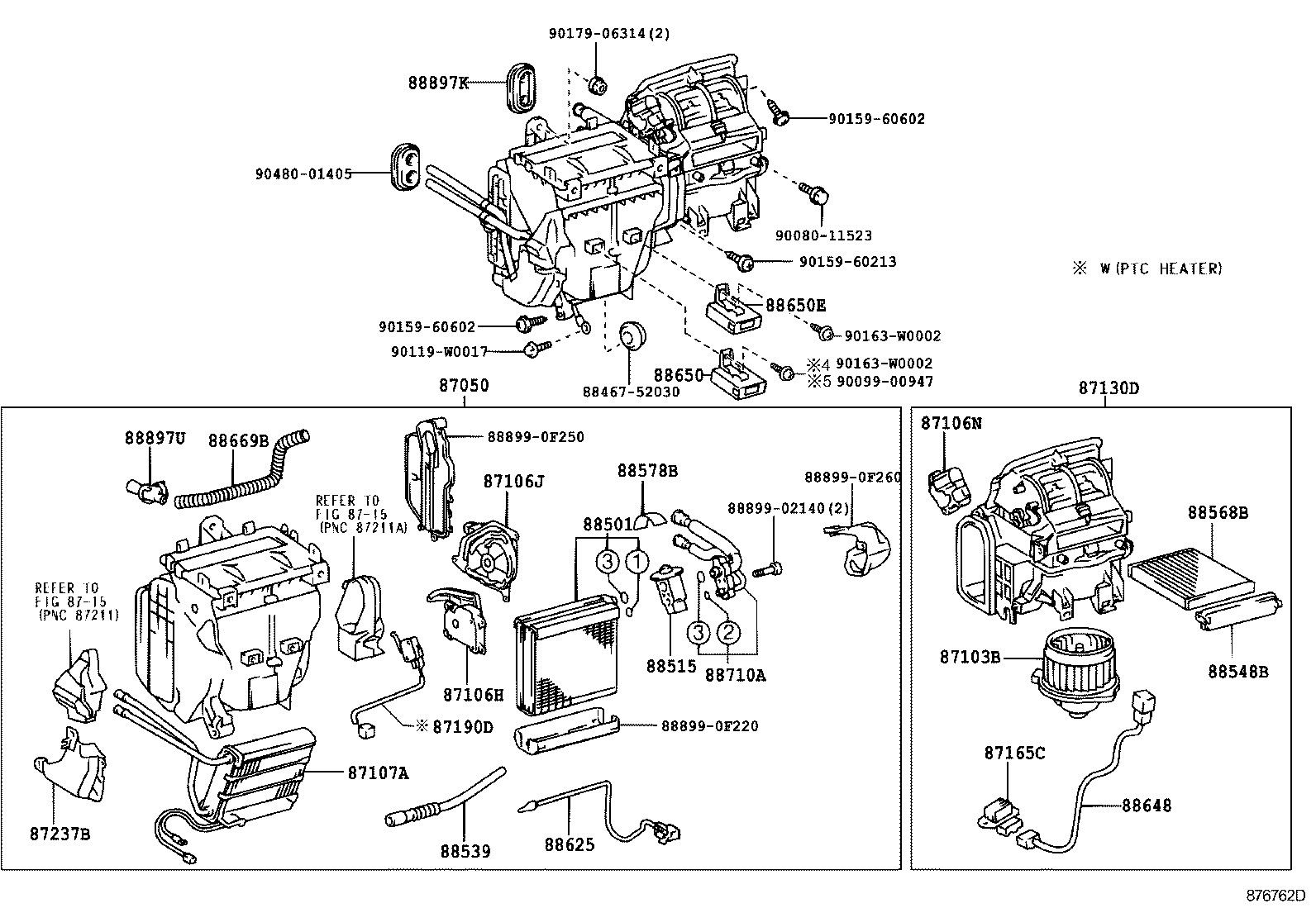

Figure 875339G 875339G 2002-01 → 2004-06 Figure 875340E 875340E 2002-01 → 2004-06 Figure 875341I 875341I 2002-01 → 2004-06 Figure 875342H 875342H 2002-01 → 2004-06 Figure 876760C 876760C 2004-06 → — Figure 876761I 876761I 2004-06 → — Figure 876762D 876762D 2004-06 → — Figure 879432 879432 2002-01 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87130D Blower Assy
87138C Resistor, Blower
87165C Control, Blower Motor
87174G Guide, Air Heater
87190D Switch Assy, Temperature Control
87237B Cover, Heater Piping
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88568B Filter, Air
88578B Packing, Cooling Unit, NO.1
88625 Thermistor, Cooler, NO.1
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650E Amplifier Assy, Air Conditioner, NO.1
88669B Hose, Cooler Air
88710A Tube Assy, Air Conditioner
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
