Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

29 part groups · 7 illustrations

Illustrations

Figure 875348D 875348D 2002-01 → 2004-06 Figure 876756A 876756A 2004-06 → — Figure 875349B 875349B 2002-01 → — Figure 875350C 875350C 2002-01 → — Figure 875351C 875351C 2002-01 → — Figure 875352 875352 2002-01 → — Figure 875353 875353 2002-01 → —

Part groups

PNCDescription

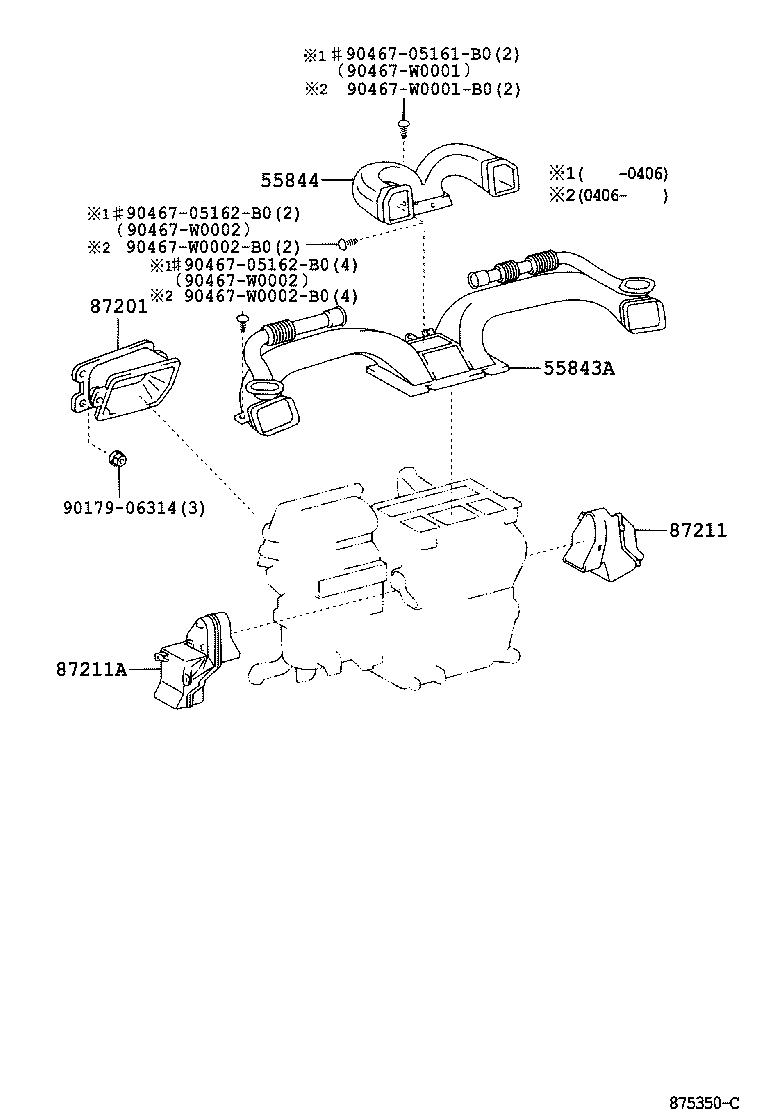

55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2

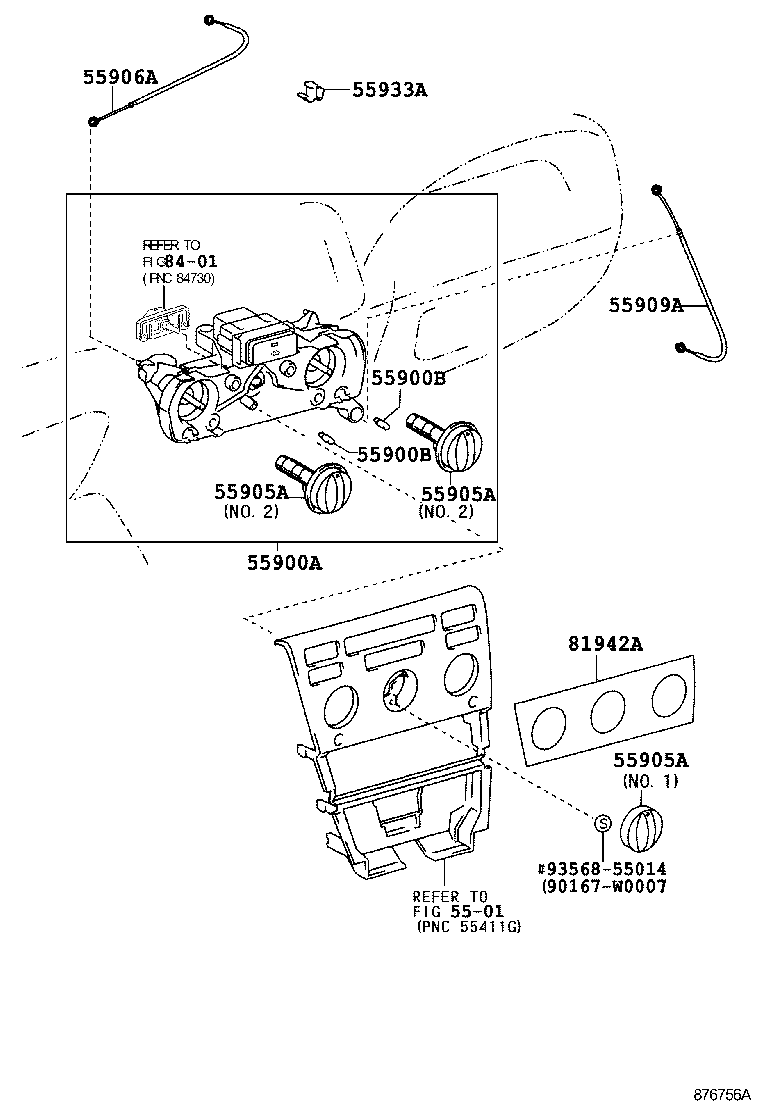

55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control

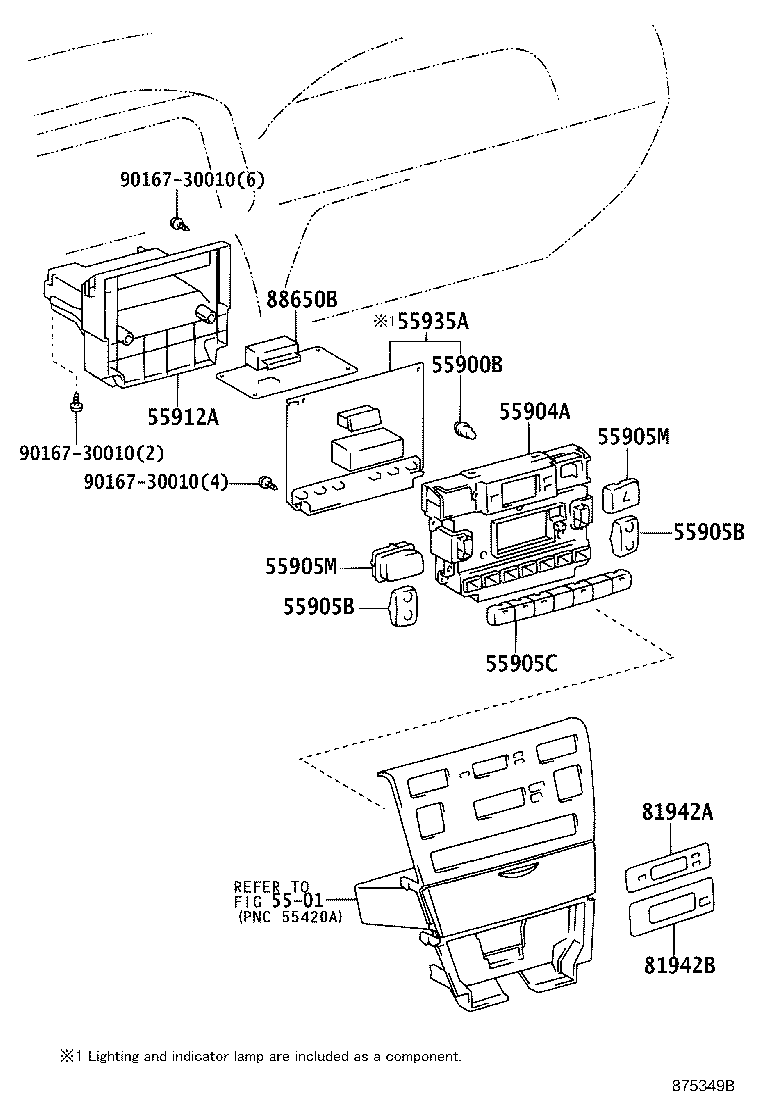

55904A Housing Sub-assy, Heater Control
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55905C Knob, Heater Control, NO.3
55905M Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55912A Housing, Heater Control
55933A Clamp, Heater Control Cable
55935A Circuit, Center Cluster Module
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2

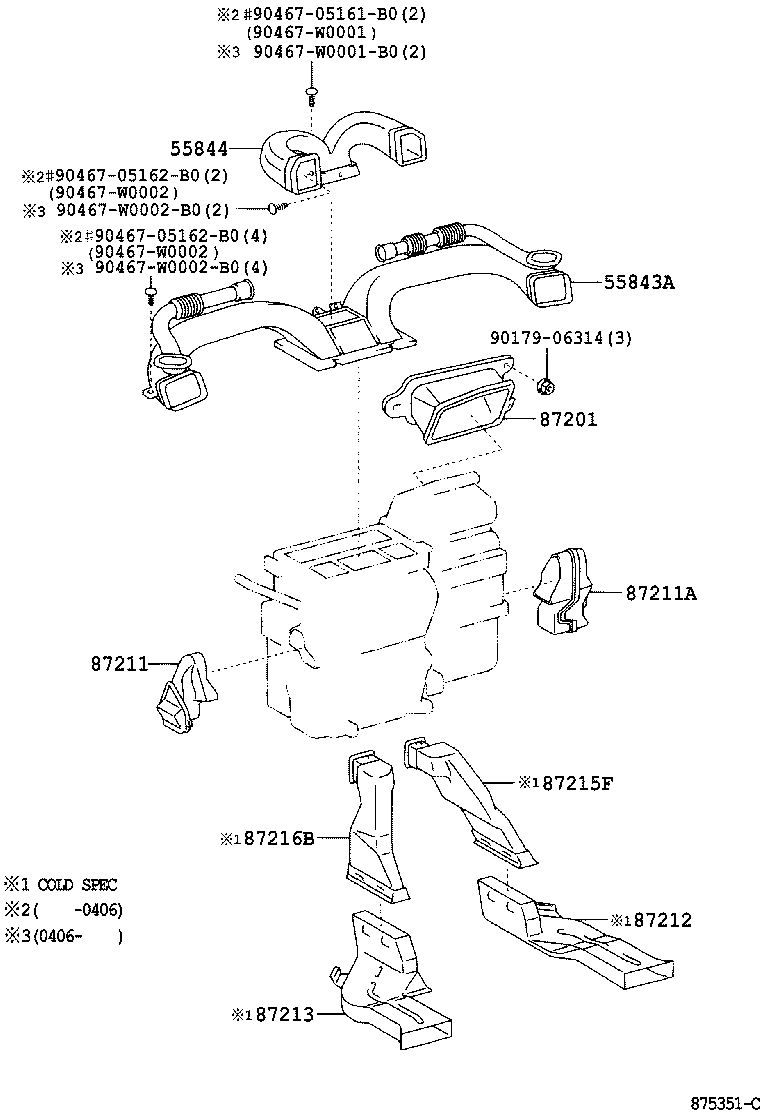

87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4

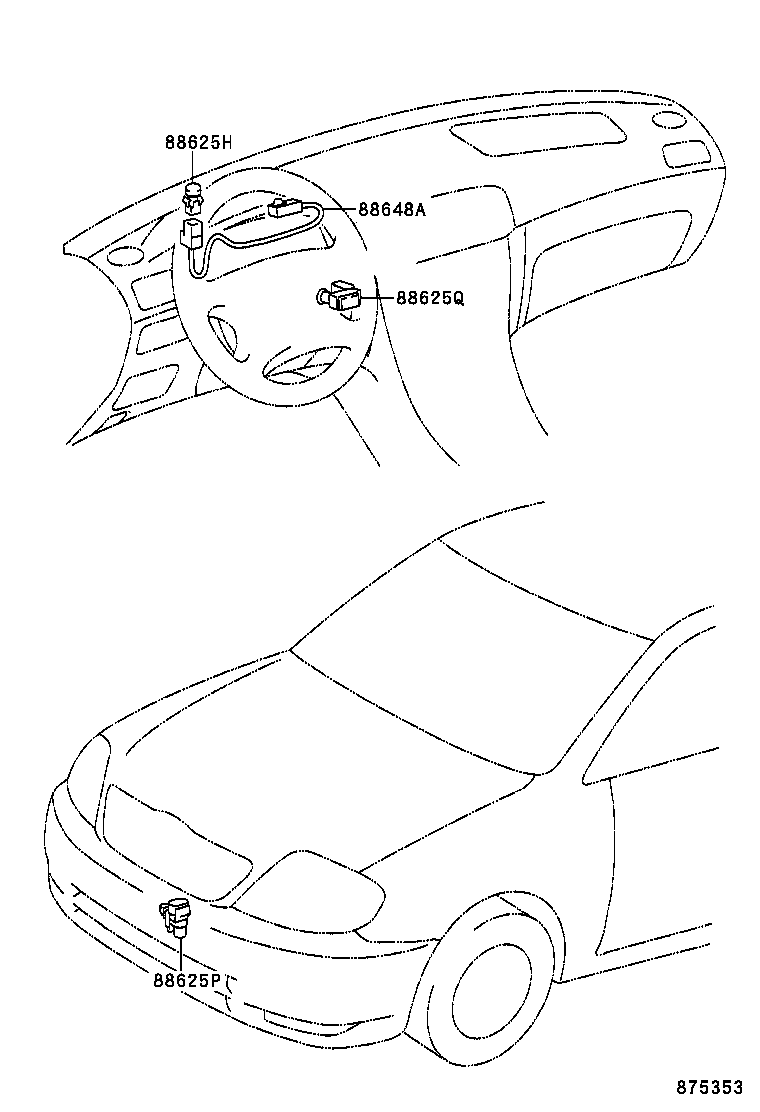

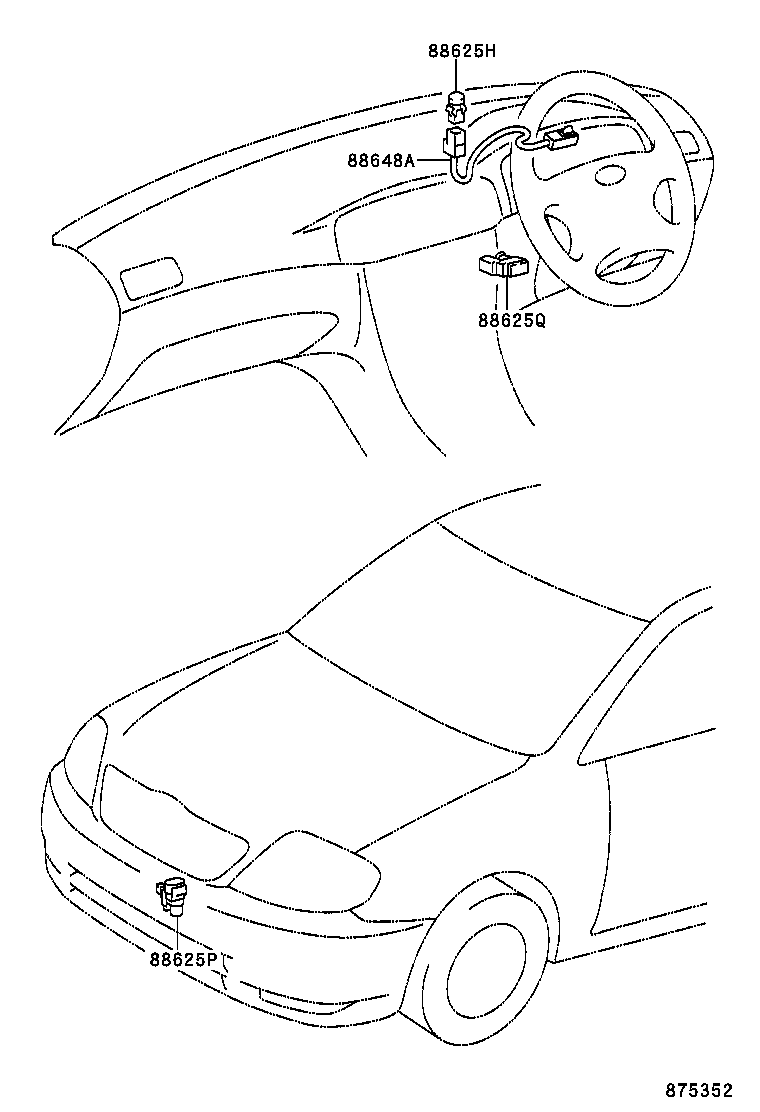

88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88648A Wiring, Cooler
88650B Amplifier Assy, Airconditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
