Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

26 part groups · 8 illustrations

Illustrations

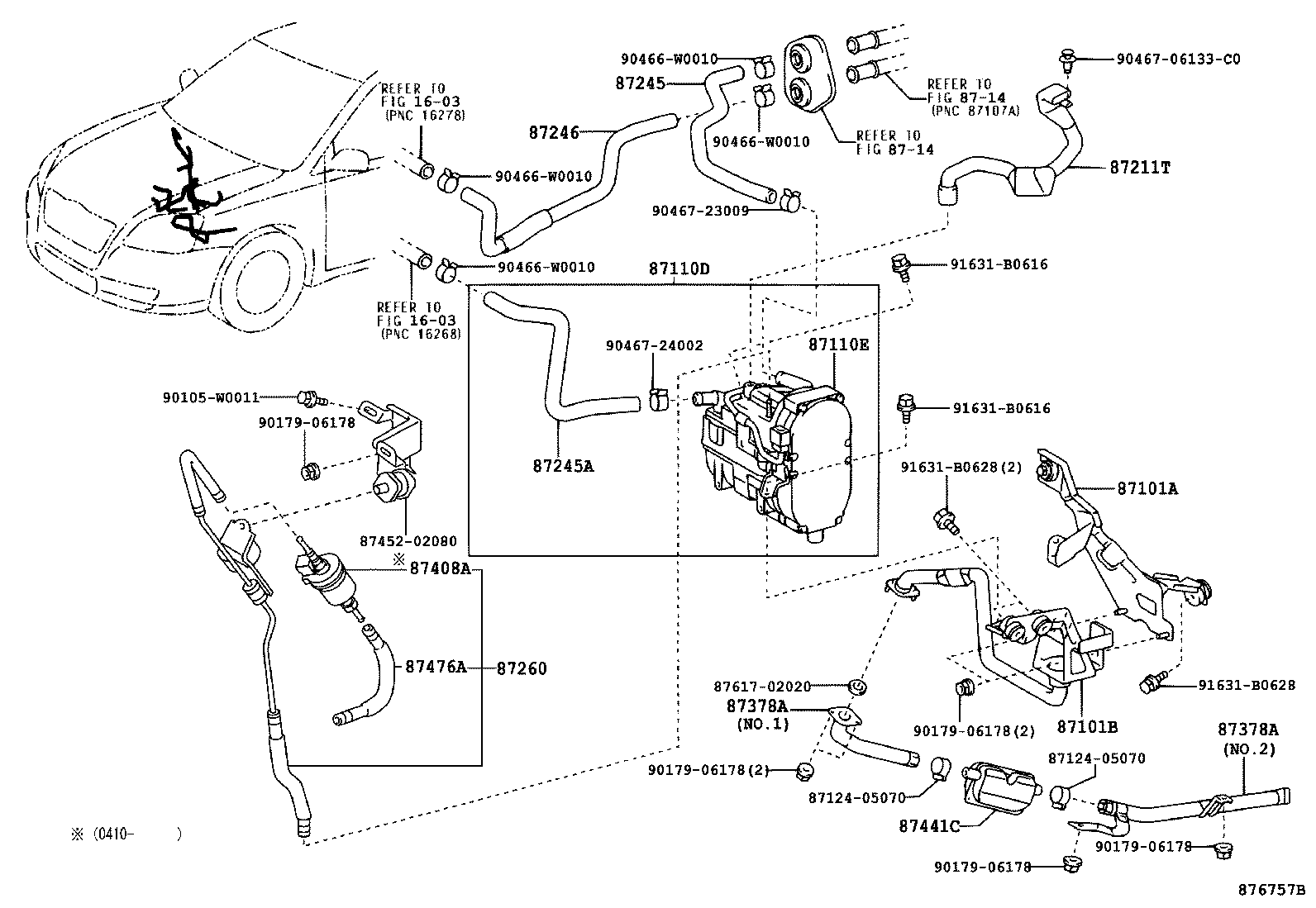

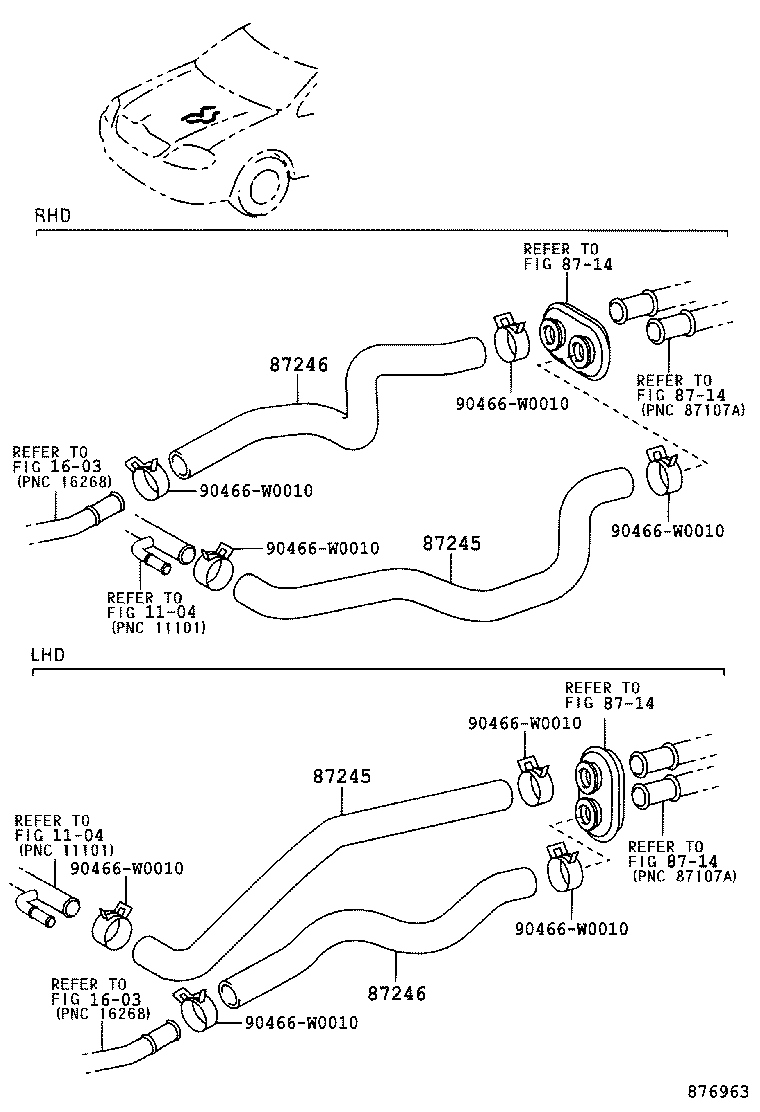

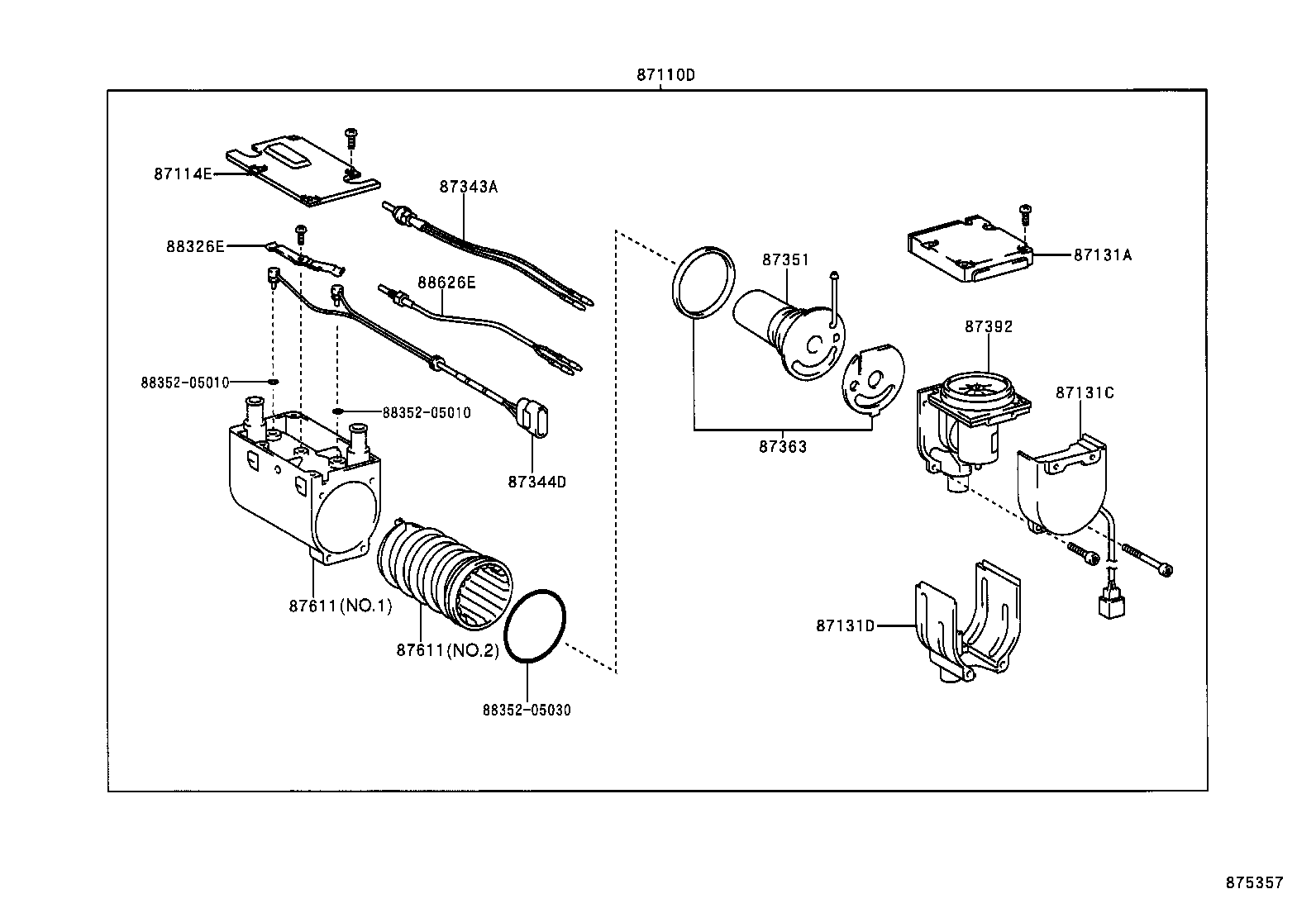

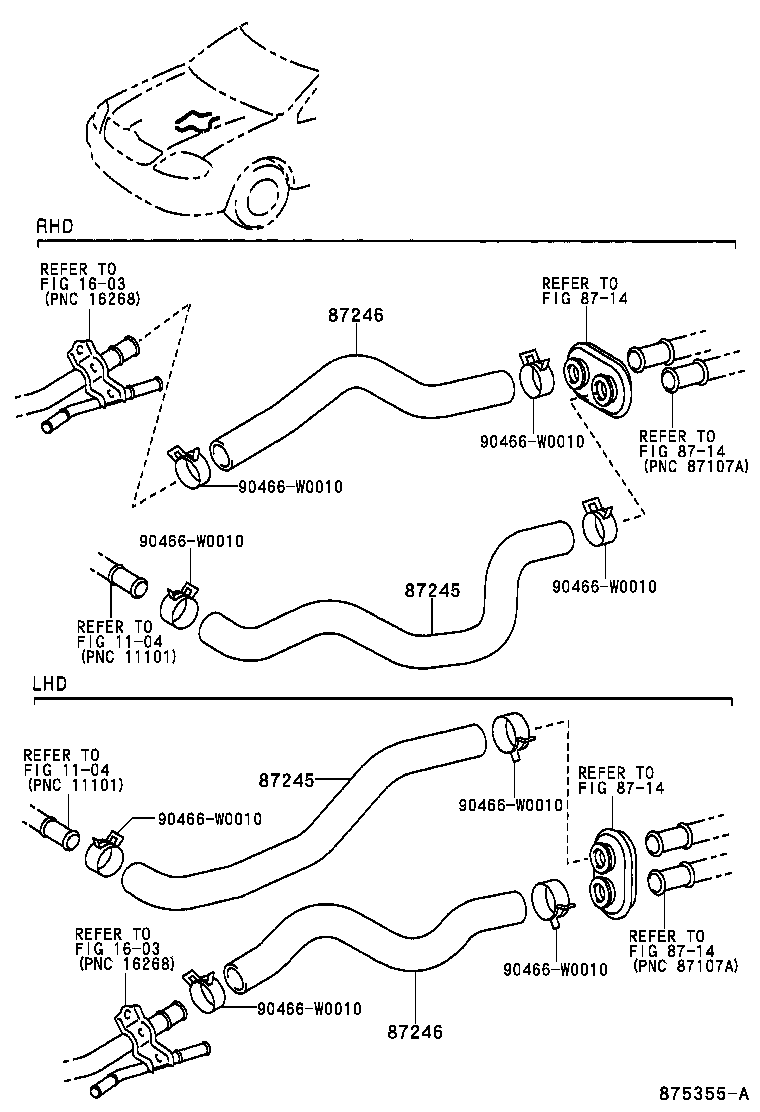

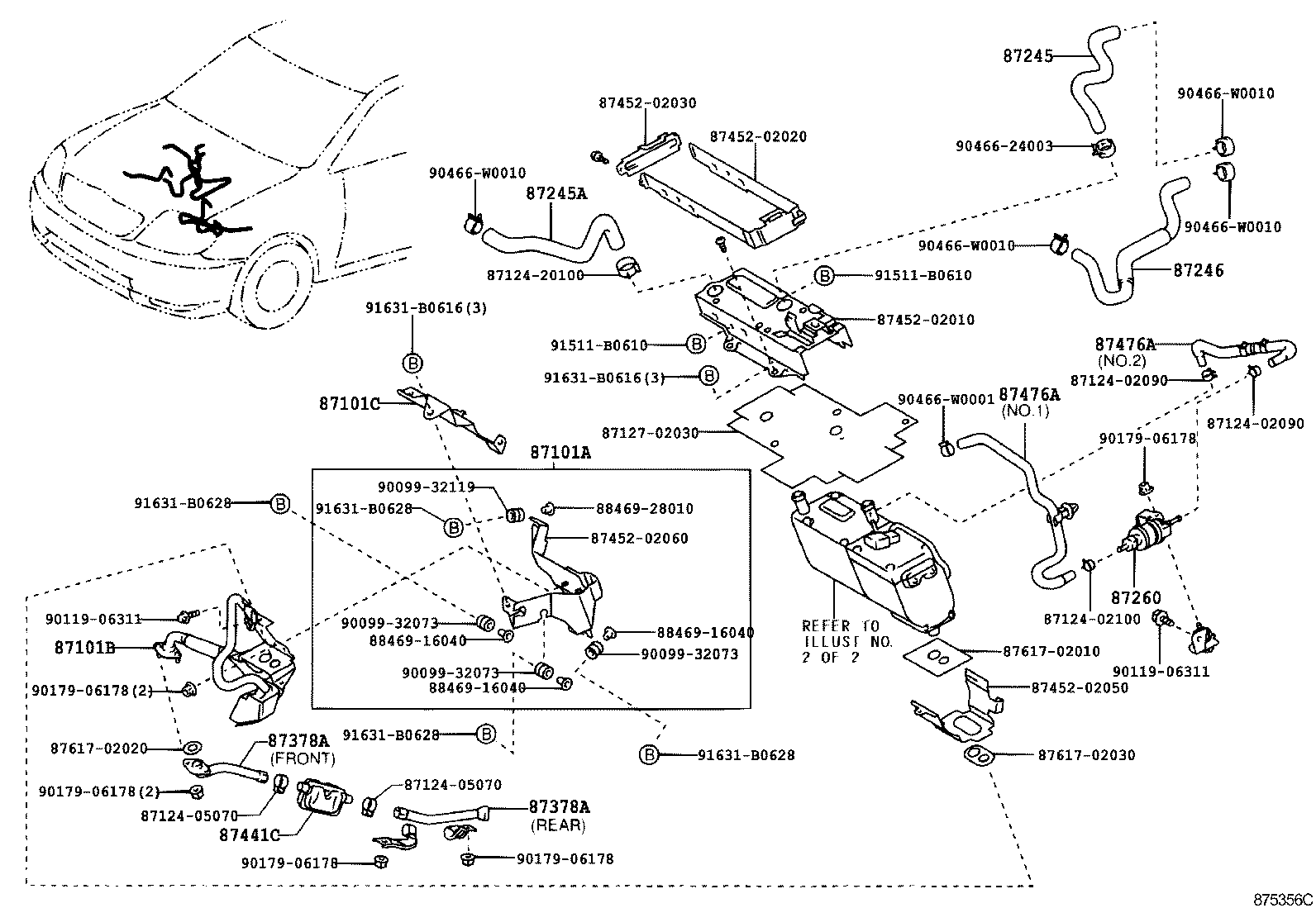

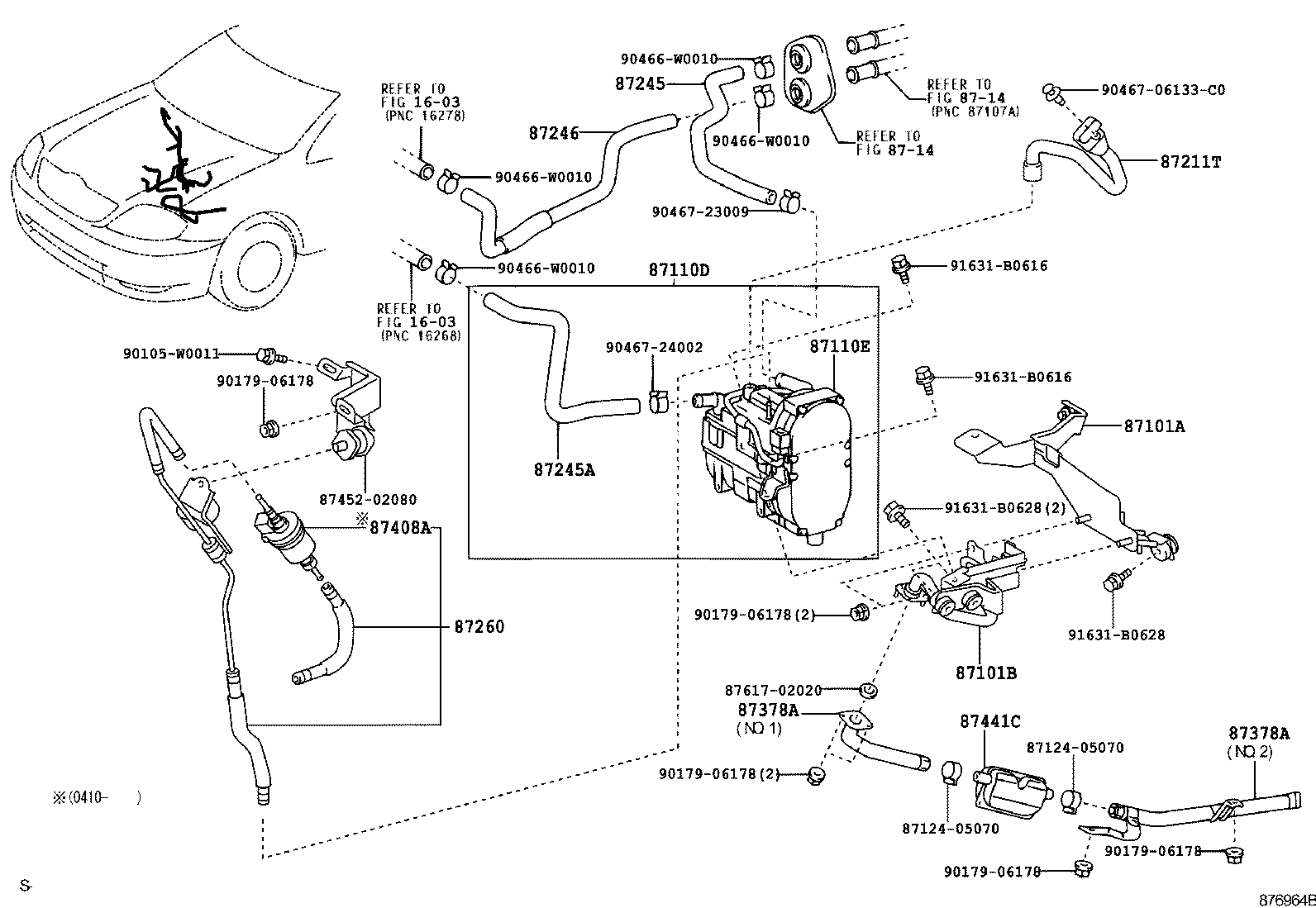

Figure 875354A 875354A 2002-01 → 2004-06 Figure 875354A 875354A 2004-06 → — Figure 875355A 875355A 2002-01 → — Figure 875356C 875356C 2002-01 → 2004-06 Figure 875357 875357 2002-01 → 2004-06 Figure 876757B 876757B 2004-06 → — Figure 876963 876963 2004-08 → — Figure 876964B 876964B 2004-08 → —

Part groups

PNCDescription
87101A Bracket Sub-assy, Heater NO.1
87101B Bracket Sub-assy, Heater NO.2
87101C Bracket Sub-assy, Heater NO.3
87110D Heater Assy
87110E Heater Assy
87114E Cover, Heater, NO.1
87131A Housing, Heater Blower
87131C Housing, Heater Blower, NO.2
87131D Housing, Heater Blower, NO.3
87211T Duct, Air
87245 Hose, Heater Water, Inlet
87245A Hose, Heater Water, Inlet A
87246 Hose, Heater Water, Outlet
87260 Pump Assy, Heater
87343A Plug, Combustion Heater Glow
87344D Wiring, Heater
87351 Chamber, Fuel Regulator Body
87363 Gasket, Fuel Regulator Cover
87378A Pipe, Exhaust
87392 Housing, Motor
87408A Pump Sub-assy, Fuel
87441C Muffler
87476A Hose, Heater Fuel, NO.1
87611 Case, Heat Exchanger
88326E Plate, Cover
88626E Sensor, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
