Toyota Corolla Sed/WG (UKP)

2002-01 → 2007-02 · chassis CDE120,NDE120,ZZE12# · catalogue 156550 · Europe

Discontinued model Data version 2007-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

22 part groups · 15 illustrations

Illustrations

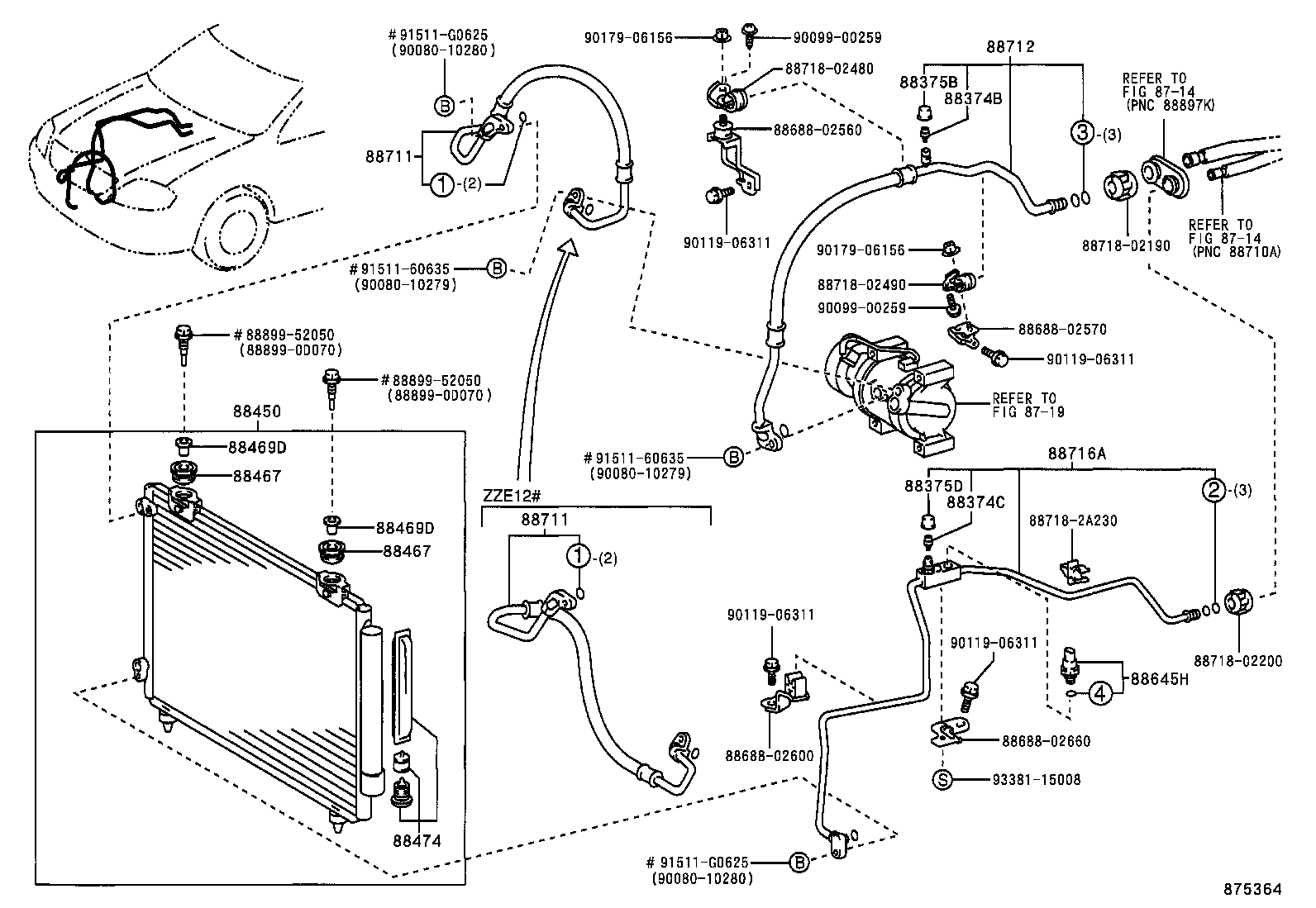

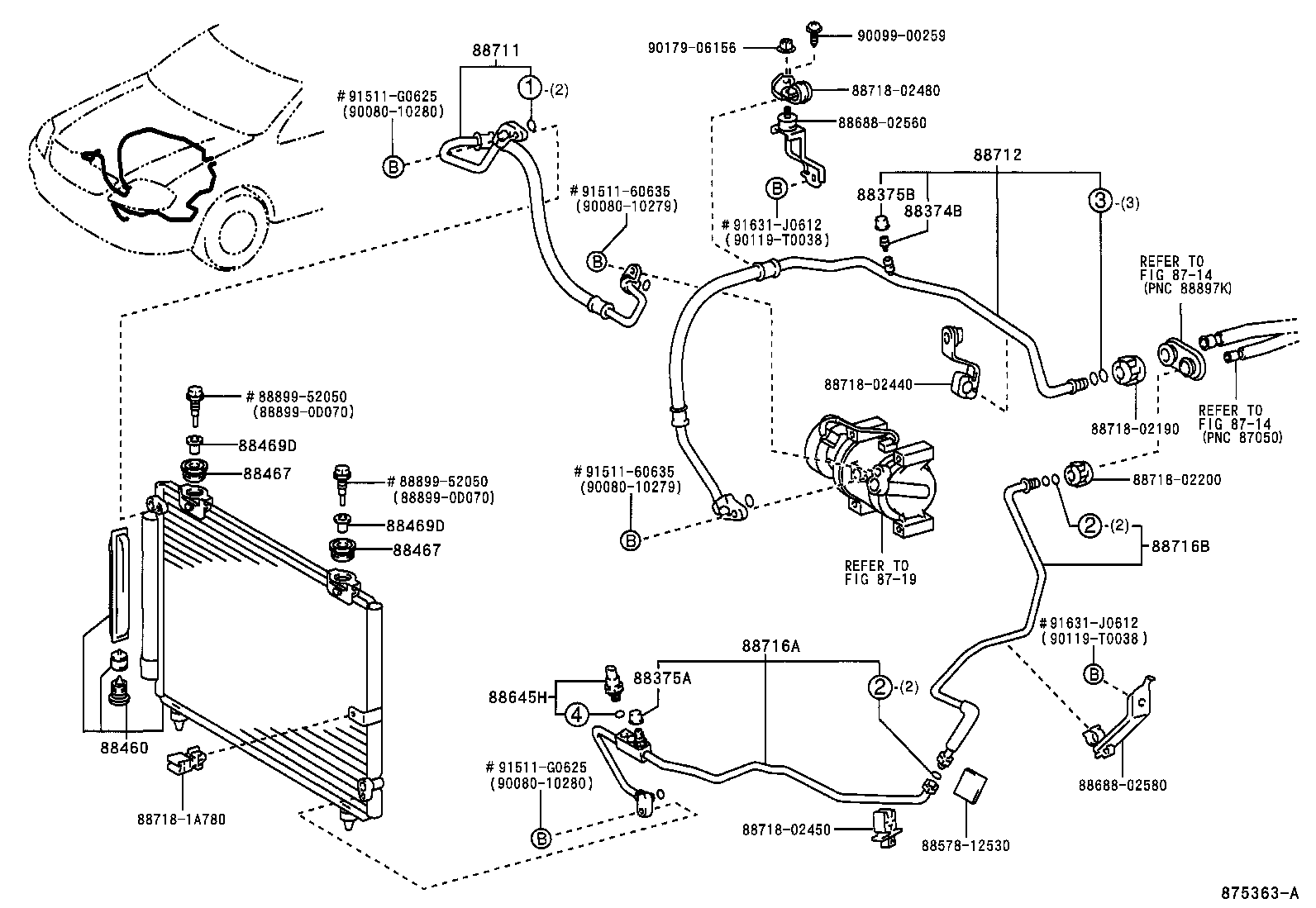

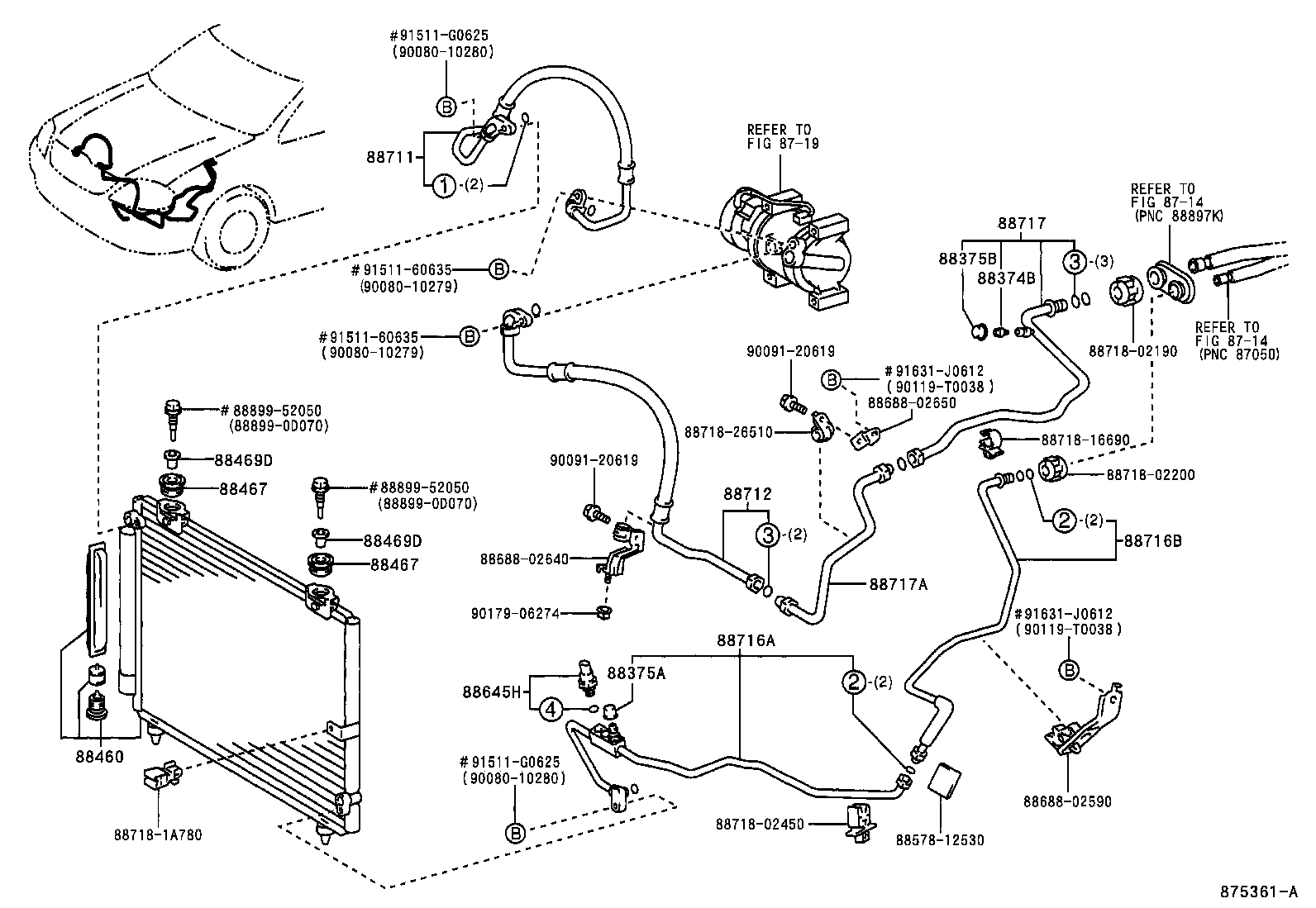

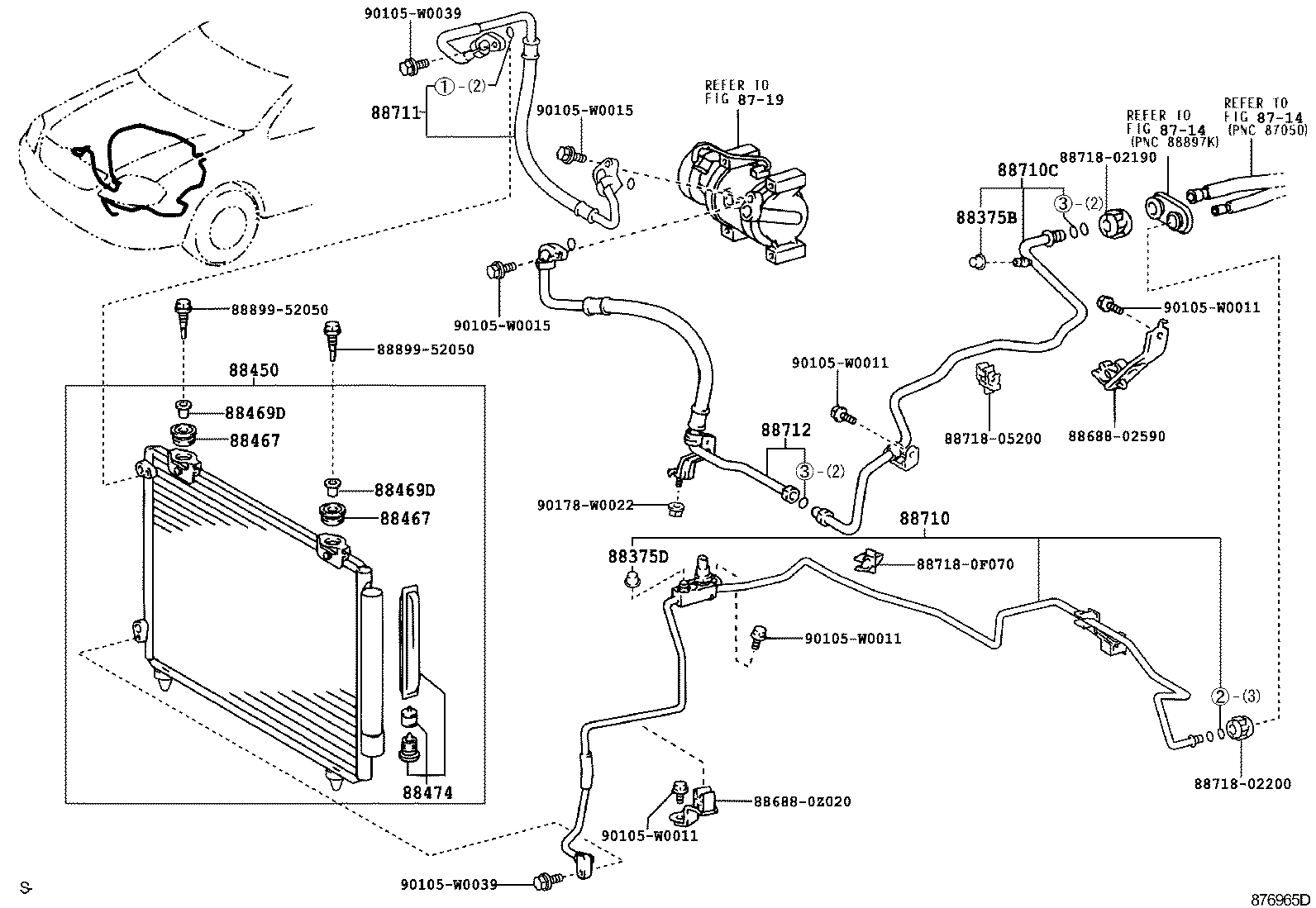

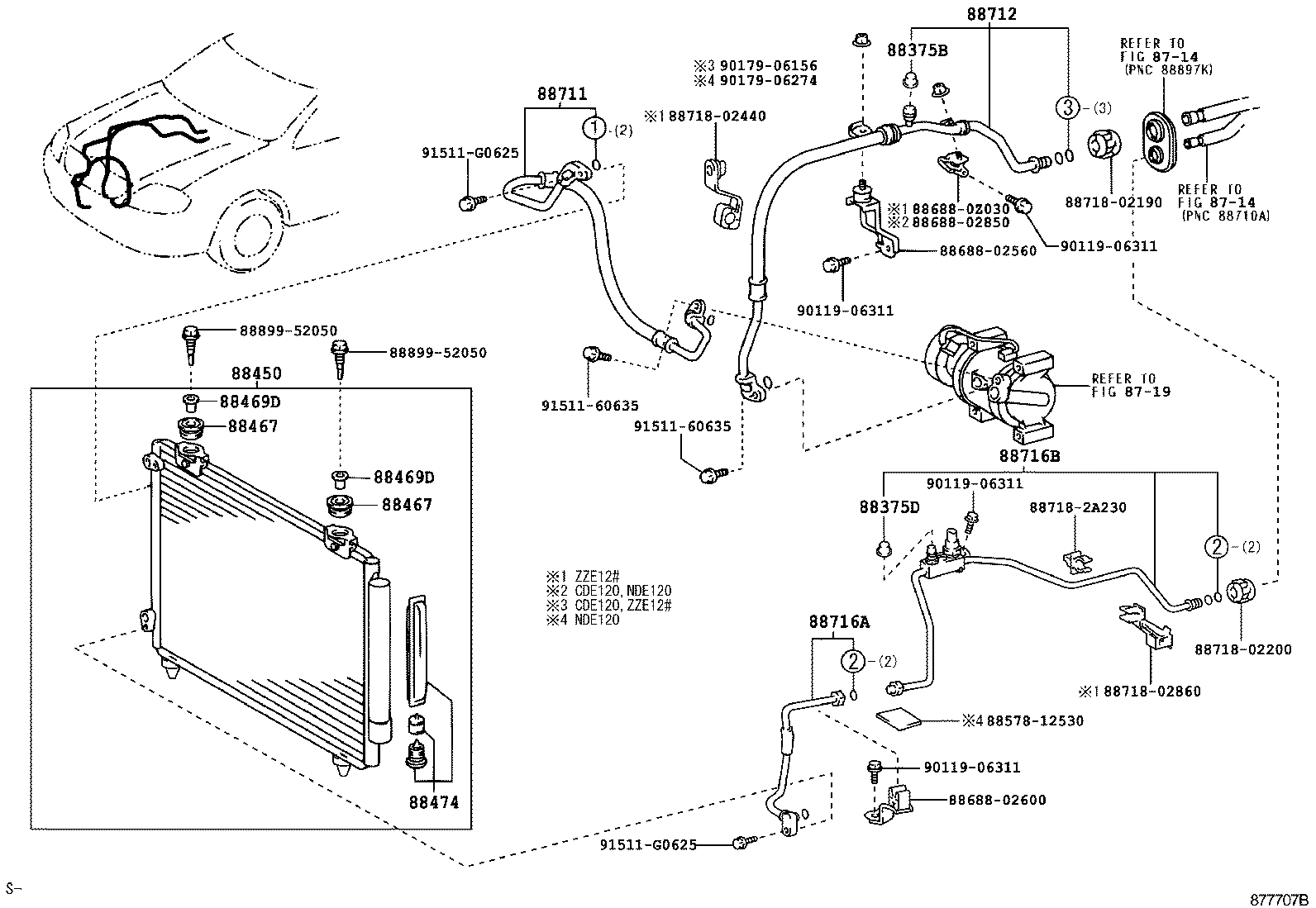

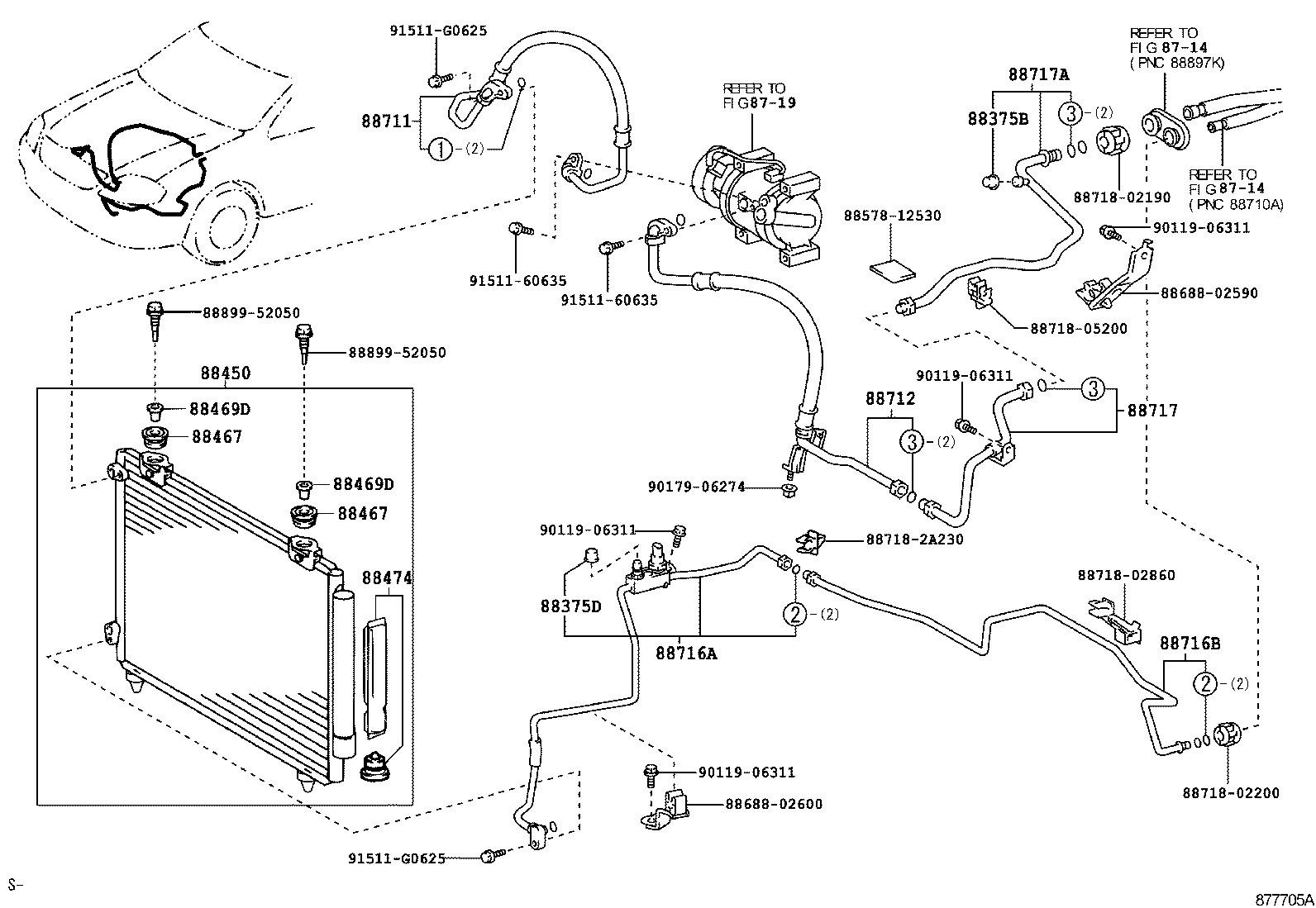

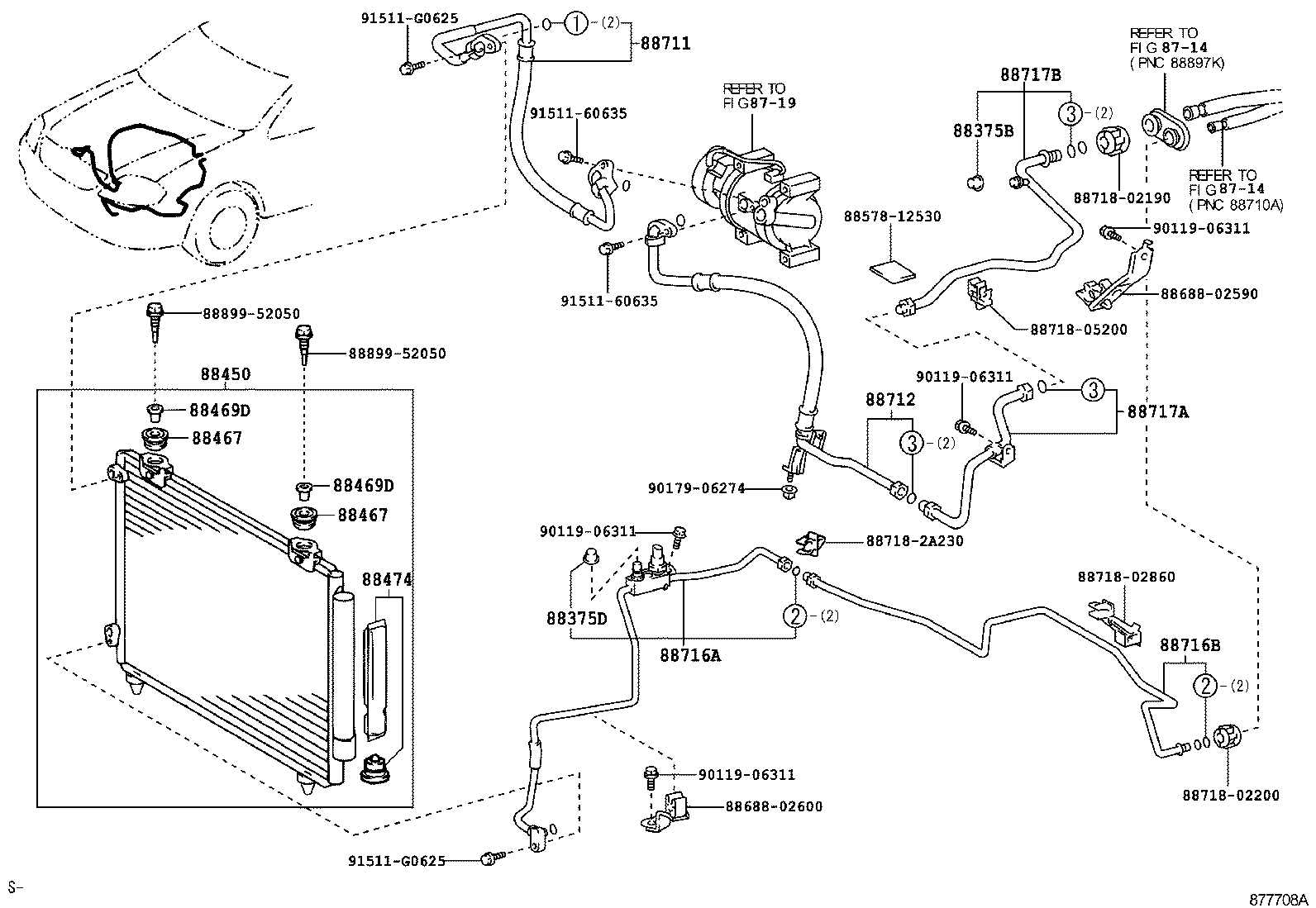

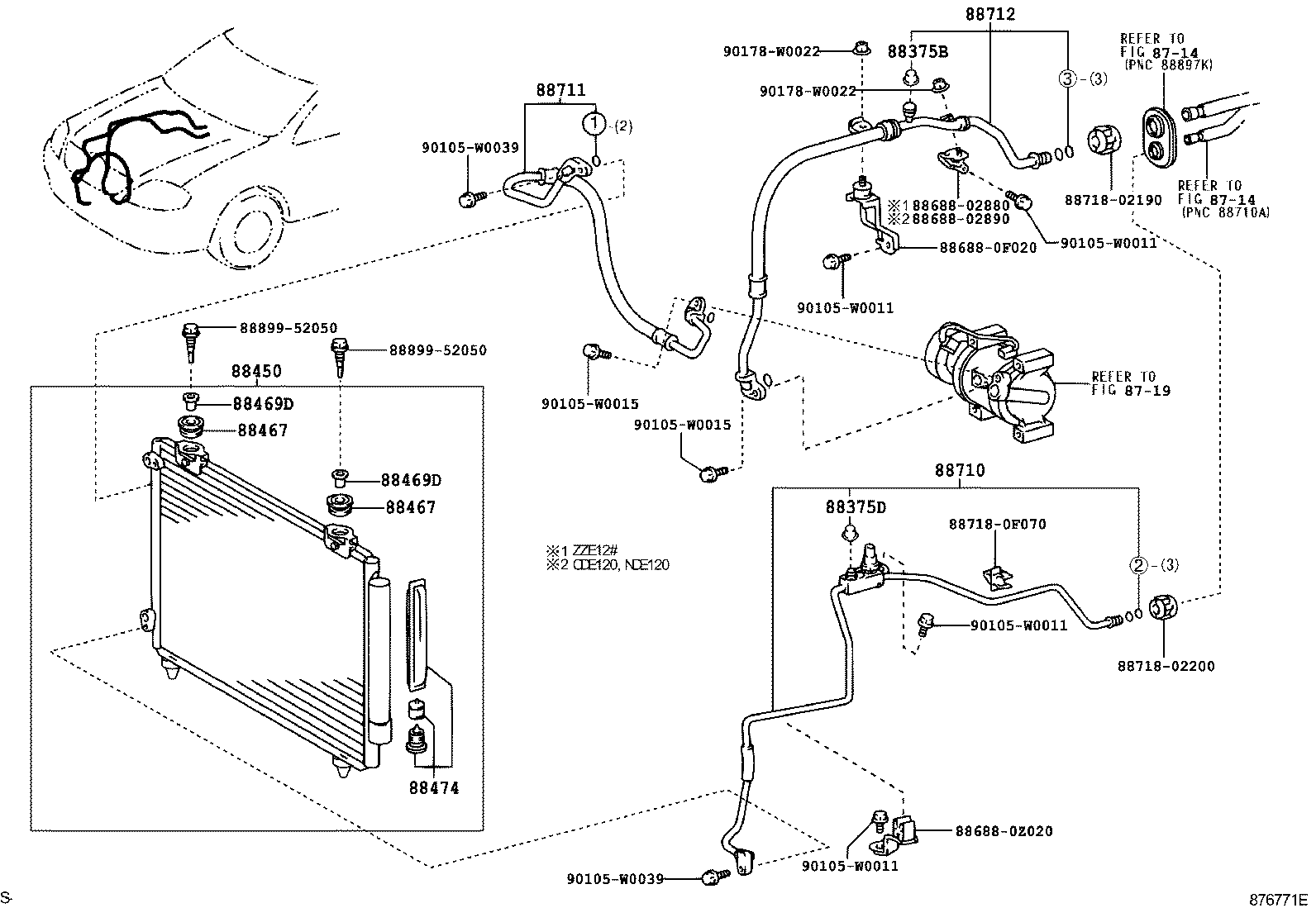

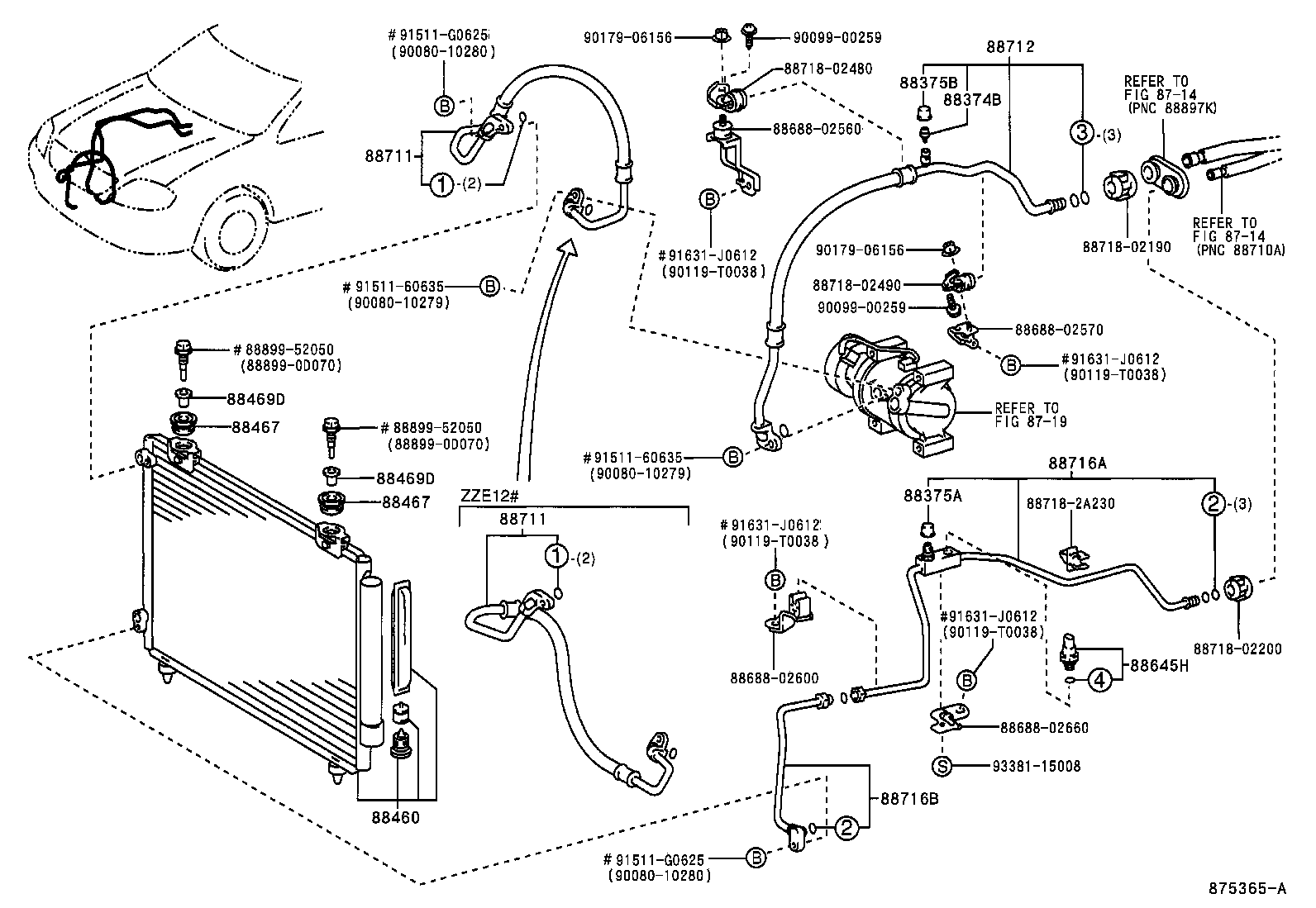

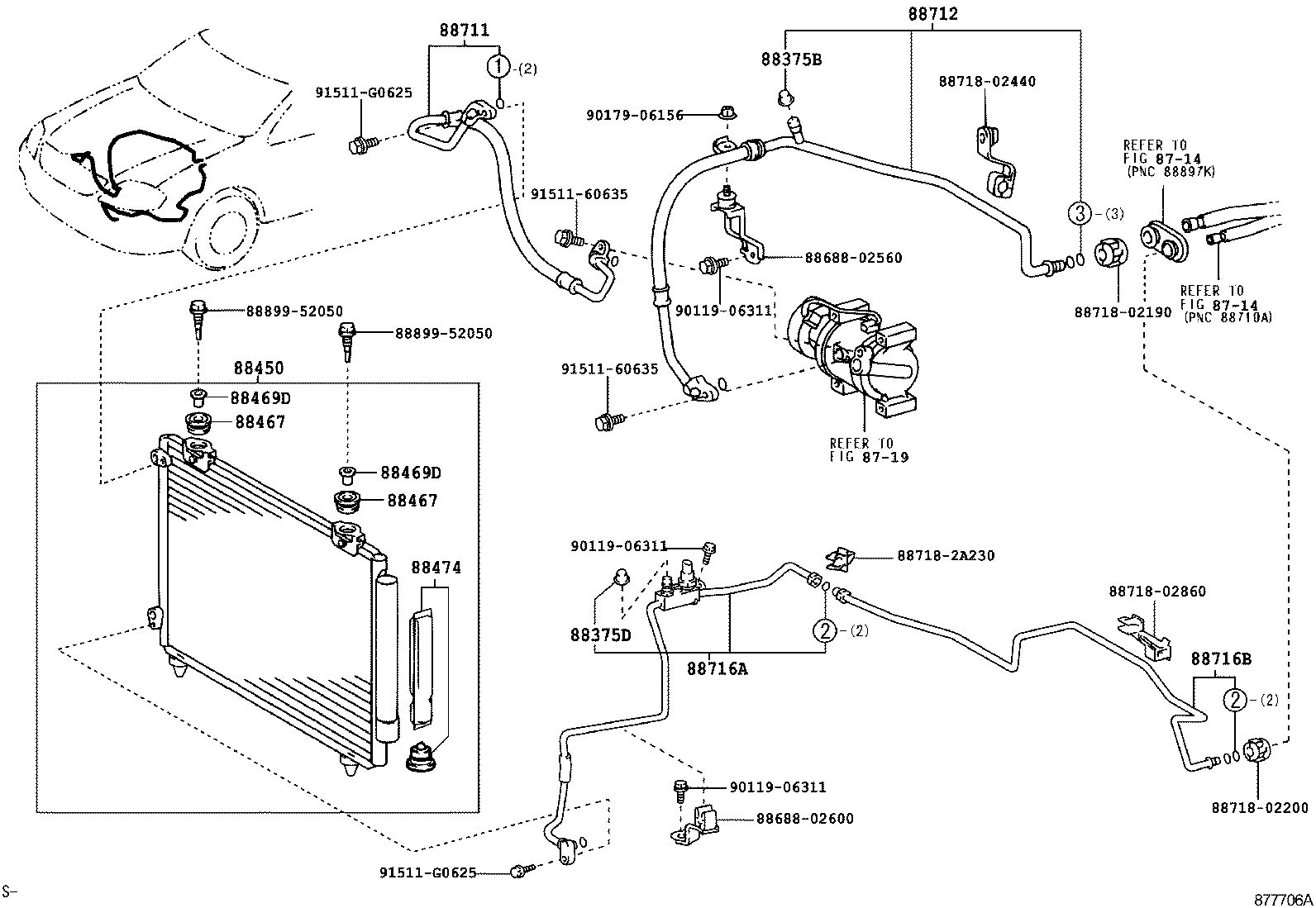

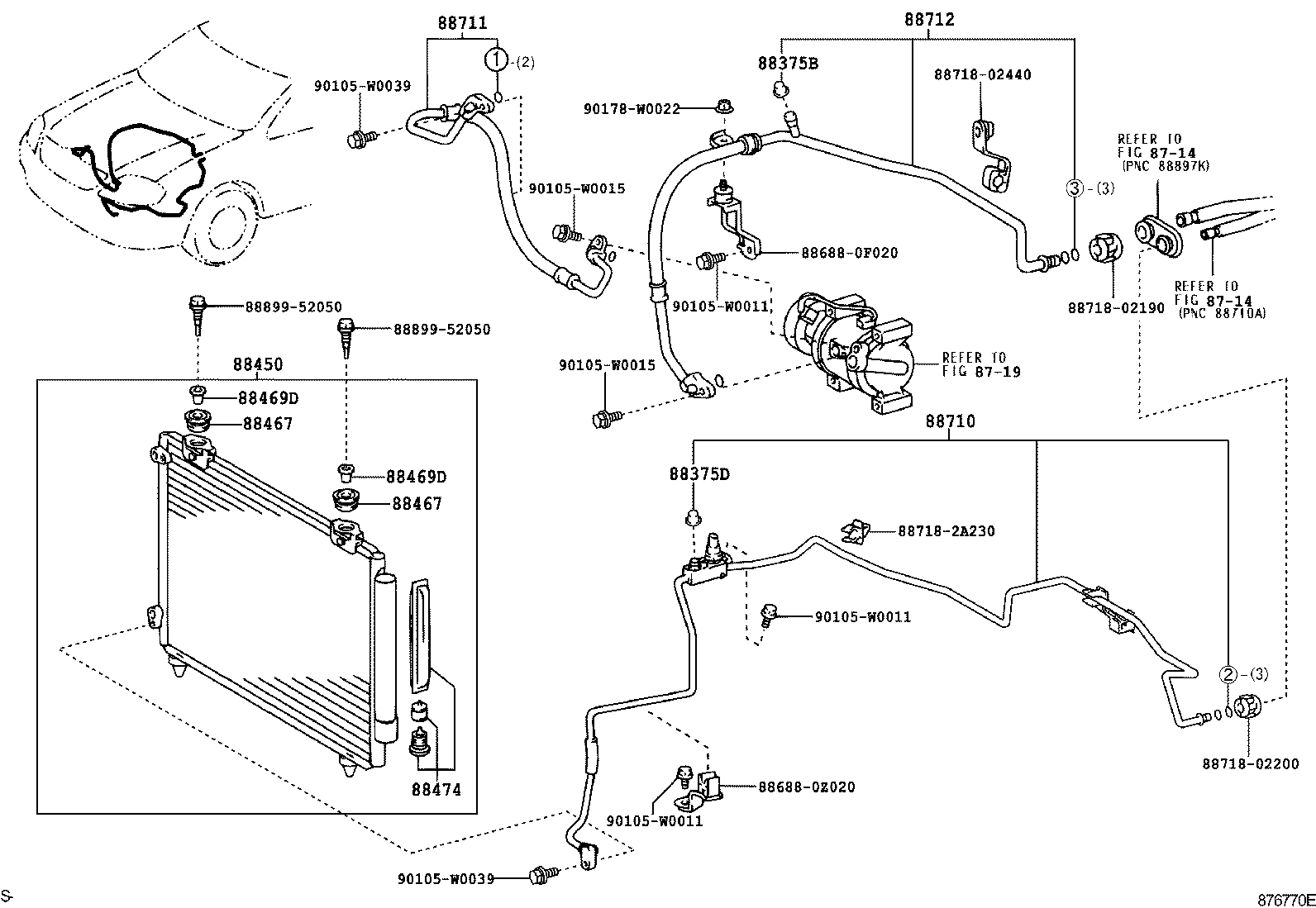

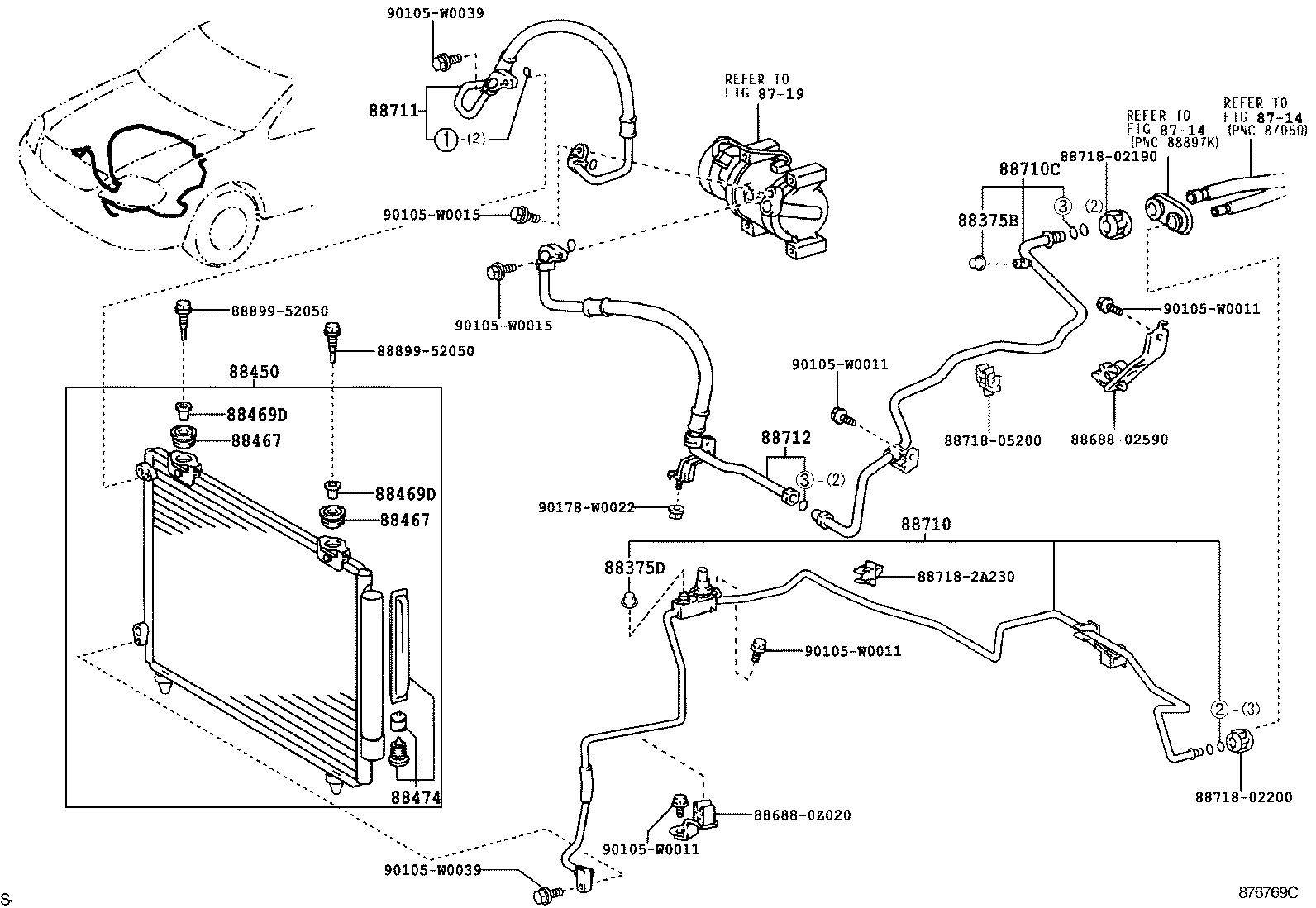

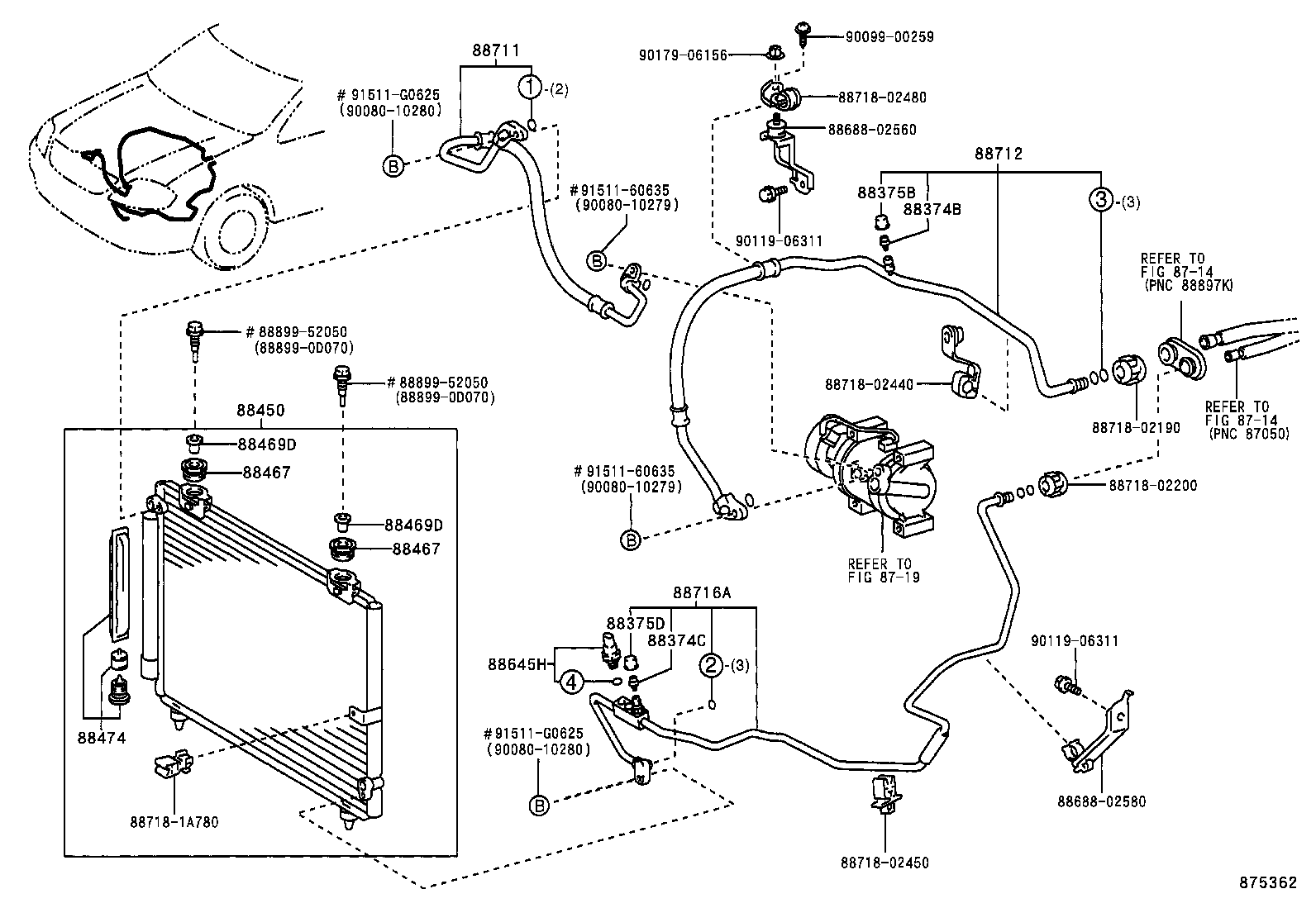

Figure 875360 875360 2002-01 → 2004-06 Figure 875361A 875361A 2002-01 → 2004-06 Figure 875362 875362 2002-01 → 2004-06 Figure 875363A 875363A 2002-01 → 2004-06 Figure 875364 875364 2002-01 → 2004-06 Figure 875365A 875365A 2002-01 → 2004-06 Figure 876769C 876769C 2004-06 → — Figure 876770E 876770E 2004-06 → — Figure 876771E 876771E 2004-06 → — Figure 877705A 877705A 2004-06 → — Figure 877706A 877706A 2004-06 → — Figure 877707B 877707B 2004-06 → — Figure 876965D 876965D 2004-08 → — Figure 877708A 877708A 2004-08 → — Figure 874869 874869 2002-01 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88450 Condenser Assy, W/Receiver
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88469D Collar, Condenser Bracket, NO.1
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88710 Tube Assy, Air Conditioner
88710C Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88717 Pipe, Cooler Refrigerant Suction, NO.1
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
