Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07

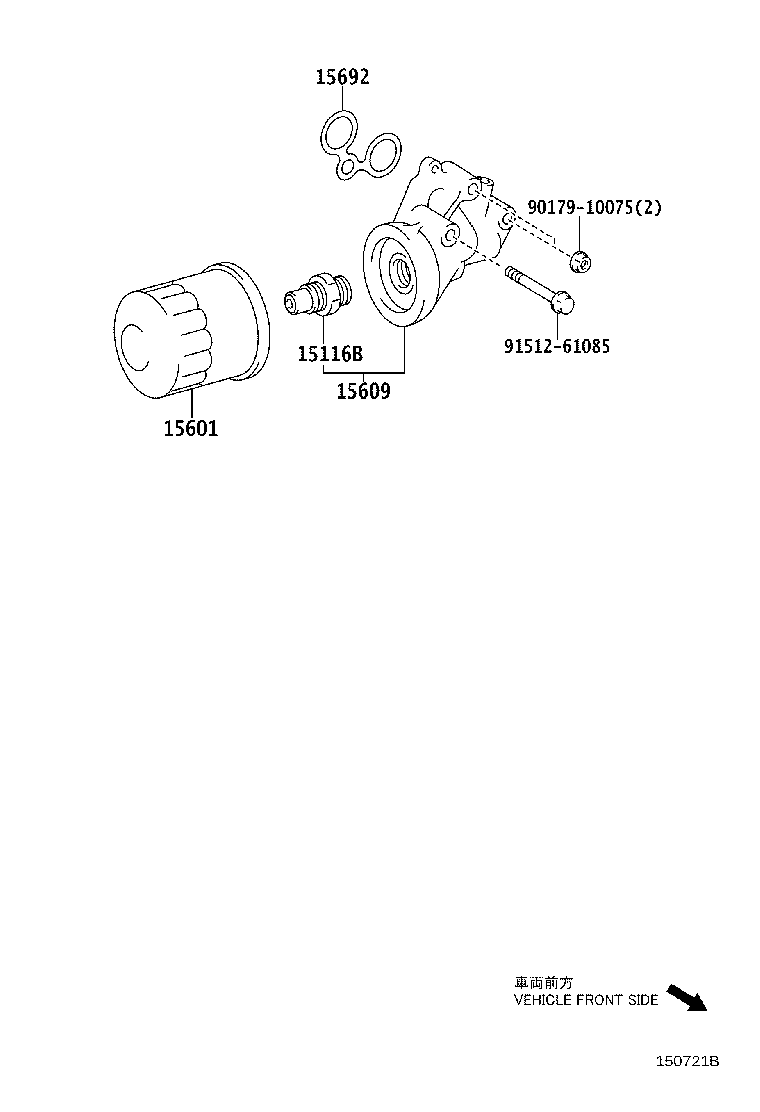

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15116B — Screw, Oil Cleaner Set | ||||
| 15116-54021 |
Screw, Oil Cleaner Set
2004-02 → 2005-08
ended
|
1CDFTV CUR10 | — | |
| 15601 — Filter Sub-assy, Oil | ||||
| 90915-10003 |
Filter Sub-assy, Oil
2004-02 → 2007-05
ended
|
1ZZFE,3ZZFE ZNR1# | — | |
| 90915-30003 |
Filter Sub-assy, Oil
2004-02 → 2005-08
ended
|
1CDFTV CUR10 | — | |
| 90915-10003 note |
Filter Sub-assy, Oil
2007-05 → —
|
1ZZFE,3ZZFE ZNR1# | — | |
| 90915-CA003 note |
Filter Sub-assy, Oil
2008-03 → —
|
1ZZFE,3ZZFE ZNR1# | — | |
| 15609 — Bracket Sub-assy, Oil Filter | ||||
| 15609-27010 |
Bracket Sub-assy, Oil Filter
2004-02 → 2005-08
ended
|
1CDFTV CUR10 | — | |
| 15692 — Gasket, Oil Filter Bracket | ||||
| 15692-26010 |
Gasket, Oil Filter Bracket
2005-08 → 2007-05
ended
|
2AD# AUR10 | — | |
| 15692-27010 |
Gasket, Oil Filter Bracket
2004-02 → 2005-08
ended
|
1CDFTV CUR10 | — | |
| 15692-26010 |
Gasket, Oil Filter Bracket
2007-05 → —
|
2AD# AUR10 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
