Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

30 part groups · 3 illustrations

Illustrations

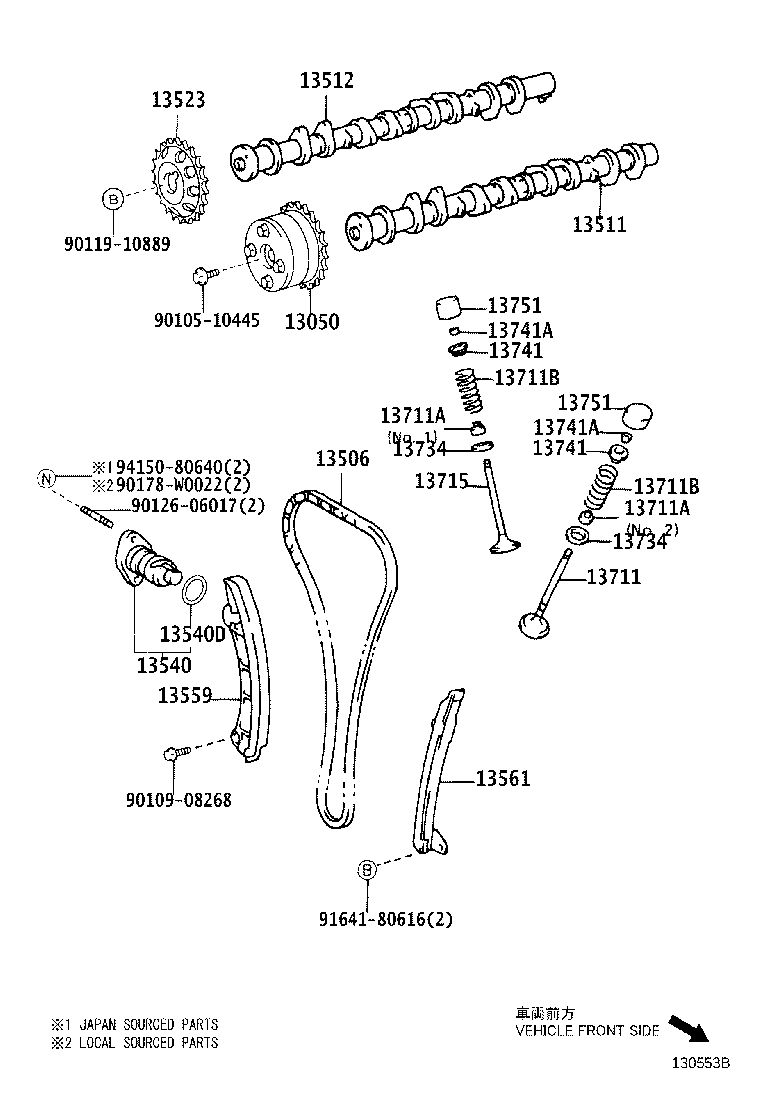

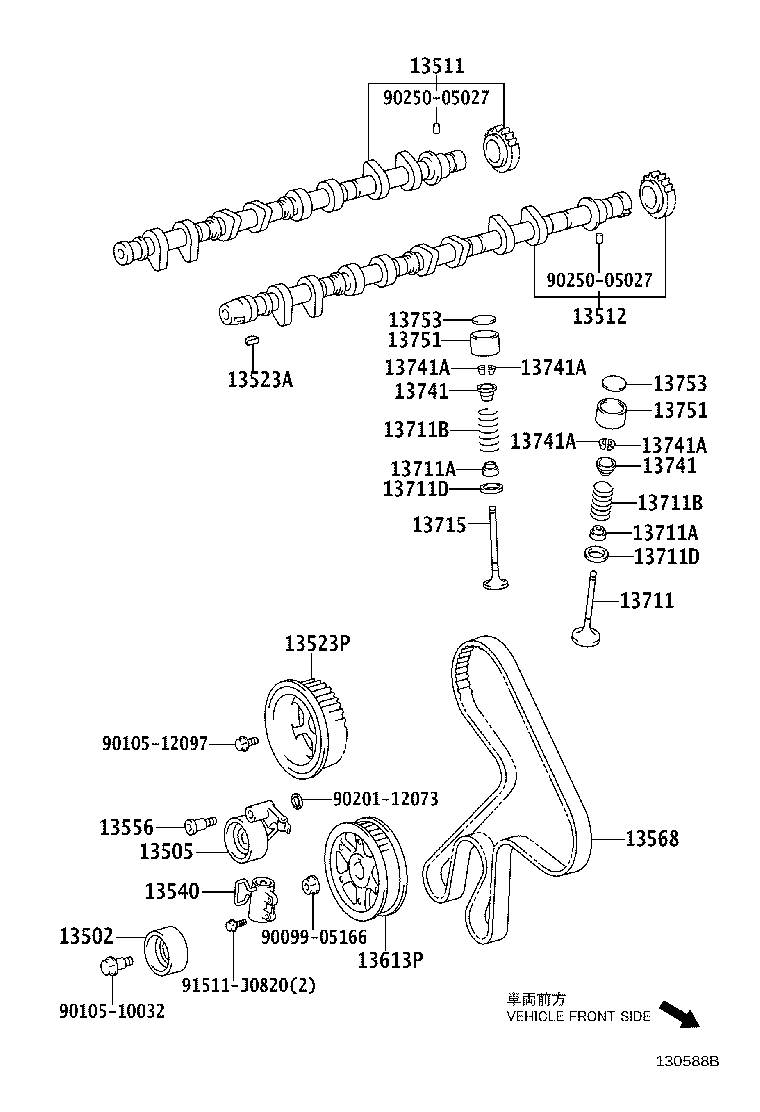

Figure 130901F 130901F 2005-08 → — Figure 130588B 130588B 2004-02 → — Figure 130553B 130553B 2004-02 → —

Part groups

PNCDescription
13050 Gear Assy, Camshaft Timing
13502 Idler Sub-assy, Timing Belt, NO.2
13505 Idler Sub-assy, Timing Belt, NO.1
13506 Chain Sub-assy
13511 Camshaft
13512 Camshaft, NO.2
13523 Gear OR Sprocket, Camshaft Timing
13523A Key, Woodruff(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13540 Tensioner Assy, Chain, NO.1
13540D Ring, O(FOR CHAIN TENSIONER)
13556 Shaft, Timing Belt Idler
13559 Slipper, Chain Tensioner
13561 Damper, Chain Vibration, NO.1
13568 Belt, Timing
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13711E Seal, Intake Valve Stem Oil
13715 Valve, Exhaust
13715A Seal, Exhaust Valve Stem Oil
13734 Seat, Valve Spring
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13750 Adjuster Assy, Valve Lash
13751 Lifter, Valve
13753 Shim, Valve Adjusting
13801 Arm Sub-assy, Valve Rocker, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
