Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

74 part groups · 11 illustrations

Illustrations

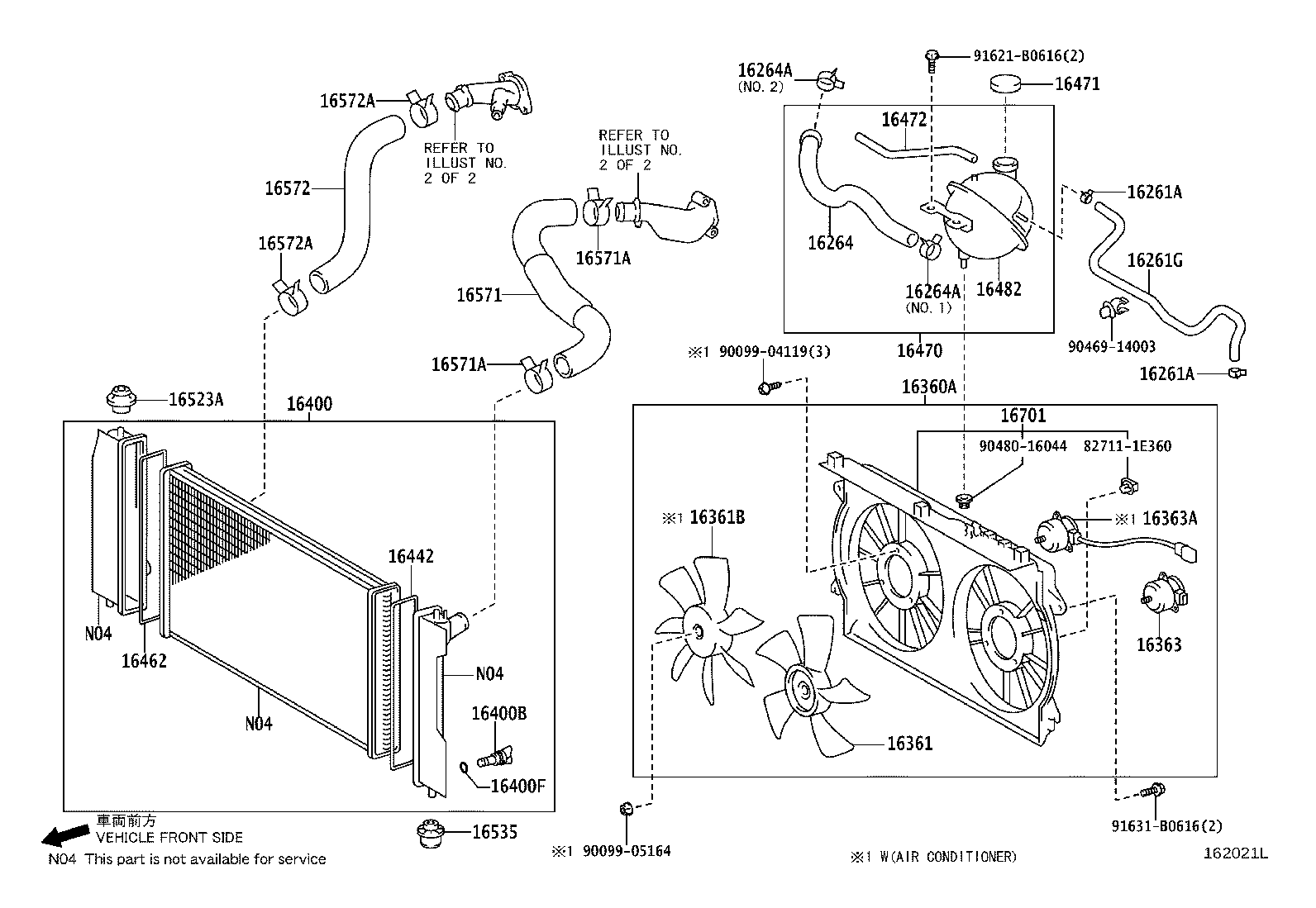

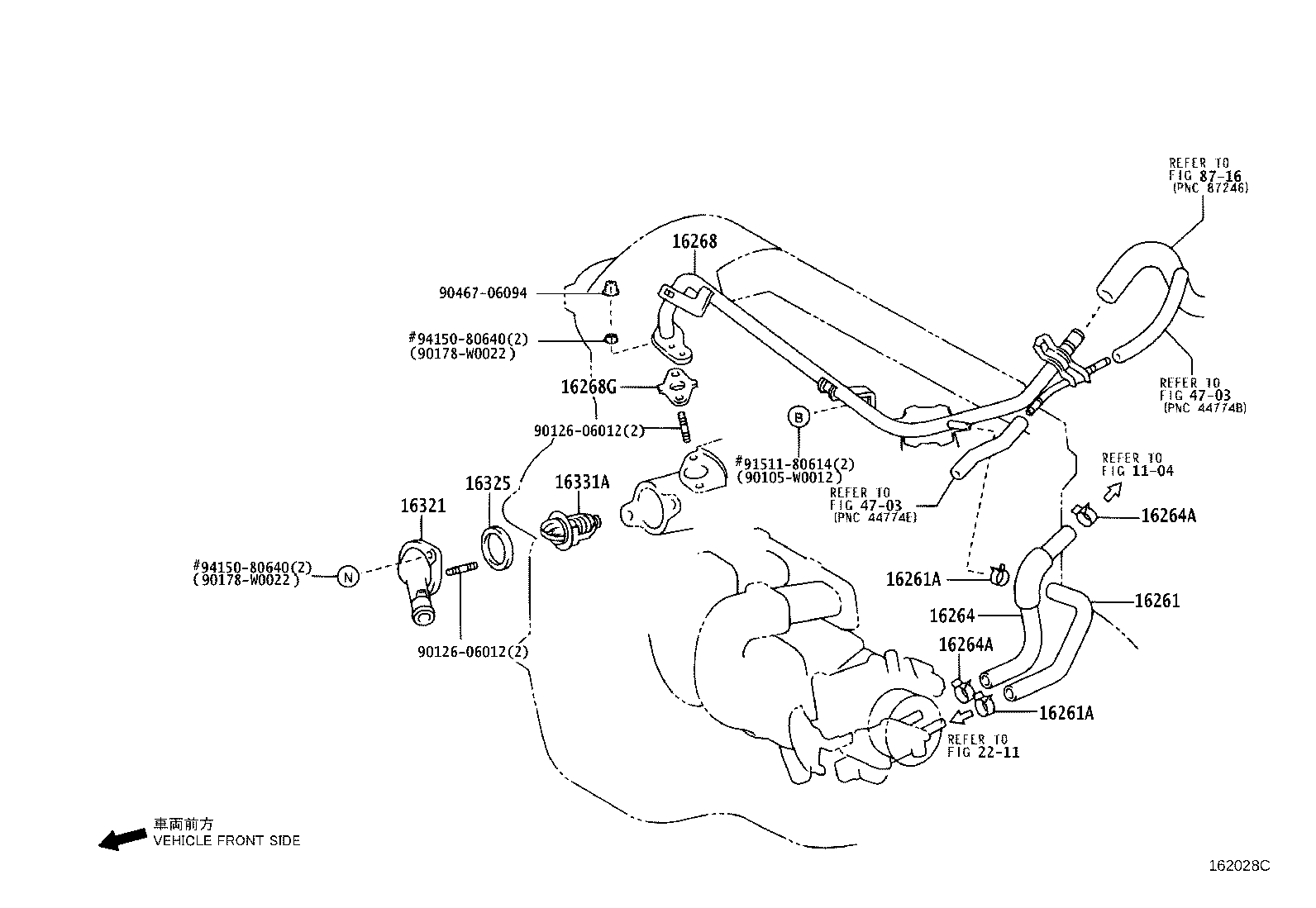

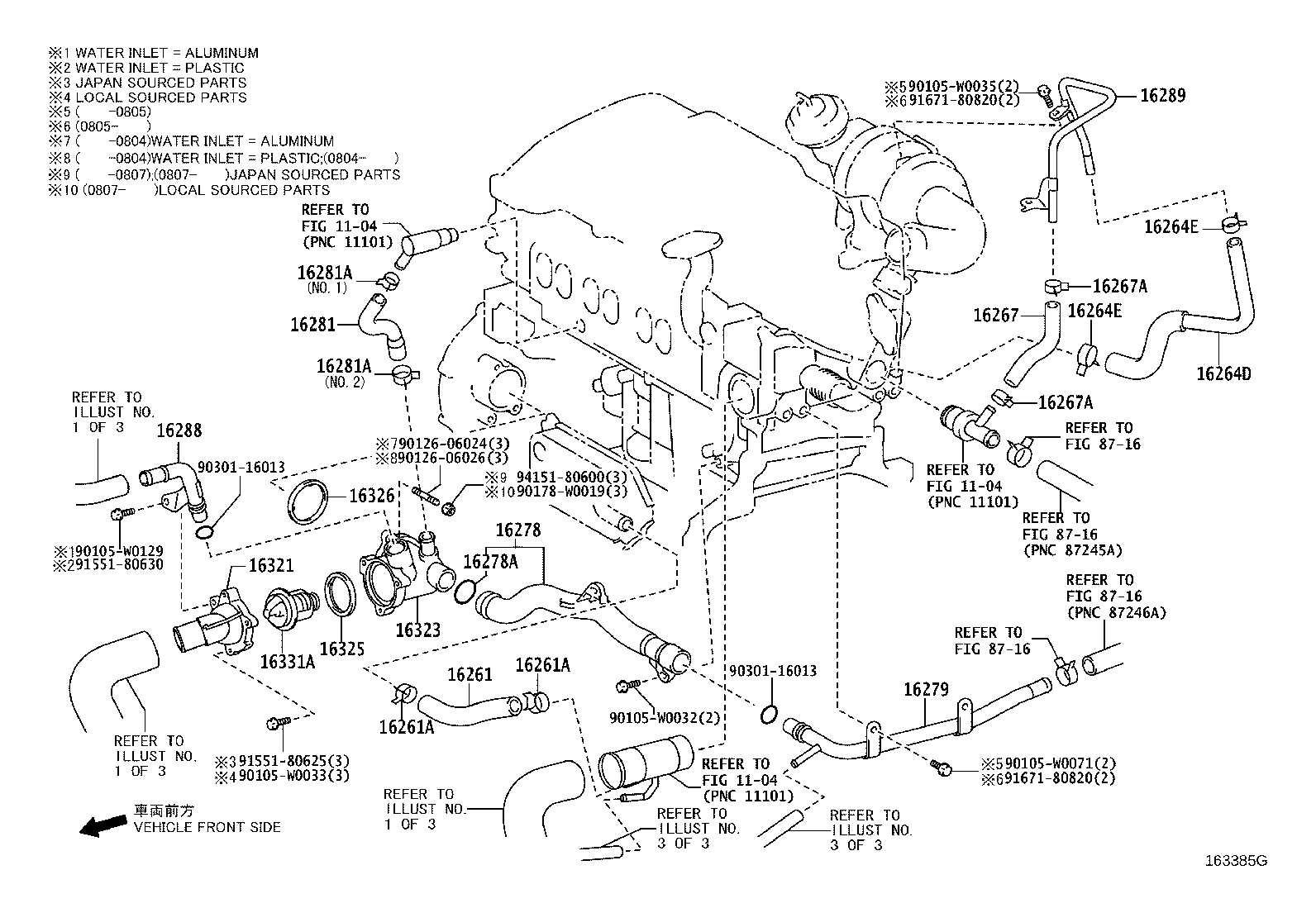

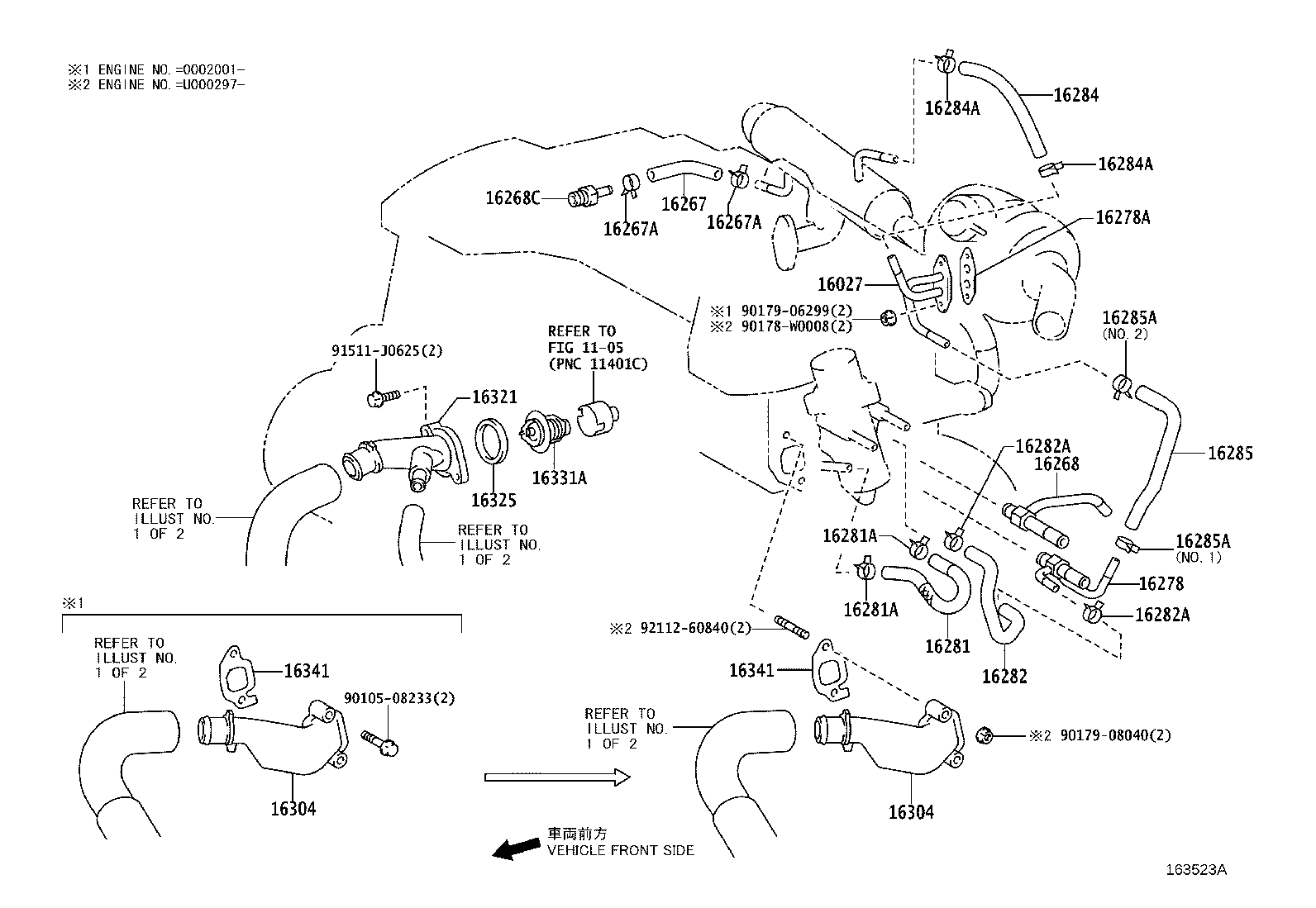

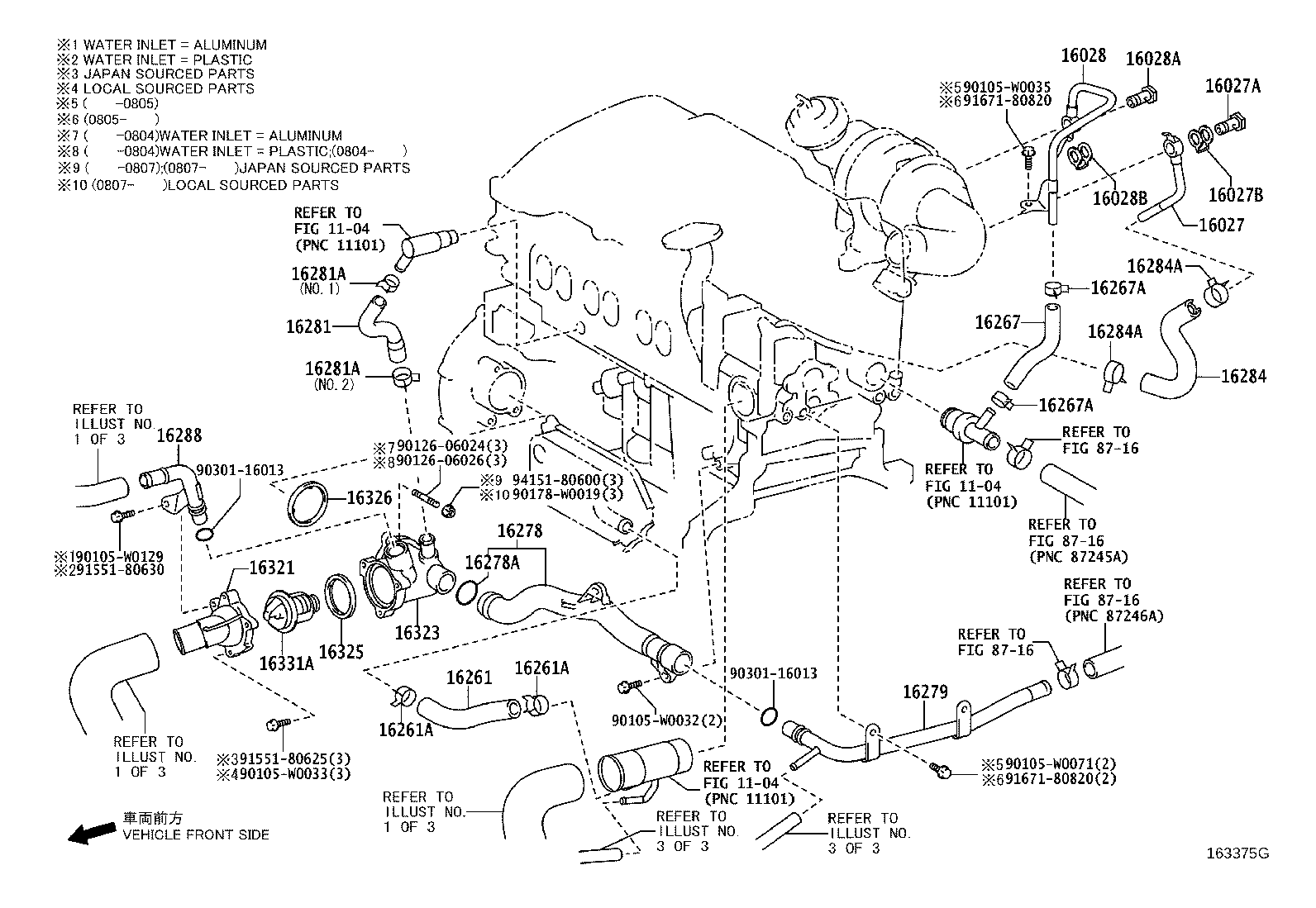

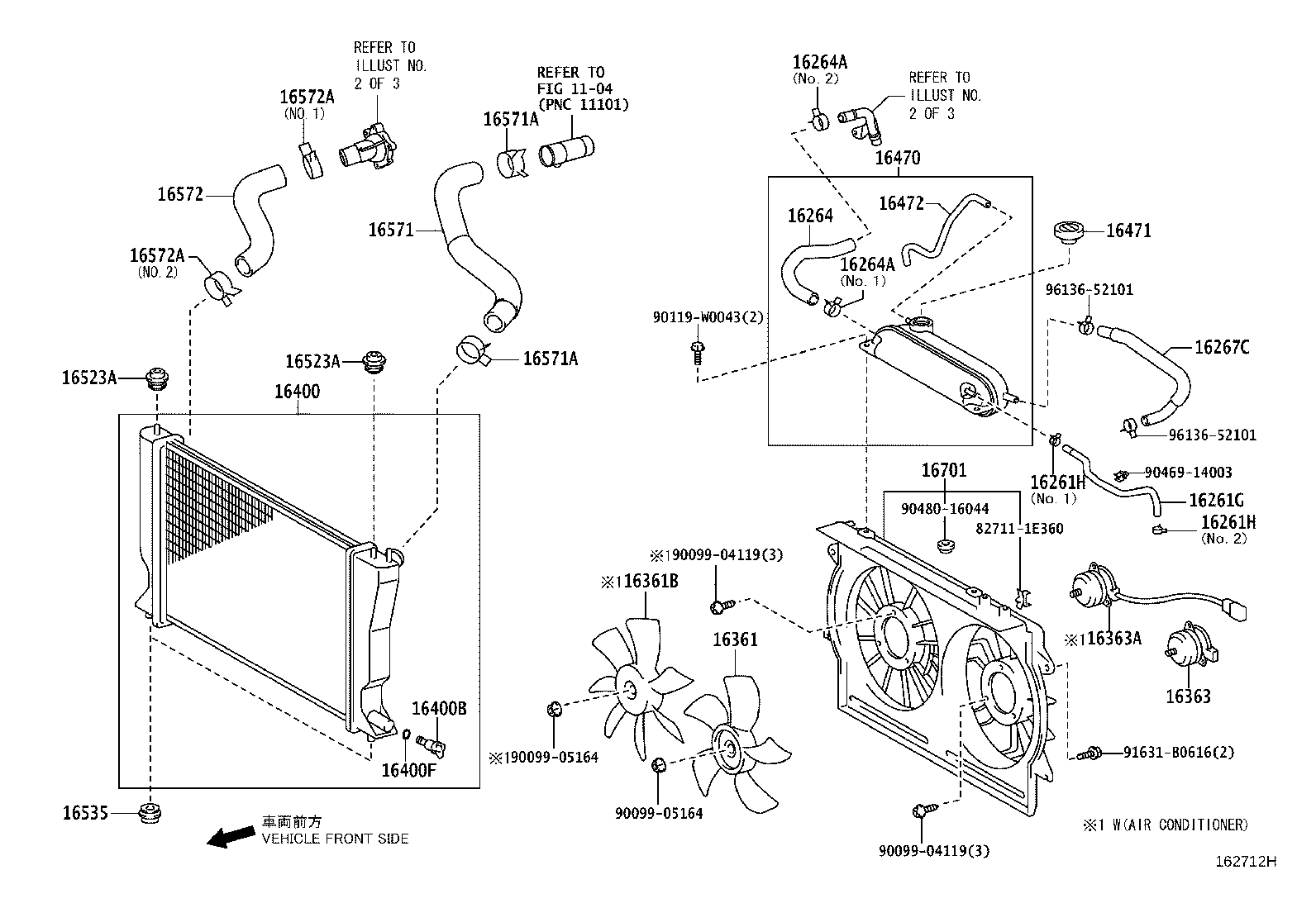

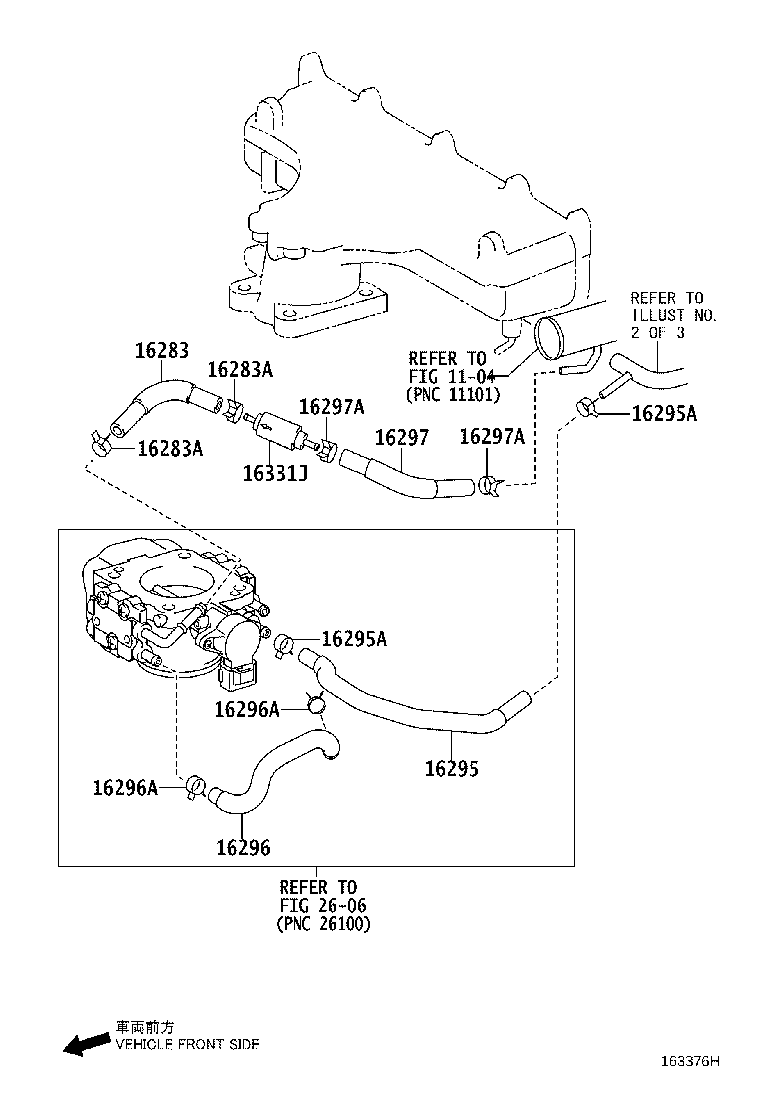

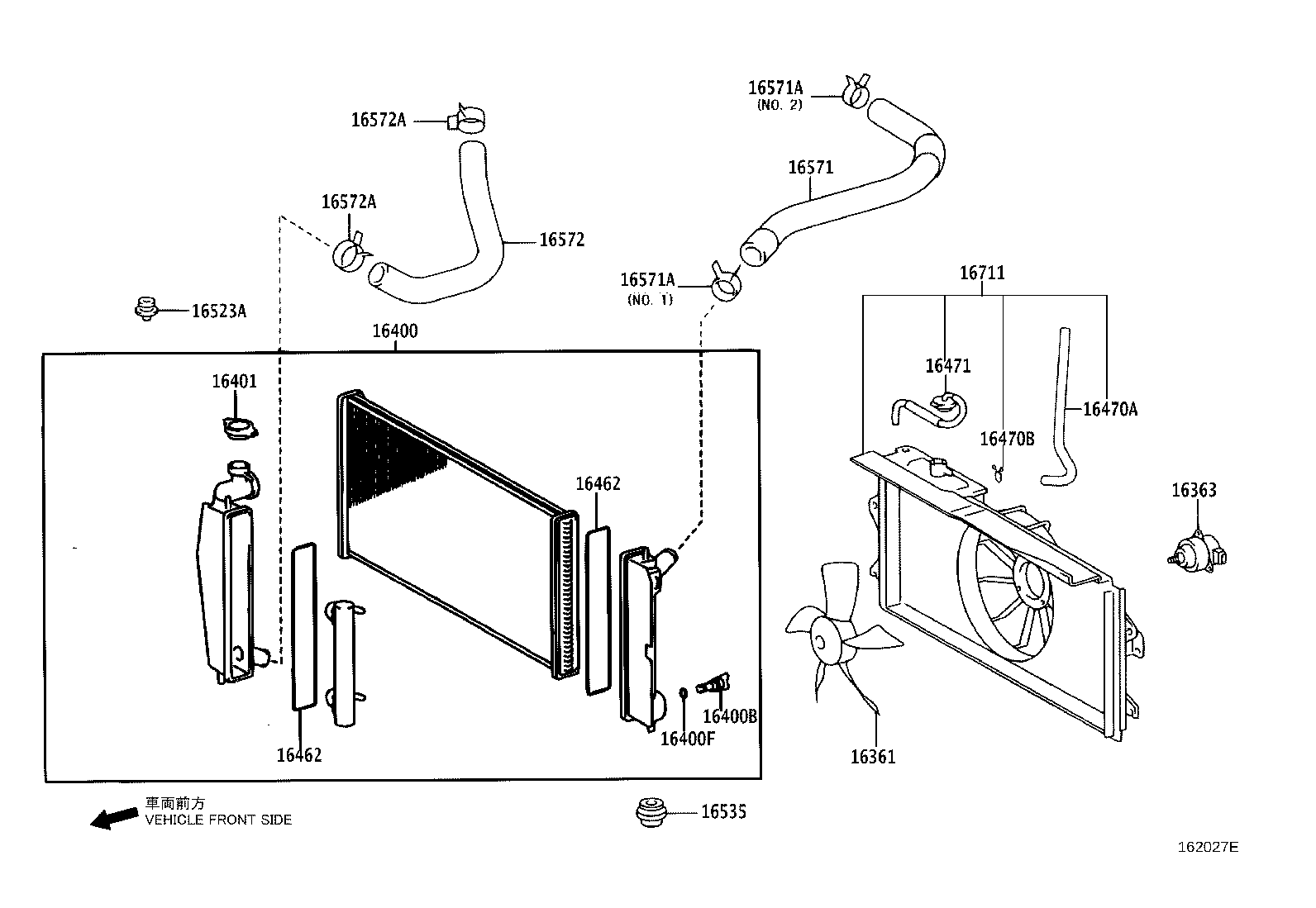

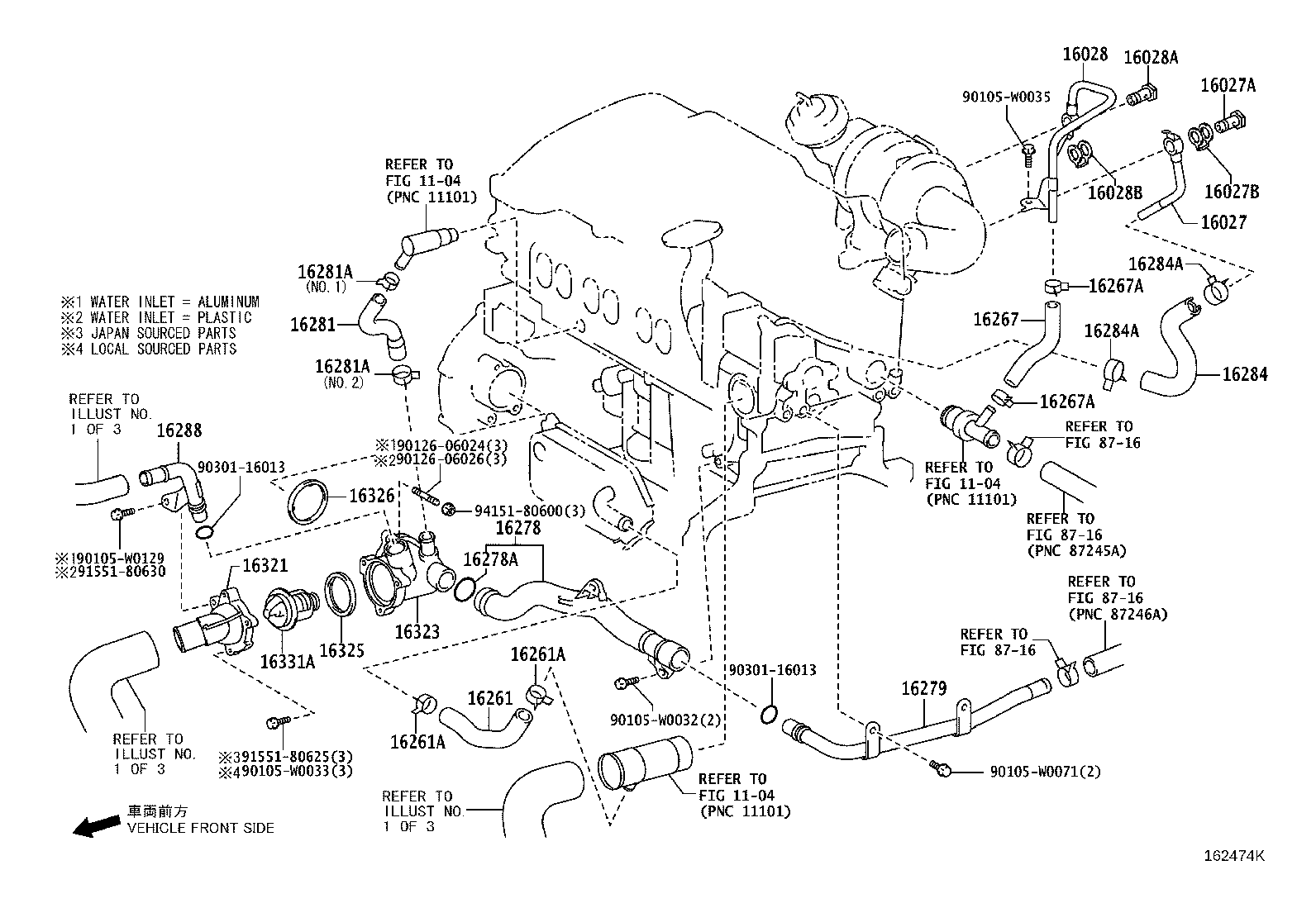

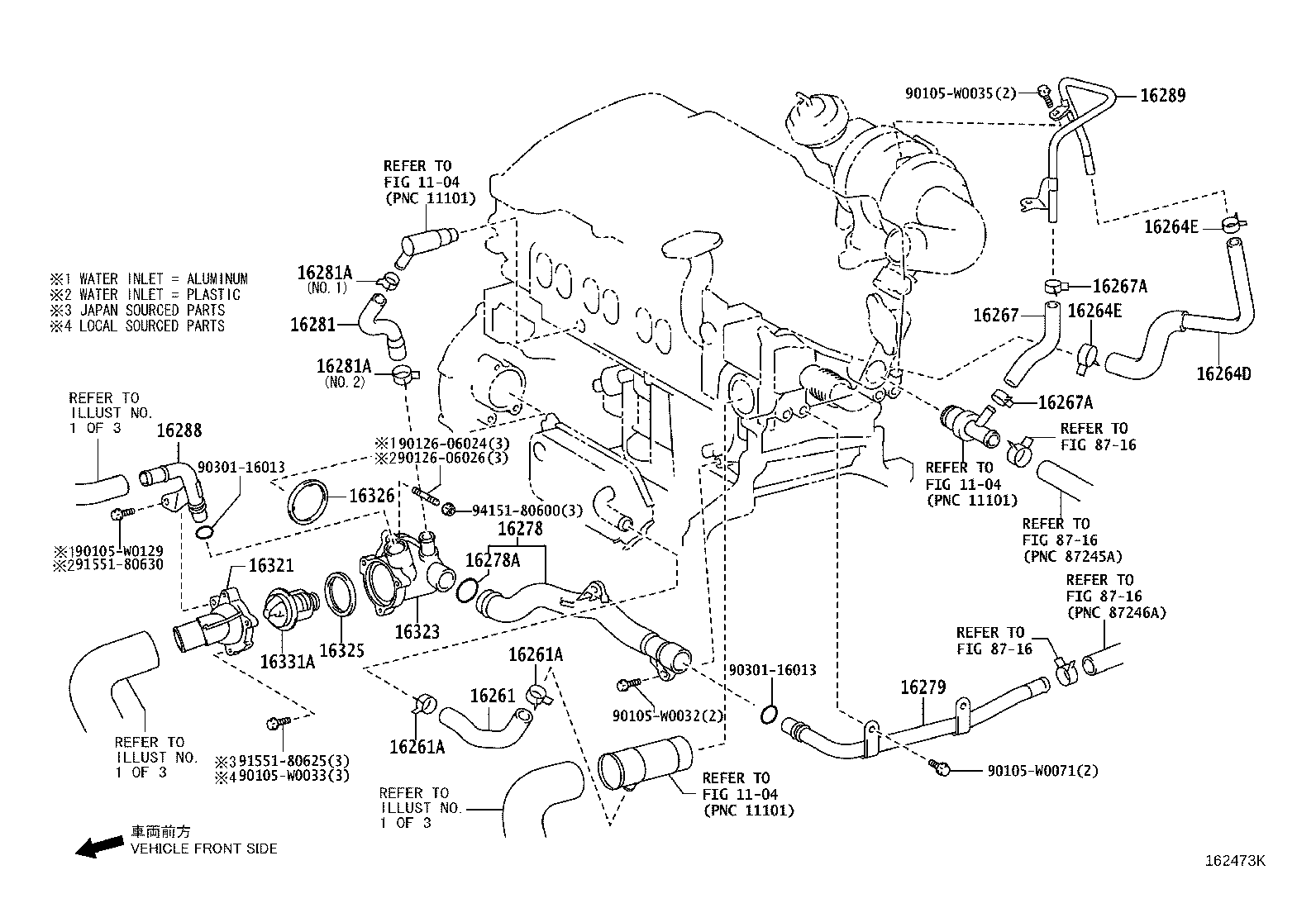

Figure 162472I 162472I 2005-08 → 2006-04 Figure 162712H 162712H 2006-04 → — Figure 162474K 162474K 2005-08 → 2008-02 Figure 162473K 162473K 2005-08 → 2008-02 Figure 163375G 163375G 2008-02 → — Figure 163385G 163385G 2008-02 → — Figure 163376H 163376H 2008-02 → — Figure 162021L 162021L 2004-02 → 2005-08 Figure 163523A 163523A 2004-02 → 2005-08 Figure 162027E 162027E 2004-02 → — Figure 162028C 162028C 2004-02 → —

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16027A Bolt, Union(FOR TURBO WATER PIPE)
16027B Gasket(FOR TURBO WATER PIPE)
16028 Pipe Sub-assy, Turbo Water, NO.2
16028A Bolt, Union(FOR TURBO WATER PIPE NO.2)
16028B Gasket(FOR TURBO WATER PIPE NO.2)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267C Hose, Water By-pass, NO.4
16268 Pipe, Water By-pass, NO.1
16268C Union, Water By-pass Pipe
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16278A Gasket, Water By-pass
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16304 Outlet Sub-assy, Water
16321 Inlet, Water
16323 Housing, Water Inlet
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16331A Thermostat
16331J Thermostat, Manifold
16341 Gasket, Water Outlet
16360A Fan Assy, W/Motor
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401 Cap Sub-assy, Radiator
16442 Ring, O(FOR RADIATOR UPPER TANK)
16462 Ring, O(FOR RADIATOR LOWER TANK)
16470 Tank Assy, Radiator Reserve
16470A Hose OR Pipe(FOR RADIATOR RESERVE TANK)
16470B Clamp OR Clip(FOR RADIATOR RESERVE TANK HOSE)
16471 Cap Sub-assy, Reserve Tank
16472 Hose, Breather
16482 Tank Sub-assy, Radiator Reserve
16523A Cushion, Radiator Support
16535 Support, Radiator, Lower
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16701 Shroud Sub-assy, Fan
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
