Toyota Corolla Verso
2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe
Supported model
Data version 2009-07

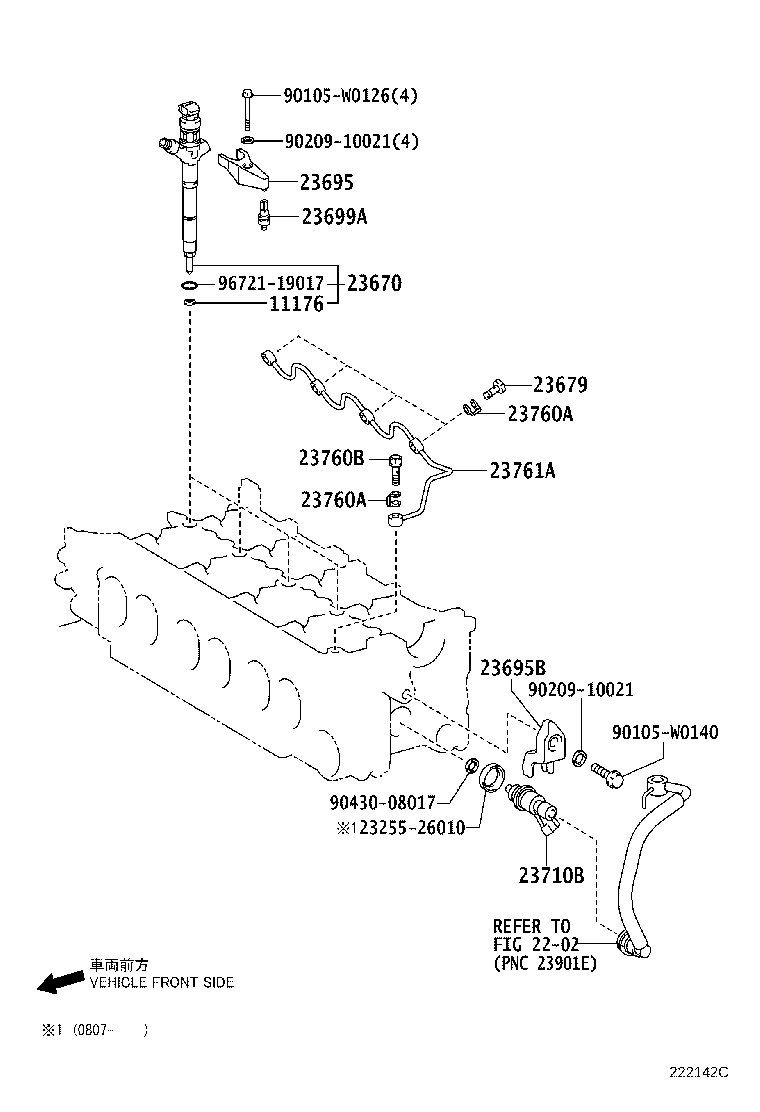

Injection Nozzle
12 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11176 | Seat, Injection Nozzle |
| 23256B | Ring, Fuel Injector Back-up, NO.1 |
| 23670 | Injector Assy |
| 23679 | Screw, Injector Follow |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23695B | Clamp, Nozzle Holder, NO.2 |
| 23699A | Seat, Nozzle Holder Clamp |
| 23710B | Injector Assy, Exhaust Fuel Addition |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23760A | Gasket |
| 23760B | Bolt, Union(FOR NOZZLE LEAKAGE PIPE) |
| 23761A | Pipe, Nozzle Leakage, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
