Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Filter

11 part groups · 2 illustrations

Illustrations

Figure 230384C

230384C 2005-08 → —

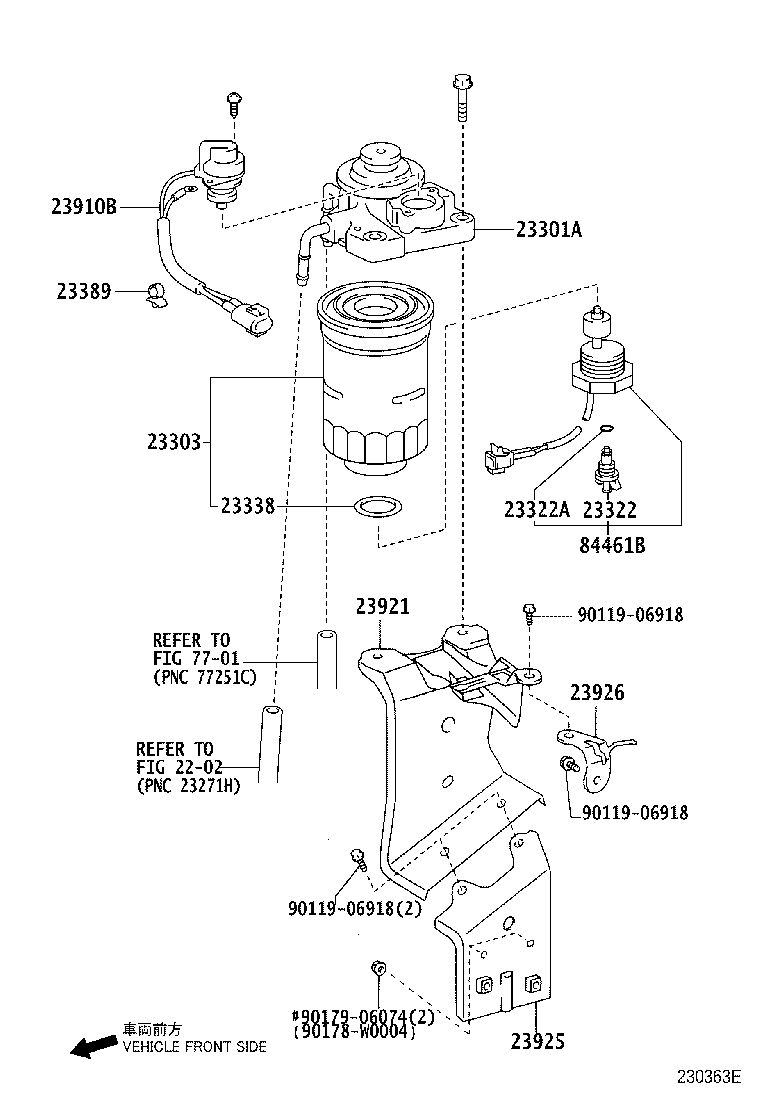

Figure 230363E

230363E 2004-02 → —

Part groups

PNC	Description
23301A	Cap Assy, Fuel Filter
23303	Element Sub-assy, Fuel Filter
23322	Plug, Drain(FOR FUEL FILTER)
23322A	Ring, O(FOR DRAIN PLUG)
23338	Gasket(FOR WARNING SWITCH)
23389	Clamp, Fuel Filter
23910B	Heater Assy, Fuel
23921	Support, Fuel Filter
23925	Stay, Fuel Filter Support
23926	Stay, Fuel Filter Support, NO.2
84461B	Switch, Level Warning

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
