Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Gas Recirculation System

12 part groups · 4 illustrations

Illustrations

Figure 250279F

250279F 2005-08 → —

Figure 250279F

250279F 2007-05 → —

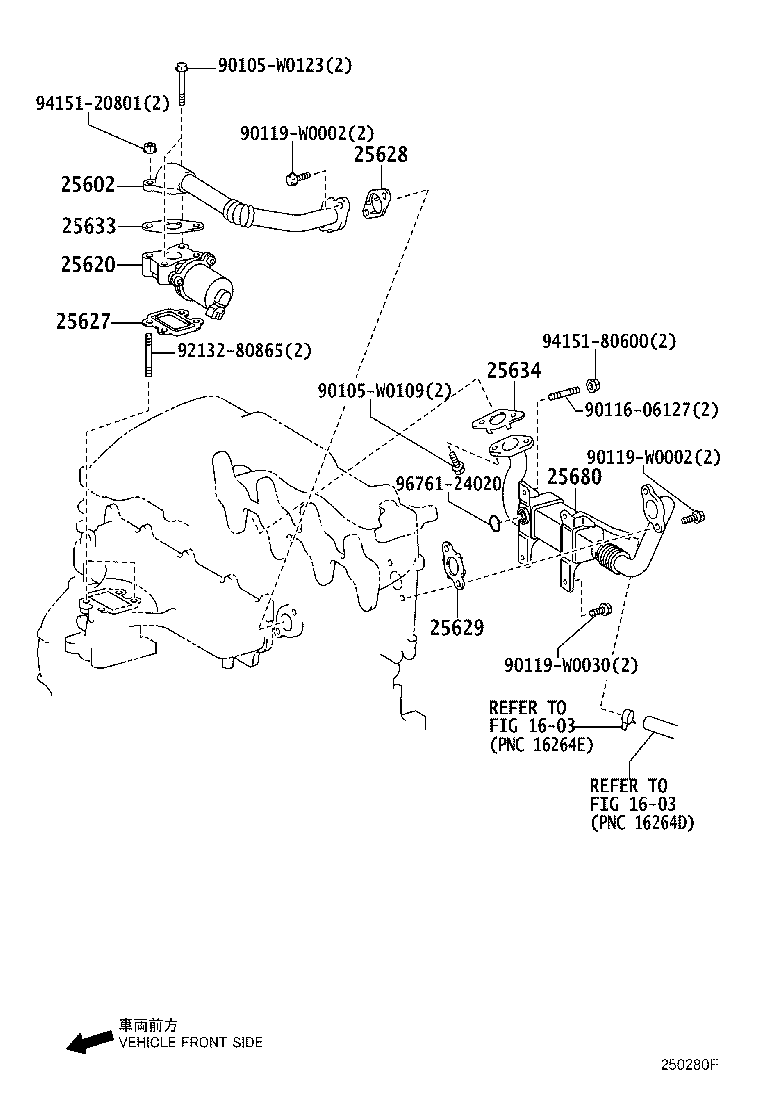

Figure 250280F

250280F 2005-08 → —

Figure 250143B

250143B 2004-02 → —

Part groups

PNC	Description
25601	Pipe Sub-assy, Egr, NO.1
25602	Pipe Sub-assy, Egr, NO.2
25620	Valve Assy, Egr
25627	Gasket, Egr Valve
25628	Gasket, Egr Inlet
25629	Gasket, Egr Valve Adapter
25630	Valve Assy, Egr, NO.2
25633	Gasket, Egr Valve
25634	Gasket, Egr Pipe
25680	Cooler Assy, Egr
25685	Gasket, Egr Cooler, NO.1
25686	Gasket, Egr Cooler, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
