Toyota Corolla Verso

2004-02 → 2009-02 · chassis AUR10,CUR10,ZNR1# · catalogue 157230 · Europe

Supported model Data version 2009-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Venturi

2 part groups · 2 illustrations

Illustrations

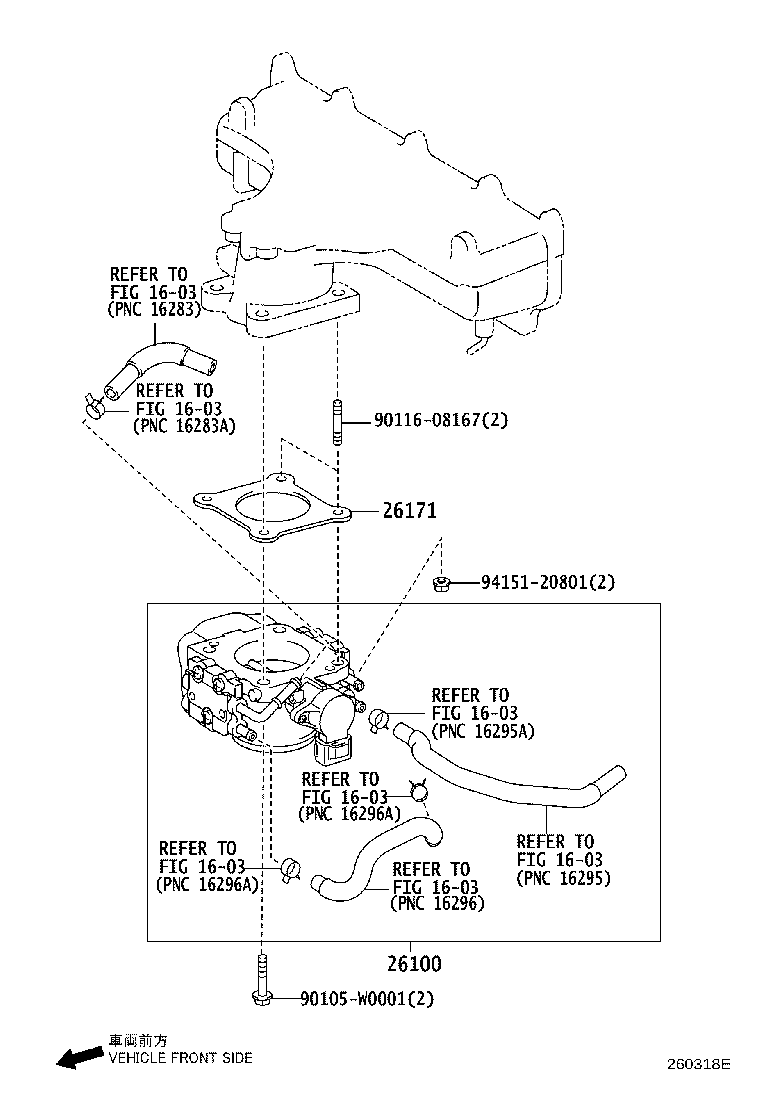

Figure 260275B 260275B 2005-08 → 2008-02 Figure 260318E 260318E 2008-02 → —

Part groups

PNCDescription
26100 Venturi Assy
26171 Gasket, Venturi
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
